Evoc
Evoc V3601B (V360WNNQ) gaming laptop 16" QHD+ 300Hz Ultra 9-290HX Plus RTX 5060 32 GB DDR5 2
16" QHD+ 300Hz display driven by a 24-core Ultra 9-290HX Plus and RTX 5060 with 32 GB DDR5 and 2 TB NVMe storage
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 9-290HX Plus
- Screen16" QHD+
- Memory32GB
- Storage2 TB M.2 PCIe 4.0 x4 NVMe SSD
- QHD+ 300 Hz display renders crisp motion in fast games
- 24-core Ultra 9-290HX Plus reaches 5.5 GHz for heavy workloads
- RTX 5060 with 8 GB GDDR7 drives modern graphics performance
- 32 GB DDR5 5600 MHz dual-channel memory handles multitasking smoothly
- 2 TB PCIe 4.0 NVMe SSD loads games and apps quickly

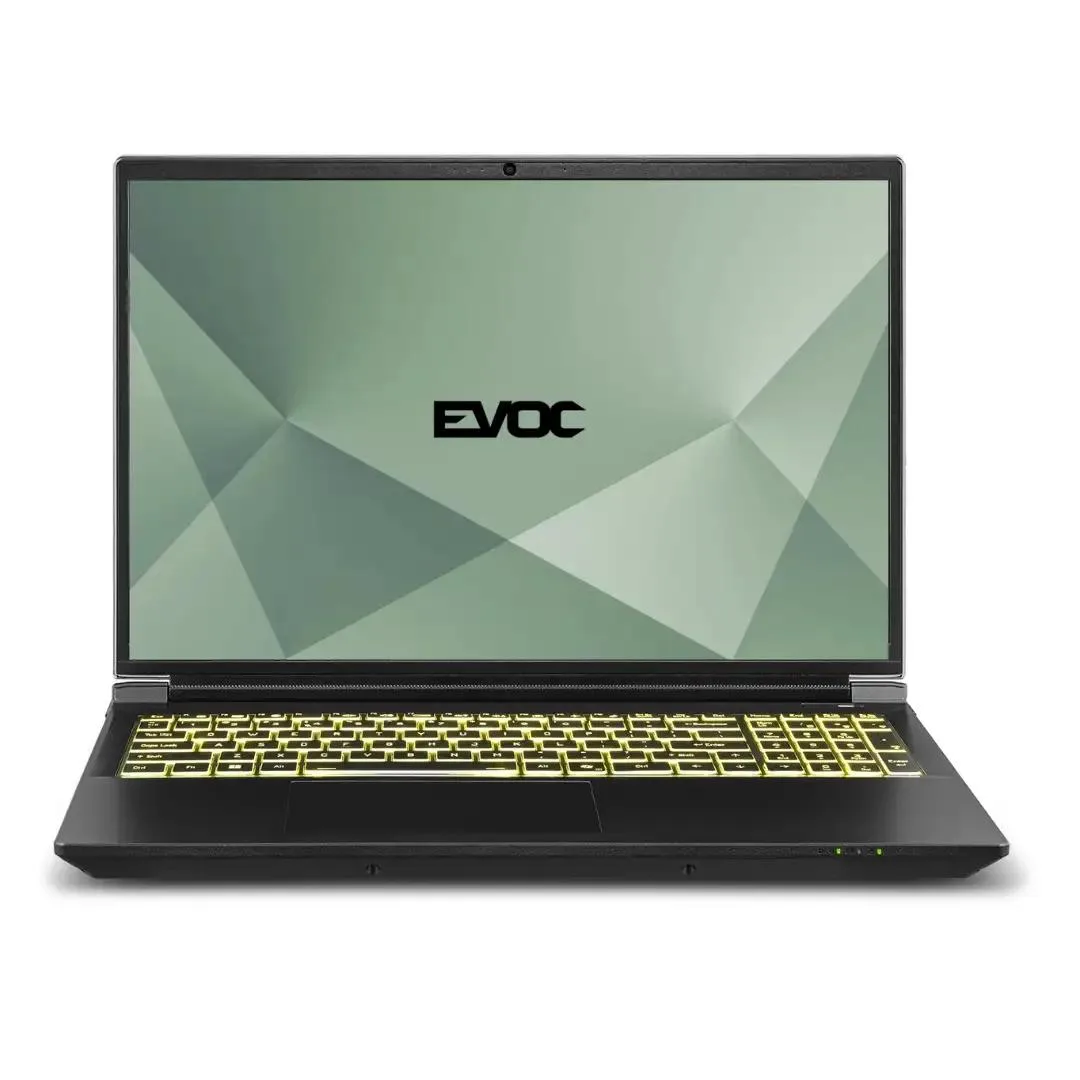

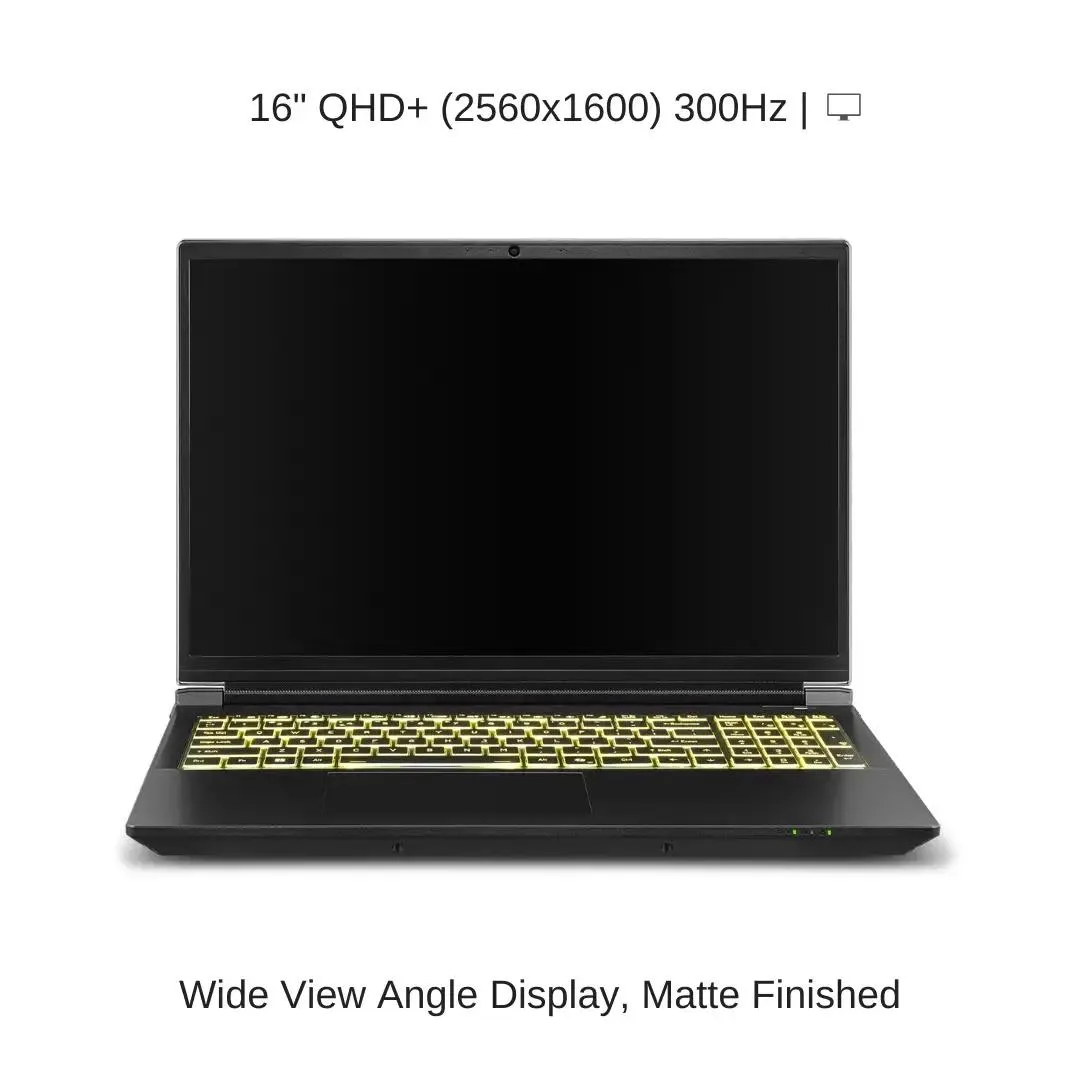

16" QHD+ 300Hz Display
The 16 inch QHD+ panel runs at 300 Hz and shows 2560 by 1600 pixels. High refresh rate and sharp resolution suit competitive gaming and detailed creative work. The fast screen keeps motion clear during rapid camera movement.
Intel Core Ultra 9 290HX Plus with RTX 5060
The 24 core Arrow Lake processor reaches 5.5 GHz max turbo and pairs with an RTX 5060 carrying 8 GB GDDR7. This combination handles modern titles at high settings and supports heavy multitasking. Buyers needing more GPU memory or a higher tier GPU should consider other configurations.
32 GB DDR5 5600 MHz Dual Channel Memory
The system ships with 32 GB of DDR5 5600 MHz memory in a 2 x 16 GB dual channel layout. This capacity and speed feed the 24 core CPU and RTX 5060 without bottleneck in most scenarios. Users running large virtual machines or extreme memory workloads may require more RAM.
Highlights
- QHD+ 300 Hz display renders crisp motion in fast games
- 24-core Ultra 9-290HX Plus reaches 5.5 GHz for heavy workloads
- RTX 5060 with 8 GB GDDR7 drives modern graphics performance
- 32 GB DDR5 5600 MHz dual-channel memory handles multitasking smoothly
- 2 TB PCIe 4.0 NVMe SSD loads games and apps quickly
Specifications
| Brand | EVOC |
|---|---|
| Series | V360WNNQ |
| Model | EVOC V3601B (V360WNNQ) |
| Part Number | EV-V3601B-HID8 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 9-290HX Plus |
| Screen | 16" QHD+ |
| Memory | 32GB |
| Storage | 2 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5060 |
| Video Memory | 8GB |
| Dimensions (W x D x H) | 14.21" (w) x 10.20" (d) x 1" ~ 1.22" (h) |
| Weight | 5.53 lbs. |
| Other Features | FlexiCharger, Intel DTT (Dynamic Tuning Technology) |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Processor Name | Intel Core Ultra 9 290HX Plus |
| Number of Cores | 24-core Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | Max Turbo Frequency 5.5 GHz |
| CPU L3 Cache | 36 MB |
| Chipset | Intel® |
| Screen Size | 16.0" |
| Touchscreen | No |
| Display Type | QHD+ |
| Resolution | 2560 x 1600 |
| Panel | QHD+ |
| Refresh Rate | 300Hz |
| Display Features | Wide View Angle Display, Matte Finished |
| GPU/VPU | GeForce RTX 5060 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 2 TB |
| HDD | No |
| Storage Spec | 2 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 16 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 2 |
| Memory Slot (Available) | 0 |
| Max Memory Supported | 128GB |
| LAN | Built-in Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE200 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 1x DisplayPort 2.1 over USB 3.2 Gen 2 port (Type C), 1x DisplayPort 2.1 over USB 3.2 Gen 2 port (Type C) with Power Delivery DC-in, 1x USB 3.2 Gen 2 Port (Type A), 1x USB 3.2 Gen 1 Port (Type A) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High-Definition audio interface, Sound Blaster Studio+ |
| Speaker | Built-in two speakers |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages, Single Zone Multi-Color illuminated full size keyboard with numeric pad |
| Webcam | Built-in 2.0M FHD Video Camera with TNR |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 230W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 11.5A |
| Battery | Embedded 4 cells Polymer battery pack 73WH |
Questions about this item
Will the 16 inch QHD+ 300Hz display fit my existing 16 inch laptop sleeve?
The chassis measures 14.21 inches wide by 10.20 inches deep and 1 to 1.22 inches high so compare those dimensions with your sleeve interior before buying.
Can I add a second NVMe drive later without removing the factory 2 TB stick?
The spec sheet lists only the single 2 TB M.2 PCIe 4.0 x4 NVMe SSD; it does not confirm a second M.2 slot so you would need to check the service manual or contact the builder.
Does the 32 GB DDR5 5600 memory run at its rated speed out of the box?
The builder notes speeds are subject to system capability; the memory is installed as 2 x 16 GB dual channel but the final operating frequency depends on the platform configuration.
