Evoc
Evoc V5604A gaming laptop 16" QHD+ 300Hz Ryzen AI 7 450 RTX 5060 128GB DDR5 2TB
Sixteen-inch QHD+ 300 Hz display driven by an 8-core Ryzen AI 7 450 and RTX 5060 with 128 GB DDR5 and 2 TB NVMe storage
- ColorSilver
- Operating SystemWindows 11 Pro
- CPUAMD Ryzen™ Al 7 450
- Screen16" QHD+
- Memory128GB
- Storage2 TB M.2 PCIe 4.0 x4 NVMe SSD
- 16" QHD+ 300Hz display for smooth competitive visuals
- Ryzen AI 7 450 8-core up to 5.1 GHz for responsive multitasking
- RTX 5060 with 8 GB GDDR7 for modern gaming performance
- 128 GB DDR5 5600 dual-channel memory for heavy workloads
- 2 TB PCIe 4.0 NVMe SSD for fast boot and load times
Purpose-built gaming laptop

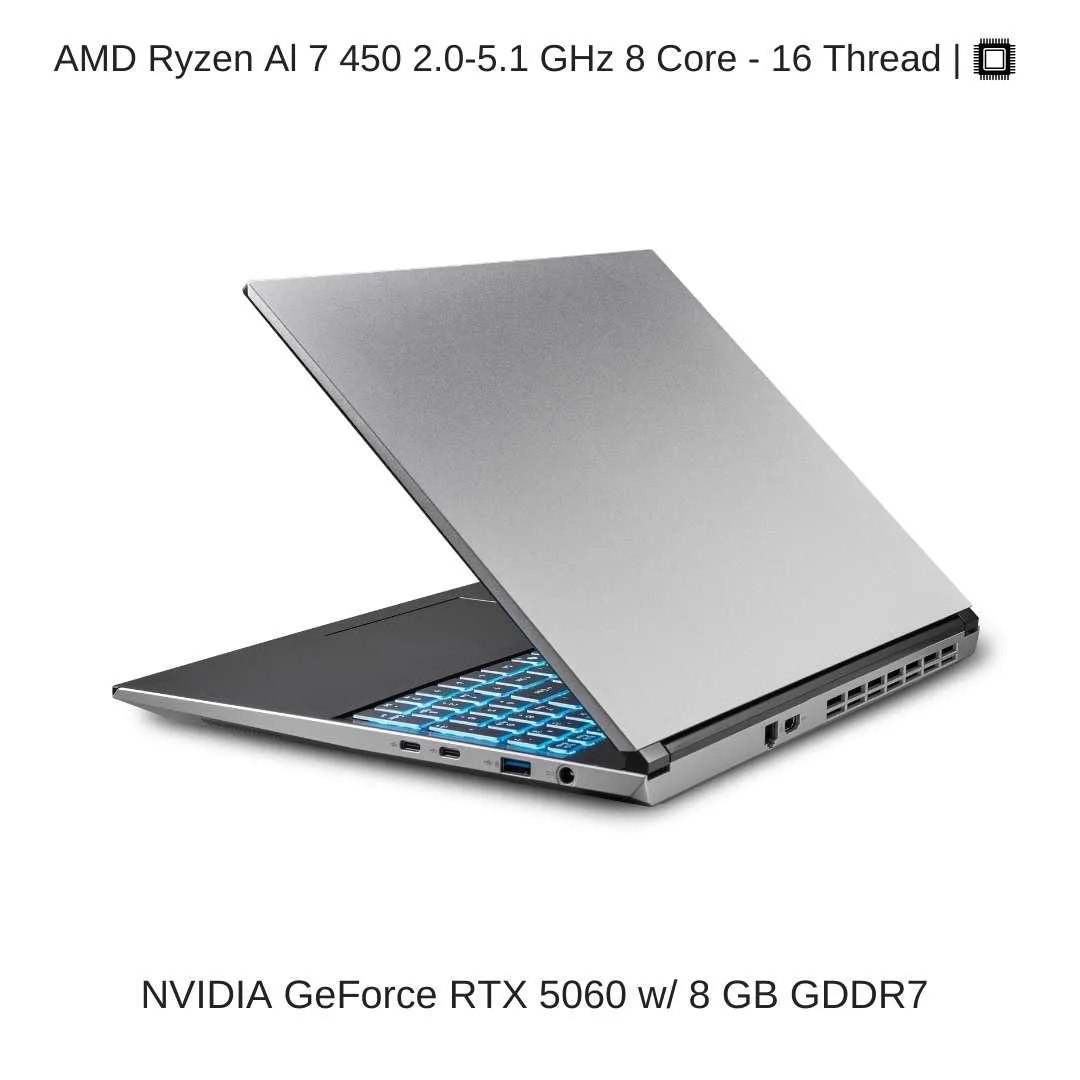

The Evoc V5604A is a 16-inch gaming laptop configured for high-frame-rate play and heavy multitasking. It pairs an AMD Ryzen AI 7 450 processor with an NVIDIA GeForce RTX 5060 GPU and 128 GB of DDR5 memory. The 2 TB PCIe 4.0 x4 NVMe SSD provides fast storage for large game libraries and project files.
QHD+ 300 Hz display limits
The 16-inch panel runs at 2560 x 1600 resolution with a 300 Hz refresh rate. This combination demands sustained GPU throughput to keep motion clear at native resolution. The RTX 5060 with 8 GB GDDR7 video memory sets the practical ceiling for detail settings in modern titles at this refresh rate.
128 GB DDR5 5600 MHz memory
The system ships with 128 GB (2 x 64 GB) of DDR5 5600 MHz dual-channel RAM installed. This capacity decides whether the laptop can hold large datasets, virtual machines or heavily modded games without paging. Speeds are subject to system capability.
Highlights
- 16" QHD+ 300Hz display for smooth competitive visuals
- Ryzen AI 7 450 8-core up to 5.1 GHz for responsive multitasking
- RTX 5060 with 8 GB GDDR7 for modern gaming performance
- 128 GB DDR5 5600 dual-channel memory for heavy workloads
- 2 TB PCIe 4.0 NVMe SSD for fast boot and load times
Specifications
| Brand | EVOC |
|---|---|
| Series | V560GNN |
| Model | EVOC V5604A (V560GNN) |
| Part Number | EV-V5604A-HID22 |
| Color | Silver |
| Operating System | Windows 11 Pro |
| CPU | AMD Ryzen™ Al 7 450 |
| Screen | 16" QHD+ |
| Memory | 128GB |
| Storage | 2 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5060 |
| Video Memory | 8GB |
| Dimensions (W x D x H) | 14.10” (w) x 10.18” (d) x 0.78” (h) |
| Weight | 4.63 lbs. |
| Other Features | Metal top and bottom case, FlexiCharger, MIL-STD 810H |
| CPU Type | AMD Ryzen AI 400 Series |
| Processor Name | AMD Ryzen AI 7 450 |
| Number of Cores | 8-core Processor |
| Turbo Frequency | Max Turbo Frequency 5.1 GHz |
| CPU L3 Cache | 24 MB |
| Screen Size | 16.0" |
| Touchscreen | No |
| Display Type | QHD+ |
| Resolution | 2560 x 1600 |
| Panel | QHD+ |
| Refresh Rate | 300Hz |
| Display Features | Wide View Angle, 72% NTSC Display, Matte Finished |
| GPU/VPU | GeForce RTX 5060 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 2 TB |
| HDD | No |
| Storage Spec | 2 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 64 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 2 |
| Memory Slot (Available) | 0 |
| Max Memory Supported | 128GB |
| LAN | Built-in Gigabit Ethernet LAN |
| WLAN | Intel Dual Band Wireless Wi-Fi 6E AX210 |
| WiFi Generation | Wi-Fi 6E |
| Bluetooth | Yes |
| USB | 1x USB 4 Gen3 Port with DisplayPort 2.1 and Power Delivery DC in (Type C), 1x USB 4 Gen3 Port with DisplayPort 2.1 (Type C), 1x USB 3.2 Gen2 Port (Type A) with Power USB Port, AC/DC, 1x USB 3.2 Gen1 Port (Type A) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High-Definition audio interface, Sound Blaster Studio+ |
| Speaker | Built-in two speakers |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages, Single Zone Multi-Color illuminated full size keyboard with numeric pad |
| Webcam | Built-in 2.0M FHD Video Camera with TNR |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 180W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 9A |
| Battery | Embedded 4 cells Polymer battery pack 80WH |
Questions about this item
Should I pick the 128 GB DDR5 5600 MHz configuration or a smaller kit?
The 128 GB kit ships as two 64 GB modules running dual-channel at 5600 MHz, giving maximum headroom for heavy multitasking and memory-hungry workloads.
What does the Ryzen AI 7 450 5.1 GHz turbo mean in daily use?

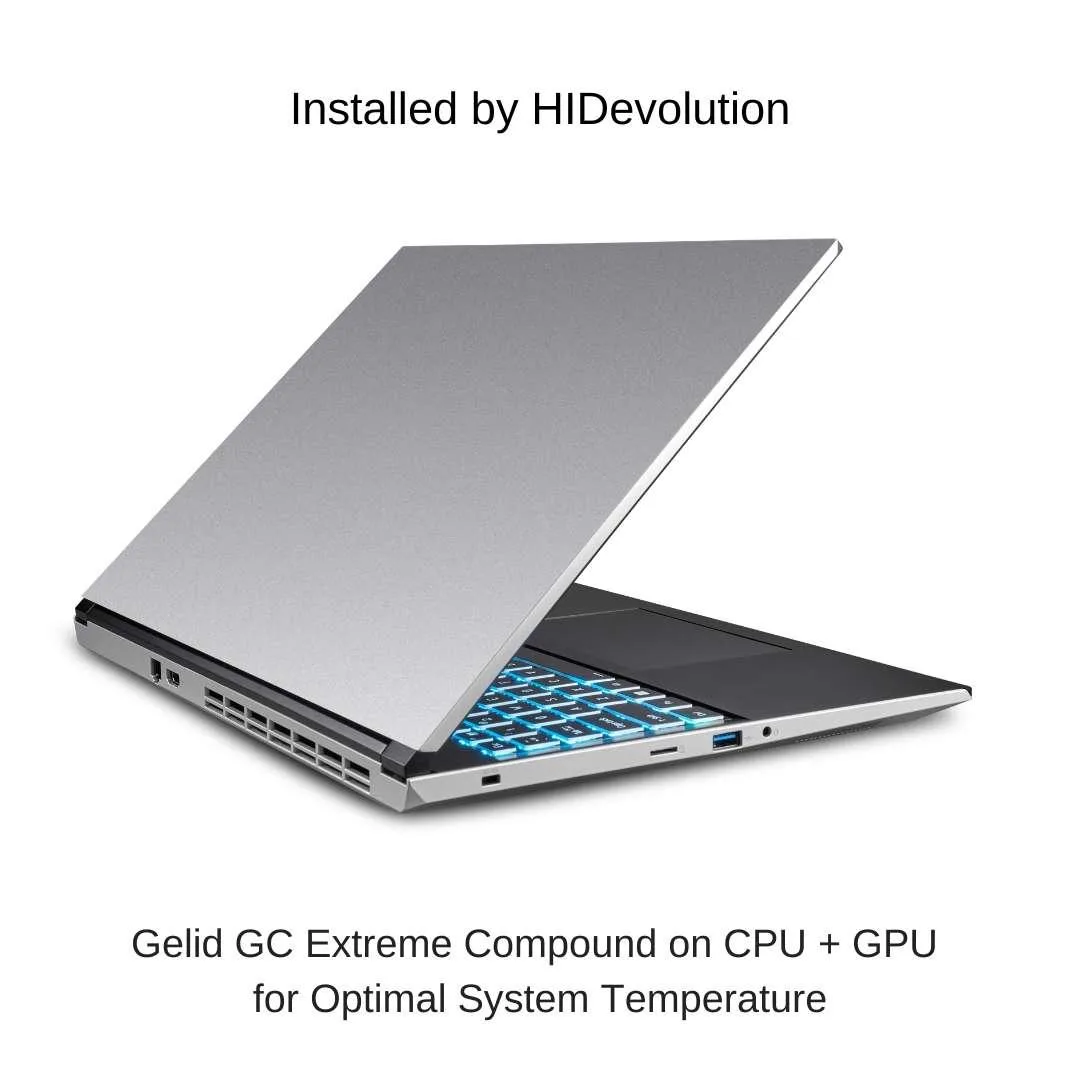

Eight cores and sixteen threads hit 5.1 GHz on short bursts, so single-thread tasks stay snappy while sustained multi-core loads hold higher clocks thanks to the Gelid GC Extreme paste.
How fast is the PCIe 4.0 x4 NVMe link for the 2 TB drive?
The M.2 slot runs at PCIe 4.0 x4, so the 2 TB SSD delivers full-gen sequential throughput for rapid boots and game-level loading.
