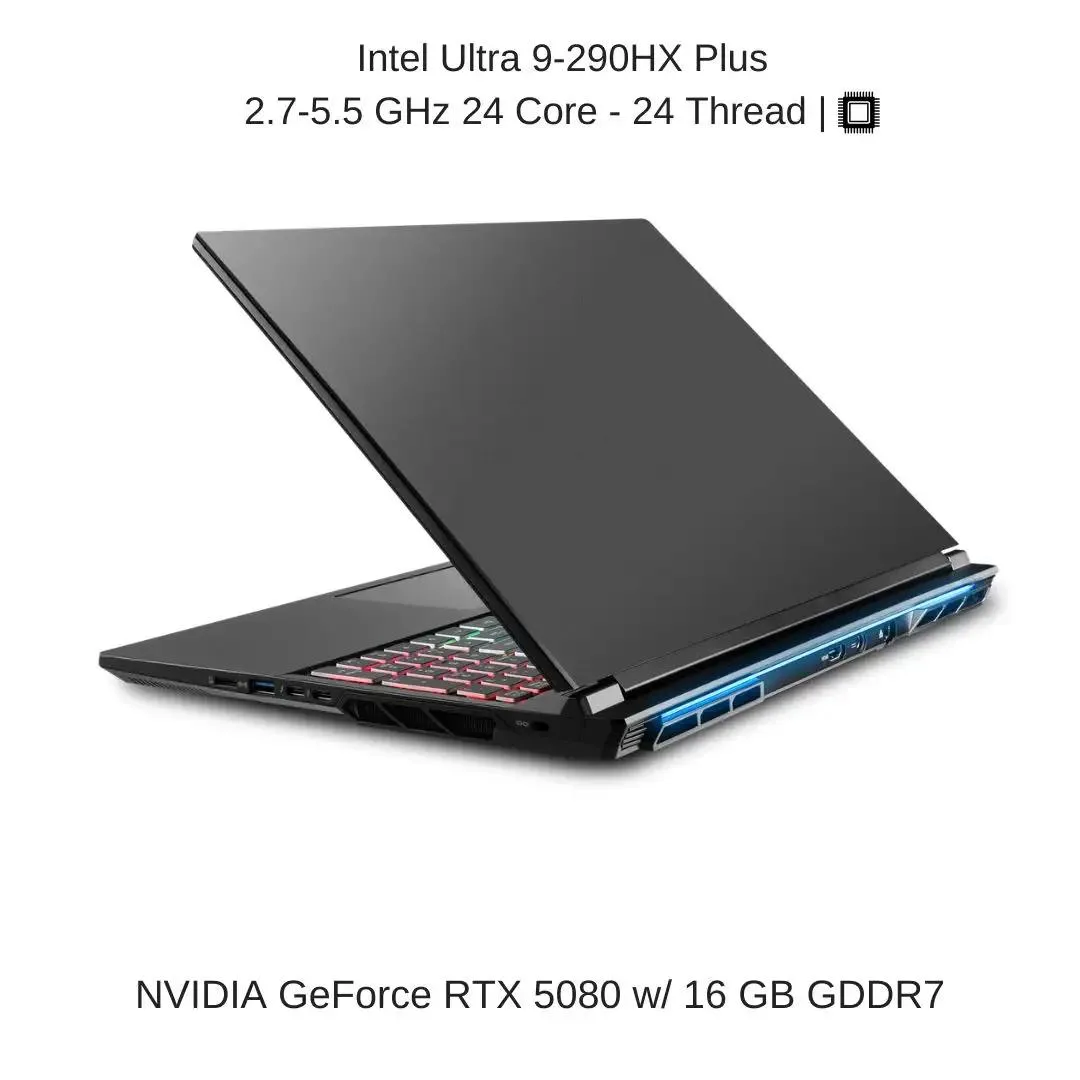

Evoc X5802A gaming laptop 18" QHD+ 240Hz Ultra 9-290HX Plus RTX 5080 96GB DDR5 16TB NVMe
An 18-inch QHD+ 240Hz gaming laptop with a 24-core Intel Core Ultra 9 290HX Plus, RTX 5080 16GB GDDR7, 96GB DDR5 and 16TB NVMe storage
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 9-290HX Plus
- Screen18" QHD+
- Memory96GB
- Storage16 TB M.2 PCIe 4.0 x4 NVMe SSD
- Intel Core Ultra 9 290HX Plus 24-core CPU reaches 5.5 GHz max turbo for heavy workloads
- 18-inch QHD+ 240 Hz panel delivers 2560 x 1600 resolution for smooth competitive play
- NVIDIA RTX 5080 with 16 GB GDDR7 drives high frame rates in modern titles
- 96 GB DDR5 5600 MHz memory in dual-channel configuration handles multitasking and large datasets
- 16 TB PCIe 4.0 NVMe storage via two 8 TB drives provides vast capacity and fast load times
18-inch QHD+ 240Hz gaming laptop
The Evoc X5802A pairs an 18-inch QHD+ panel running at 240Hz with an Intel Core Ultra 9-290HX Plus 24-core processor and NVIDIA GeForce RTX 5080 graphics. It ships with 96GB of DDR5 memory and 16TB of PCIe 4.0 NVMe storage across two drives. Windows 11 Pro is pre-installed.
RTX 5080 with 16GB GDDR7 video memory
The single specification that decides suitability is the NVIDIA GeForce RTX 5080 GPU equipped with 16GB of GDDR7 video memory. This determines the laptop's ability to handle modern titles at the native 2560x1600 resolution and high refresh rate. Buyers should verify this GPU meets their performance targets before purchasing.
Factory-upgraded thermal paste and storage
HIDevolution applies Gelid GC Extreme thermal interface material on the CPU and GPU during assembly, which is already completed before shipment. The 16TB NVMe array is installed as a matched pair of 8TB drives in a RAID-0 configuration. No end-user installation is required; the system arrives fully assembled and stress-tested.
Highlights
- Intel Core Ultra 9 290HX Plus 24-core CPU reaches 5.5 GHz max turbo for heavy workloads
- 18-inch QHD+ 240 Hz panel delivers 2560 x 1600 resolution for smooth competitive play
- NVIDIA RTX 5080 with 16 GB GDDR7 drives high frame rates in modern titles
- 96 GB DDR5 5600 MHz memory in dual-channel configuration handles multitasking and large datasets
- 16 TB PCIe 4.0 NVMe storage via two 8 TB drives provides vast capacity and fast load times
Specifications
| Brand | EVOC |
|---|---|
| Series | X580WNS-G |
| Model | EVOC X5802A (X580WNS-G) |
| Part Number | EV-X5802A-HID26 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 9-290HX Plus |
| Screen | 18" QHD+ |
| Memory | 96GB |
| Storage | 16 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5080 |
| Video Memory | 16GB |
| Dimensions (W x D x H) | 15.59” (w) x 10.95” (d) x 0.98” (h) |
| Weight | 7.25 lbs. |
| Other Features | Metal top, palm rest and bottom case, Light module, FlexiCharger, Intel Dynamic Tuning Technology |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Processor Name | Intel Core Ultra 9 290HX Plus |
| Number of Cores | 24-core Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | Max Turbo Frequency 5.5 GHz |
| CPU L3 Cache | 36 MB |
| Chipset | Intel® |
| Screen Size | 18.0" |
| Touchscreen | No |
| Display Type | QHD+ |
| Resolution | 2560 x 1600 |
| Panel | QHD+ |
| Refresh Rate | 240Hz |
| Display Features | Wide View Angle, G-Sync Display, Matte Finished |
| GPU/VPU | GeForce RTX 5080 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 16 TB |
| HDD | No |
| Storage Spec | 16 TB (2 x 8 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 48 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 4 |
| Memory Slot (Available) | 2 |
| Max Memory Supported | 256GB |
| LAN | Built-in Killer 2.5 Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE200 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 2x USB 3.2 Gen 2 Ports (Type A, with 1 x powered USB, AC/DC) |
| Thunderbolt | 1x Thunderbolt 5 combo Port with Power Delivery DC in (Type C), 1x Thunderbolt 5 Port (Type C) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High Definition audio interface |
| Speaker | Built-in two 1W Tweeter speakers, Built-in two 2W Mid-range speakers, Built-in one 4W Subwoofer speaker |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages LED Per Key full color illuminated full size isolated keyboard with numeric pad |
| Webcam | Built-in 5.0M Hello Camer with TNR (Temporal Noise Reduction) |
| Card Reader | Micro SD Push-Push Card reader |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 330W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 16.5A |
| Battery | Embedded 8 cells Polymer battery pack 98WH |
Questions about this item
What does the 5.5 GHz max turbo on the Ultra 9-290HX Plus mean for actual gaming performance?
The 24-core Arrow Lake processor can reach 5.5 GHz on single threads, giving high frame rates in CPU-bound titles while the 240 Hz panel shows every frame the RTX 5080 renders.
How does the PCIe 4.0 x4 interface limit the 16 TB NVMe storage in daily use?
Each 8 TB drive runs at PCIe 4.0 x4 speeds, so sequential reads top out around 7 GB/s — fast enough for game loads and large file transfers without saturating the bus.
Will the 15.59 by 10.95 by 0.98 inch chassis fit in a standard 18-inch laptop sleeve?
The 18-inch class dimensions and 7.25 lb weight match typical 18-inch sleeves, but check the sleeve's exact internal clearance before buying.
