Evoc

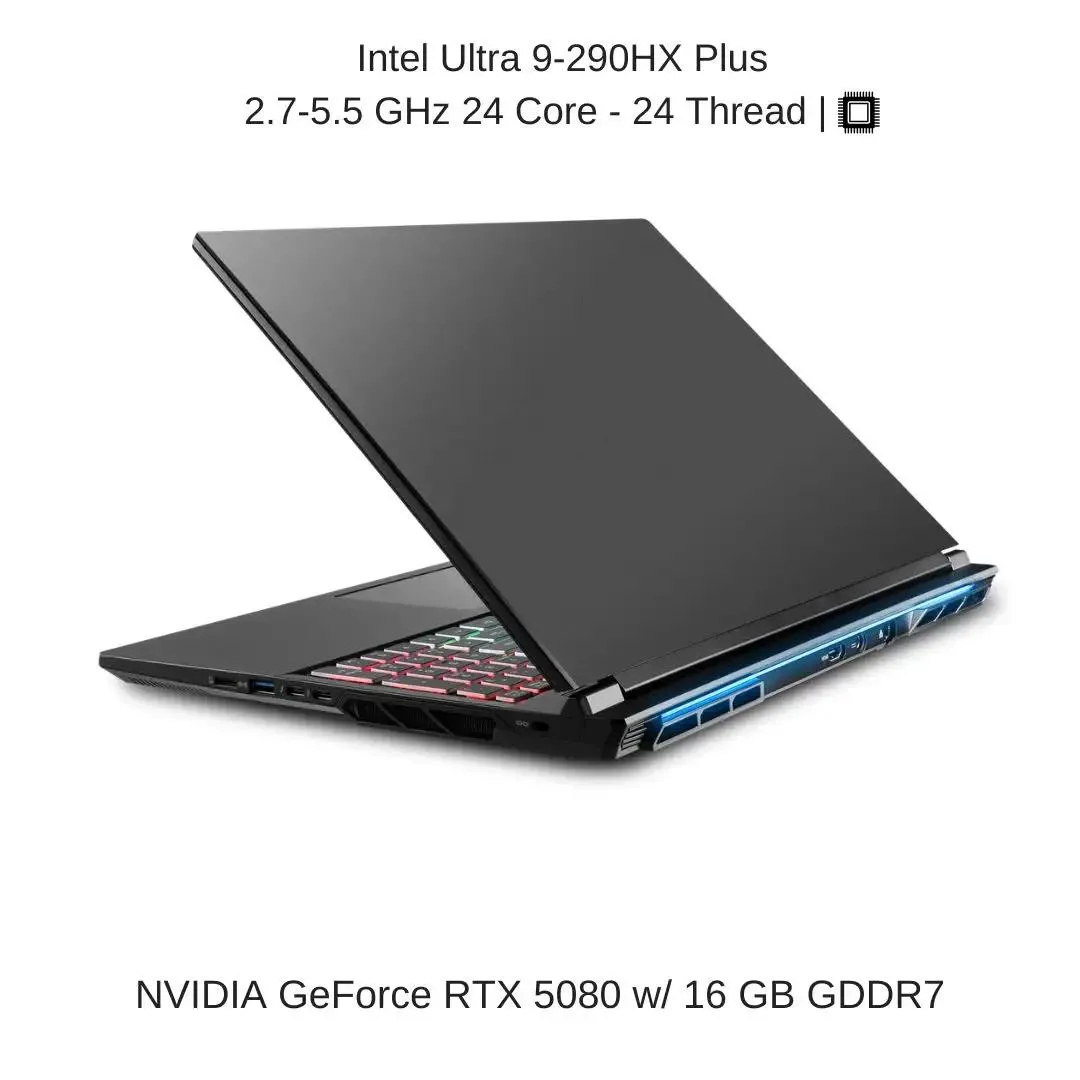

Evoc X5802A (X580WNS-G) 18" QHD+ 240Hz Ultra 9-290HX Plus RTX 5080 192GB 4TB gaming laptop
An 18-inch QHD+ 240Hz gaming laptop with an Intel Core Ultra 9-290HX Plus 24-core processor, NVIDIA RTX 5080 graphics, 192GB DDR5 memory and a 4TB PCIe 4.0 NVMe SSD
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 9-290HX Plus
- Screen18" QHD+
- Memory192GB
- Storage4 TB M.2 PCIe 4.0 x4 NVMe SSD
- 24-core Arrow Lake Ultra 9-290HX Plus reaches 5.5 GHz turbo for heavy workloads
- 18-inch QHD+ 240 Hz panel delivers smooth high-resolution visuals
- RTX 5080 with 16 GB GDDR7 drives demanding games and creative apps
- 192 GB DDR5 5600 MHz memory handles extreme multitasking without slowdown
- 4 TB PCIe 4.0 NVMe storage provides vast space and rapid load times
18" QHD+ 240Hz display for competitive gaming
The 18 inch panel delivers a 2560 by 1600 resolution at 240 Hz. This combination gives esports players and content creators sharp detail with fluid motion. The high refresh rate reduces motion blur in fast titles. The larger canvas also helps with multitasking workflows.
Gelid GC Extreme thermal interface on CPU and GPU
The builder applies Gelid GC Extreme compound to both the Core Ultra 9 290HX Plus and the RTX 5080. This upgrade lowers junction temperatures under sustained load. Cooler silicon allows the 24 core processor to hold higher boost clocks longer. Fan noise stays lower because the cooling system works less aggressively.
192 GB DDR5 5600 and 4 TB PCIe 4.0 storage installed
Four 48 GB modules provide 192 GB of dual channel memory at 5600 MHz. Two 2 TB NVMe drives give 4 TB of fast storage. The memory capacity handles large datasets and heavy multitasking. The storage array loads games and applications quickly.
Highlights
- 24-core Arrow Lake Ultra 9-290HX Plus reaches 5.5 GHz turbo for heavy workloads
- 18-inch QHD+ 240 Hz panel delivers smooth high-resolution visuals
- RTX 5080 with 16 GB GDDR7 drives demanding games and creative apps
- 192 GB DDR5 5600 MHz memory handles extreme multitasking without slowdown
- 4 TB PCIe 4.0 NVMe storage provides vast space and rapid load times
Specifications
| Brand | EVOC |
|---|---|
| Series | X580WNS-G |
| Model | EVOC X5802A (X580WNS-G) |
| Part Number | EV-X5802A-HID38 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 9-290HX Plus |
| Screen | 18" QHD+ |
| Memory | 192GB |
| Storage | 4 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5080 |
| Video Memory | 16GB |
| Dimensions (W x D x H) | 15.59” (w) x 10.95” (d) x 0.98” (h) |
| Weight | 7.25 lbs. |
| Other Features | Metal top, palm rest and bottom case, Light module, FlexiCharger, Intel Dynamic Tuning Technology |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Processor Name | Intel Core Ultra 9 290HX Plus |
| Number of Cores | 24-core Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | Max Turbo Frequency 5.5 GHz |
| CPU L3 Cache | 36 MB |
| Chipset | Intel® |
| Screen Size | 18.0" |
| Touchscreen | No |
| Display Type | QHD+ |
| Resolution | 2560 x 1600 |
| Panel | QHD+ |
| Refresh Rate | 240Hz |
| Display Features | Wide View Angle, G-Sync Display, Matte Finished |
| GPU/VPU | GeForce RTX 5080 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 4 TB |
| HDD | No |
| Storage Spec | 4 TB (2 x 2 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 48 GB x 4 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 4 |
| Memory Slot (Available) | 4 |
| Max Memory Supported | 256GB |
| LAN | Built-in Killer 2.5 Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE200 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 2x USB 3.2 Gen 2 Ports (Type A, with 1 x powered USB, AC/DC) |
| Thunderbolt | 1x Thunderbolt 5 combo Port with Power Delivery DC in (Type C), 1x Thunderbolt 5 Port (Type C) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High Definition audio interface |
| Speaker | Built-in two 1W Tweeter speakers, Built-in two 2W Mid-range speakers, Built-in one 4W Subwoofer speaker |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages LED Per Key full color illuminated full size isolated keyboard with numeric pad |
| Webcam | Built-in 5.0M Hello Camer with TNR (Temporal Noise Reduction) |
| Card Reader | Micro SD Push-Push Card reader |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 330W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 16.5A |
| Battery | Embedded 8 cells Polymer battery pack 98WH |
Questions about this item
How do I install the 4 x 48 GB DDR5 5600MHz modules and what step is often missed?
The 192 GB kit fills all four SODIMM slots; the step people miss is seating each stick until the side clips click audibly, otherwise the system will only see half the memory.
What maintenance will the Gelid GC Extreme thermal compound on the CPU and GPU need later?
The pre-applied Gelid GC Extreme is rated for multi-year stability; plan to re-paste once temperatures under sustained load rise more than a few degrees above your baseline.
At what point does the 240 Hz QHD+ panel become the limiting factor during extended gaming sessions?
When the RTX 5080 consistently pushes frame rates above 240 fps at 2560x1600, the panel’s refresh ceiling caps visible smoothness before the GPU reaches its own limit.
