Evoc

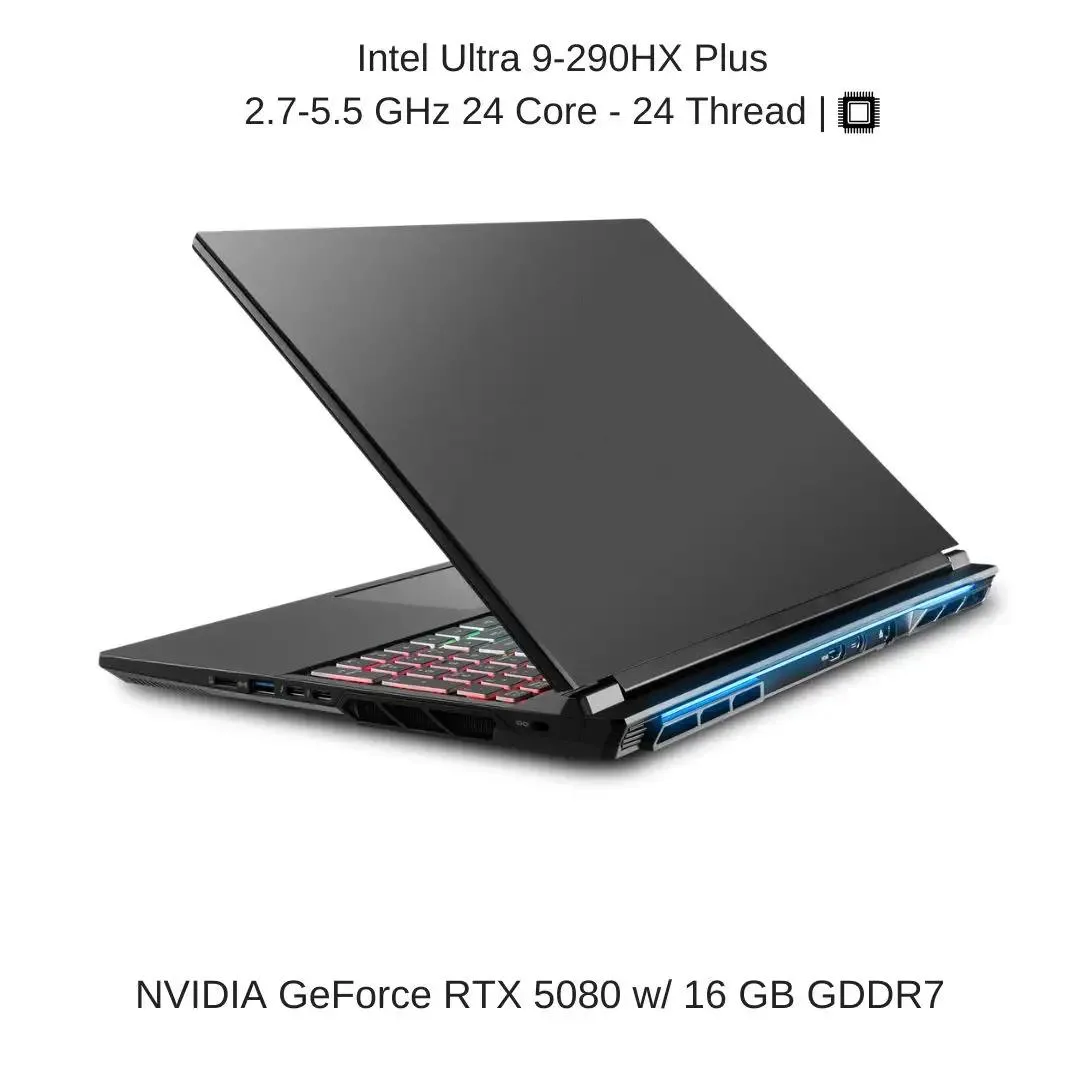

Evoc X5802A (X580WNS-G) gaming laptop 18" QHD+ 240Hz Ultra 9-290HX Plus 192 GB 1 TB
An 18-inch QHD+ 240Hz gaming laptop driven by a 24-core Ultra 9-290HX Plus at 2.7 GHz with RTX 5080 16 GB GDDR7, 192 GB DDR5 and a 1 TB NVMe SSD
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 9-290HX Plus
- Screen18" QHD+
- Memory192GB
- Storage1 TB M.2 PCIe 4.0 x4 NVMe SSD
- 18" QHD+ 240Hz display delivers smooth high-refresh visuals
- Intel Core Ultra 9 290HX Plus 24-core CPU reaches 5.5 GHz turbo for heavy workloads
- NVIDIA RTX 5080 with 16 GB GDDR7 powers demanding games and creative tasks
- 192 GB DDR5 5600 MHz memory handles large multitasking and memory-hungry applications
- 1 TB PCIe 4.0 x4 NVMe SSD provides fast boot and load times
18-inch 240 Hz QHD+ gaming laptop
The Evoc X5802A (X580WNS-G) is an 18-inch gaming laptop with a 2560 x 1600 resolution display running at 240 Hz. It is built around an Intel Core Ultra 9 290HX Plus processor with 24 cores and a maximum turbo frequency of 5.5 GHz. The system ships with Windows 11 Pro installed.
192 GB DDR5 5600 MHz memory configuration
This configuration suits users who need 192 GB of DDR5 memory across four 48 GB modules running at 5600 MHz for memory-intensive workloads and heavy multitasking. Buyers who require less memory or a different memory speed should consider other configurations.
RTX 5080 with 16 GB GDDR7 video memory
The NVIDIA GeForce RTX 5080 graphics card provides 16 GB of GDDR7 video memory. This specification determines whether the GPU meets the video memory requirement for the intended games or professional applications.
Highlights
- 18" QHD+ 240Hz display delivers smooth high-refresh visuals
- Intel Core Ultra 9 290HX Plus 24-core CPU reaches 5.5 GHz turbo for heavy workloads
- NVIDIA RTX 5080 with 16 GB GDDR7 powers demanding games and creative tasks
- 192 GB DDR5 5600 MHz memory handles large multitasking and memory-hungry applications
- 1 TB PCIe 4.0 x4 NVMe SSD provides fast boot and load times
Specifications
| Brand | EVOC |
|---|---|
| Series | X580WNS-G |
| Model | EVOC X5802A (X580WNS-G) |
| Part Number | EV-X5802A-HID36 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 9-290HX Plus |
| Screen | 18" QHD+ |
| Memory | 192GB |
| Storage | 1 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5080 |
| Video Memory | 16GB |
| Dimensions (W x D x H) | 15.59” (w) x 10.95” (d) x 0.98” (h) |
| Weight | 7.25 lbs. |
| Other Features | Metal top, palm rest and bottom case, Light module, FlexiCharger, Intel Dynamic Tuning Technology |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Processor Name | Intel Core Ultra 9 290HX Plus |
| Number of Cores | 24-core Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | Max Turbo Frequency 5.5 GHz |
| CPU L3 Cache | 36 MB |
| Chipset | Intel® |
| Screen Size | 18.0" |
| Touchscreen | No |
| Display Type | QHD+ |
| Resolution | 2560 x 1600 |
| Panel | QHD+ |
| Refresh Rate | 240Hz |
| Display Features | Wide View Angle, G-Sync Display, Matte Finished |
| GPU/VPU | GeForce RTX 5080 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 1 TB |
| HDD | No |
| Storage Spec | 1 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 48 GB x 4 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 4 |
| Memory Slot (Available) | 4 |
| Max Memory Supported | 256GB |
| LAN | Built-in Killer 2.5 Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE200 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 2x USB 3.2 Gen 2 Ports (Type A, with 1 x powered USB, AC/DC) |
| Thunderbolt | 1x Thunderbolt 5 combo Port with Power Delivery DC in (Type C), 1x Thunderbolt 5 Port (Type C) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High Definition audio interface |
| Speaker | Built-in two 1W Tweeter speakers, Built-in two 2W Mid-range speakers, Built-in one 4W Subwoofer speaker |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages LED Per Key full color illuminated full size isolated keyboard with numeric pad |
| Webcam | Built-in 5.0M Hello Camer with TNR (Temporal Noise Reduction) |
| Card Reader | Micro SD Push-Push Card reader |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 330W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 16.5A |
| Battery | Embedded 8 cells Polymer battery pack 98WH |
Questions about this item
Will the 18 inch laptop fit in a standard 15.59 inch wide laptop sleeve?
The chassis is 15.59 inches wide, so a sleeve with at least that internal width is required.
Does the 192 GB DDR5 5600MHz configuration use all four memory slots?
Yes, the 192 GB kit consists of four 48 GB modules filling every slot.
Can the 1 TB PCIe 4.0 x4 NVMe SSD be expanded with a second drive?
The specifications list only the single 1 TB drive; additional M.2 slots are not detailed.
