Evoc
Evoc X5802B 18" UHD+ 200Hz Ultra 9-290HX Plus RTX 5080 64 GB DDR5 16 TB NVMe gaming laptop
An 18 inch UHD+ 200 Hz display driven by a 24 core Ultra 9 290HX Plus at 5.5 GHz turbo, RTX 5080 graphics with 16 GB GDDR7, 64 GB DDR5 5600 MHz memory and 16 TB NVMe storage
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 9-290HX Plus
- Screen18" UHD+
- Memory64GB
- Storage16 TB M.2 PCIe 4.0 x4 NVMe SSD
- 18" UHD+ 200Hz display for sharp high-refresh visuals
- 24-core Ultra 9-290HX Plus up to 5.5 GHz for heavy compute
- RTX 5080 16 GB GDDR7 for demanding graphics workloads
- 64 GB DDR5 5600 MHz dual-channel memory for multitasking headroom
- 16 TB PCIe 4.0 NVMe storage for massive fast capacity
18" UHD+ 200Hz Display

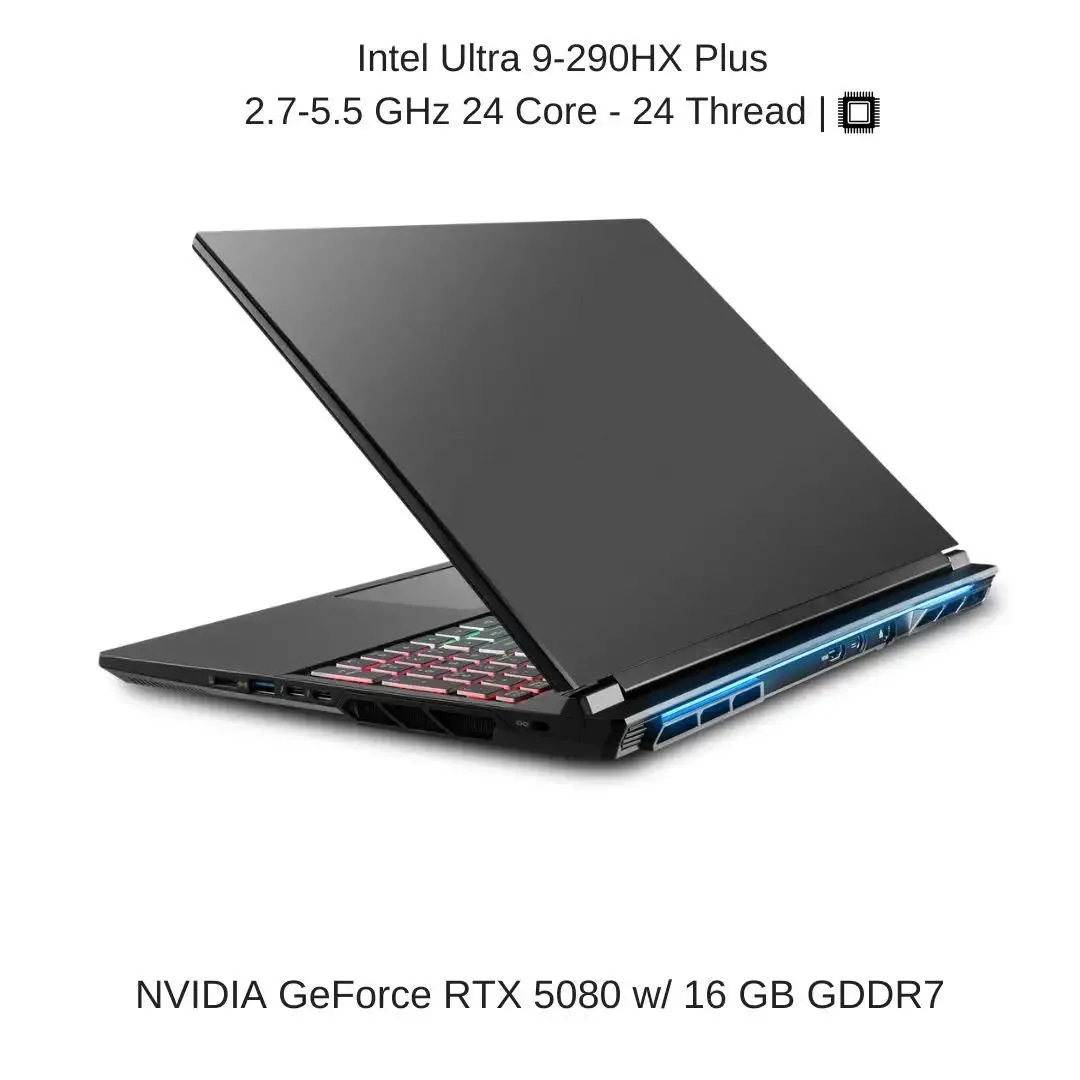

The Evoc X5802B is an 18-inch gaming laptop with a UHD+ panel running at 200 Hz. It targets users who need high-resolution visuals and fast refresh rates for competitive play or content creation. The Intel Core Ultra 9 290HX Plus processor provides 24 cores with a maximum turbo frequency of 5.5 GHz. An NVIDIA GeForce RTX 5080 GPU with 16 GB GDDR7 memory handles graphics workloads.
Metal Chassis and FlexiCharger
A metal top, palm rest and bottom case give the chassis structural rigidity while keeping the profile at 0.98 inches high. The system measures 15.59 inches wide by 10.95 inches deep and weighs 7.25 lbs. Intel Dynamic Tuning Technology manages power delivery across the 24-core CPU and RTX 5080 GPU. The FlexiCharger adapter supports flexible charging scenarios without requiring a specific wattage recommendation.
Gelid GC Extreme and 16 TB Storage
HIDevolution applies Gelid GC Extreme thermal interface material on the CPU and GPU to lower operating temperatures under load. Storage consists of two 8 TB M.2 PCIe 4.0 x4 NVMe SSDs totalling 16 TB for rapid boot and load times. Memory is 64 GB DDR5 5600 MHz in a dual-channel 2 x 32 GB configuration. Windows 11 Pro is pre-installed with updated BIOS, drivers and stress-test validation.
Highlights
- 18" UHD+ 200Hz display for sharp high-refresh visuals
- 24-core Ultra 9-290HX Plus up to 5.5 GHz for heavy compute
- RTX 5080 16 GB GDDR7 for demanding graphics workloads
- 64 GB DDR5 5600 MHz dual-channel memory for multitasking headroom
- 16 TB PCIe 4.0 NVMe storage for massive fast capacity
Specifications
| Brand | EVOC |
|---|---|
| Series | X580WNS-G |
| Model | EVOC X5802B (X580WNS-G) |
| Part Number | EV-X5802B-HID19 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 9-290HX Plus |
| Screen | 18" UHD+ |
| Memory | 64GB |
| Storage | 16 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5080 |
| Video Memory | 16GB |
| Dimensions (W x D x H) | 15.59” (w) x 10.95” (d) x 0.98” (h) |
| Weight | 7.25 lbs. |
| Other Features | Metal top, palm rest and bottom case, Light module, FlexiCharger, Intel Dynamic Tuning Technology |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Processor Name | Intel Core Ultra 9 290HX Plus |
| Number of Cores | 24-core Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | Max Turbo Frequency 5.5 GHz |
| CPU L3 Cache | 36 MB |
| Chipset | Intel® |
| Screen Size | 18.0" |
| Touchscreen | No |
| Display Type | UHD+ |
| Resolution | 3840 x 2400 |
| Panel | UHD+ |
| Refresh Rate | 200Hz |
| Display Features | Wide View Angle, G-Sync Display, Matte Finished |
| GPU/VPU | GeForce RTX 5080 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 16 TB |
| HDD | No |
| Storage Spec | 16 TB (2 x 8 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 32 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 4 |
| Memory Slot (Available) | 2 |
| Max Memory Supported | 256GB |
| LAN | Built-in Killer 2.5 Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE200 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 2x USB 3.2 Gen 2 Ports (Type A, with 1 x powered USB, AC/DC) |
| Thunderbolt | 1x Thunderbolt 5 combo Port with Power Delivery DC in (Type C), 1x Thunderbolt 5 Port (Type C) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High Definition audio interface |
| Speaker | Built-in two 1W Tweeter speakers, Built-in two 2W Mid-range speakers, Built-in one 4W Subwoofer speaker |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages LED Per Key full color illuminated full size isolated keyboard with numeric pad |
| Webcam | Built-in 5.0M Hello Camer with TNR (Temporal Noise Reduction) |
| Card Reader | Micro SD Push-Push Card reader |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 330W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 16.5A |
| Battery | Embedded 8 cells Polymer battery pack 98WH |
Questions about this item
What is the max turbo frequency of the Intel Core Ultra 9 290HX Plus CPU?
The Intel Core Ultra 9 290HX Plus reaches a maximum turbo frequency of 5.5 GHz across its 24 cores.
How does the Gelid GC Extreme thermal interface material affect system temperatures during extended sessions?
The Gelid GC Extreme TIM applied to both CPU and GPU lowers sustained operating temperatures for improved stability.
What storage configuration does the 16 TB NVMe array use?
Two 8 TB M.2 PCIe 4.0 x4 NVMe SSDs provide the 16 TB capacity in a dual-drive setup.
