Evoc

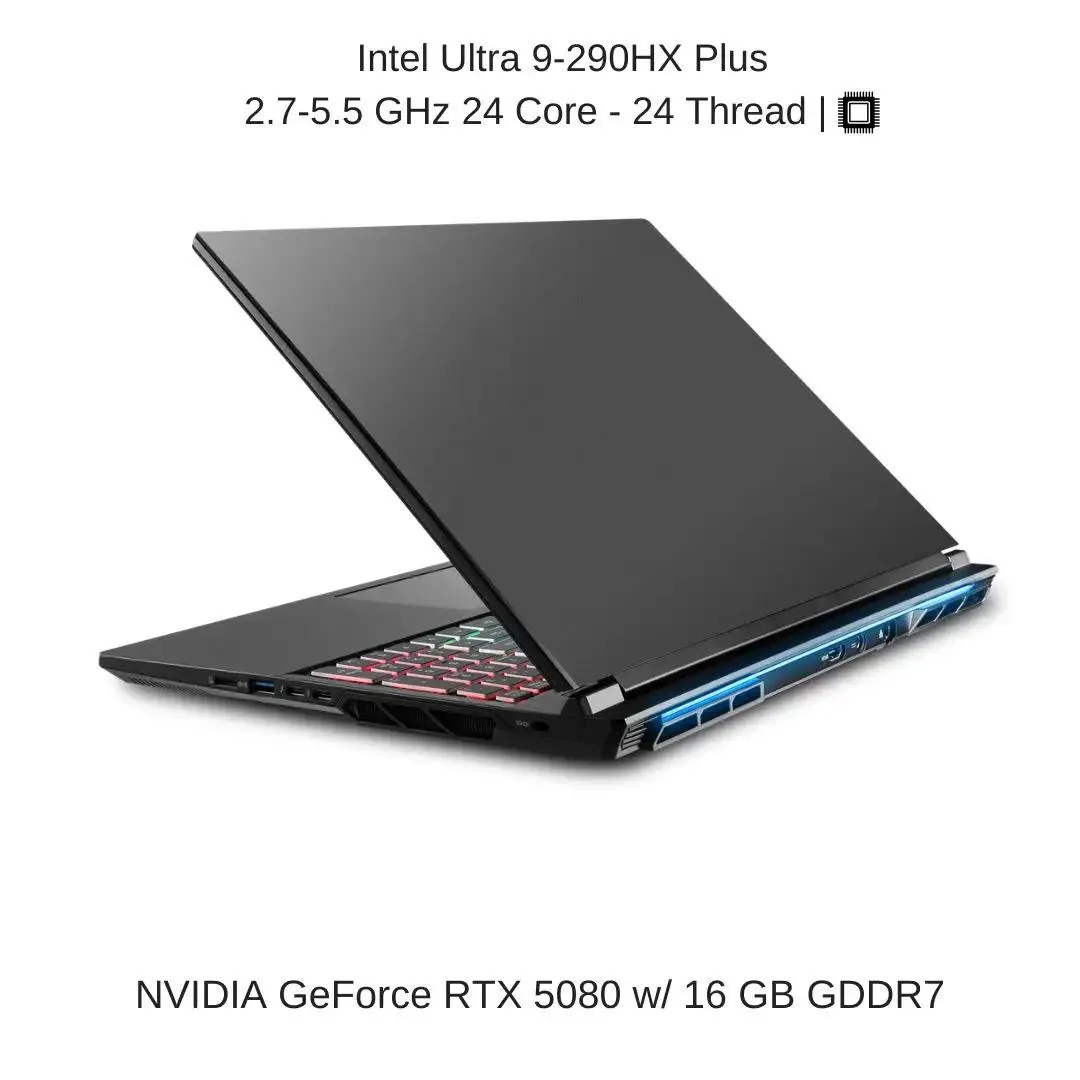

Evoc X5802B gaming laptop 18" UHD+ 200Hz Ultra 9 290HX Plus RTX 5080 32GB DDR5 4TB NVMe
An 18 inch UHD+ 200Hz gaming laptop with a 24-core Intel Core Ultra 9 290HX Plus, RTX 5080 16GB GDDR7, 32GB DDR5 and 4TB NVMe storage
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 9-290HX Plus
- Screen18" UHD+
- Memory32GB
- Storage4 TB M.2 PCIe 4.0 x4 NVMe SSD
- 18" UHD+ 200Hz display delivers sharp high-refresh visuals
- 24-core Ultra 9 290HX Plus reaches 5.5 GHz turbo for heavy workloads
- RTX 5080 with 16 GB GDDR7 powers demanding games and creative apps
- 32 GB DDR5 5600 MHz dual-channel memory handles multitasking smoothly
- 4 TB PCIe 4.0 NVMe storage provides fast boot and load times
18-inch UHD+ 200Hz display
The 18-inch panel delivers a 3840 by 2400 resolution at a 200Hz refresh rate. This combination gives sharp detail and smooth motion for competitive gaming and content creation. The high pixel density suits workflows that demand accurate colour and fine text.
Gelid GC Extreme thermal interface
HIDevolution applies Gelid GC Extreme compound on the CPU and GPU to improve heat transfer. The treatment targets lower core temperatures and quieter fan operation under sustained loads. Intel Dynamic Tuning Technology manages power distribution to balance performance with thermal headroom.
Metal chassis with FlexiCharger
The black metal top, palm rest and bottom case provide structural rigidity in a 15.59 by 10.95 by 0.98 inch frame weighing 7.25 lbs. FlexiCharger offers adaptable power delivery for mobile use. Dual M.2 PCIe 4.0 x4 NVMe slots and dual-channel DDR5 5600 memory support future storage and RAM upgrades.
Highlights
- 18" UHD+ 200Hz display delivers sharp high-refresh visuals
- 24-core Ultra 9 290HX Plus reaches 5.5 GHz turbo for heavy workloads
- RTX 5080 with 16 GB GDDR7 powers demanding games and creative apps
- 32 GB DDR5 5600 MHz dual-channel memory handles multitasking smoothly
- 4 TB PCIe 4.0 NVMe storage provides fast boot and load times
Specifications
| Brand | EVOC |
|---|---|
| Series | X580WNS-G |
| Model | EVOC X5802B (X580WNS-G) |
| Part Number | EV-X5802B-HID10 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 9-290HX Plus |
| Screen | 18" UHD+ |
| Memory | 32GB |
| Storage | 4 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5080 |
| Video Memory | 16GB |
| Dimensions (W x D x H) | 15.59” (w) x 10.95” (d) x 0.98” (h) |
| Weight | 7.25 lbs. |
| Other Features | Metal top, palm rest and bottom case, Light module, FlexiCharger, Intel Dynamic Tuning Technology |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Processor Name | Intel Core Ultra 9 290HX Plus |
| Number of Cores | 24-core Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | Max Turbo Frequency 5.5 GHz |
| CPU L3 Cache | 36 MB |
| Chipset | Intel® |
| Screen Size | 18.0" |
| Touchscreen | No |
| Display Type | UHD+ |
| Resolution | 3840 x 2400 |
| Panel | UHD+ |
| Refresh Rate | 200Hz |
| Display Features | Wide View Angle, G-Sync Display, Matte Finished |
| GPU/VPU | GeForce RTX 5080 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 4 TB |
| HDD | No |
| Storage Spec | 4 TB (2 x 2 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 16 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 4 |
| Memory Slot (Available) | 2 |
| Max Memory Supported | 256GB |
| LAN | Built-in Killer 2.5 Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE200 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 2x USB 3.2 Gen 2 Ports (Type A, with 1 x powered USB, AC/DC) |
| Thunderbolt | 1x Thunderbolt 5 combo Port with Power Delivery DC in (Type C), 1x Thunderbolt 5 Port (Type C) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High Definition audio interface |
| Speaker | Built-in two 1W Tweeter speakers, Built-in two 2W Mid-range speakers, Built-in one 4W Subwoofer speaker |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages LED Per Key full color illuminated full size isolated keyboard with numeric pad |
| Webcam | Built-in 5.0M Hello Camer with TNR (Temporal Noise Reduction) |
| Card Reader | Micro SD Push-Push Card reader |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 330W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 16.5A |
| Battery | Embedded 8 cells Polymer battery pack 98WH |
Questions about this item
How is the Gelid GC Extreme thermal compound applied to the CPU and GPU, and what step do installers often miss?
The compound is pre-applied by the builder during assembly; the step often missed is re-pasting after the initial burn-in period when the material has fully settled.
Which components will need replacement first under heavy use, and what are their specifications?
The 32 GB DDR5 5600 MHz memory modules and the 4 TB PCIe 4.0 NVMe SSD array (two 2 TB drives) are the primary user-replaceable parts.
At what temperature threshold does the Core Ultra 9 290HX Plus begin to throttle during sustained loads?
The 24-core processor with 5.5 GHz max turbo frequency will hit its thermal junction limit before the 16 GB GDDR7 GPU memory saturates under continuous gaming workloads.
