Evoc

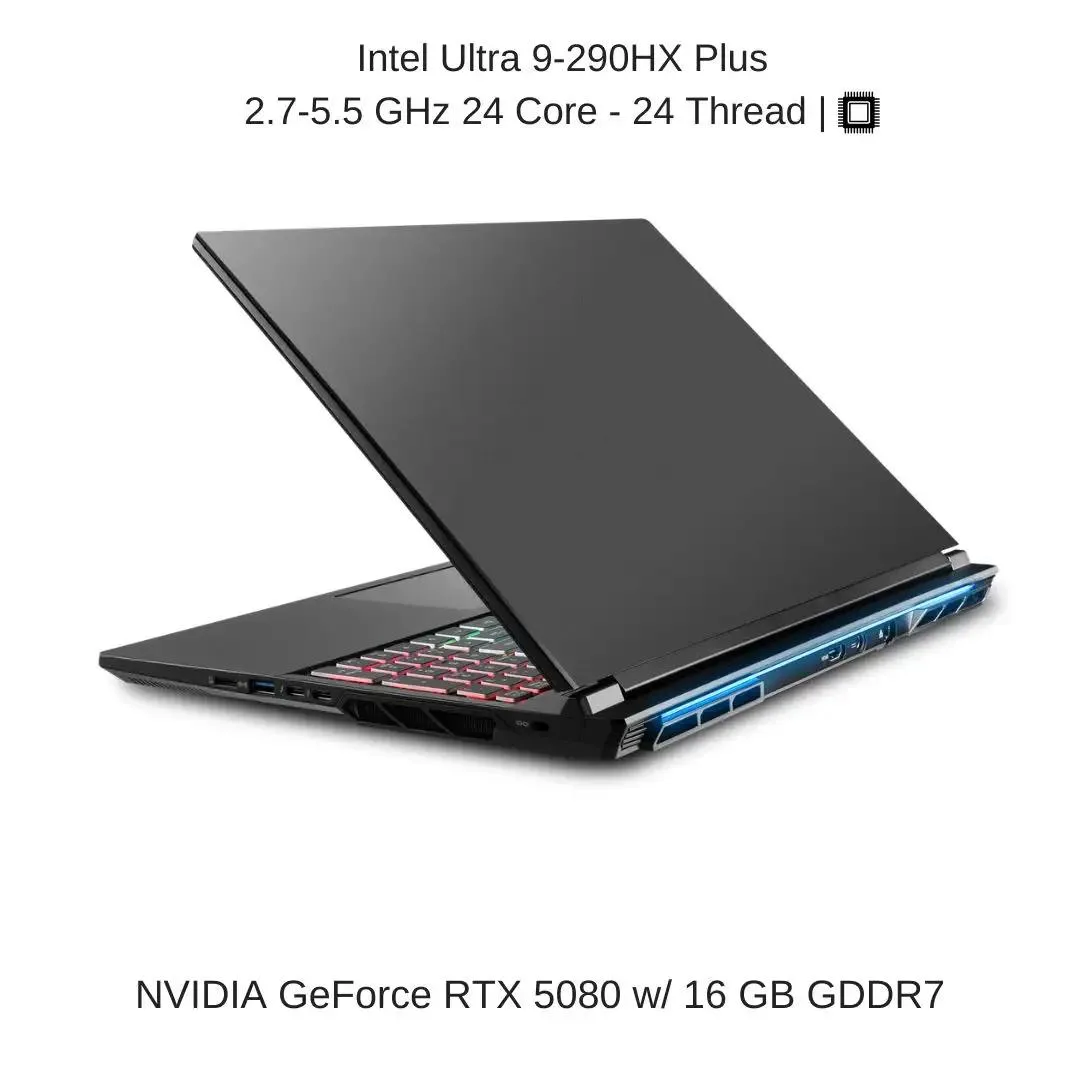

Evoc X5802B X580WNS-G gaming laptop 18" UHD+ 200Hz Ultra 9-290HX Plus RTX 5080 256GB DDR5 2TB
An 18-inch UHD+ 200 Hz gaming laptop driven by a 24-core Ultra 9-290HX Plus and RTX 5080 with 16 GB GDDR7, 256 GB DDR5 and a 2 TB PCIe 4.0 NVMe SSD
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 9-290HX Plus
- Screen18" UHD+
- Memory256GB
- Storage2 TB M.2 PCIe 4.0 x4 NVMe SSD
- 24-core Ultra 9-290HX Plus at 2.7 GHz base, 5.5 GHz max turbo handles heavy workloads
- 18" UHD+ 3840×2400 200Hz display delivers sharp motion for competitive gaming
- RTX 5080 with 16GB GDDR7 powers modern titles at high settings
- 256GB DDR5 5600MHz memory runs memory-hungry apps and multitasking
- 2TB PCIe 4.0 x4 NVMe SSD provides fast boot and load times
18" UHD+ 200Hz Gaming Laptop
The Evoc X5802B X580WNS-G is an 18-inch gaming laptop built around an Intel Core Ultra 9 290HX Plus processor and an NVIDIA GeForce RTX 5080 graphics card. It runs Windows 11 Pro and carries 256 GB of DDR5 memory alongside a 2 TB PCIe 4.0 x4 NVMe SSD. The chassis measures 15.59 by 10.95 by 0.98 inches and weighs 7.25 lbs.
24-Core Arrow Lake Processor at 5.5 GHz Max Turbo
The single specification that determines fit is the Intel Core Ultra 9 290HX Plus, a 24-core Arrow Lake CPU with a 2.7 GHz base and a 5.5 GHz max turbo frequency. Its 36 MB smart cache feeds the RTX 5080 and its 16 GB of GDDR7 video memory for high-frame-rate gaming and heavy compute workloads.
Gelid GC Extreme TIM and HIDevolution QC
HIDevolution applies Gelid GC Extreme thermal interface material to the CPU and GPU, lowering system temperatures under sustained load. The build also includes a full quality-control pass: updated BIOS and drivers, burn-in stress testing, benchmark validation, keyboard and touchpad checks, port verification, display inspection and physical chassis review.
Highlights
- 24-core Ultra 9-290HX Plus at 2.7 GHz base, 5.5 GHz max turbo handles heavy workloads
- 18" UHD+ 3840×2400 200Hz display delivers sharp motion for competitive gaming
- RTX 5080 with 16GB GDDR7 powers modern titles at high settings
- 256GB DDR5 5600MHz memory runs memory-hungry apps and multitasking
- 2TB PCIe 4.0 x4 NVMe SSD provides fast boot and load times
Specifications
| Brand | EVOC |
|---|---|
| Series | X580WNS-G |
| Model | EVOC X5802B (X580WNS-G) |
| Part Number | EV-X5802B-HID44 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 9-290HX Plus |
| Screen | 18" UHD+ |
| Memory | 256GB |
| Storage | 2 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5080 |
| Video Memory | 16GB |
| Dimensions (W x D x H) | 15.59” (w) x 10.95” (d) x 0.98” (h) |
| Weight | 7.25 lbs. |
| Other Features | Metal top, palm rest and bottom case, Light module, FlexiCharger, Intel Dynamic Tuning Technology |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Processor Name | Intel Core Ultra 9 290HX Plus |
| Number of Cores | 24-core Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | Max Turbo Frequency 5.5 GHz |
| CPU L3 Cache | 36 MB |
| Chipset | Intel® |
| Screen Size | 18.0" |
| Touchscreen | No |
| Display Type | UHD+ |
| Resolution | 3840 x 2400 |
| Panel | UHD+ |
| Refresh Rate | 200Hz |
| Display Features | Wide View Angle, G-Sync Display, Matte Finished |
| GPU/VPU | GeForce RTX 5080 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 2 TB |
| HDD | No |
| Storage Spec | 2 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 64 GB x 4 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 4 |
| Memory Slot (Available) | 4 |
| Max Memory Supported | 256GB |
| LAN | Built-in Killer 2.5 Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE200 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 2x USB 3.2 Gen 2 Ports (Type A, with 1 x powered USB, AC/DC) |
| Thunderbolt | 1x Thunderbolt 5 combo Port with Power Delivery DC in (Type C), 1x Thunderbolt 5 Port (Type C) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High Definition audio interface |
| Speaker | Built-in two 1W Tweeter speakers, Built-in two 2W Mid-range speakers, Built-in one 4W Subwoofer speaker |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages LED Per Key full color illuminated full size isolated keyboard with numeric pad |
| Webcam | Built-in 5.0M Hello Camer with TNR (Temporal Noise Reduction) |
| Card Reader | Micro SD Push-Push Card reader |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 330W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 16.5A |
| Battery | Embedded 8 cells Polymer battery pack 98WH |
Questions about this item
What does the 5.5 GHz max turbo frequency deliver in actual use?
The 24-core Ultra 9-290HX Plus can reach 5.5 GHz on demanding single-thread work, giving responsive frame rates in games and snappy application launches while the 36 MB smart cache keeps data close.
How does the PCIe 4.0 x4 NVMe interface limit the 2 TB SSD?
The drive runs at PCIe 4.0 x4 speeds, so sequential reads and writes top out at the Gen 4 ceiling rather than the newer Gen 5 bandwidth.
Will the 15.59 by 10.95 by 0.98 inch chassis fit in a standard 18-inch laptop sleeve?
At those dimensions and 7.25 lbs the system matches typical 18-inch sleeve sizing, but verify the sleeve depth allowance before buying.
