Evoc

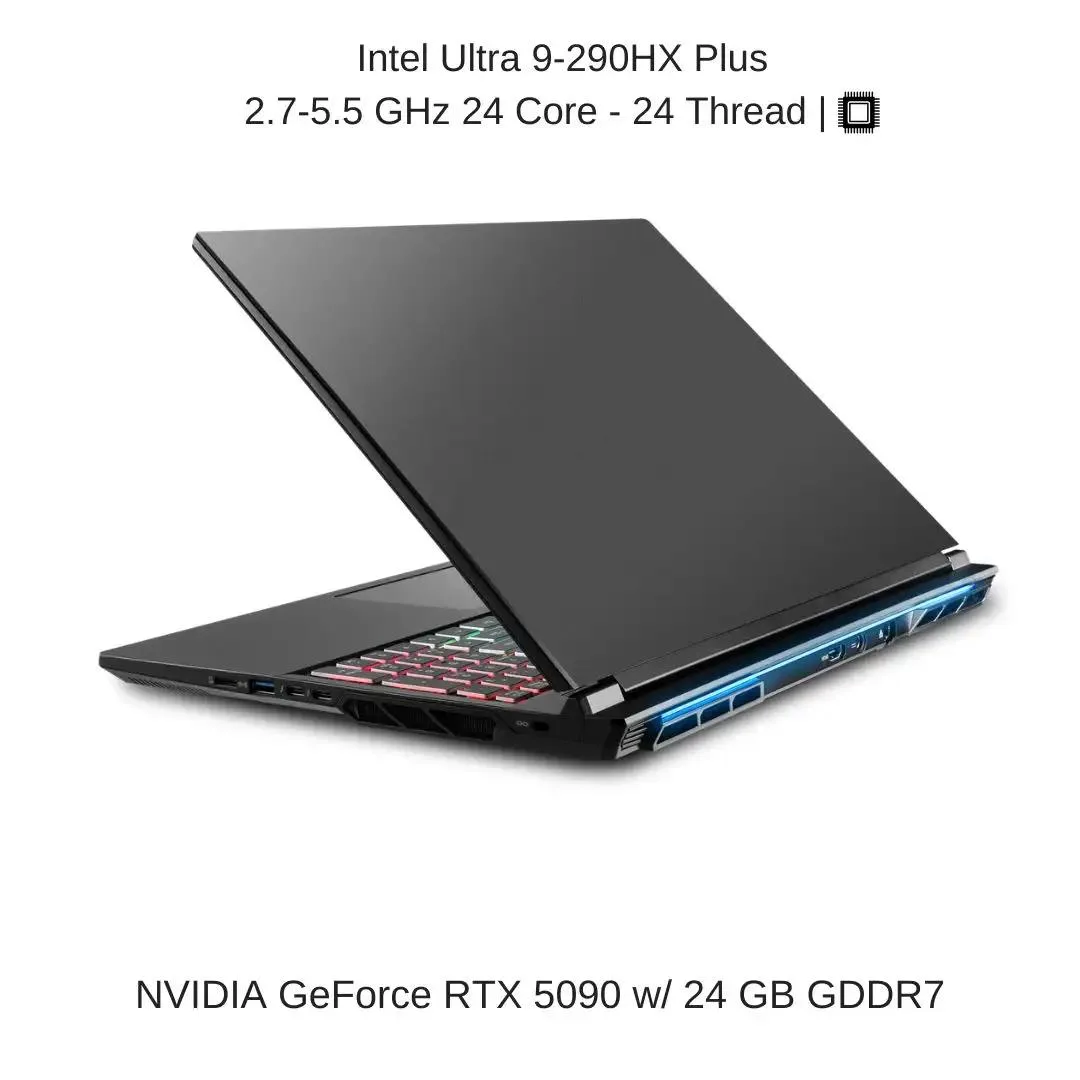

Evoc X5802C gaming laptop 18" QHD+ 240Hz Ultra 9-290HX Plus RTX 5090 32GB 8TB
18-inch QHD+ 240Hz display driven by a 24-core Ultra 9-290HX Plus and RTX 5090 with 24GB GDDR7, 32GB DDR5 and 8TB NVMe storage
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 9-290HX Plus
- Screen18" QHD+
- Memory32GB
- Storage8 TB M.2 PCIe 4.0 x4 NVMe SSD
- 24-core Arrow Lake Ultra 9-290HX Plus hits 5.5 GHz turbo for heavy workloads
- 18-inch QHD+ 240 Hz panel delivers 2560 x 1600 detail at high refresh
- RTX 5090 with 24 GB GDDR7 drives modern titles at maximum settings
- 32 GB DDR5 5600 MHz dual-channel memory keeps multitasking smooth
- 8 TB PCIe 4.0 NVMe storage (2 x 4 TB) loads games and projects fast
18-inch QHD+ gaming laptop
The Evoc X5802C pairs an 18-inch QHD+ panel running at 240 Hz with an Intel Core Ultra 9-290HX Plus processor and an NVIDIA GeForce RTX 5090 graphics card. Thirty-two gigabytes of DDR5 memory and eight terabytes of PCIe 4.0 NVMe storage complete the specification. It ships with Windows 11 Pro installed.
Gelid GC Extreme thermal upgrade
HIDevolution applies Gelid GC Extreme thermal interface material to the CPU and GPU, replacing the factory compound to lower operating temperatures under sustained load. The upgrade is performed by the authorised builder and covered under the system warranty. The jump is worthwhile when consistent clock speeds matter for long rendering or gaming sessions.
Mobile workstation users
The 24-core Arrow Lake processor, 24 GB GDDR7 video memory and 2560 x 1600 resolution suit professionals who need desktop-class compute on the move and gamers who value high frame rates at QHD+. Buyers who prioritise lighter weight or longer battery life over raw performance should consider thinner ultraportable alternatives.
Highlights
- 24-core Arrow Lake Ultra 9-290HX Plus hits 5.5 GHz turbo for heavy workloads
- 18-inch QHD+ 240 Hz panel delivers 2560 x 1600 detail at high refresh
- RTX 5090 with 24 GB GDDR7 drives modern titles at maximum settings
- 32 GB DDR5 5600 MHz dual-channel memory keeps multitasking smooth
- 8 TB PCIe 4.0 NVMe storage (2 x 4 TB) loads games and projects fast
Specifications
| Brand | EVOC |
|---|---|
| Series | X580WNT-G |
| Model | EVOC X5802C (X580WNT-G) |
| Part Number | EV-X5802C-HID11 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 9-290HX Plus |
| Screen | 18" QHD+ |
| Memory | 32GB |
| Storage | 8 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5090 |
| Video Memory | 24GB |
| Dimensions (W x D x H) | 15.59” (w) x 10.95” (d) x 0.98” (h) |
| Weight | 7.25 lbs. |
| Other Features | Metal top, palm rest and bottom case, Light module, FlexiCharger, Intel Dynamic Tuning Technology |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Processor Name | Intel Core Ultra 9 290HX Plus |
| Number of Cores | 24-core Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | Max Turbo Frequency 5.5 GHz |
| CPU L3 Cache | 36 MB |
| Chipset | Intel® |
| Screen Size | 18.0" |
| Touchscreen | No |
| Display Type | QHD+ |
| Resolution | 2560 x 1600 |
| Panel | QHD+ |
| Refresh Rate | 240Hz |
| Display Features | Wide View Angle, G-Sync Display, Matte Finished |
| GPU/VPU | GeForce RTX 5090 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 8 TB |
| HDD | No |
| Storage Spec | 8 TB (2 x 4 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 16 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 4 |
| Memory Slot (Available) | 2 |
| Max Memory Supported | 256GB |
| LAN | Built-in Killer 2.5 Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE200 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 2x USB 3.2 Gen 2 Ports (Type A, with 1 x powered USB, AC/DC) |
| Thunderbolt | 1x Thunderbolt 5 combo Port with Power Delivery DC in (Type C), 1x Thunderbolt 5 Port (Type C) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High Definition audio interface |
| Speaker | Built-in two 1W Tweeter speakers, Built-in two 2W Mid-range speakers, Built-in one 4W Subwoofer speaker |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages LED Per Key full color illuminated full size isolated keyboard with numeric pad |
| Webcam | Built-in 5.0M Hello Camer with TNR (Temporal Noise Reduction) |
| Card Reader | Micro SD Push-Push Card reader |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 330W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 16.5A |
| Battery | Embedded 8 cells Polymer battery pack 98WH |
Questions about this item
What are the exact dimensions and weight of the EVOC X5802C so I can check if it fits my bag?
The laptop measures 15.59 inches wide, 10.95 inches deep and 0.98 inches high, weighing 7.25 lbs.
How is the Gelid GC Extreme thermal compound applied during the HIDevolution build process, and what step is critical?
Technicians disassemble the cooling assembly, clean the CPU and GPU dies, apply Gelid GC Extreme evenly, then reseat the heatsinks with correct pressure; the step often missed is cleaning old paste completely before applying new compound.
Which storage and memory components can be upgraded later in the EVOC X5802C?
The system uses two 4 TB M.2 PCIe 4.0 x4 NVMe SSDs and two 16 GB DDR5 5600 MHz modules; both storage slots and both memory slots are accessible for future replacement or capacity increases.
