Evoc
Evoc X5802D gaming laptop 18" UHD+ 200Hz Ultra 9-290HX Plus RTX 5090 32 GB DDR5 8 TB NVMe
18" UHD+ 200Hz display, Intel Core Ultra 9 290HX Plus 24-core up to 5.5 GHz, RTX 5090 24 GB GDDR7, 32 GB DDR5, 8 TB NVMe
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 9-290HX Plus
- Screen18" UHD+
- Memory32GB
- Storage8 TB M.2 PCIe 4.0 x4 NVMe SSD
- 18" UHD+ 200Hz display gives razor-sharp motion clarity
- Intel Core Ultra 9-290HX Plus 24-core CPU reaches 5.5 GHz turbo for heavy workloads
- RTX 5090 with 24 GB GDDR7 drives top-tier gaming and creative performance
- 32 GB DDR5 5600 MHz dual-channel memory handles multitasking without bottlenecks
- 8 TB PCIe 4.0 NVMe storage delivers vast capacity and fast load times
18-inch UHD+ 200 Hz display
The 18-inch panel delivers a 3840 by 2400 UHD+ resolution at a 200 Hz refresh rate. This combination gives sharp detail and smooth motion for competitive gaming and colour-critical creative work. The high pixel density suits both fast-paced titles and professional content review.

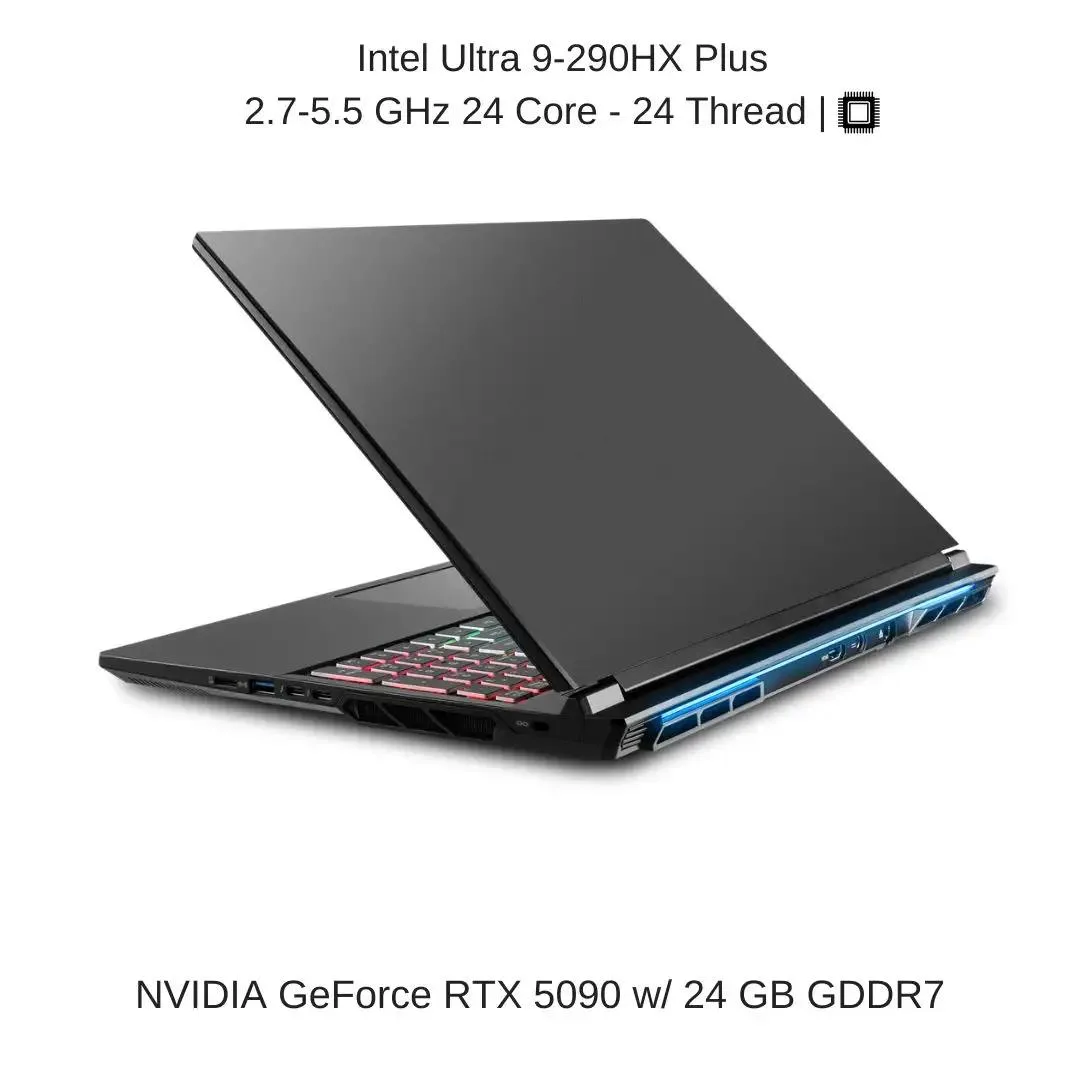

Intel Core Ultra 9 290HX Plus with RTX 5090
The 24-core Arrow Lake processor runs at a 2.7 GHz base with a 5.5 GHz maximum turbo frequency and 36 MB smart cache. Paired with an NVIDIA RTX 5090 graphics card carrying 24 GB GDDR7 video memory, the system targets enthusiasts who need desktop-class compute and ray-tracing throughput. Buyers seeking a lighter chassis or longer unplugged runtime should consider thinner alternatives.
8 TB PCIe 4.0 NVMe storage in dual 4 TB modules
Two 4 TB M.2 PCIe 4.0 x4 NVMe SSDs provide 8 TB total capacity with fast sequential throughput for large game libraries, video projects and AI datasets. The dual-drive layout also allows separate OS and data volumes without adding external drives. Users who need more than 8 TB or prefer a single larger module will need a different configuration.
Highlights
- 18" UHD+ 200Hz display gives razor-sharp motion clarity
- Intel Core Ultra 9-290HX Plus 24-core CPU reaches 5.5 GHz turbo for heavy workloads
- RTX 5090 with 24 GB GDDR7 drives top-tier gaming and creative performance
- 32 GB DDR5 5600 MHz dual-channel memory handles multitasking without bottlenecks
- 8 TB PCIe 4.0 NVMe storage delivers vast capacity and fast load times
Specifications
| Brand | EVOC |
|---|---|
| Series | X580WNT-G |
| Model | EVOC X5802D (X580WNT-G) |
| Part Number | EV-X5802D-HID11 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 9-290HX Plus |
| Screen | 18" UHD+ |
| Memory | 32GB |
| Storage | 8 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5090 |
| Video Memory | 24GB |
| Dimensions (W x D x H) | 15.59” (w) x 10.95” (d) x 0.98” (h) |
| Weight | 7.25 lbs. |
| Other Features | Metal top, palm rest and bottom case, Light module, FlexiCharger, Intel Dynamic Tuning Technology |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Processor Name | Intel Core Ultra 9 290HX Plus |
| Number of Cores | 24-core Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | Max Turbo Frequency 5.5 GHz |
| CPU L3 Cache | 36 MB |
| Chipset | Intel® |
| Screen Size | 18.0" |
| Touchscreen | No |
| Display Type | UHD+ |
| Resolution | 3840 x 2400 |
| Panel | UHD+ |
| Refresh Rate | 200Hz |
| Display Features | Wide View Angle, G-Sync Display, Matte Finished |
| GPU/VPU | GeForce RTX 5090 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 8 TB |
| HDD | No |
| Storage Spec | 8 TB (2 x 4 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 16 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 4 |
| Memory Slot (Available) | 2 |
| Max Memory Supported | 256GB |
| LAN | Built-in Killer 2.5 Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE200 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 2x USB 3.2 Gen 2 Ports (Type A, with 1 x powered USB, AC/DC) |
| Thunderbolt | 1x Thunderbolt 5 combo Port with Power Delivery DC in (Type C), 1x Thunderbolt 5 Port (Type C) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High Definition audio interface |
| Speaker | Built-in two 1W Tweeter speakers, Built-in two 2W Mid-range speakers, Built-in one 4W Subwoofer speaker |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages LED Per Key full color illuminated full size isolated keyboard with numeric pad |
| Webcam | Built-in 5.0M Hello Camer with TNR (Temporal Noise Reduction) |
| Card Reader | Micro SD Push-Push Card reader |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 330W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 16.5A |
| Battery | Embedded 8 cells Polymer battery pack 98WH |
Questions about this item
Should I pick the 32 GB DDR5 or the 8 TB NVMe when configuring?
The 32 GB DDR5 5600 MHz memory and the 8 TB PCIe 4.0 x4 NVMe SSD are both standard; the RAM handles multitasking while the SSD holds the operating system and games.
What does the 200 Hz UHD+ panel actually deliver in games?
The 18 inch 3840 x 2400 screen refreshes at 200 Hz, so the RTX 5090 can push high frame rates at native resolution without tearing.
How does the PCIe 4.0 x4 NVMe interface limit the 8 TB drive?
The drive runs on a PCIe 4.0 x4 NVMe link, capping sequential throughput to the Gen 4 ceiling rather than Gen 5 speeds.
