Evoc X5802D X580WNT-G 18" UHD+ 200Hz Ultra 9-290HX Plus RTX 5090 128GB 32TB gaming laptop
An 18" UHD+ 200Hz gaming laptop driven by a 24-core Ultra 9-290HX Plus, RTX 5090 with 24GB GDDR7, 128GB DDR5 and 32TB NVMe storage
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 9-290HX Plus
- Screen18" UHD+
- Memory128GB
- Storage32 TB M.2 PCIe 4.0 x4 NVMe SSD
- 24-core Ultra 9-290HX Plus reaches 5.5 GHz turbo for heavy compute
- 18-inch UHD+ 3840x2400 panel refreshes at 200 Hz for smooth motion
- RTX 5090 with 24 GB GDDR7 drives high-fidelity graphics
- 128 GB DDR5 5600 MHz dual-channel memory handles massive workloads
- 32 TB PCIe 4.0 NVMe SSD stores huge libraries and loads fast
18" UHD+ 200Hz Display

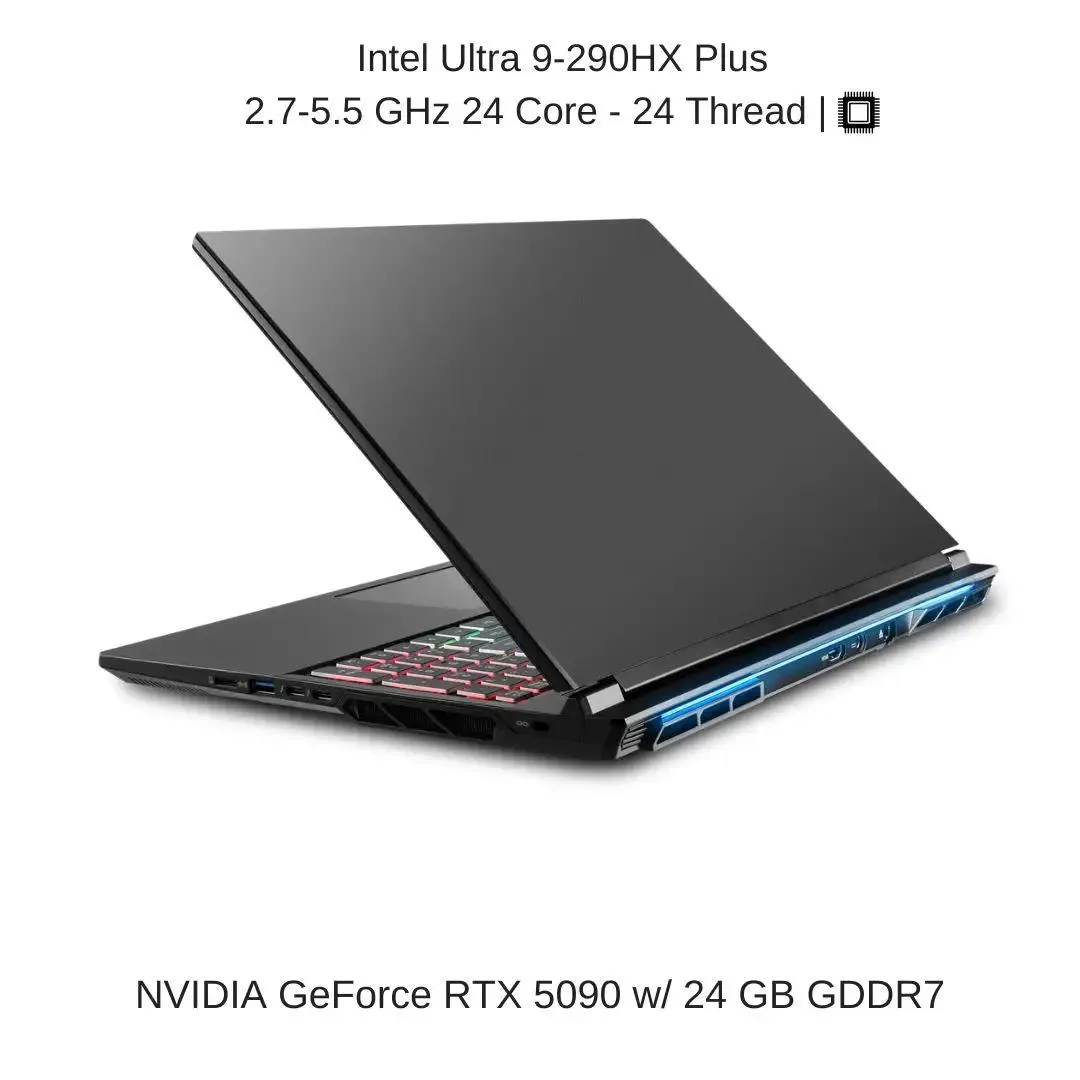

The Evoc X5802D is an 18 inch gaming laptop with a UHD+ panel running at 200 Hz. It targets users who need desktop-class graphics and heavy multitasking in a portable chassis. The system ships with Windows 11 Pro and a metal top, palm rest and bottom case.
Suited For And Not Suited
Creative professionals and enthusiasts who require 128 GB of DDR5 memory and 32 TB of NVMe storage will benefit from this configuration. Buyers needing a lighter device or longer battery life should consider smaller ultraportables instead.
RTX 5090 24 GB GDDR7 GPU
The laptop is built around an NVIDIA GeForce RTX 5090 with 24 GB of GDDR7 video memory. This single component determines whether the machine meets your rendering, simulation or high-refresh gaming workload.
Highlights
- 24-core Ultra 9-290HX Plus reaches 5.5 GHz turbo for heavy compute
- 18-inch UHD+ 3840x2400 panel refreshes at 200 Hz for smooth motion
- RTX 5090 with 24 GB GDDR7 drives high-fidelity graphics
- 128 GB DDR5 5600 MHz dual-channel memory handles massive workloads
- 32 TB PCIe 4.0 NVMe SSD stores huge libraries and loads fast
Specifications
| Brand | EVOC |
|---|---|
| Series | X580WNT-G |
| Model | EVOC X5802D (X580WNT-G) |
| Part Number | EV-X5802D-HID35 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 9-290HX Plus |
| Screen | 18" UHD+ |
| Memory | 128GB |
| Storage | 32 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5090 |
| Video Memory | 24GB |
| Dimensions (W x D x H) | 15.59” (w) x 10.95” (d) x 0.98” (h) |
| Weight | 7.25 lbs. |
| Other Features | Metal top, palm rest and bottom case, Light module, FlexiCharger, Intel Dynamic Tuning Technology |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Processor Name | Intel Core Ultra 9 290HX Plus |
| Number of Cores | 24-core Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | Max Turbo Frequency 5.5 GHz |
| CPU L3 Cache | 36 MB |
| Chipset | Intel® |
| Screen Size | 18.0" |
| Touchscreen | No |
| Display Type | UHD+ |
| Resolution | 3840 x 2400 |
| Panel | UHD+ |
| Refresh Rate | 200Hz |
| Display Features | Wide View Angle, G-Sync Display, Matte Finished |
| GPU/VPU | GeForce RTX 5090 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 32 TB |
| HDD | No |
| Storage Spec | 32 TB (4 x 8 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 64 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 4 |
| Memory Slot (Available) | 2 |
| Max Memory Supported | 256GB |
| LAN | Built-in Killer 2.5 Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE200 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 2x USB 3.2 Gen 2 Ports (Type A, with 1 x powered USB, AC/DC) |
| Thunderbolt | 1x Thunderbolt 5 combo Port with Power Delivery DC in (Type C), 1x Thunderbolt 5 Port (Type C) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High Definition audio interface |
| Speaker | Built-in two 1W Tweeter speakers, Built-in two 2W Mid-range speakers, Built-in one 4W Subwoofer speaker |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages LED Per Key full color illuminated full size isolated keyboard with numeric pad |
| Webcam | Built-in 5.0M Hello Camer with TNR (Temporal Noise Reduction) |
| Card Reader | Micro SD Push-Push Card reader |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 330W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 16.5A |
| Battery | Embedded 8 cells Polymer battery pack 98WH |
Questions about this item
What comes in the box with the Evoc X5802D and what must I buy separately?
The laptop includes the 18" UHD+ 200Hz display, Intel Core Ultra 9-290HX Plus, RTX 5090 with 24GB GDDR7, 128GB DDR5 5600MHz memory, 32TB NVMe storage, Windows 11 Pro, metal chassis, FlexiCharger and Gelid GC Extreme thermal compound pre-applied. No extra components are required for operation.
Which configuration of the X580WNT-G should I choose for memory and storage?
This model ships with a single fixed configuration: 128GB DDR5 5600MHz (2 x 64GB) dual-channel memory and 32TB PCIe 4.0 x4 NVMe SSD (4 x 8TB). There are no alternative capacity options listed for this SKU.
What does the 5.5 GHz max turbo frequency mean for real-world performance?
The Intel Core Ultra 9-290HX Plus 24-core processor can reach 5.5 GHz max turbo frequency on demanding single-threaded workloads, while the 2.7 GHz base and 36 MB Smart Cache sustain high throughput across all cores during extended gaming or rendering sessions.
