Evoc

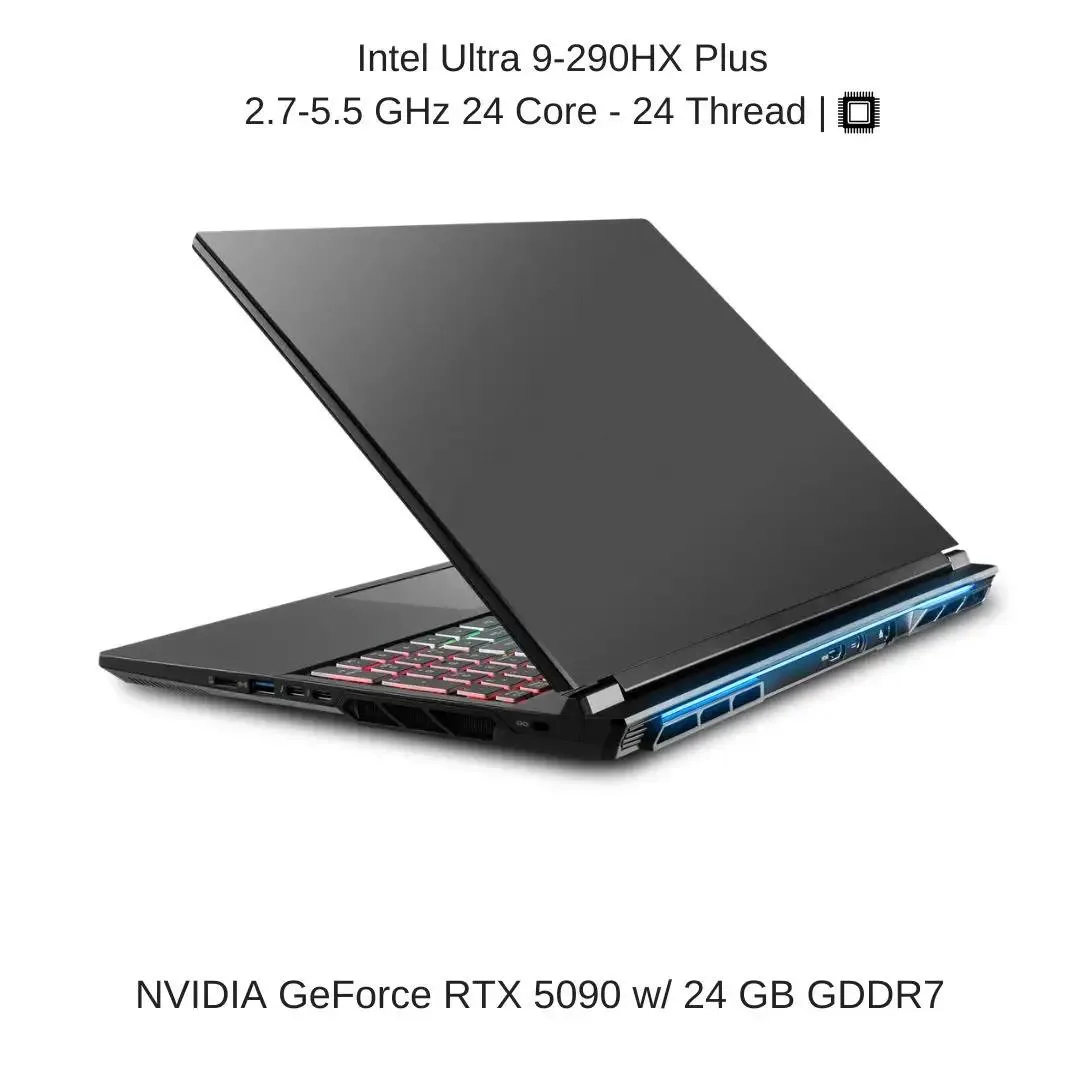

Evoc X5802D X580WNT-G 18" UHD+ 200Hz Ultra 9-290HX Plus RTX 5090 16GB 4TB gaming laptop
18" UHD+ 200Hz display driven by 24-core Ultra 9-290HX Plus and RTX 5090 24GB GDDR7, 16GB DDR5, 4TB PCIe 4.0 NVMe
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 9-290HX Plus
- Screen18" UHD+
- Memory16GB
- Storage4 TB M.2 PCIe 4.0 x4 NVMe SSD
- 18" UHD+ 200Hz display delivers ultra-sharp 3840 x 2400 motion clarity
- Intel Core Ultra 9 290HX Plus 24-core CPU hits 5.5 GHz max turbo for heavy workloads
- NVIDIA RTX 5090 with 24 GB GDDR7 powers demanding games and creative apps
- 4 TB PCIe 4.0 NVMe SSD (2 x 2 TB) provides vast high-speed storage
- Gelid GC Extreme TIM on CPU and GPU lowers temperatures for sustained performance
18-inch UHD+ 200Hz Gaming Laptop
The Evoc X5802D X580WNT-G is an 18-inch mobile system built around a 3840x2400 panel running at 200Hz. It pairs an Intel Core Ultra 9 290HX Plus processor with an NVIDIA GeForce RTX 5090 GPU carrying 24GB of GDDR7 memory. The platform ships with Windows 11 Pro and a metal chassis measuring 15.59 by 10.95 by 0.98 inches.
24-core Arrow Lake CPU with 5.5 GHz Turbo
The 24-core Arrow Lake processor reaches a 5.5 GHz max turbo frequency and includes 36 MB of smart cache, suiting users who need high single-thread speed alongside heavy multi-thread throughput. Buyers who prioritise battery longevity or a lighter carry weight should evaluate thinner alternatives, as this unit weighs 7.25 lbs.
4 TB PCIe 4.0 x4 NVMe Storage
The laptop includes 4 TB of storage configured as two 2 TB M.2 PCIe 4.0 x4 NVMe SSDs, delivering fast boot and load times for large game libraries and content-creation projects. Memory is 16 GB of DDR5 5600MHz in dual-channel layout, and the build uses Gelid GC Extreme thermal compound on the CPU and GPU.
Highlights
- 18" UHD+ 200Hz display delivers ultra-sharp 3840 x 2400 motion clarity
- Intel Core Ultra 9 290HX Plus 24-core CPU hits 5.5 GHz max turbo for heavy workloads
- NVIDIA RTX 5090 with 24 GB GDDR7 powers demanding games and creative apps
- 4 TB PCIe 4.0 NVMe SSD (2 x 2 TB) provides vast high-speed storage
- Gelid GC Extreme TIM on CPU and GPU lowers temperatures for sustained performance
Specifications
| Brand | EVOC |
|---|---|
| Series | X580WNT-G |
| Model | EVOC X5802D (X580WNT-G) |
| Part Number | EV-X5802D-HID3 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 9-290HX Plus |
| Screen | 18" UHD+ |
| Memory | 16GB |
| Storage | 4 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5090 |
| Video Memory | 24GB |
| Dimensions (W x D x H) | 15.59” (w) x 10.95” (d) x 0.98” (h) |
| Weight | 7.25 lbs. |
| Other Features | Metal top, palm rest and bottom case, Light module, FlexiCharger, Intel Dynamic Tuning Technology |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Processor Name | Intel Core Ultra 9 290HX Plus |
| Number of Cores | 24-core Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | Max Turbo Frequency 5.5 GHz |
| CPU L3 Cache | 36 MB |
| Chipset | Intel® |
| Screen Size | 18.0" |
| Touchscreen | No |
| Display Type | UHD+ |
| Resolution | 3840 x 2400 |
| Panel | UHD+ |
| Refresh Rate | 200Hz |
| Display Features | Wide View Angle, G-Sync Display, Matte Finished |
| GPU/VPU | GeForce RTX 5090 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 4 TB |
| HDD | No |
| Storage Spec | 4 TB (2 x 2 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 8 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 4 |
| Memory Slot (Available) | 2 |
| Max Memory Supported | 256GB |
| LAN | Built-in Killer 2.5 Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE200 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 2x USB 3.2 Gen 2 Ports (Type A, with 1 x powered USB, AC/DC) |
| Thunderbolt | 1x Thunderbolt 5 combo Port with Power Delivery DC in (Type C), 1x Thunderbolt 5 Port (Type C) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High Definition audio interface |
| Speaker | Built-in two 1W Tweeter speakers, Built-in two 2W Mid-range speakers, Built-in one 4W Subwoofer speaker |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages LED Per Key full color illuminated full size isolated keyboard with numeric pad |
| Webcam | Built-in 5.0M Hello Camer with TNR (Temporal Noise Reduction) |
| Card Reader | Micro SD Push-Push Card reader |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 330W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 16.5A |
| Battery | Embedded 8 cells Polymer battery pack 98WH |
Questions about this item
What comes in the box and what must be purchased separately?
The laptop ships with Windows 11 Pro, a 24-core Intel Core Ultra 9-290HX Plus processor, 16 GB DDR5 5600 MHz memory, 4 TB PCIe 4.0 NVMe storage, an 18-inch 3840x2400 200 Hz display, and an RTX 5090 GPU with 24 GB GDDR7. No extra components are required for operation.
Which memory and storage configuration should I choose?
The system includes 16 GB of dual-channel DDR5 5600 MHz RAM and 4 TB of PCIe 4.0 NVMe SSD storage arranged as two 2 TB modules. This is the only configuration offered for this model.
What does the 5.5 GHz turbo frequency mean in daily use?
The 24-core Arrow Lake processor can boost up to 5.5 GHz on demanding single-threaded tasks, while the 200 Hz UHD+ panel and RTX 5090 with 24 GB GDDR7 keep frame rates high in modern titles at native 3840x2400 resolution.
