Evoc
Evoc X5802D (X580WNT-G) 18" UHD+ 200Hz Ultra 9-290HX Plus RTX 5090 256GB DDR5 1TB NVMe gaming
18-inch UHD+ 200Hz display driven by a 24-core Ultra 9-290HX Plus and RTX 5090 with 24GB GDDR7, plus 256GB DDR5 and 1TB NVMe
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 9-290HX Plus
- Screen18" UHD+
- Memory256GB
- Storage1 TB M.2 PCIe 4.0 x4 NVMe SSD
- 18-inch UHD+ 200Hz display delivers crisp motion
- 24-core Ultra 9-290HX Plus at 5.5 GHz powers heavy workloads
- RTX 5090 with 24 GB GDDR7 drives high-frame-rate gaming
- 256 GB DDR5 5600 MHz memory handles large multitasking
- 1 TB PCIe 4.0 NVMe SSD loads games fast
18" UHD+ 200Hz display
The 18 inch UHD+ panel runs at 3840 by 2400 pixels with a 200Hz refresh rate. It targets competitive gamers and creators who need high pixel density and smooth motion in a portable chassis.

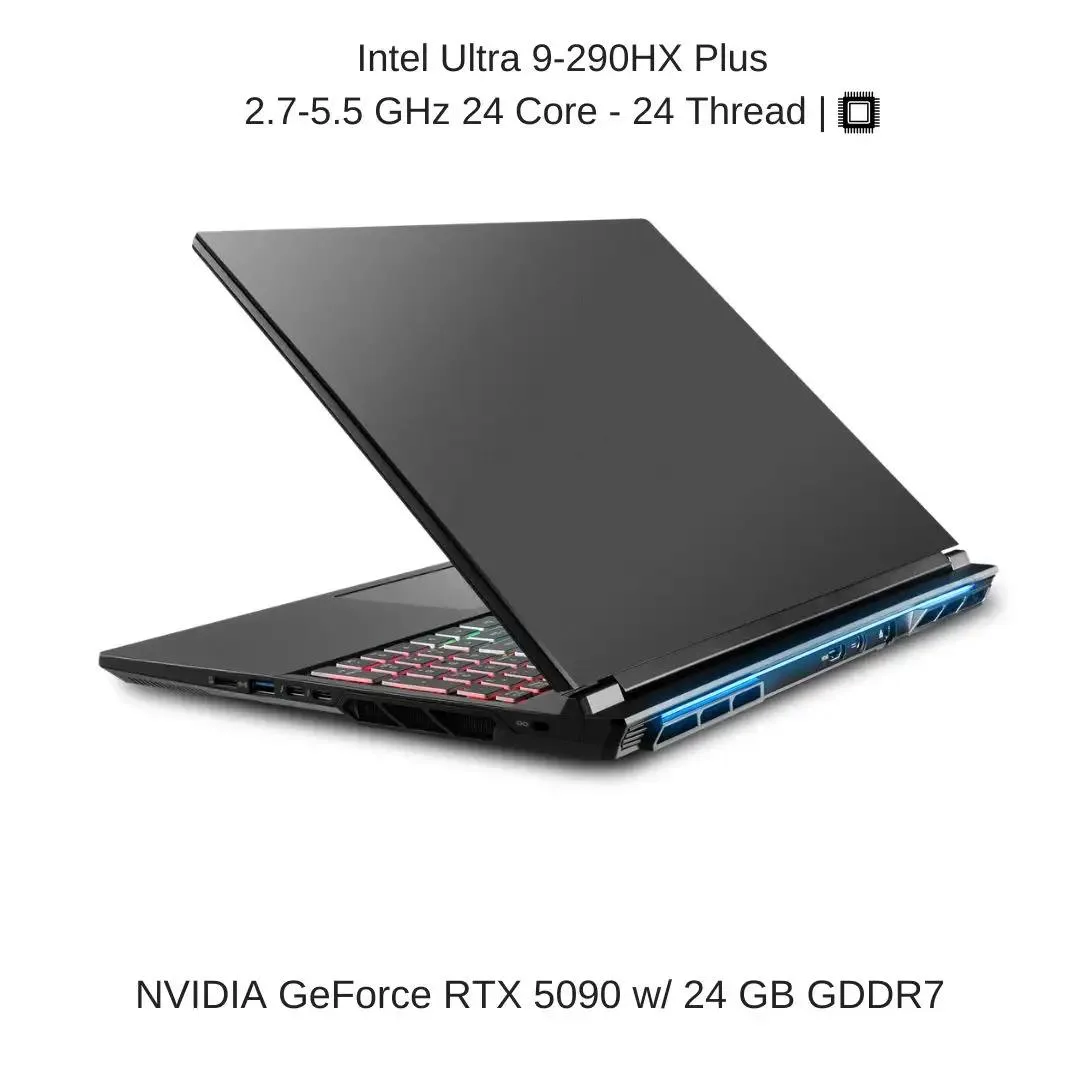

Intel Core Ultra 9 290HX Plus 24-core processor
The CPU operates at a 2.7 GHz base frequency and can reach a 5.5 GHz maximum turbo across 24 cores. Intel Dynamic Tuning Technology manages power delivery within the thermal limits of the thin-and-light form factor.
256 GB DDR5 5600MHz memory
Four 64 GB modules provide 256 GB of dual-channel DDR5 for heavy multitasking and large datasets. The 1 TB M.2 PCIe 4.0 x4 NVMe SSD delivers fast boot and load times for modern game libraries.
Highlights
- 18-inch UHD+ 200Hz display delivers crisp motion
- 24-core Ultra 9-290HX Plus at 5.5 GHz powers heavy workloads
- RTX 5090 with 24 GB GDDR7 drives high-frame-rate gaming
- 256 GB DDR5 5600 MHz memory handles large multitasking
- 1 TB PCIe 4.0 NVMe SSD loads games fast
Specifications
| Brand | EVOC |
|---|---|
| Series | X580WNT-G |
| Model | EVOC X5802D (X580WNT-G) |
| Part Number | EV-X5802D-HID43 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 9-290HX Plus |
| Screen | 18" UHD+ |
| Memory | 256GB |
| Storage | 1 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5090 |
| Video Memory | 24GB |
| Dimensions (W x D x H) | 15.59” (w) x 10.95” (d) x 0.98” (h) |
| Weight | 7.25 lbs. |
| Other Features | Metal top, palm rest and bottom case, Light module, FlexiCharger, Intel Dynamic Tuning Technology |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Processor Name | Intel Core Ultra 9 290HX Plus |
| Number of Cores | 24-core Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | Max Turbo Frequency 5.5 GHz |
| CPU L3 Cache | 36 MB |
| Chipset | Intel® |
| Screen Size | 18.0" |
| Touchscreen | No |
| Display Type | UHD+ |
| Resolution | 3840 x 2400 |
| Panel | UHD+ |
| Refresh Rate | 200Hz |
| Display Features | Wide View Angle, G-Sync Display, Matte Finished |
| GPU/VPU | GeForce RTX 5090 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 1 TB |
| HDD | No |
| Storage Spec | 1 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 64 GB x 4 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 4 |
| Memory Slot (Available) | 4 |
| Max Memory Supported | 256GB |
| LAN | Built-in Killer 2.5 Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE200 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 2x USB 3.2 Gen 2 Ports (Type A, with 1 x powered USB, AC/DC) |
| Thunderbolt | 1x Thunderbolt 5 combo Port with Power Delivery DC in (Type C), 1x Thunderbolt 5 Port (Type C) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High Definition audio interface |
| Speaker | Built-in two 1W Tweeter speakers, Built-in two 2W Mid-range speakers, Built-in one 4W Subwoofer speaker |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages LED Per Key full color illuminated full size isolated keyboard with numeric pad |
| Webcam | Built-in 5.0M Hello Camer with TNR (Temporal Noise Reduction) |
| Card Reader | Micro SD Push-Push Card reader |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 330W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 16.5A |
| Battery | Embedded 8 cells Polymer battery pack 98WH |
Questions about this item
Should I pick the 256 GB DDR5 5600 MHz configuration or look for a different capacity?
The laptop ships with 256 GB installed as four 64 GB modules running at 5600 MHz, filling every slot for maximum bandwidth.
What does the 5.5 GHz max turbo on the 24-core Ultra 9 290HX Plus actually deliver in a chassis this size?
The 2.7 GHz base clock can boost to 5.5 GHz on Arrow Lake cores, and Gelid GC Extreme paste on both CPU and GPU helps sustain higher clocks under load.
How fast is the 1 TB PCIe 4.0 x4 NVMe drive in everyday use?
The PCIe 4.0 x4 interface caps sequential throughput at the drive's rated ceiling, giving rapid boot and level-load times for the 1 TB OS volume.
