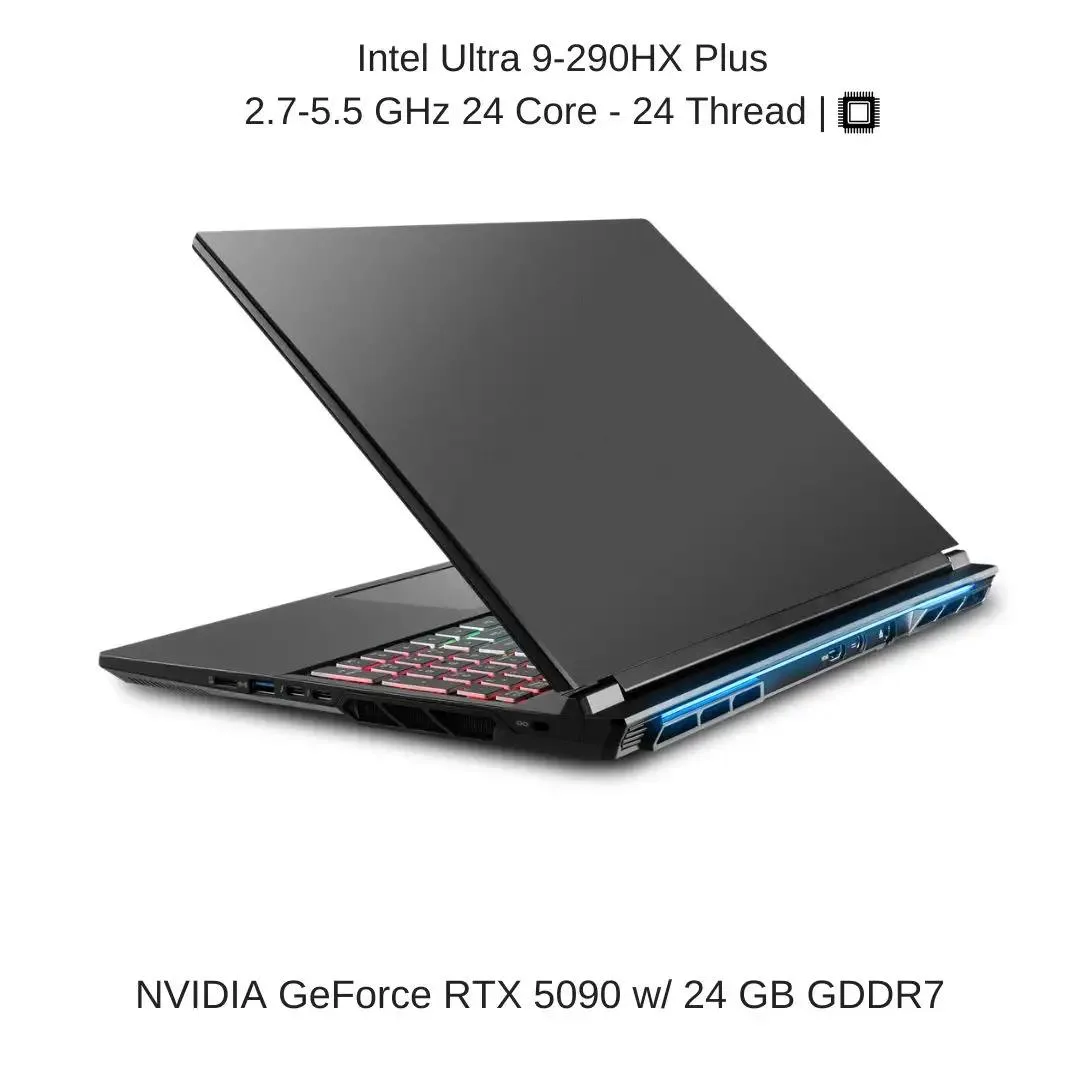

Evoc X5802D X580WNT-G gaming laptop 18" UHD+ 200Hz Ultra 9-290HX Plus RTX 5090 128 GB DDR5 24
An 18-inch UHD+ 200 Hz gaming laptop with an Intel Core Ultra 9 290HX Plus, RTX 5090 24 GB GDDR7, 128 GB DDR5 and 24 TB NVMe storage
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 9-290HX Plus
- Screen18" UHD+
- Memory128GB
- Storage24 TB M.2 PCIe 4.0 x4 NVMe SSD
- 18" UHD+ 200Hz display for ultra-smooth visuals
- Intel Core Ultra 9 290HX Plus 24-core CPU up to 5.5 GHz
- NVIDIA RTX 5090 24 GB GDDR7 graphics for maximum frame rates
- 128 GB DDR5 5600 MHz memory handles heavy multitasking
- 24 TB PCIe 4.0 NVMe SSD delivers vast high-speed storage
18" UHD+ 200Hz mobile workstation
The EVOC X5802D pairs an 18-inch 3840×2400 panel running at 200 Hz with an Intel Core Ultra 9 290HX Plus 24-core processor and an NVIDIA GeForce RTX 5090 carrying 24 GB of GDDR7 memory. Windows 11 Pro ships pre-installed on a 24 TB NVMe array built from three 8 TB PCIe 4.0 x4 drives. 128 GB of DDR5 5600 MHz RAM in dual-channel configuration completes the platform.
Gelid GC Extreme thermal upgrade
HIDevolution replaces the stock thermal interface material with Gelid GC Extreme on both the CPU and GPU to lower operating temperatures under sustained load. The revision targets creators and engineers who need consistent 5.5 GHz turbo performance without thermal throttling during long render or compute sessions.
Metal chassis with FlexiCharger
A full metal top, palm rest and bottom case measures 15.59 by 10.95 by 0.98 inches and weighs 7.25 lbs. Intel Dynamic Tuning Technology manages power delivery across the 24-core Arrow Lake silicon. The FlexiCharger adapter supports the high-wattage demands of the RTX 5090 and Ultra 9 combination while leaving standard USB-C charging available for lighter travel.
Highlights
- 18" UHD+ 200Hz display for ultra-smooth visuals
- Intel Core Ultra 9 290HX Plus 24-core CPU up to 5.5 GHz
- NVIDIA RTX 5090 24 GB GDDR7 graphics for maximum frame rates
- 128 GB DDR5 5600 MHz memory handles heavy multitasking
- 24 TB PCIe 4.0 NVMe SSD delivers vast high-speed storage
Specifications
| Brand | EVOC |
|---|---|
| Series | X580WNT-G |
| Model | EVOC X5802D (X580WNT-G) |
| Part Number | EV-X5802D-HID34 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 9-290HX Plus |
| Screen | 18" UHD+ |
| Memory | 128GB |
| Storage | 24 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5090 |
| Video Memory | 24GB |
| Dimensions (W x D x H) | 15.59” (w) x 10.95” (d) x 0.98” (h) |
| Weight | 7.25 lbs. |
| Other Features | Metal top, palm rest and bottom case, Light module, FlexiCharger, Intel Dynamic Tuning Technology |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Processor Name | Intel Core Ultra 9 290HX Plus |
| Number of Cores | 24-core Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | Max Turbo Frequency 5.5 GHz |
| CPU L3 Cache | 36 MB |
| Chipset | Intel® |
| Screen Size | 18.0" |
| Touchscreen | No |
| Display Type | UHD+ |
| Resolution | 3840 x 2400 |
| Panel | UHD+ |
| Refresh Rate | 200Hz |
| Display Features | Wide View Angle, G-Sync Display, Matte Finished |
| GPU/VPU | GeForce RTX 5090 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 24 TB |
| HDD | No |
| Storage Spec | 24 TB (3 x 8 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 64 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 4 |
| Memory Slot (Available) | 2 |
| Max Memory Supported | 256GB |
| LAN | Built-in Killer 2.5 Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE200 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 2x USB 3.2 Gen 2 Ports (Type A, with 1 x powered USB, AC/DC) |
| Thunderbolt | 1x Thunderbolt 5 combo Port with Power Delivery DC in (Type C), 1x Thunderbolt 5 Port (Type C) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High Definition audio interface |
| Speaker | Built-in two 1W Tweeter speakers, Built-in two 2W Mid-range speakers, Built-in one 4W Subwoofer speaker |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages LED Per Key full color illuminated full size isolated keyboard with numeric pad |
| Webcam | Built-in 5.0M Hello Camer with TNR (Temporal Noise Reduction) |
| Card Reader | Micro SD Push-Push Card reader |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 330W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 16.5A |
| Battery | Embedded 8 cells Polymer battery pack 98WH |
Questions about this item
What are the dimensions and weight of the 18" UHD+ 200Hz laptop?
The laptop measures 15.59 inches wide by 10.95 inches deep by 0.98 inches high and weighs 7.25 lbs.
How is the Gelid GC Extreme thermal compound applied during the HIDevolution build process?
Technicians disassemble the cooling assembly, clean the CPU and GPU dies, apply Gelid GC Extreme evenly, then reassemble and run burn-in stress tests to verify temperatures.
Can the 128 GB DDR5 5600MHz memory or the 24 TB NVMe storage be upgraded later?
The system uses two 64 GB DDR5 modules and three 8 TB M.2 PCIe 4.0 x4 NVMe drives; all slots are populated, so upgrades require replacing existing modules.
