Evoc
Evoc X580WNT-G gaming laptop 18" UHD+ 200Hz Ultra 9 290HX Plus RTX 5090 16GB 32TB
18-inch UHD+ 200Hz display driven by a 24-core Ultra 9 290HX Plus at 5.5 GHz turbo, RTX 5090 with 24 GB GDDR7, 16 GB DDR5 and 32 TB NVMe storage
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 9-290HX Plus
- Screen18" UHD+
- Memory16GB
- Storage32 TB M.2 PCIe 4.0 x4 NVMe SSD
- 24-core Arrow Lake CPU reaches 5.5 GHz turbo for heavy workloads
- 18-inch UHD+ panel at 200 Hz gives sharp motion clarity
- RTX 5090 with 24 GB GDDR7 drives high-frame-rate gaming
- 32 TB PCIe 4.0 NVMe storage holds massive libraries
- Gelid GC Extreme thermal compound lowers CPU and GPU temperatures
18" UHD+ 200Hz display
The 18 inch UHD+ panel runs at 3840 by 2400 pixels and refreshes at 200 Hz. That resolution and refresh rate suit competitive gamers and content creators who need both detail and motion clarity. The high pixel density also benefits workflows that rely on accurate scaling across multiple windows.

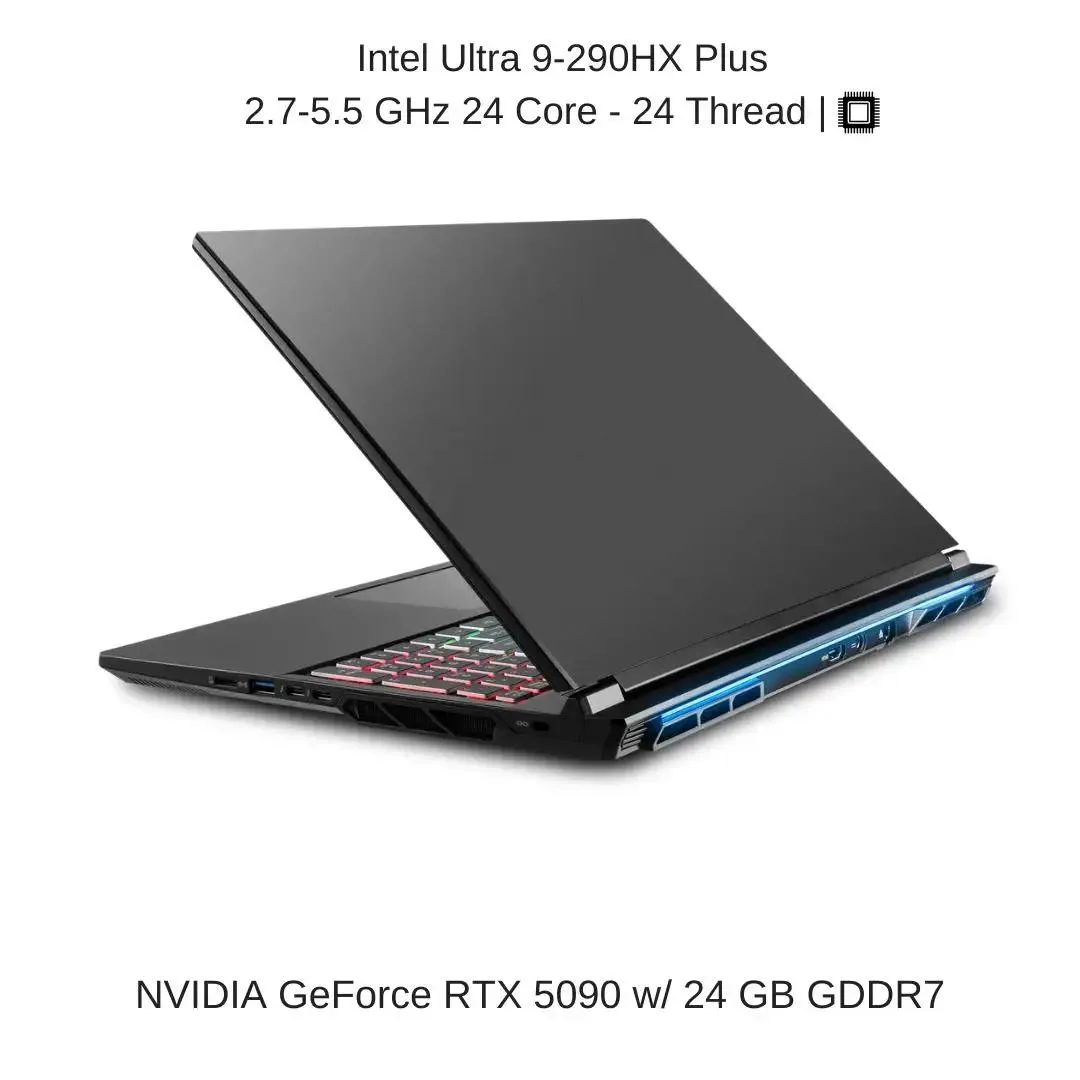

24-core Ultra 9 290HX Plus with RTX 5090
The Intel Core Ultra 9 290HX Plus delivers 24 cores with a 2.7 GHz base and 5.5 GHz max turbo. Paired with the NVIDIA GeForce RTX 5090 and 24 GB GDDR7 video memory, the combination targets users who run heavy rendering, simulation or high-refresh gaming loads. Buyers who only need mainstream office performance or lighter esports titles should consider less expensive configurations.
32 TB PCIe 4.0 NVMe storage
Four 8 TB M.2 PCIe 4.0 x4 NVMe SSDs combine for 32 TB of high-speed storage. This capacity decides whether the laptop can hold large game libraries, raw video projects and virtual machines without external drives. If your active dataset fits in a smaller volume, a lower-capacity model will cost less and weigh less.
Highlights
- 24-core Arrow Lake CPU reaches 5.5 GHz turbo for heavy workloads
- 18-inch UHD+ panel at 200 Hz gives sharp motion clarity
- RTX 5090 with 24 GB GDDR7 drives high-frame-rate gaming
- 32 TB PCIe 4.0 NVMe storage holds massive libraries
- Gelid GC Extreme thermal compound lowers CPU and GPU temperatures
Specifications
| Brand | EVOC |
|---|---|
| Series | X580WNT-G |
| Model | EVOC X5802D (X580WNT-G) |
| Part Number | EV-X5802D-HID7 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 9-290HX Plus |
| Screen | 18" UHD+ |
| Memory | 16GB |
| Storage | 32 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5090 |
| Video Memory | 24GB |
| Dimensions (W x D x H) | 15.59” (w) x 10.95” (d) x 0.98” (h) |
| Weight | 7.25 lbs. |
| Other Features | Metal top, palm rest and bottom case, Light module, FlexiCharger, Intel Dynamic Tuning Technology |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Processor Name | Intel Core Ultra 9 290HX Plus |
| Number of Cores | 24-core Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | Max Turbo Frequency 5.5 GHz |
| CPU L3 Cache | 36 MB |
| Chipset | Intel® |
| Screen Size | 18.0" |
| Touchscreen | No |
| Display Type | UHD+ |
| Resolution | 3840 x 2400 |
| Panel | UHD+ |
| Refresh Rate | 200Hz |
| Display Features | Wide View Angle, G-Sync Display, Matte Finished |
| GPU/VPU | GeForce RTX 5090 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 32 TB |
| HDD | No |
| Storage Spec | 32 TB (4 x 8 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 8 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 4 |
| Memory Slot (Available) | 2 |
| Max Memory Supported | 256GB |
| LAN | Built-in Killer 2.5 Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE200 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 2x USB 3.2 Gen 2 Ports (Type A, with 1 x powered USB, AC/DC) |
| Thunderbolt | 1x Thunderbolt 5 combo Port with Power Delivery DC in (Type C), 1x Thunderbolt 5 Port (Type C) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High Definition audio interface |
| Speaker | Built-in two 1W Tweeter speakers, Built-in two 2W Mid-range speakers, Built-in one 4W Subwoofer speaker |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages LED Per Key full color illuminated full size isolated keyboard with numeric pad |
| Webcam | Built-in 5.0M Hello Camer with TNR (Temporal Noise Reduction) |
| Card Reader | Micro SD Push-Push Card reader |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 330W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 16.5A |
| Battery | Embedded 8 cells Polymer battery pack 98WH |
Questions about this item
Will my existing DDR5-5600 SO-DIMM kits work if I want to expand the 16 GB that ships inside?
The laptop ships with 16 GB of DDR5-5600 in a dual-channel 2 x 8 GB layout; any additional modules must match that speed and form factor to keep the memory subsystem stable.
Can I keep using my current PCIe 4.0 NVMe drives alongside the 32 TB array already installed?
The four 8 TB M.2 PCIe 4.0 x4 NVMe SSDs that make up the 32 TB volume occupy the available M.2 slots, so extra drives would require removing one of the factory modules.
How do I confirm the 18-inch UHD+ panel is actually running at 200 Hz after I power on?
Open Windows Settings > System > Display > Advanced display and verify the refresh-rate dropdown shows 200 Hz for the 3840 x 2400 internal screen.
