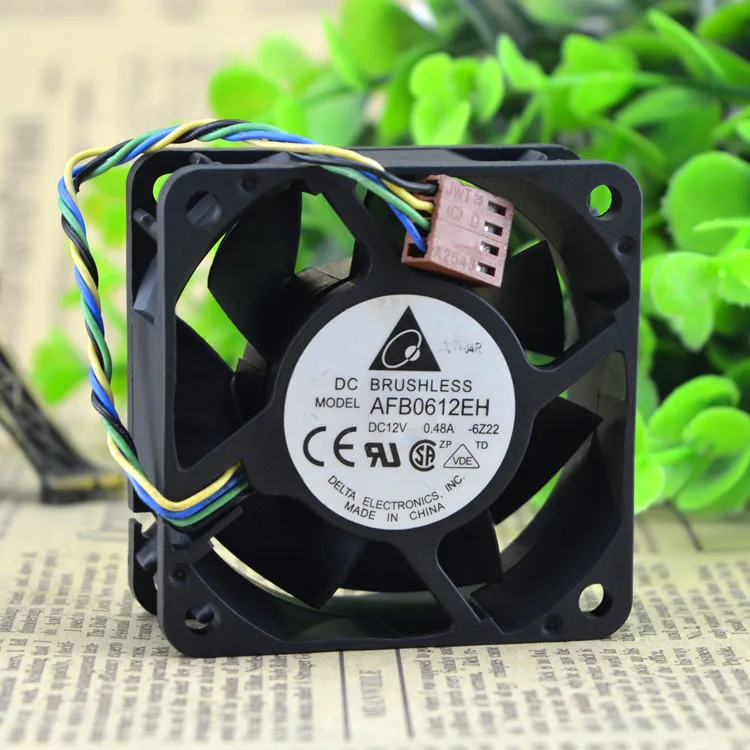

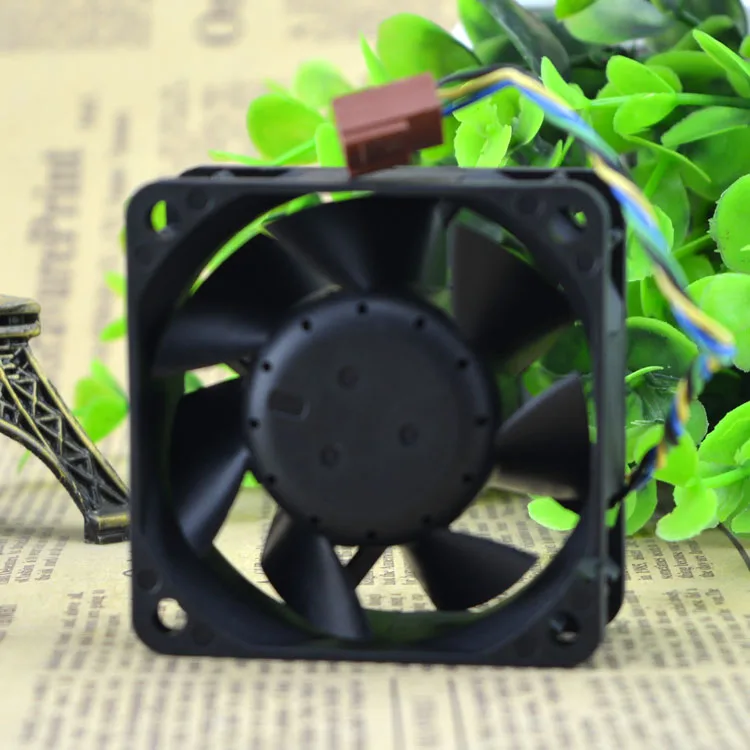

Square black 60 mm frame fan with 25 mm depth and four-pin connector

Fans

Fans AFB0612EHSize 6025 12V .48A 6700RPM double ball case fan

SKU CH-MAR7-NYGS9 MPN AFB0612EHSize

60×60×25 mm case fan with 12 V 0.48 A PWM control, 6700 RPM and double ball bearings rated for 80 000 hours

  • 60×60×25 mm footprint fits tight builds
  • 12 V, 0.48 A draws minimal power
  • Double-ball bearing rated 80 000 hours
  • 6 700 RPM ± 5 % delivers strong airflow
  • 4-pin PWM enables automatic speed control

60 × 60 × 25 mm double ball bearing fan

This 12 V case fan uses a double ball bearing rated for 80 000 hours of continuous operation at 6 700 RPM. The 6025 frame is moulded from PBT with 30 % glass fibre and VO grade flame retardant. It draws .48 A and is designed for axial airflow in tight spaces.

PWM four pin motherboard interface

The default four pin connector enables PWM temperature control and speed measurement without extra wiring. Mounting depth is only 25 mm, freeing clearance around dense heatsinks or small form factor chassis. No additional controller is required for 100 % speed regulation.

Eight thousand hour service life at 25 °C

Rated service life is 8 000 hours at 25 °C and 45 to 85 % relative humidity. The fan ships with no extra cables, brackets or software. Buyers who need longer rated life or lower acoustic output at equivalent airflow will need a different specification.

Highlights

  • 60×60×25 mm footprint fits tight builds
  • 12 V, 0.48 A draws minimal power
  • Double-ball bearing rated 80 000 hours
  • 6 700 RPM ± 5 % delivers strong airflow
  • 4-pin PWM enables automatic speed control

Specifications

No published specifications for this item yet.

Questions about this item

How long can the double ball bearing sustain continuous operation at 6700 RPM before wear becomes the limiting factor?

The bearing is rated for 80,000 hours of maintained optimal continuous running time.

What are the noise and power characteristics when the fan runs all day at 12 V and 0.48 A?

It draws 0.48 A at 12 V; the supplier notes low noise level and exceptional efficiency for sustained axial airflow.

Which motherboard header must I already have to connect the default 4-pin interface?

A standard motherboard 4-pin PWM header is required for the default fan interface.
