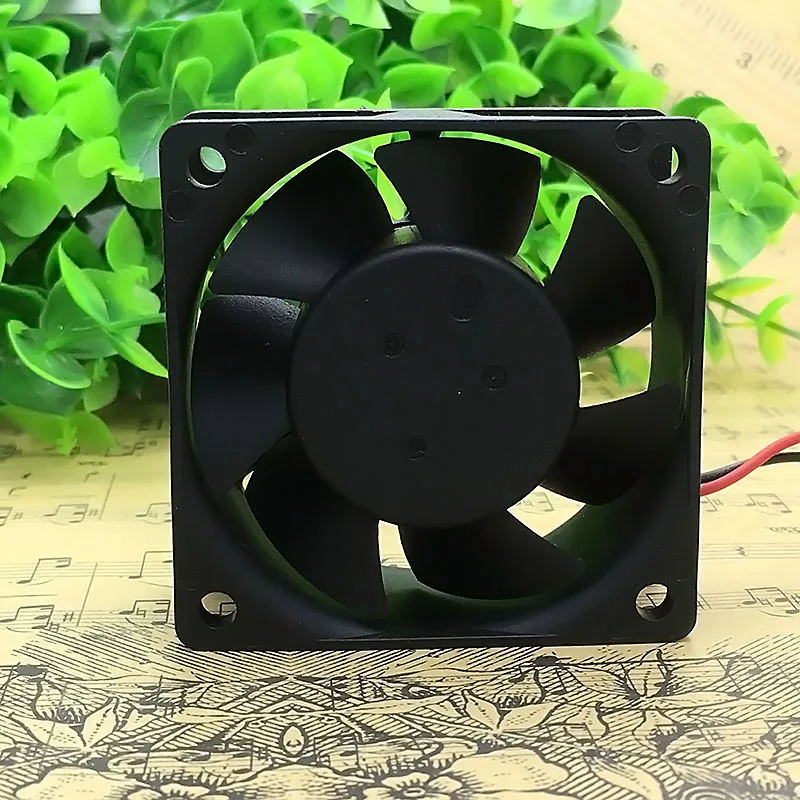

Square black frame fan with central rotor and four mounting holes

Fans

Fans AFB0624HH 24V 0.14A 60x60x25mm case fan

SKU CH-V20X-QRK28 MPN AFB0624HH

A 60 mm square, 25 mm thick axial fan moves 22.95 CFM at 5000 RPM with 33 dBA noise on 24 V power

  • 60,000-hour service life supports long-term reliability
  • 5000 RPM delivers 22.95 CFM airflow for effective cooling
  • 33 DBA noise level keeps acoustic impact low
  • 24 V 0.14 A input draws only 3.36 W of power
  • 60 x 60 x 25 mm frame fits space-constrained builds

Compact 60 mm axial fan for tight enclosures

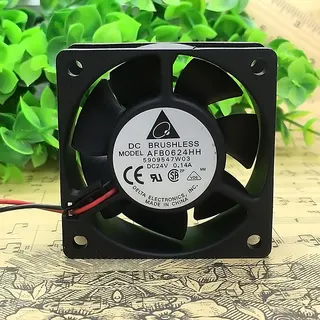

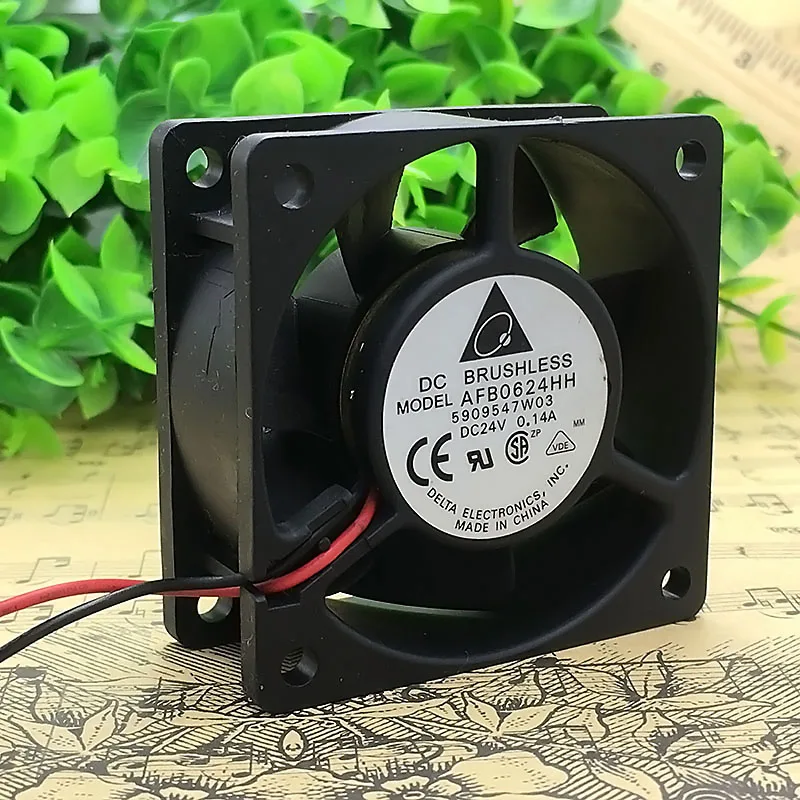

The Delta AFB0624HH is a 60×60×25 mm axial fan built for equipment that exchanges hot or cold air in confined spaces. It runs on 24 V and draws 0.14 A for 3.36 W of power. The unit is rated for continuous operation from −20 °C to 75 °C.

Steady airflow at 5000 RPM under constant load

At its rated speed of 5000 RPM the fan delivers 22.95 CFM (0.65 m³/min) with a static pressure of 6.96 mmH₂O (0.274 in H₂O). Acoustic output is 33 dBA. The design targets a service life of 60 000 hours at these conditions.

Replaces worn 60 mm 24 V fans in industrial gear

This unit fits the same mounting pattern as legacy 6025-size fans, so it drops into existing cut-outs without rework. The jump is worthwhile when the original fan has exceeded its rated hours or when noise has risen above the 33 dBA baseline. It does not suit builds that require a larger frame or a different voltage rail.

Highlights

  • 60,000-hour service life supports long-term reliability
  • 5000 RPM delivers 22.95 CFM airflow for effective cooling
  • 33 DBA noise level keeps acoustic impact low
  • 24 V 0.14 A input draws only 3.36 W of power
  • 60 x 60 x 25 mm frame fits space-constrained builds

Specifications

No published specifications for this item yet.

Questions about this item

How loud is the AFB0624HH at 5000 RPM during continuous 24-hour operation?

The fan is rated at 33 dBA at its full 5000 RPM speed, a level that stays constant during all-day use.

What connector or voltage source does this 24V 0.14A fan need to run?

It requires a 24 V DC supply capable of at least 0.14 A; the unit draws 3.36 W and uses a standard two-wire interface.

Will the 60x60x25 mm frame and 5000 RPM airflow fit a legacy 60 mm mount in older equipment?

Yes, the 60 mm square by 25 mm deep frame matches the classic 6025 footprint, and the 22.95 CFM output suits existing heat-sink clearances.
