Green circuit board with gold edge connector and black controller chip visible

FANXIANG

FANXIANG S301 mSATA 128GB internal SSD

SKU CH-JR8Q-MC276

mSATA internal SSD with 128 GB capacity and sequential speeds up to 550 MB/s read and 480 MB/s write

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactormSATA
  • Capacity128GB
  • Memory Components3D NAND TLC
  • InterfacemSATA

Options 128GB

  • Compact mSATA form factor fits space-constrained laptops and embedded boards

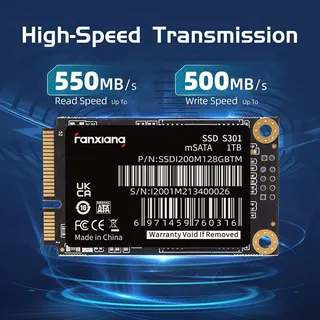

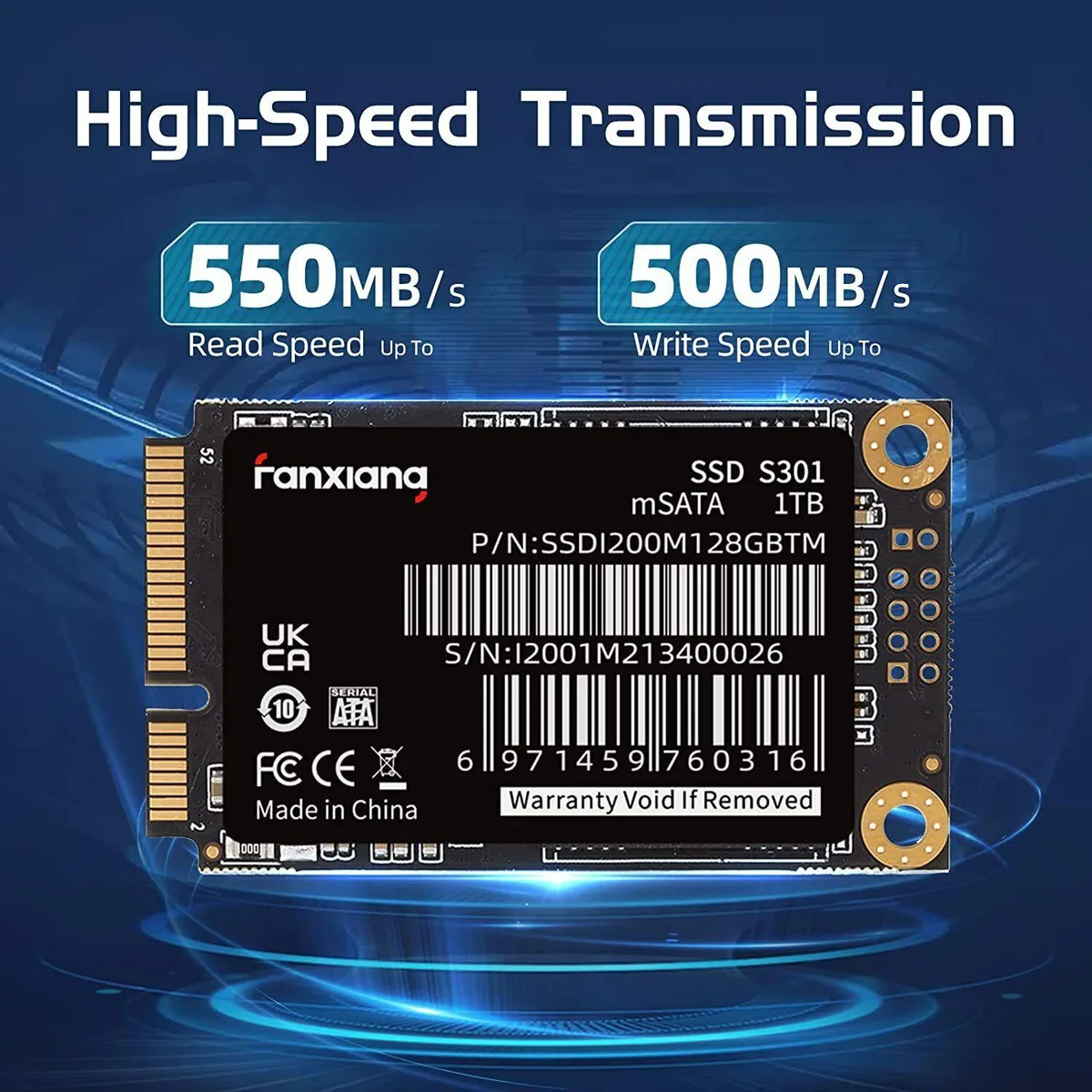

  • Sequential reads up to 550 MB/s accelerate boot and load times
  • Sequential writes up to 480 MB/s speed up file saves and installs
  • 3D NAND TLC with SLC cache and LDPC ECC protects data integrity
  • Operating range from -40 °C to +85 °C suits industrial environments

Compact mSATA form factor for space-constrained

The FANXIANG S301 mSATA 128GB internal SSD fits devices that cannot accept a 2.5 inch SATA drive. Its small footprint suits ultrabooks, embedded PCs and older laptops with an mSATA slot. The 128GB capacity provides a boot drive for a lightweight operating system and essential applications.

Replaces mechanical hard drives in mSATA slots

Moving from a spinning disk to this SATA III SSD removes moving parts and adds Trim, LDPC ECC and advanced wear levelling. Sequential reads reach 550MB/s and writes 480MB/s, so boot times and file transfers improve noticeably. The upgrade is worth it when the system has an mSATA interface and needs responsive storage without a full platform change.

128GB capacity handles OS and core apps

The drive stores a modern operating system, productivity suite and a modest media library with headroom for updates. Sustained workloads benefit from SLC cache and thermal throttling between -40°C and +85°C. Heavy video editing or large game libraries will exceed the available space and require a larger drive.

Highlights

  • Compact mSATA form factor fits space-constrained laptops and embedded boards
  • Sequential reads up to 550 MB/s accelerate boot and load times
  • Sequential writes up to 480 MB/s speed up file saves and installs
  • 3D NAND TLC with SLC cache and LDPC ECC protects data integrity
  • Operating range from -40 °C to +85 °C suits industrial environments

Specifications

BrandFanxiang
ModelS301
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactormSATA
Capacity128GB
Memory Components3D NAND TLC
InterfacemSATA
ProtocolmSATA
Max Sequential Read550MB/s
Max Sequential Write480MB/s
Sustained Sequential Read6Gbps
FeaturesTrim,RAID,Smart,LDPC ECC,Advanced Wear Leveling,Bad Block Management,Thermal throttling,Power Management,SLC Cache
Operating Temperature-40°C ~ +85°C
Storage Temperature-10°C ~ +70°C
Manufacturer RecertifiedYes

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What size mSATA slot and mounting screw spacing does the 128GB S301 need?

It fits a standard full-size mSATA slot with the usual 30 mm screw centres; the board is shorter than a 2.5 inch drive so it suits compact laptops and embedded boards.

Which step do installers most often miss when fitting the S301 mSATA drive?

After seating the card and tightening the retention screw, enable AHCI mode in the BIOS so the SATA controller can issue TRIM commands and use the drive's SLC cache properly.

How long will the 3D NAND TLC memory in this 128GB drive last under daily writes?

The controller uses LDPC ECC, advanced wear levelling and bad-block management to spread writes evenly across the TLC array, and thermal throttling protects the chips at up to 85 °C operating temperature.
