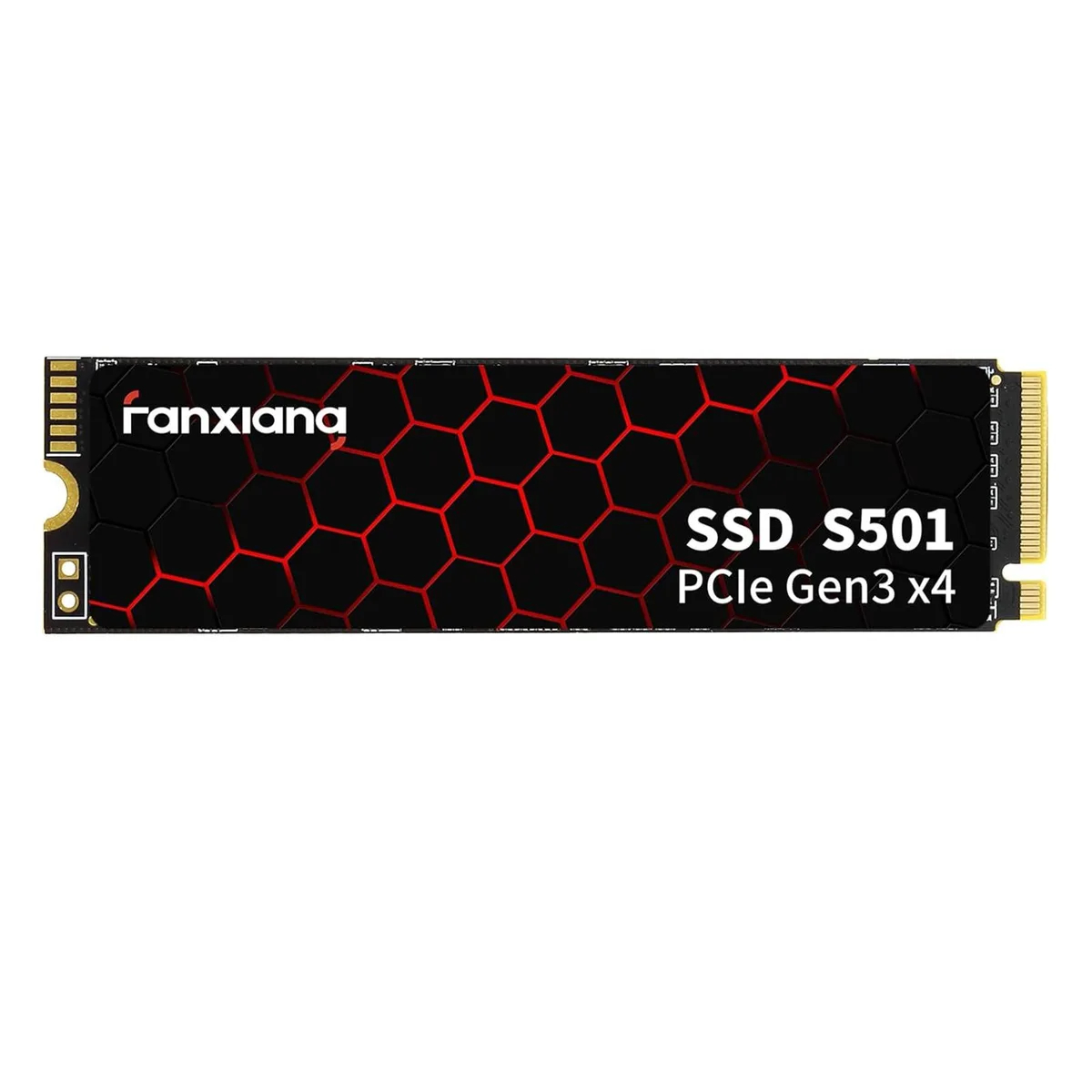

Thin green circuit board with black controller and silver label, M.2 2280 form factor

FANXIANG

FANXIANG S501 256GB M.2 2280 PCIe 3.0 x4 NVMe internal SSD

SKU CH-E1TH-H5GTA

256 GB M.2 2280 NVMe drive with PCIe 3.0 x4 interface delivering up to 2100 MB/s reads and 1800 MB/s writes

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity256GB
  • Memory Components3D NAND
  • InterfacePCI-Express 3.0 x4
  • Read speeds up to 2100 MB/s accelerate boot and app launch
  • Write speeds up to 1800 MB/s speed up file saves and transfers
  • PCIe 3.0 x4 NVMe 1.3 interface delivers high-throughput storage
  • 3D NAND TLC with HMB and SmartECC enhances endurance and data integrity
  • M.2 2280 form factor fits laptops and desktops with included screw and screwdriver

Fanxiang S501 256GB M.2 2280 NVMe SSD

The Fanxiang S501 is a 256GB internal solid-state drive built on the M.2 2280 form factor. It connects through a PCIe 3.0 x4 interface using the NVMe 1.3 protocol. The drive uses 3D NAND flash memory and includes a graphene heat dissipation sticker for thermal management. It targets users upgrading laptops or desktops that have an M.2 slot supporting PCIe NVMe.

Suits PCIe NVMe M.2 slots only

This drive suits systems with an M.2 slot wired for PCIe 3.0 x4 and NVMe 1.3 support, including Windows 7 through 11 and Mac OS 10.9 or later. It is not suitable for slots limited to other interfaces. The bundled screwdriver and screw simplify installation in compatible laptops, desktops and all-in-one PCs.

Sequential read up to 2100 MB/s

The headline specification is a maximum sequential read speed of 2100 MB/s paired with a maximum sequential write speed of 1800 MB/s. These figures determine whether the drive meets the performance needs of a given workload. The package includes the SSD, one screwdriver and one mounting screw.

Highlights

  • Read speeds up to 2100 MB/s accelerate boot and app launch
  • Write speeds up to 1800 MB/s speed up file saves and transfers
  • PCIe 3.0 x4 NVMe 1.3 interface delivers high-throughput storage
  • 3D NAND TLC with HMB and SmartECC enhances endurance and data integrity
  • M.2 2280 form factor fits laptops and desktops with included screw and screwdriver

Specifications

BrandFanxiang
ModelS501
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity256GB
Memory Components3D NAND
InterfacePCI-Express 3.0 x4
ProtocolNVMe 1.3
Max Sequential ReadUp to 2100 MBps
Max Sequential WriteUp to 1800 MBps
FeaturesNo noise, Low energy consumption, Anti-shock, Anti-vibration, RoHS Compliant, HMB technology, hermal throttling technology, SmartECC technology, O/S Supported: Windows® 7* / 8.0* / 8.1 / 10 / 11, NANDXtend ECC technology
Package ContentNVMe M.2 PCIE 3.0 SSD *1,
Screwdriver *1,
Screw *1

Questions about this item

What does PCIe 3.0 x4 NVMe 1.3 cap sequential read and write at?

The interface supports up to 2100 MB/s sequential read and 1800 MB/s sequential write on this drive.

What physical slot and mounting hardware does the M.2 2280 drive require?

It fits an M-key M.2 2280 slot and the box includes one screw and a screwdriver for the standoff.

How do you install the S501 and which step is often missed?

Insert the drive at an angle into the M.2 slot, press it down, and secure it with the supplied screw; people often forget the screw.
