Green rectangular M.2 2280 circuit board with gold edge connector and black controller chips

FANXIANG

FANXIANG S501Q 2TB PCIe 3.0 x4 NVMe internal SSD

SKU CH-69QM-Z89PD

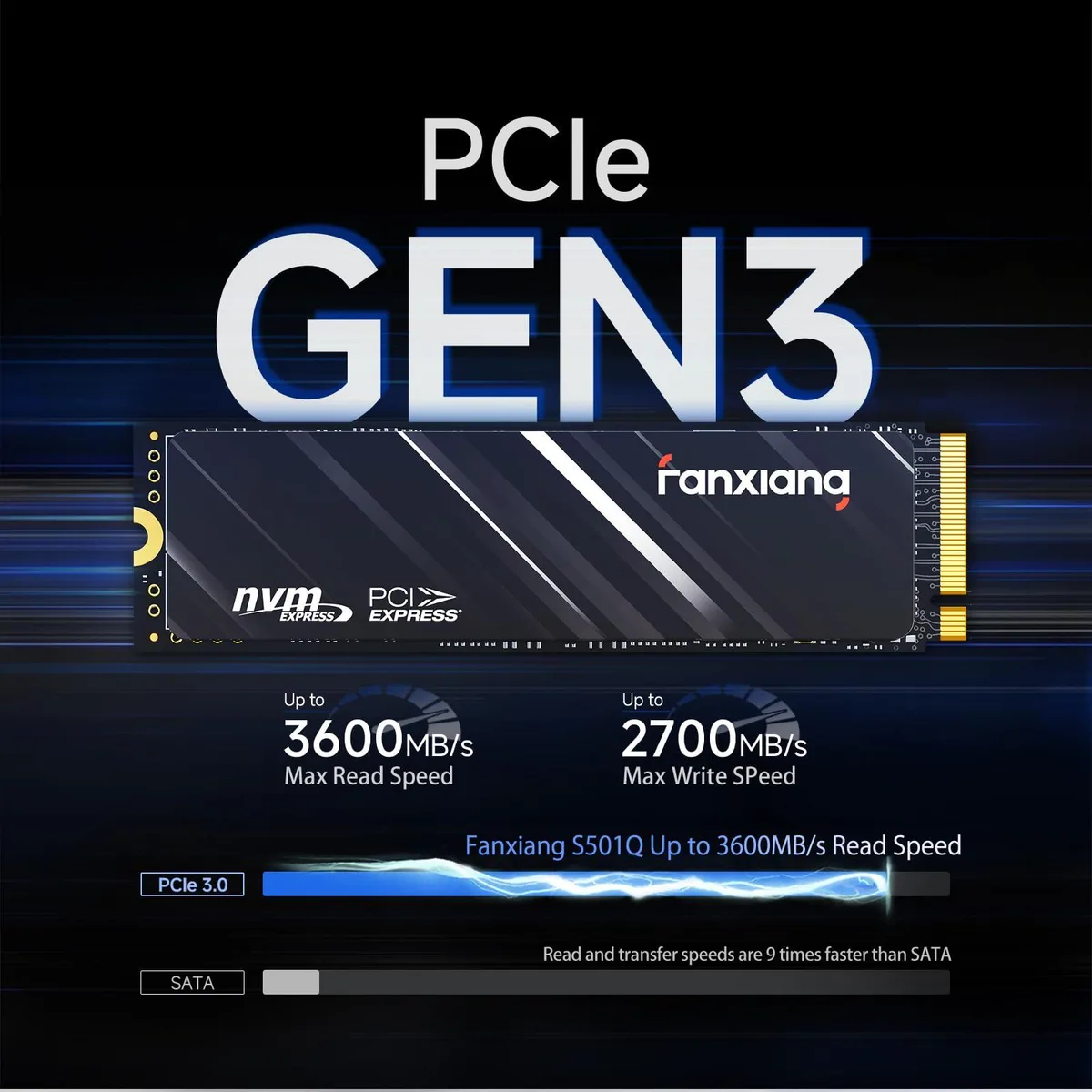

A 2TB M.2 2280 NVMe drive with PCIe 3.0 x4, 3600 MB/s read and 2700 MB/s write, 640 TBW endurance and graphite cooling stickers

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory ComponentsQLC
  • InterfacePCI-Express 3.0 x4

Options 2TB

  • Up to 3600 MB/s sequential read accelerates boot and load times
  • Up to 2700 MB/s sequential write speeds file saves and transfers
  • 640 TBW endurance rating supports heavy daily workloads
  • 1,500,000-hour MTBF indicates long-term reliability
  • Graphite heat-dissipation stickers help maintain performance under load

Capacity and interface

The FANXIANG S501Q is a 2TB internal SSD built on the M.2 2280 form factor and a PCI-Express 3.0 x4 NVMe link. It targets laptop and desktop users who want a large, single-volume upgrade for everyday workloads and game libraries.

Sustained write behaviour

The drive uses 3D NAND QLC with an SLC cache to absorb burst traffic, then settles to the native QLC write rate once the cache fills. Its 640TB TBW rating and 1,500,000-hour MTBF reflect the endurance envelope for long-term mixed read and write activity.

Thermals and power

A graphite heat-dissipation sticker is included to spread heat across the controller and NAND packages. The drive is rated for 0°C to 70°C operating temperature and -25°C to 85°C storage temperature, indicating typical power draw and thermal output for a Gen 3 x4 NVMe device without a dedicated heatsink.

Highlights

  • Up to 3600 MB/s sequential read accelerates boot and load times
  • Up to 2700 MB/s sequential write speeds file saves and transfers
  • 640 TBW endurance rating supports heavy daily workloads
  • 1,500,000-hour MTBF indicates long-term reliability
  • Graphite heat-dissipation stickers help maintain performance under load

Specifications

BrandFANXIANG
SeriesS501Q
ModelS501Q
Part NumberS501Q-2TB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory ComponentsQLC
InterfacePCI-Express 3.0 x4
Max Sequential ReadUp to 3600 MBps
Max Sequential WriteUp to 2700 MBps
Terabytes Written (TBW)640TB
MTBF1,500,000 hours
HeatSinkwithout HeatSink
FeaturesM.2 2280 NVMe SSD PCIe Gen 3x4
Operating Temperature0°C ~ +70°C
Storage Temperature-25°C ~ +85°C
Height2.40mm
Width22.00mm
Depth80.00mm
Weight8g
Package ContentS501Q M.2 NVMe SSD x1, Screwdriver x1, Screw x1

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the 2 TB S501Q run hot or draw extra power during all‑day use?

The drive includes graphite heat‑dissipation stickers to control temperature, operates from 0 °C to 70 °C and uses the PCIe 3.0 x4 interface without a heatsink.

What must my motherboard provide for this M.2 2280 NVMe drive to work?

An M.2 slot wired for PCIe 3.0 x4 NVMe; the drive is 22 mm wide and 2.40 mm high.

Will this PCIe 3.0 x4 SSD run at full speed in a PCIe 2.0 slot?

It will function but speeds are limited to the PCIe 2.0 x4 ceiling, below the 3600 MB/s read and 2700 MB/s write ratings.
