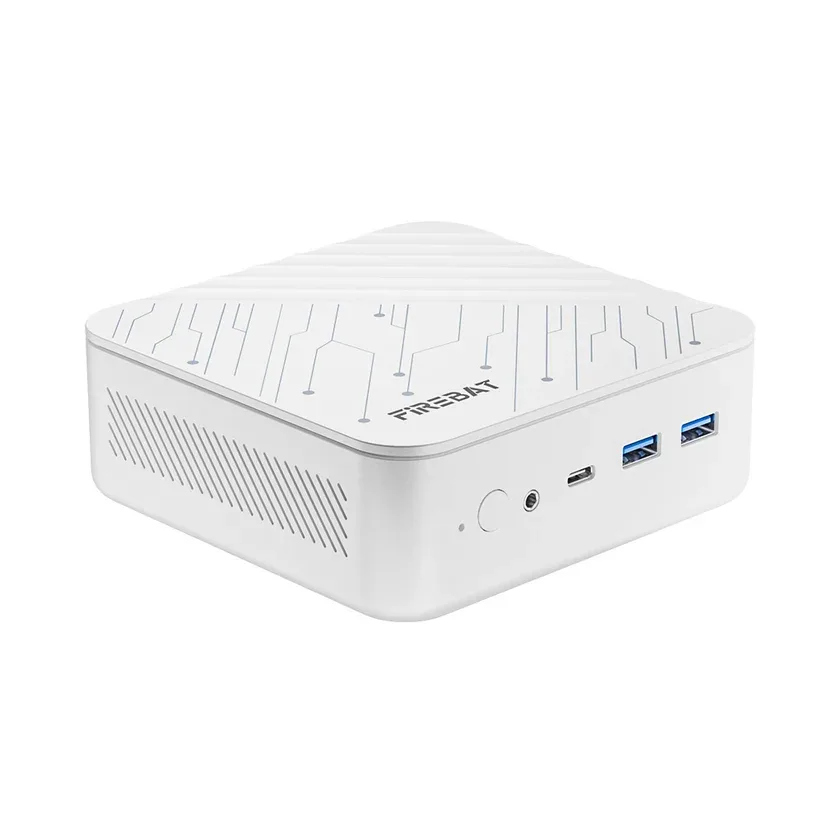

White square mini PC barebone with VESA mount visible

FIREBAT

FIREBAT 0000206#FBMP barebone mini PC AMD Ryzen 7 H255 8C/16T 120W

SKU CH-KT67-EFE63 MPN 0000206#FBMP

Barebone mini PC with an 8-core AMD Ryzen 7 H255 processor up to 54 W, dual 1 Gbps LAN, Wi-Fi 6, Bluetooth 5.2 and triple 4K display support, supplied without memory or storage for custom builds

  • ColorWhite
  • CPU TypeAMD Ryzen 7 H255
  • CPU Cores8-Core
  • Memory installedNo Memory
  • Storage InstalledNo Storage
  • Max LAN SpeedDual 1Gbps
  • 8-core Ryzen 7 H255 handles multitasking and light gaming with 16 threads up to 54W
  • barebone design lets you choose RAM and SSD capacity for a custom build
  • WiFi6 and Bluetooth 5.2 plus dual 1Gbps LAN give flexible wired and wireless connectivity

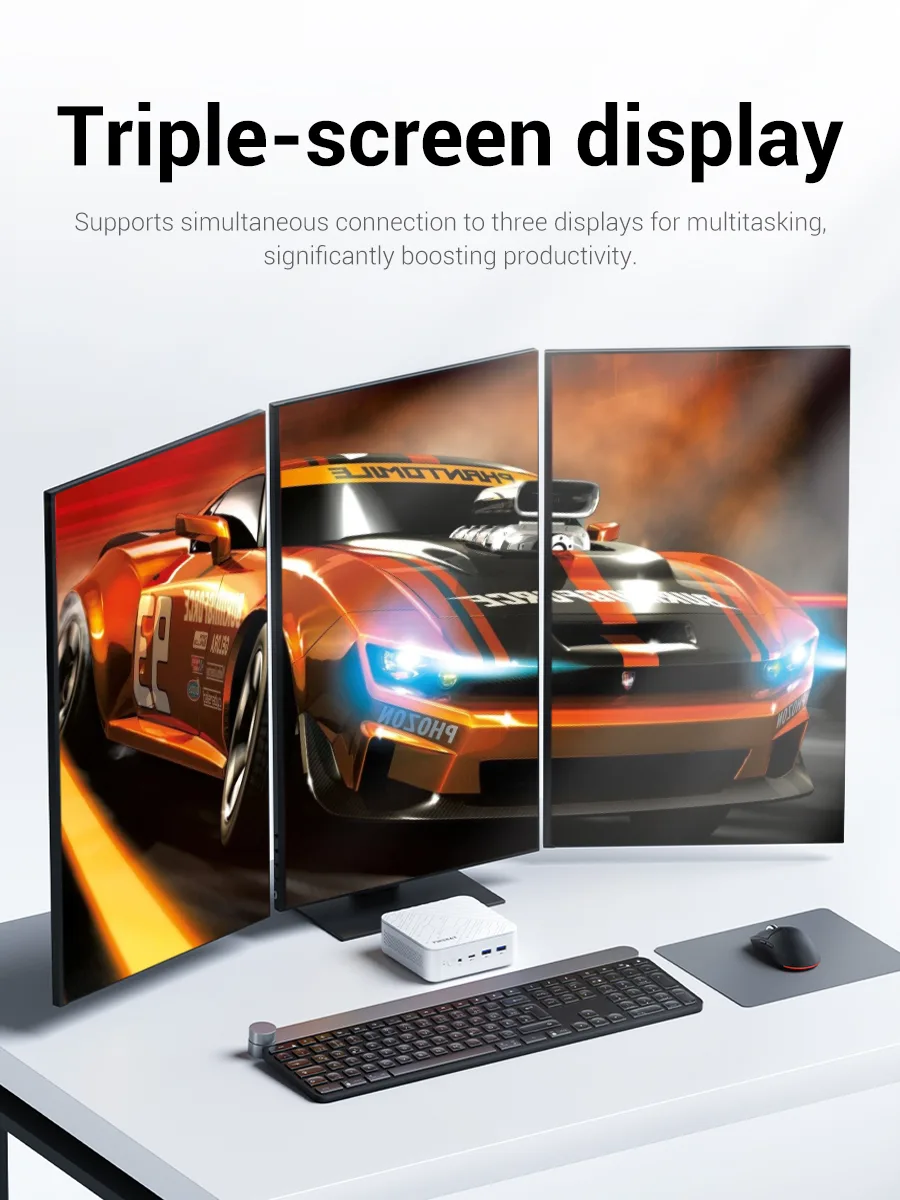

  • triple 4K display support drives three monitors from one compact chassis
  • 127 x 130 x 46.7mm footprint and 485g weight fit VESA mounts and tight spaces

Barebone for custom builds

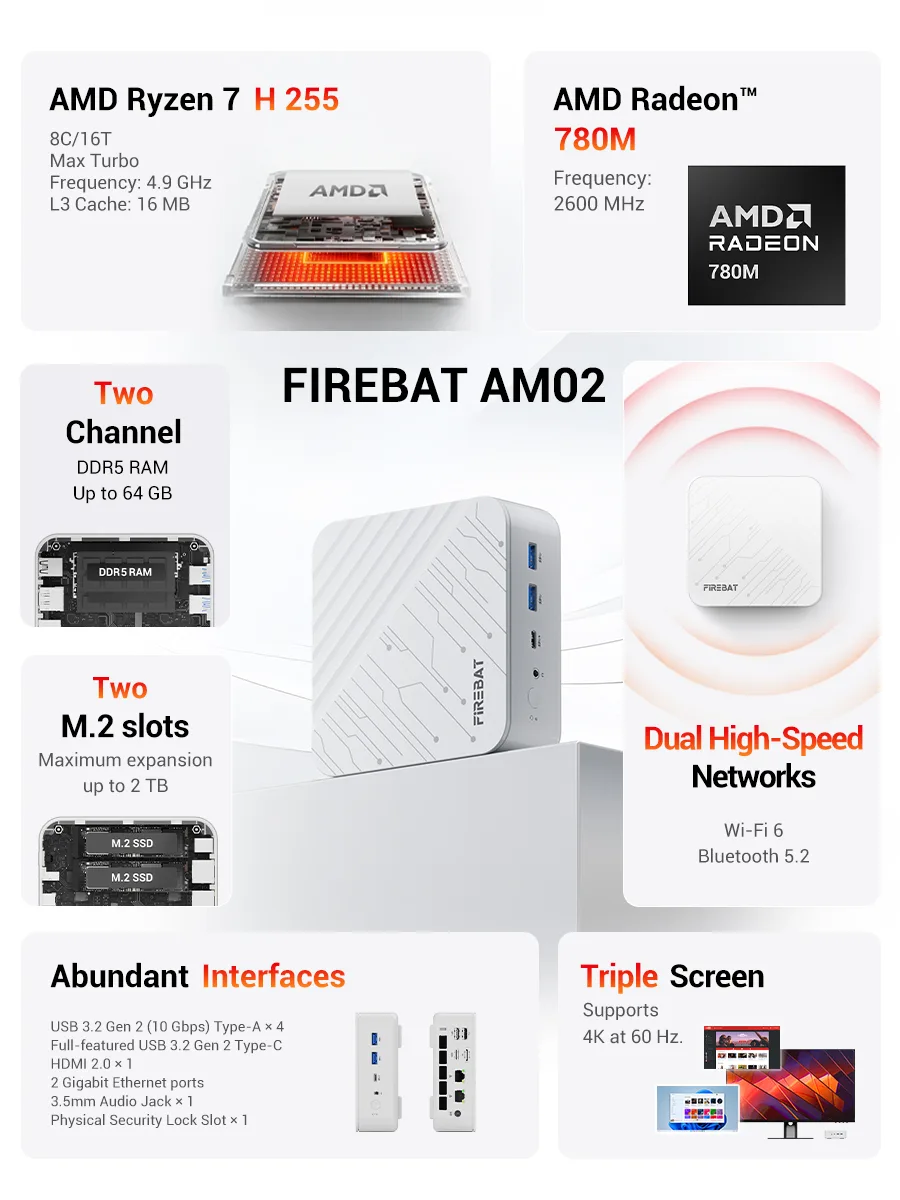

The Firebat AM02 is a barebone mini PC built around an AMD Ryzen 7 H255 processor with 8 cores and 16 threads. It ships without memory or storage so you can choose the exact capacity and speed your workload requires. The 120 W power adapter and compact 127 x 130 x 46.7 mm chassis make it suited to space-constrained desks or VESA mounts. Enthusiasts and small-office deployments gain a ready-to-assemble platform for tailored configurations.

Connectivity and expansion

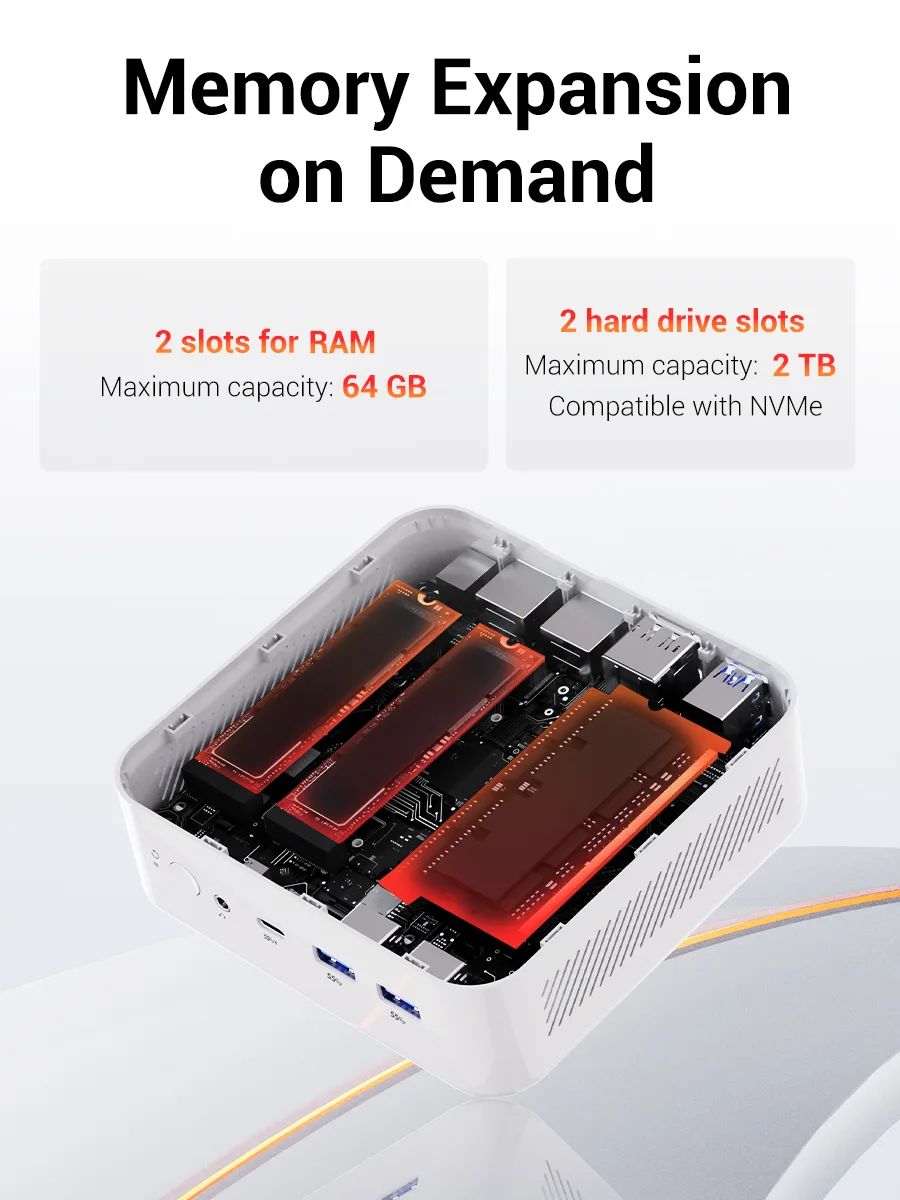

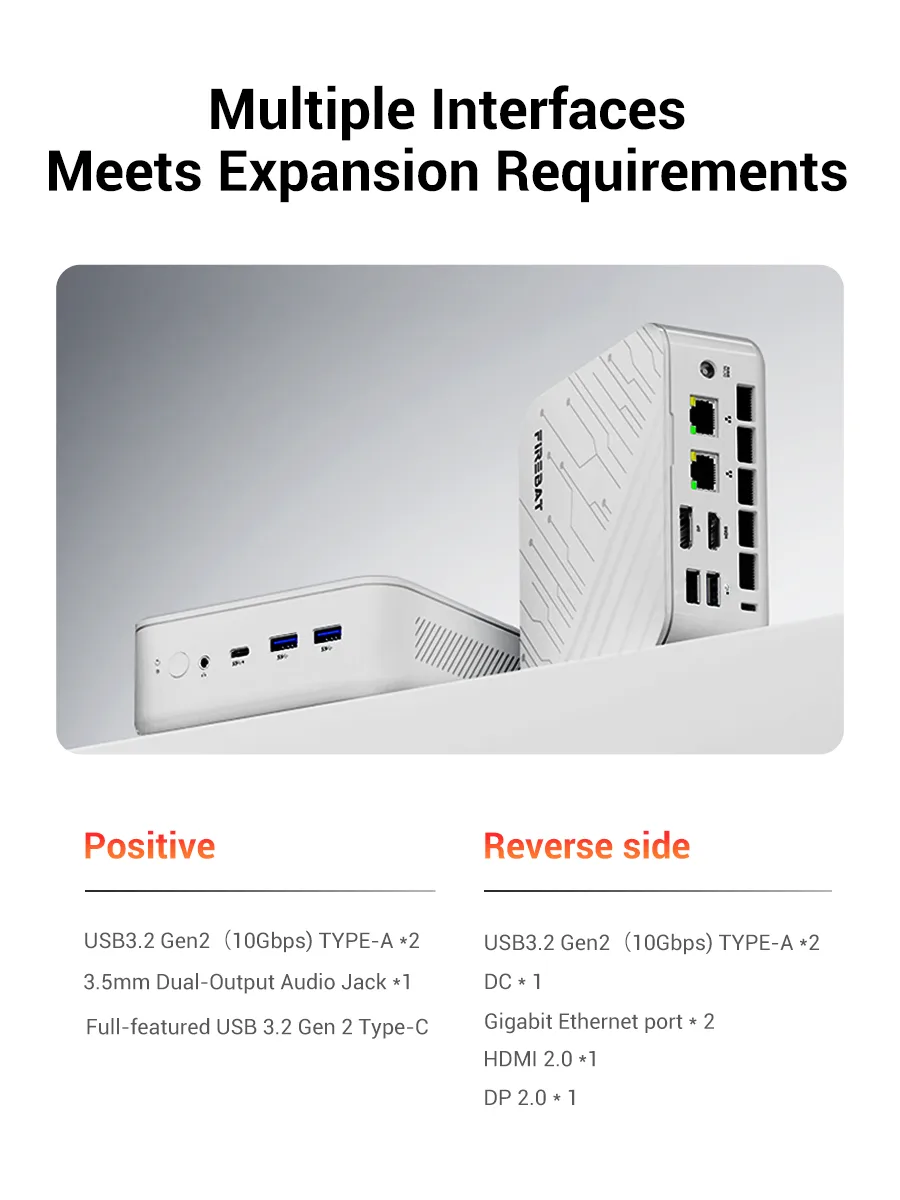

Dual 1 Gbps Ethernet ports give you wired redundancy or separate network segments without extra cards. Integrated Wi-Fi 6 and Bluetooth 5.2 handle wireless peripherals and network access in crowded environments. Triple 4K display outputs let you drive three high-resolution screens for signage, monitoring or productivity. The barebone design frees both SO-DIMM slots and M.2 bays for your selected RAM and SSDs.

Performance headroom

The 8-core processor reaches a 54 W peak for sustained multi-threaded tasks such as compilation, rendering or virtualisation. Without pre-installed memory or storage the ceiling is set by the modules you install, not by factory choices. Light gaming and media playback run comfortably within the thermal envelope of the 485 g chassis. Workloads needing more than 16 threads or discrete graphics will exceed what this platform can deliver.

Highlights

  • 8-core Ryzen 7 H255 handles multitasking and light gaming with 16 threads up to 54W
  • barebone design lets you choose RAM and SSD capacity for a custom build
  • WiFi6 and Bluetooth 5.2 plus dual 1Gbps LAN give flexible wired and wireless connectivity
  • triple 4K display support drives three monitors from one compact chassis
  • 127 x 130 x 46.7mm footprint and 485g weight fit VESA mounts and tight spaces

Specifications

BrandFirebat
ModelAM02
Part Number0000206#FBMP
ColorWhite
CPU TypeAMD Ryzen 7 H255
CPU Cores8-Core
Memory installedNo Memory
Storage InstalledNo Storage
Max LAN SpeedDual 1Gbps
Wireless LAN802.11ax
WiFi GenerationWi-Fi 6
BluetoothBluetooth 5.2
Power Supply120W, 19V/6.32A
Dimensions127 x 130 x 46.7mm
Weight485g
PackagingAM02 Mini PC
VESA Mount
HDMI Cable
User Guide
Power Adapter
Shipping weight1.00 kg
Package size193 × 168 × 107 mm

Questions about this item

What peak power draw can the AMD Ryzen 7 H255 reach under sustained load?

The processor has a peak power rating of 54W, which is the thermal limit that appears first during continuous heavy workloads.

How much heat and noise does the 120W power adapter produce when the system runs all day?

The external 19V 6.32A adapter handles up to 120W, so sustained heat and fan noise stay outside the 127 x 130 x 46.7 mm chassis.

Which memory modules and storage drives must I already own to complete this barebone?

The unit ships with 0GB RAM and 0GB storage, so you need to provide compatible SO-DIMM modules and an M.2 drive yourself.
