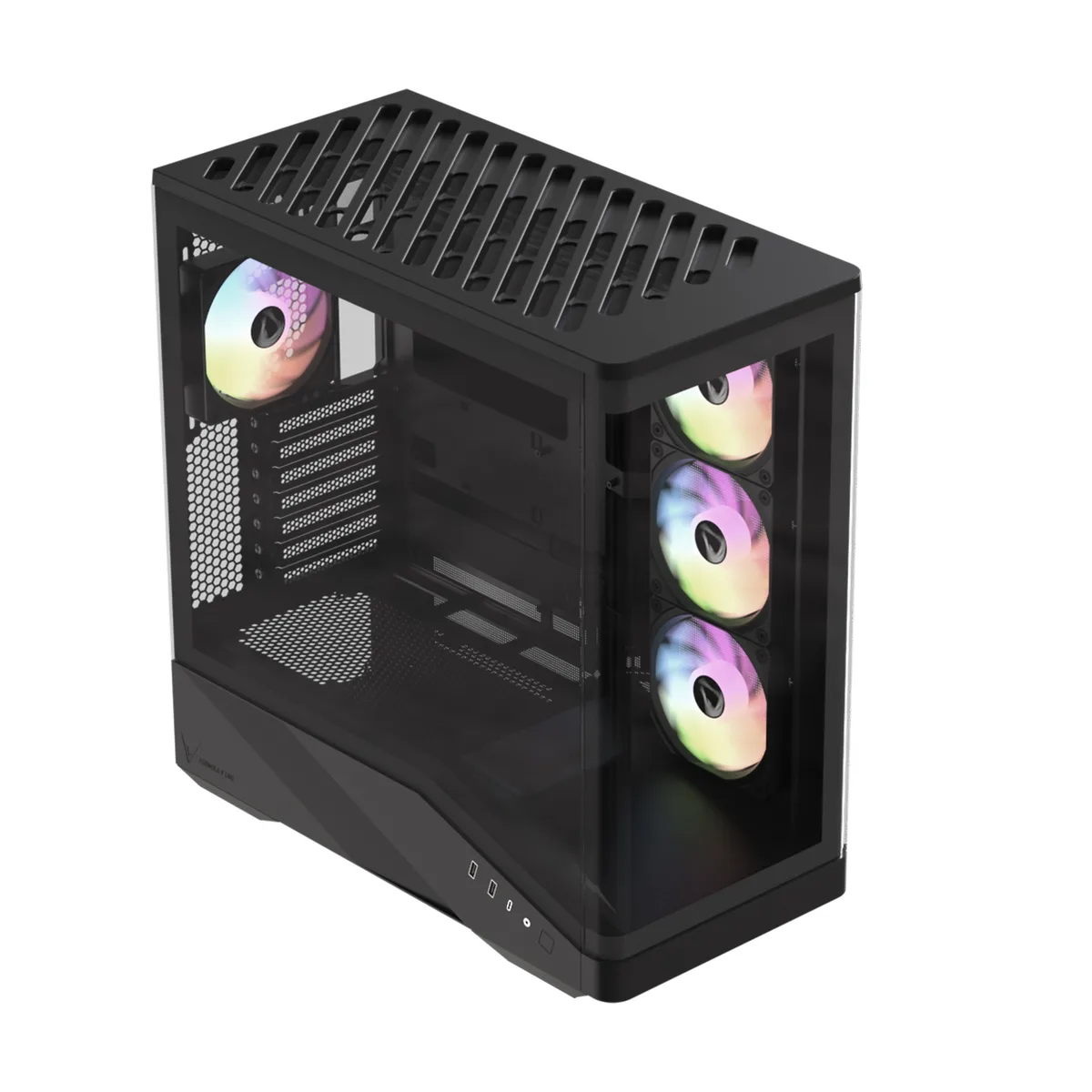

Black mid-tower case with curved tempered glass front panel and pre-installed ARGB fans

Formula V Line

Formula V Line Crystal U9 PA PC Case

SKU CH-7P0V-MPC4J MPN Crystal U9 PA

Mid-tower chassis with curved tempered glass front, EATX support, 420mm GPU clearance, top 360mm radiator mount, and four pre-installed ARGB fans

  • TypeE-ATX Mid Tower Chassis
  • ColorBlack
  • Case MaterialSPCC / Steel
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityATX / E-ATX / ITX / Micro ATX
  • Curved tempered glass front panel showcases components with a premium view
  • Supports EATX, ATX, Micro-ATX, Mini-ITX, GPUs up to 420mm, CPU coolers up to 182mm
  • Top panel fits up to 360mm radiator and up to nine 120mm fans for maximum airflow
  • Dual-chamber PSU design isolates power supply and cables for cleaner builds and better cooling efficiency
  • Includes four Performance ARGB PWM fans delivering 60.36CFM airflow and 1.15 mm/H2O pressure

Curved glass showcase and EATX support

The Formula V Line Crystal U9 PA is a mid-tower chassis built from black SPCC steel with a curved tempered glass front panel. It accepts ATX, EATX, Micro-ATX and Mini-ITX motherboards and provides seven expansion slots for full-size builds. A dual-chamber layout separates the bottom-mounted power supply from the main compartment for cleaner cable routing. Four PA120 ARGB PWM fans are pre-installed on the motherboard side and rear.

Builders needing extreme radiator length

This case suits enthusiasts who want a showcase build with a curved glass front and strong top-mounted liquid cooling support up to 360mm. It fits graphics cards up to 420mm and CPU coolers up to 182mm. Builders who need more than one 3.5-inch bay or a single 2.5-inch bay should look elsewhere. The side fan mounts are occupied by the included fans, limiting alternative side intake configurations.

Top 360mm radiator clearance

The decisive specification is the top panel radiator support limited to 360mm, which sets the maximum liquid cooling capacity for the chassis. Combined with the 420mm GPU length and 182mm CPU cooler height allowances, this figure determines whether a planned high-performance thermal solution will fit. The case measures 480 x 235 x 484mm and weighs 9.84kg.

Highlights

  • Curved tempered glass front panel showcases components with a premium view
  • Supports EATX, ATX, Micro-ATX, Mini-ITX, GPUs up to 420mm, CPU coolers up to 182mm
  • Top panel fits up to 360mm radiator and up to nine 120mm fans for maximum airflow
  • Dual-chamber PSU design isolates power supply and cables for cleaner builds and better cooling efficiency
  • Includes four Performance ARGB PWM fans delivering 60.36CFM airflow and 1.15 mm/H2O pressure

Specifications

BrandFormula V Line
ModelCrystal U9 PA
TypeE-ATX Mid Tower Chassis
ColorBlack
Case MaterialSPCC / Steel
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityATX / E-ATX / ITX / Micro ATX
Dust FiltersBottom / Top
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays1
Expansion Slots7
Front PortsType C, 2 x USB3.0, HD Audio
Fan OptionsBottom - 2 x 120mm / Front - 2 x 140mm / Front - 3 x 120mm / Rear - 1 x 120mm / Rear - 1 x 140mm / Side - 3 x 120mm / Top - 2 x 140mm / Top - 3 x 120mm
Pre-installed FansMB Side: 3 x 120mm (PA120 fan x3 Included)
Rear: 1 x PA120 fan Included
Radiator OptionsTop - Up to 360mm
Max GPU Length420 mm
Max CPU Cooler Height182 mm
Dimensions480 x 235 x 484mm
Weight9.84 kg
Shipping weight9.80 kg
Package size546 × 546 × 300 mm

Questions about this item

Will my existing E-ATX board and 420 mm graphics card fit inside the Crystal U9 PA?

The chassis supports E-ATX, ATX, Micro-ATX and Mini-ITX motherboards and clears graphics cards up to 420 mm long.

How can I confirm the four pre-installed PA120 ARGB PWM fans are running correctly after I build?

Connect the PWM and ARGB cables to the motherboard headers then verify fan speed and lighting control through the board's fan-tuning software or BIOS.

Does the box include a power supply or must I supply my own?

No power supply is included; the case has a bottom-mounted PSU bay so you will need to purchase a standard ATX unit separately.
