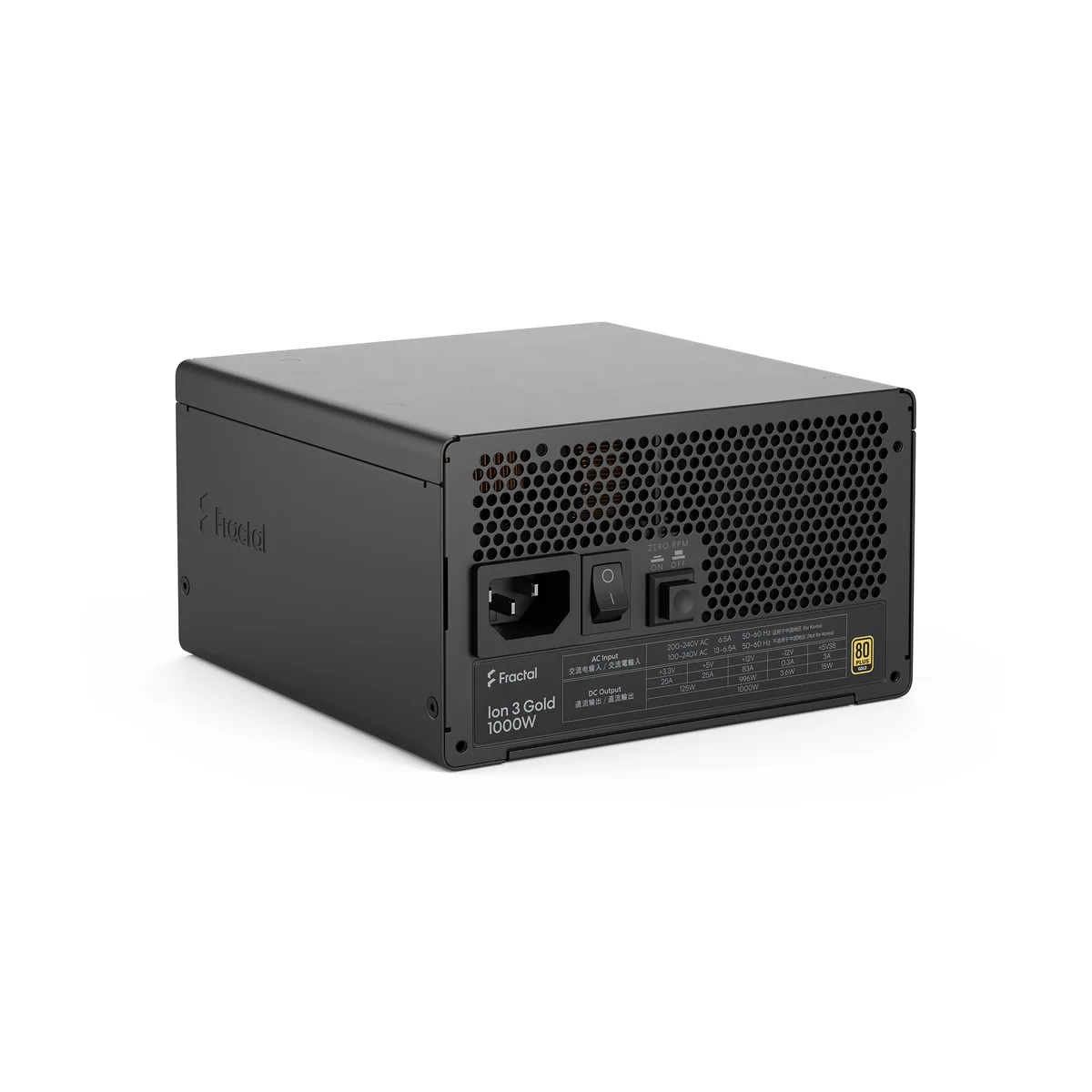

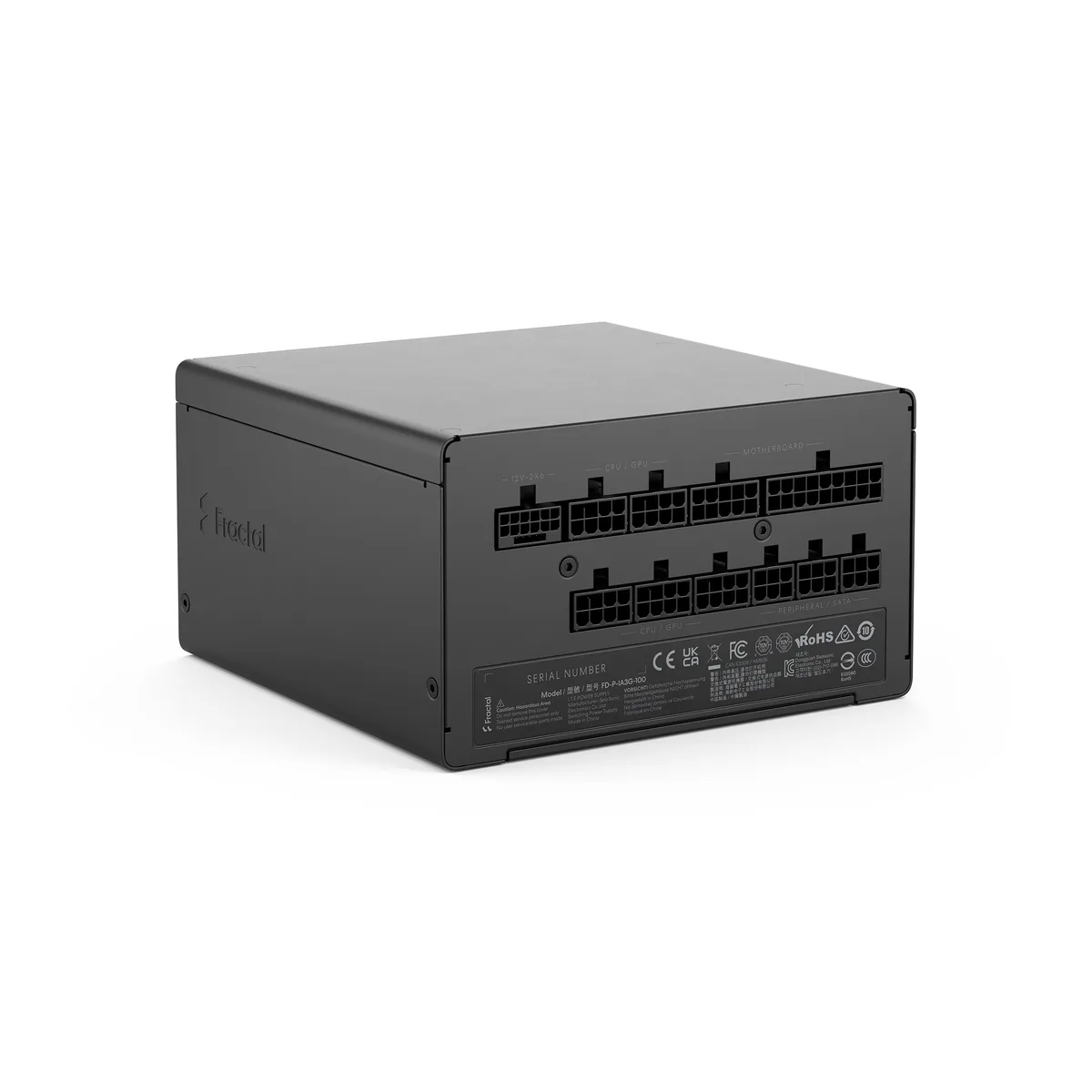

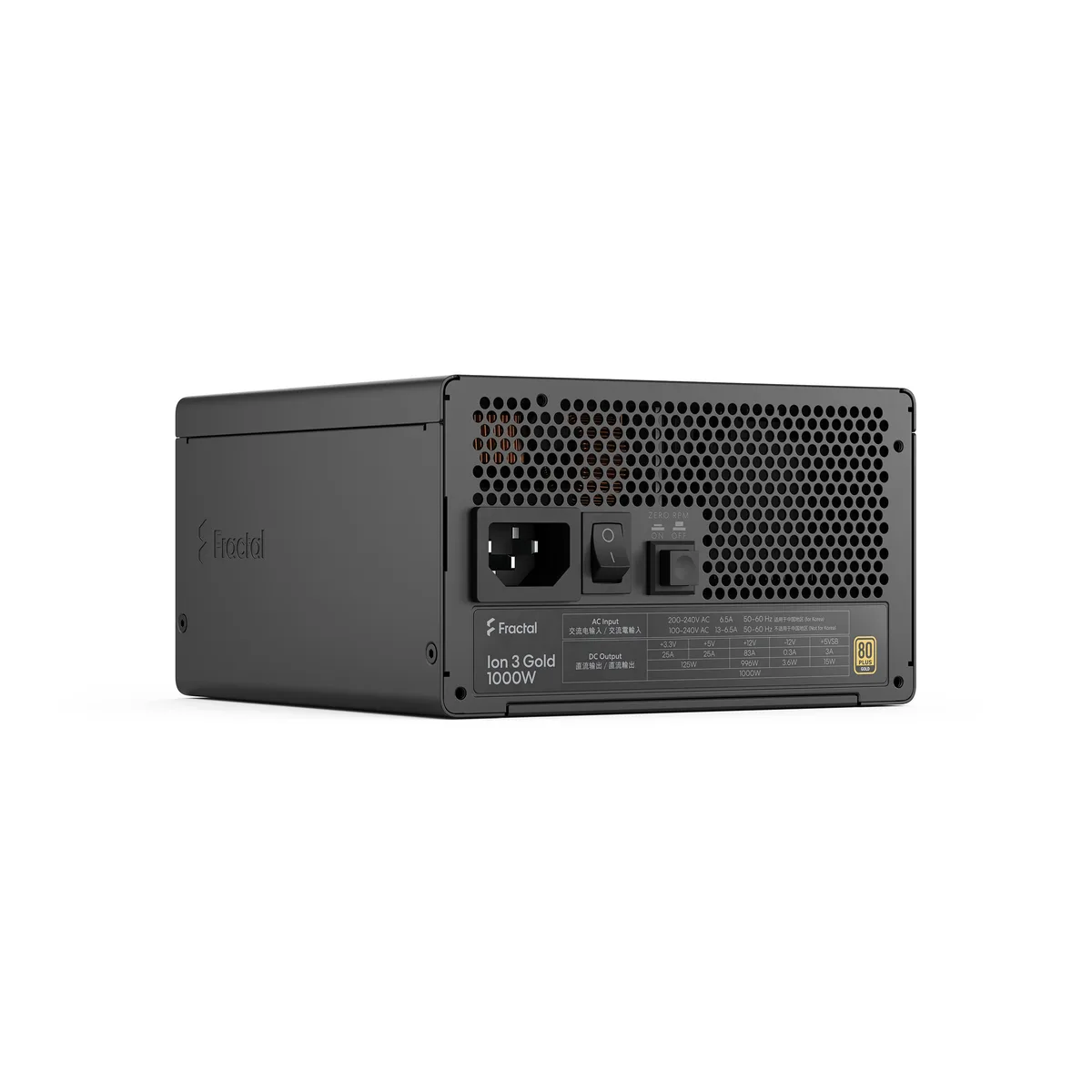

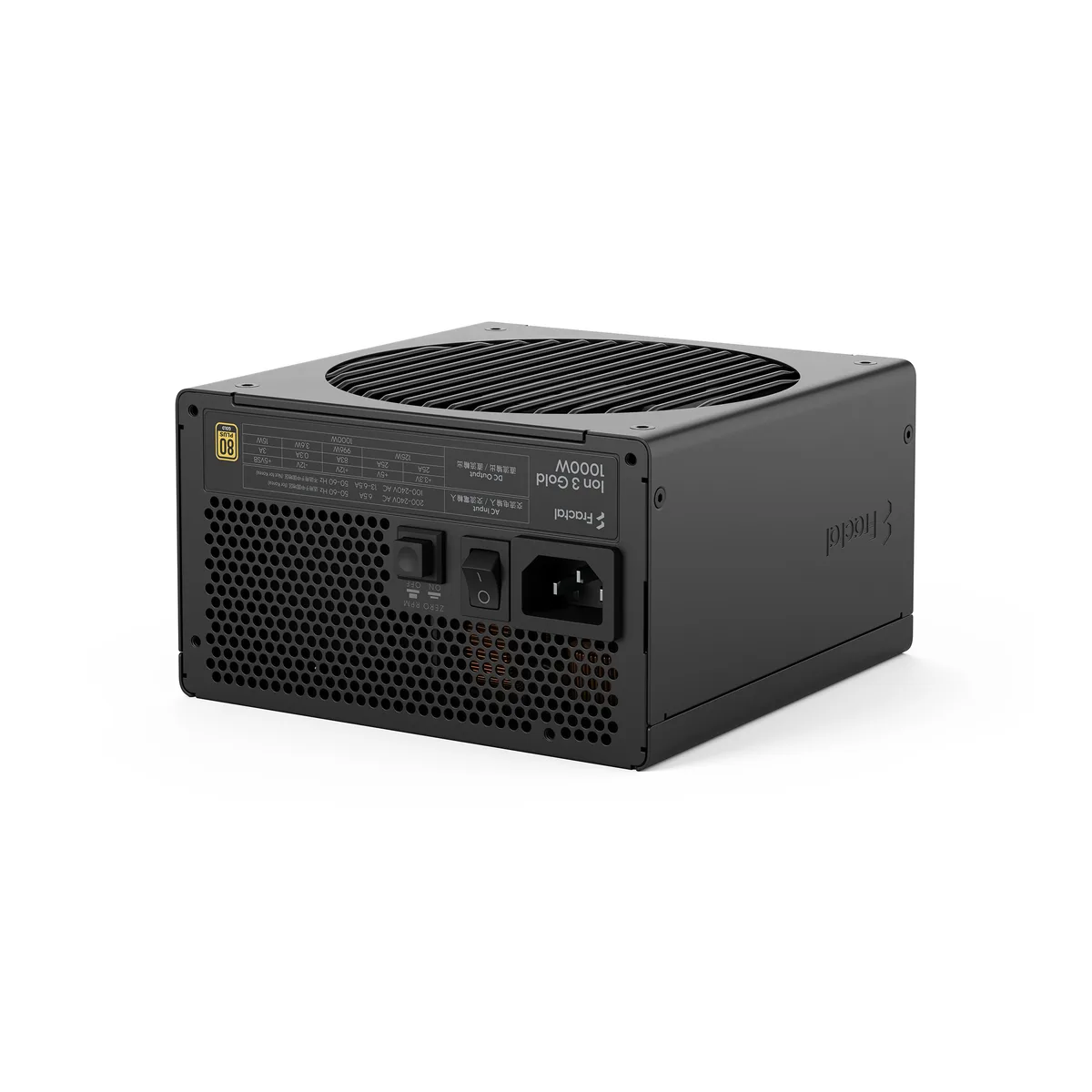

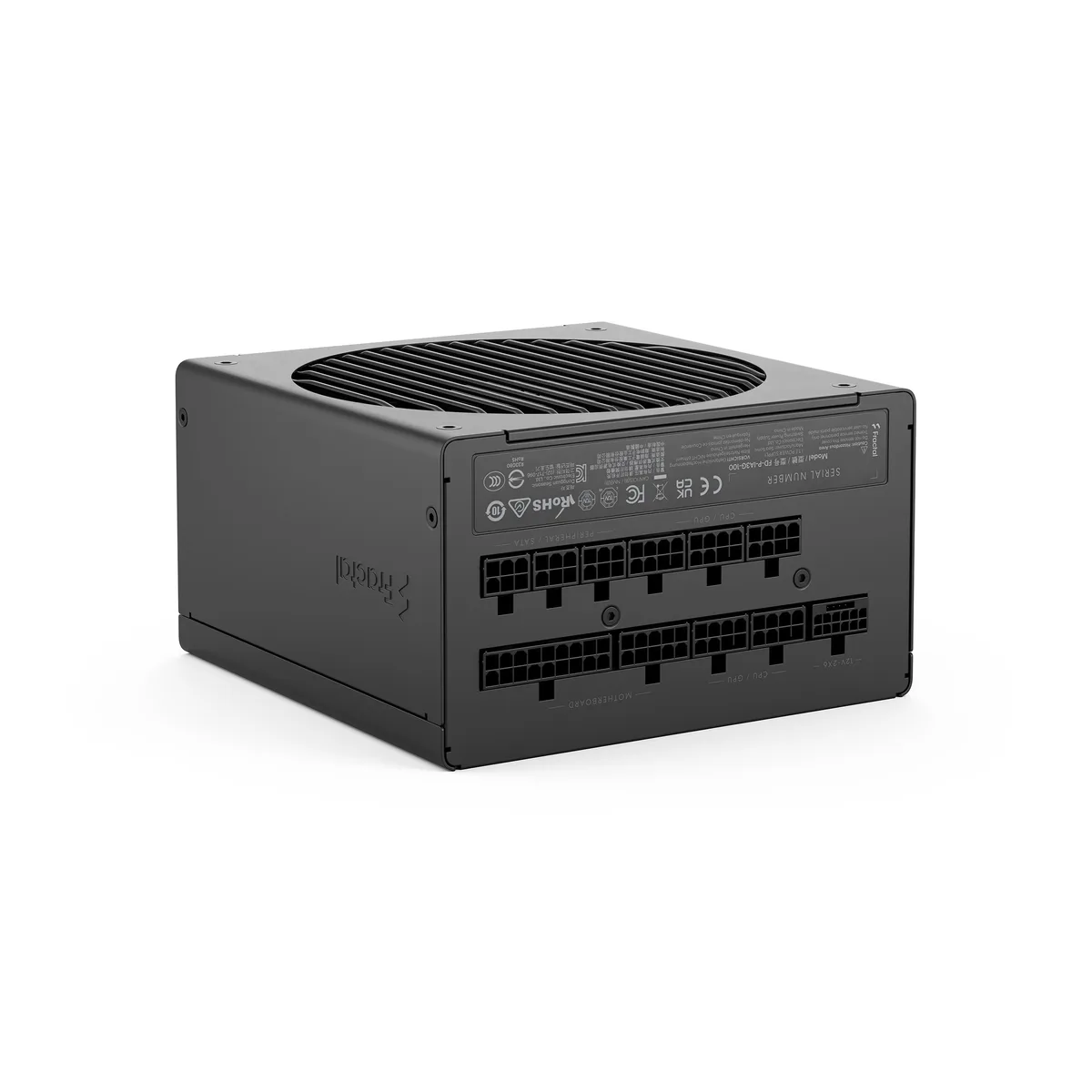

Black rectangular ATX power supply unit with fully modular cable sockets and a 14 cm fan grille

Fractal Design

Fractal Design Ion 3 Gold 1000W Black ATX12V 3.1 Power Supply FD-P-IA3G-100-US

SKU CH-X6B7-6AFWT MPN FD-P-IA3G-100-US

Fully modular 1000 W ATX12V 3.1 unit with 80 PLUS Gold efficiency, PCIe Gen 5 12V-2×6 cable, Momentum 14 fan, and Japanese 105°C capacitors

  • ColorBlack
  • TypeATX12V 3.1
  • Maximum Power1000 W
  • PFCActive
  • +12V RailsSingle
  • PCI-Express ConnectorPCI-E 6+2 pin, 650 mm; PCI-E Gen5 12V-2x6, 700 mm

Option Ion 3 Gold 1000W Black

  • Ready for next-gen GPUs with ATX12V 3.1 support and power excursion handling
  • Native 16-pin PCIe Gen 5 12V-2×6 cable with shortened sense pins for secure connection
  • Momentum 14 fan with fluid dynamic bearing and LCP blades runs quieter and lasts longer
  • 80 PLUS Gold efficiency cuts energy waste and heat through optimized delivery
  • Fully modular UltraFlex cables simplify routing for a clean, uncluttered build

1000 W ATX12V 3.1 power supply

The Fractal Design Ion 3 Gold delivers 1000 W of continuous power through a single +12 V rail. It is built for high-end desktop systems that demand stable output under heavy load. Fully modular cabling keeps the build tidy and improves airflow inside the case.

80 PLUS Gold efficiency and GPU headroom

The unit meets 80 PLUS Gold certification and reaches =45 % ErP Lot 6 compliance at low load. A native 16-pin PCIe Gen 5 12V-2×6 cable supports modern graphics cards, while additional 6+2 pin connectors cover other GPUs. Power excursion handling helps absorb transient spikes without tripping protection.

Upgrade from group-regulated or lower-wattage units

Replacing an older group-regulated design or a supply below 1000 W removes cross-load instability and adds headroom for power-hungry GPUs. The ATX12V 3.1 platform ensures compatibility with current and upcoming component specifications. The jump is worthwhile when the existing unit cannot sustain peak GPU demands.

Highlights

  • Ready for next-gen GPUs with ATX12V 3.1 support and power excursion handling
  • Native 16-pin PCIe Gen 5 12V-2×6 cable with shortened sense pins for secure connection
  • Momentum 14 fan with fluid dynamic bearing and LCP blades runs quieter and lasts longer
  • 80 PLUS Gold efficiency cuts energy waste and heat through optimized delivery
  • Fully modular UltraFlex cables simplify routing for a clean, uncluttered build

Specifications

BrandFractal Design
ModelFD-P-IA3G-100-US
ColorBlack
TypeATX12V 3.1
Maximum Power1000 W
PFCActive
+12V RailsSingle
PCI-Express ConnectorPCI-E 6+2 pin, 650 mm; PCI-E Gen5 12V-2x6, 700 mm
SATA Power Connector4x SATA, 400+150+150+150 mm; 2x SATA 650+150 mm
ModularFull Modular
Efficiency=45% ErP Lot 6 compliant
Energy-Efficient80 PLUS GOLD Certified
Input Voltage100 - 240 V
MTBF90,000 HRS
ApprovalsCE, UKCA, BSMI, CCC, FCC, TUV, cULus, RCM, ICES, CB, KC
FeaturesATX12V 3.1 compatibility for next-gen components with GPU power excursion support to ensure stability with upcoming graphics cards.16-pin PCIe Gen 5 12V-2×6 cable provides native GPU power with shortened sense pins for a reliable, secure connection.80 PLUS Gold certified for high efficiency with optimized power delivery for reduced heat output.Powerful 140 mm Momentum fan with fluid dynamic bearing delivers quieter, cooler performance.Zero RPM Mode option allows fan deactivation under lighter loads for near-silent operation.Zero RPM Mode option allows fan deactivation under lighter l
Dimensions150 x 150 x 86 mm
Weight1.8kg
Shipping weight3.49 kg
Package size356 × 187 × 127 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the single 12 V rail and 1000 W output handle a modern high-end GPU without extra adapters?

Yes, the unit includes a native 16-pin PCIe Gen 5 12V-2×6 cable at 700 mm plus PCI-E 6+2 pin cables at 650 mm for direct GPU power.

Does the fully modular design and cable lengths suit a standard mid-tower case?

Cables are 400 mm to 700 mm long; the PSU measures 150 x 150 x 86 mm, fitting typical ATX bays with room for routing.

How quiet is the fan under light loads and can it stop completely?

A Momentum 14 fan with fluid dynamic bearing runs variable speed and offers a Zero RPM mode for near-silent operation at low load.
