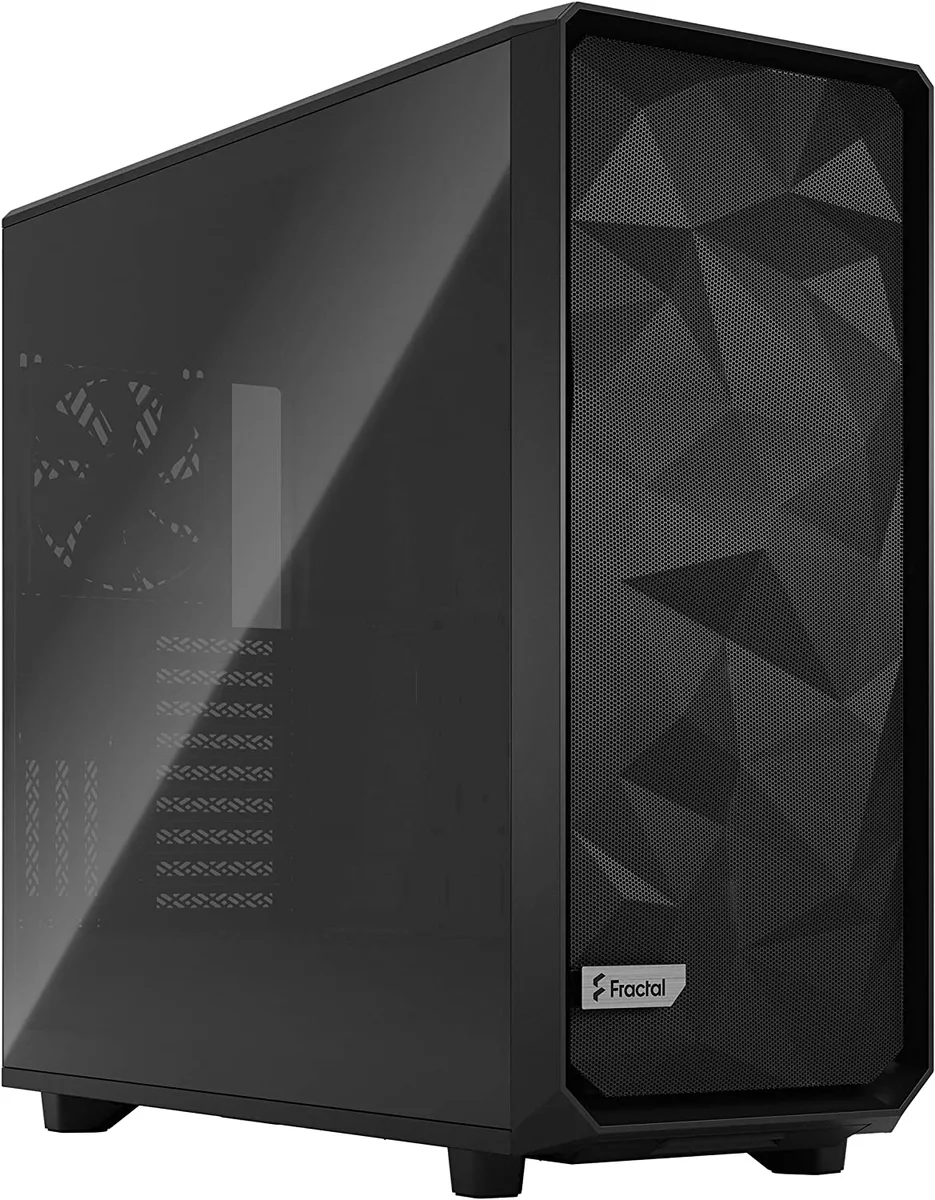

Black full tower case with angular mesh front and tinted tempered glass side panel

Fractal Design

Fractal Design Meshify 2 XL FD-C-MES2X-02 PC case

SKU CH-RDHH-M3FXA MPN FD-C-MES2X-02

Full-tower ATX chassis with angular mesh front, tempered glass side panel and dual-layout interior supporting E-ATX boards, up to 18 drives and 480 mm radiators front or top

  • TypeATX Full Tower
  • ColorBlack
  • Case MaterialSteel
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityE-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB

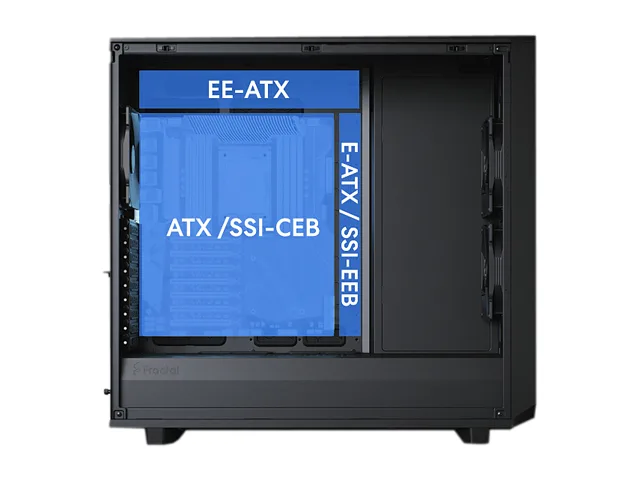

  • Spacious interior fits E-ATX and SSI-EEB motherboards

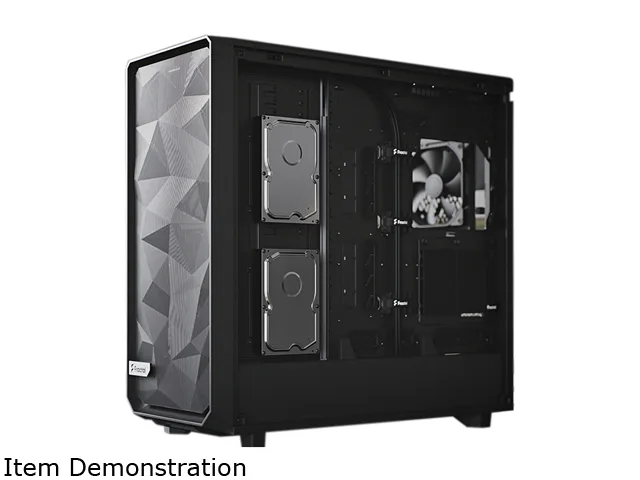

  • Supports up to 18 HDDs and 5 SSDs with included trays and brackets
  • Three 140 mm Dynamic X2 fans pre-installed for strong airflow
  • Radiator support up to 480 mm at front or top for liquid cooling
  • Front USB 3.2 Gen 2x2 Type-C port for fast device connections

Full-tower ATX case for large builds

The Meshify 2 XL is a full-tower ATX case built for high-capacity workstations and enthusiast rigs that need room for E-ATX or SSI-EEB motherboards. Its angular mesh front and flush tinted glass panels give a clean industrial look while keeping airflow paths open. The steel chassis supports a dual-layout interior that can be configured for maximum storage or for extensive custom liquid cooling.

Tool-free access and modular drive cages

The top panel lifts off completely and the front mesh panel hinges open with a detachable nylon filter, so the build area is fully exposed on three sides without unscrewing anything. Six 3.5-inch trays and two 2.5-inch brackets ship installed, and the cages slide out on rails for easy reconfiguration. The only common snag is routing the front-panel USB 3.2 Gen 2x2 Type-C header to motherboards that place the connector far from the front edge.

Steady thermals with three pre-installed 140 mm fans

Two 140 mm Dynamic X2 GP-14 fans at the front and one at the rear move high static-pressure air through the mesh without ramping loudly under sustained load. The case accepts radiators up to 480 mm at the front or top and 280 mm at the bottom, so liquid loops stay cool during long renders or compute sessions. Fan curves stay flat because the unrestricted intake and exhaust paths keep internal pressure balanced.

Highlights

  • Spacious interior fits E-ATX and SSI-EEB motherboards
  • Supports up to 18 HDDs and 5 SSDs with included trays and brackets
  • Three 140 mm Dynamic X2 fans pre-installed for strong airflow
  • Radiator support up to 480 mm at front or top for liquid cooling
  • Front USB 3.2 Gen 2x2 Type-C port for fast device connections

Specifications

BrandFractal Design
SeriesMeshify 2 XL
ModelFD-C-MES2X-02
TypeATX Full Tower
ColorBlack
Case MaterialSteel
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityE-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB
Side PanelLight Tinted Tempered Glass Window
Dust FiltersTop Panel
Front
Bottom, Full Length
Internal 3.5" Drive Bays6 included, 18 positions total + 2 Multibrackets
Internal 2.5" Drive Bays2 included, 5 positions total
Expansion Slots9 + 3
Front Ports3 front USB ports including one USB 3.2 Gen 2x2 Type-C

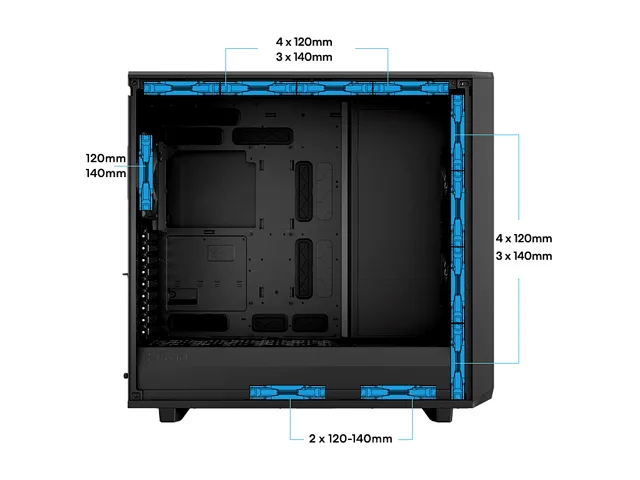

Fan OptionsFront: 4 x 120mm or 3 x 140mm fan (2 x 140mm Dynamic X2 GP-14 included)
Top: 4 x 120mm or 3 x 140mm fan
Rear: 1 x 120/140mm fan (1 x 140mm Dynamic X2 GP-14 included)
Bottom: 2 x 120/140mm fan
Pre-installed FansFront - 2 x 140mm / Rear - 1 x 140mm
Radiator OptionsFront: Up to 480/420 mm
Top: Up to 480/420 mm
Rear: 120 mm
Bottom: Up to 240/280 mm
Max GPU Length549 mm (524 mm w/ front fan)
Max CPU Cooler Height185 mm
Max PSU Length250 mm (with HDD cage installed)
Dimensions23.62" x 9.45" x 22.28"
Weight31.09 lbs.
FeaturesIconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including E-ATX and SSI-EEB
Support for radiators up to 480/420 mm in front, 480/420 mm up top, or 280/240 mm in the base in the default Open Layout
Includes 6 HDD/SSD trays, 2 SSD brackets, and 2 universal Multibrackets for mounting up to 10 drives
Expandable to 16 trays and 5 SSD brackets with 2 Multibrackets installed in the top for a max of up to 23 drives in Storage Layout
New chassis
Package ContentMeshify 2 XL Case
Accessory box
User Manual
Screw Box
Shipping weight16.08 kg
Package size692 × 654 × 334 mm

Questions about this item

How do I verify the case is cooling properly after I install my components?

Check that the three pre-installed Dynamic X2 GP-14 fans spin at boot and that temperatures stay within expected ranges for your hardware; the case supports up to 11 additional 120 mm or 9 additional 140 mm fan positions if more airflow is needed.

What comes in the box and what must I purchase separately?

The case includes two 140 mm front fans, one 140 mm rear fan, six 3.5" drive trays, two 2.5" SSD brackets, two multi-brackets, and a Nexus+ 2 fan hub; a power supply is not included and must be bought separately.

Which storage layout should I choose for a build with many hard drives?

Use the default Storage Layout, which supports up to 18 3.5" drives and 5 2.5" drives using the included trays, brackets and multi-brackets; the alternative Open Layout reduces drive capacity for larger water-cooling reservoirs.
