Black cube Micro ATX case with brushed aluminium front and acrylic side window

Fractal Design

Fractal Design Node 804 FD-CA-NODE-804-BL PC case

SKU CH-FPVF-8AY8C MPN FD-CA-NODE-804-BL

Micro ATX cube case with dual-chamber layout, eight 3.5-inch bays and three pre-installed 120 mm fans

  • TypeMicro ATX Cube Case
  • ColorBlack
  • Case MaterialAluminum / Steel
  • With Power SupplyNo
  • Power SupplyATX PSU up to 260 mm deep
  • Power Supply MountedRear

Options Node 804

  • Dual-chamber layout separates hot and cool components for better airflow
  • Supports up to four radiators including a 280 mm top mount for liquid cooling
  • Eight 3.5″ drive bays plus two dedicated 2.5″ SSD slots for high storage capacity
  • Three pre-installed 120 mm Silent Series R2 fans at 1000 RPM deliver quiet cooling out of the box
  • Front panel provides two USB 3.0 ports and audio jacks for convenient connectivity

Dual-chamber Micro ATX cube

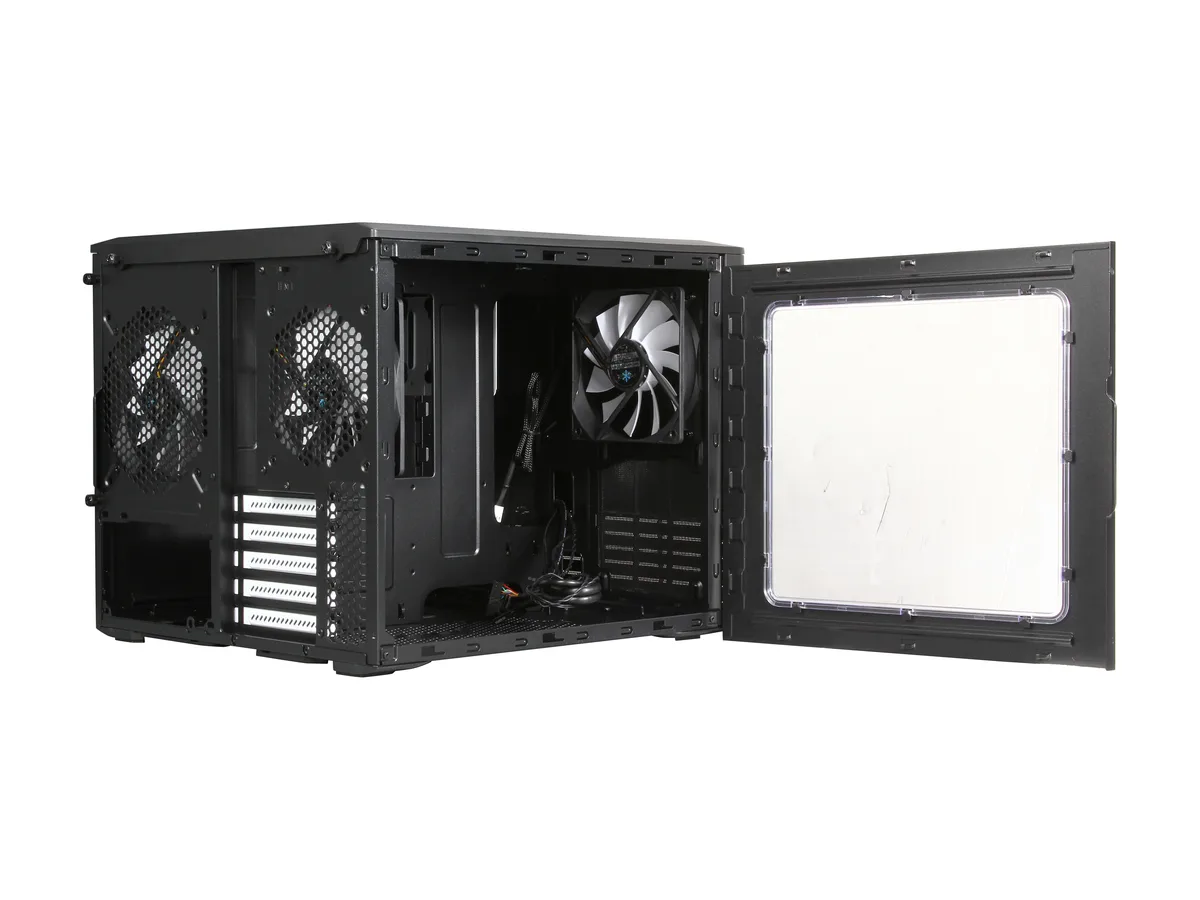

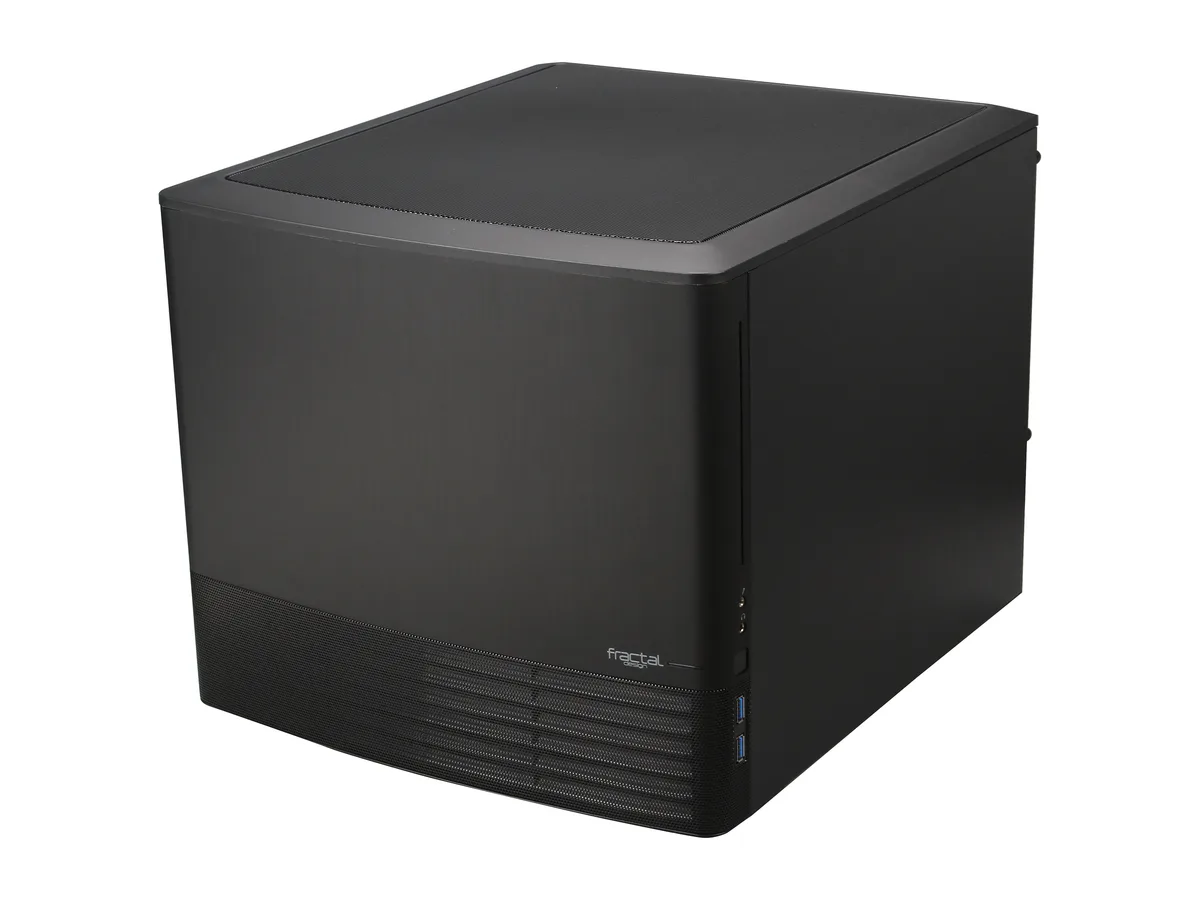

The Fractal Design Node 804 is a micro ATX cube case built from aluminium and steel with a black acrylic side window. Its dual-chamber layout isolates the power supply and drive cages from the motherboard and graphics card to improve thermal separation. The case accepts Micro ATX and Mini ITX boards and mounts an ATX power supply up to 260 mm deep at the rear.

Straightforward build with included fans

Three Silent Series R2 120 mm hydraulic-bearing fans at 1000 RPM come pre-installed — one at the front and two at the rear — and a front-mounted fan controller lets you adjust speeds without software. Removable dust filters cover the main intakes. The drive system uses tool-less trays for the eight 3.5" positions and the two dedicated 2.5" SSD slots, while two extra positions accept either 3.5" or 2.5" drives and a slim optical bay is available.

Eight 3.5" bays and 320 mm GPU room

The chassis holds up to ten 3.5" drives when the extra positions are used, plus two dedicated 2.5" SSD mounts, giving ample capacity for a storage-heavy build. Graphics cards up to 320 mm long fit comfortably, and CPU coolers up to 160 mm tall are supported. Liquid cooling headroom includes a 280 mm or 240 mm radiator on top, a 240 mm unit at the front and a 120 mm unit at the rear, allowing up to four radiators in total.

Highlights

  • Dual-chamber layout separates hot and cool components for better airflow
  • Supports up to four radiators including a 280 mm top mount for liquid cooling
  • Eight 3.5″ drive bays plus two dedicated 2.5″ SSD slots for high storage capacity
  • Three pre-installed 120 mm Silent Series R2 fans at 1000 RPM deliver quiet cooling out of the box
  • Front panel provides two USB 3.0 ports and audio jacks for convenient connectivity

Specifications

BrandFractal Design
SeriesNode 804
ModelFD-CA-NODE-804-BL
TypeMicro ATX Cube Case
ColorBlack
Case MaterialAluminum / Steel
With Power SupplyNo
Power SupplyATX PSU up to 260 mm deep
Power Supply MountedRear
Motherboard CompatibilityMicro ATX / Mini ITX
Side PanelAcrylic Window
Internal 3.5" Drive Bays8 x 3.5" HDD positions, 2 x Extra positions for either 3,5" or 2,5" drives, 1 x slim-line slot loading optical drive location
Internal 2.5" Drive Bays2 x 2.5" dedicated SSD unit positions
Expansion Slots5

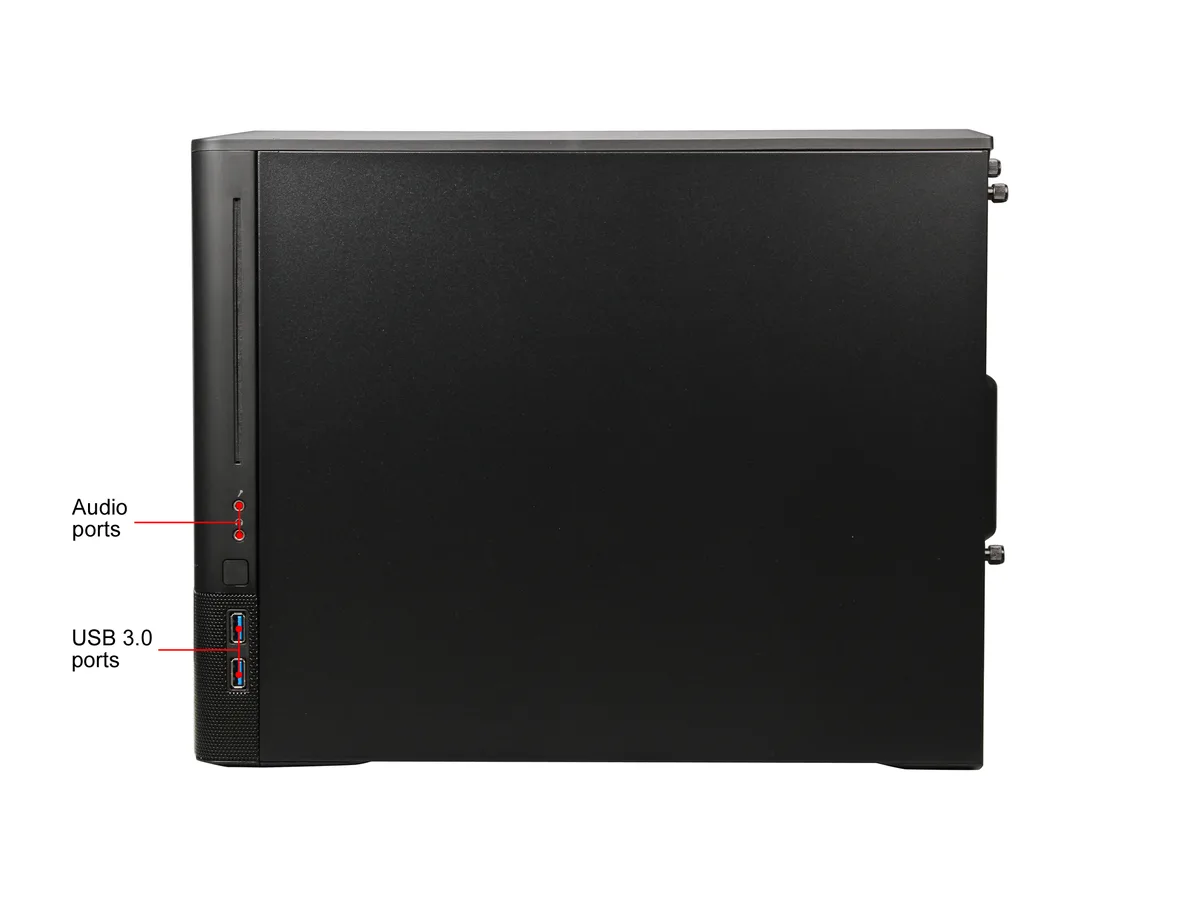

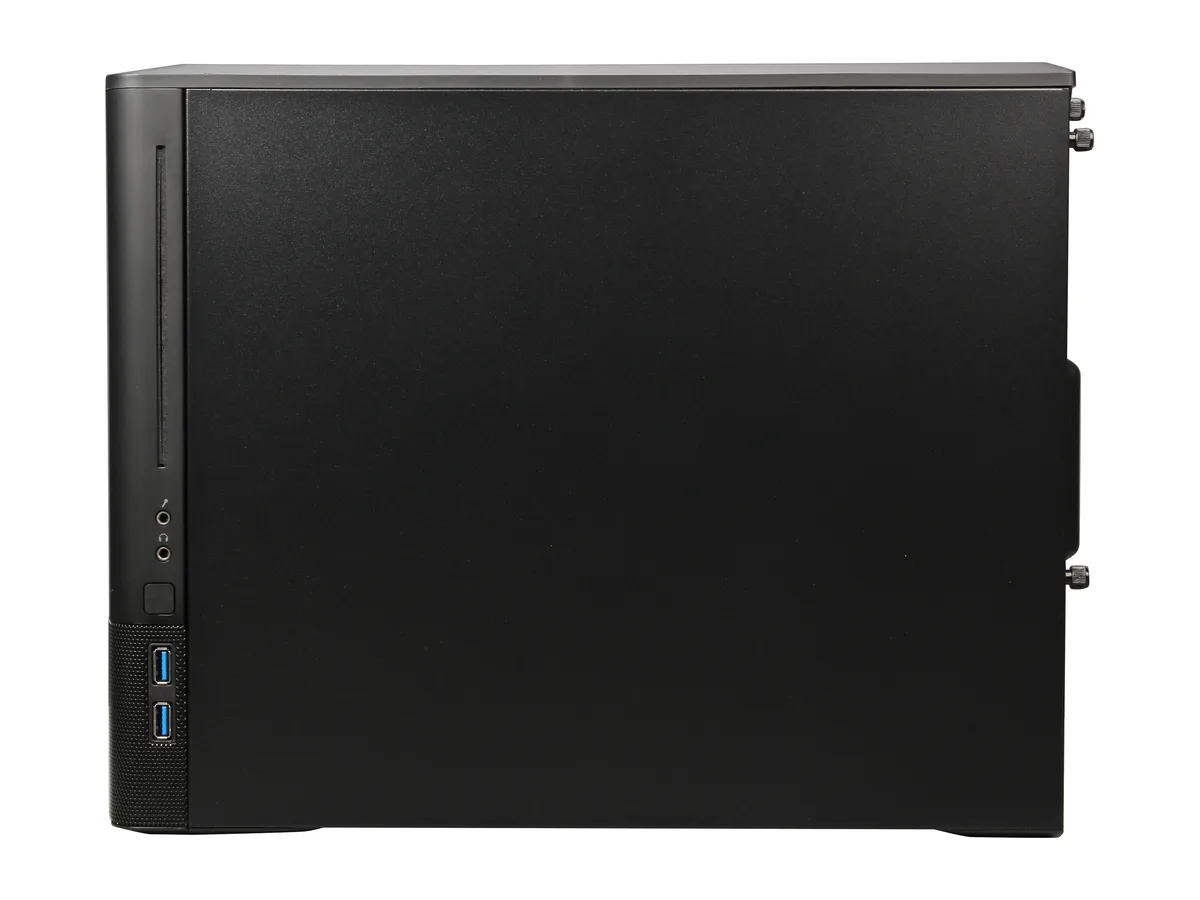

Front Ports2 x USB 3.0, 2 x Audio
Fan OptionsFront: 4 x 120mm fans (included is 1 hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed)
Rear fan 1: 1x 120/140 mm (included is 1 hydraulic bearing 120 mm Silent Series R2 fan @ 1000 RPM)
Rear fan 2: 1x 120 mm (included is 1 hydraulic bearing 120 mm Silent Series R2 fan @ 1000 RPM)
Top: 4 x 120/140mm fans (not included)
Fan controller: 1 x Integrated fan controller for up to 3 fans (included)
Pre-installed FansFront - 1 x 120mm / Rear - 2 x 120mm
Radiator OptionsFront - Up to 240mm / Rear - Up to 120mm / Top - Up to 240mm / Top - Up to 280mm
Max GPU Length320 mm
Max CPU Cooler Height160 mm
Max PSU Length260 mm
Dimensions15.31" x 13.54" x 12.09"
Weight13.22 lbs.
FeaturesHighly effective dual chamber case layout for best possible cooling.

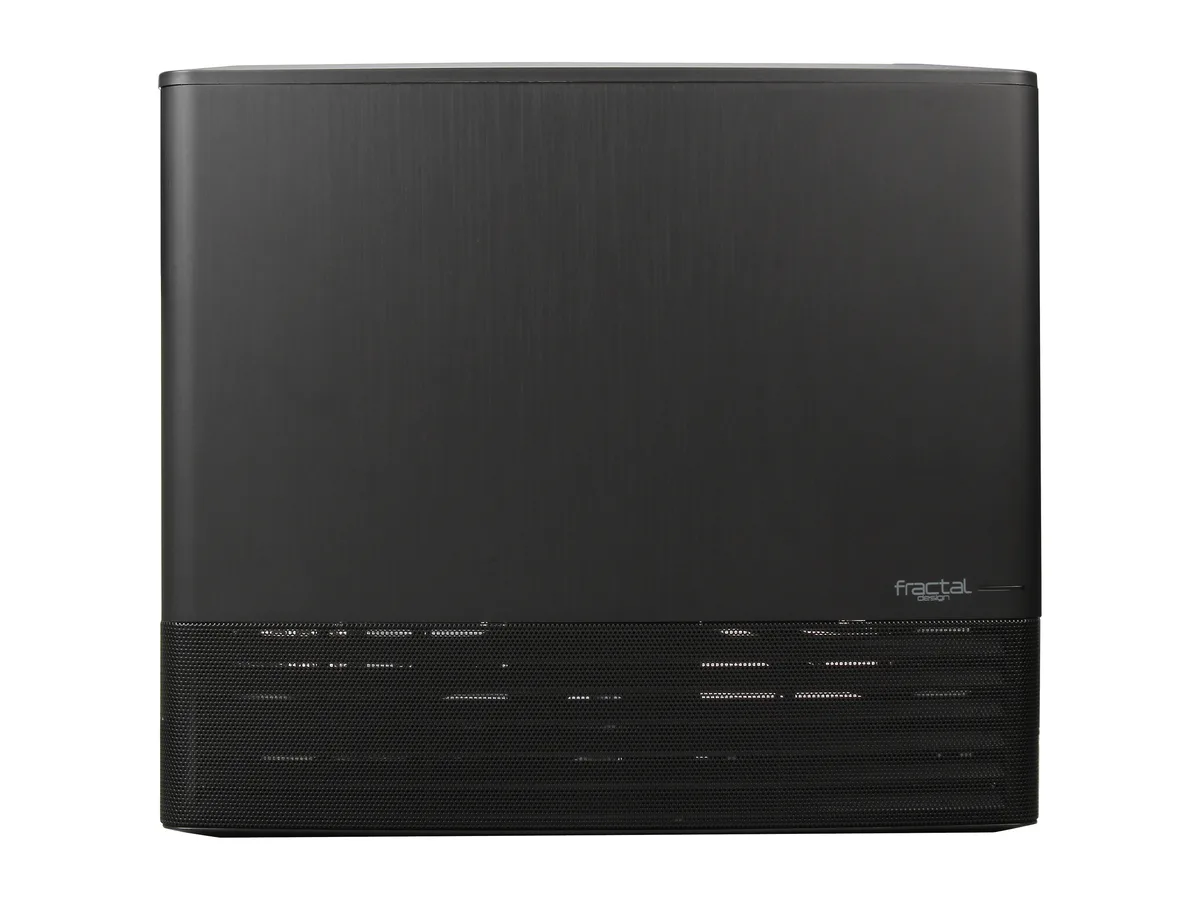

Minimalistic design with an elegant brushed aluminum front panel
Unique hard drive mounting system, fitting up to 8 x 3.5", 4 x 2.5" or up to 10 x 3.5", 2 x 2.5" drives HDD/SSD
Three Fractal Design Silent Series R2 fans included with the case and space for an additional 7 fans.
Excellent water cooling support with space for up to 4 radiators simultaneously.
All intakes feature removable dust filters providing a dust-free interior.
Featuring a window side panel to show off your set up in style.
Additional space in th
Shipping weight7.17 kg
Package size452 × 411 × 376 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will a 320 mm graphics card fit inside this case?

Yes, the maximum supported GPU length is 320 mm, so a card of that size will fit.

What size power supply can I install?

The case accepts a standard ATX power supply up to 260 mm deep, mounted at the rear of the chassis.

How many 3.5 inch drives can I mount?

There are eight dedicated 3.5 inch positions plus two extra slots that can each take a 3.5 inch or 2.5 inch drive, giving a total of ten possible 3.5 inch drives.
