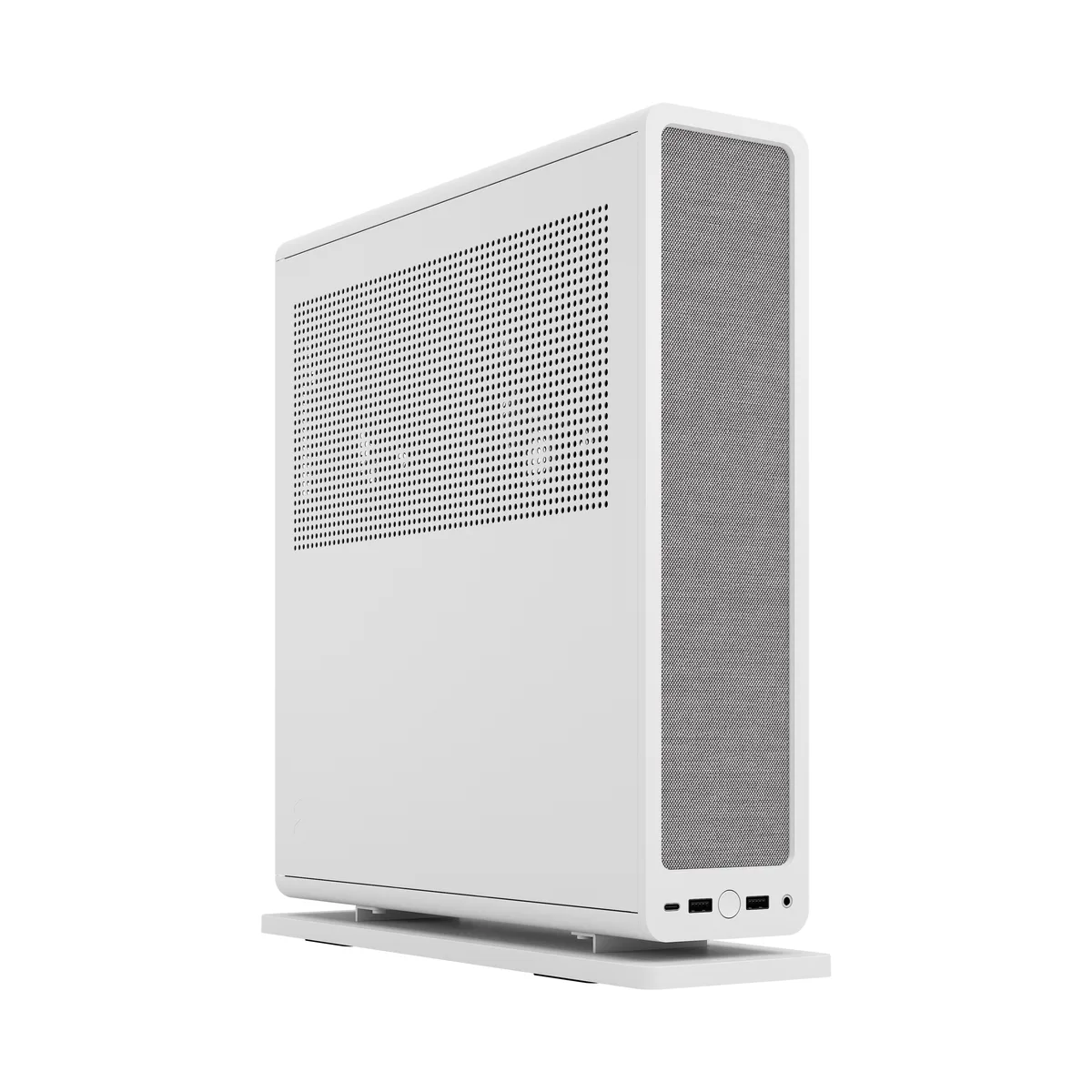

Fractal Design FD-C-RID1N-12 Ridge White Mini-ITX PC case
- Small Form Factor
- White
$144.99
0.00187355BTC
In stock
Fractal Design
Fractal Design Ridge FD-C-RID1N-11 Mini-ITX SFF PC case
Mini-ITX console case with PCIe 4.0 riser, two 140 mm PWM fans and front USB 3.2 Gen 2x2 Type-C
- TypeSmall Form Factor
- ColorBlack
- Case MaterialSteel
- With Power SupplyNo
- Power SupplySFX/SFX-L
- Power Supply MountedBottom
Options Black
- Black
- White
- Compact console form factor fits Mini-ITX and Mini-DTX builds
- PCIe 4.0 riser card included for flexible GPU placement

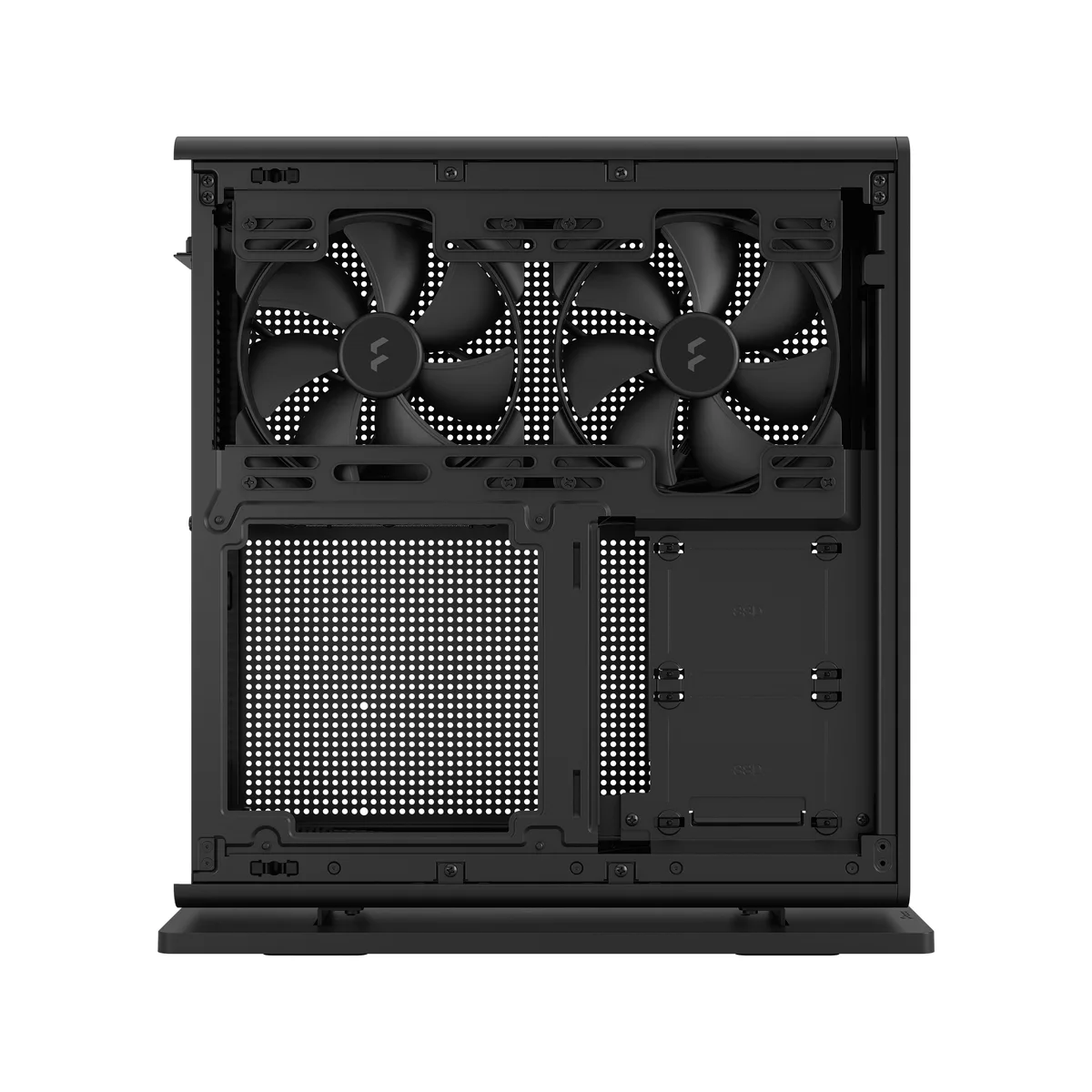

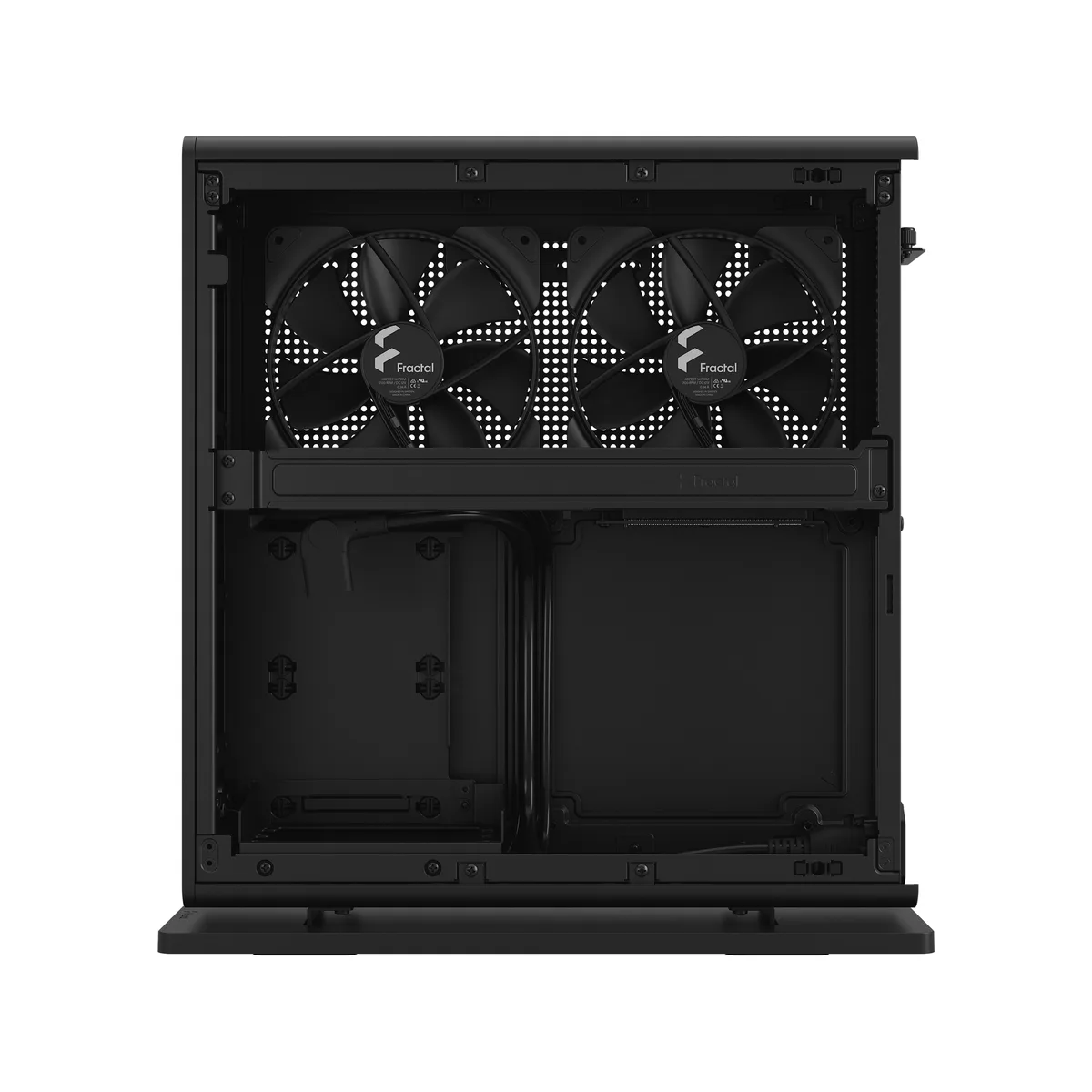

- Two 140 mm PWM Aspect fans pre-installed for strong side airflow
- Front I/O offers USB 3.2 Gen 2x2 Type-C plus two USB 3.0 ports
- Supports SFX or SFX-L power supplies mounted at the bottom
Compact console SFF case

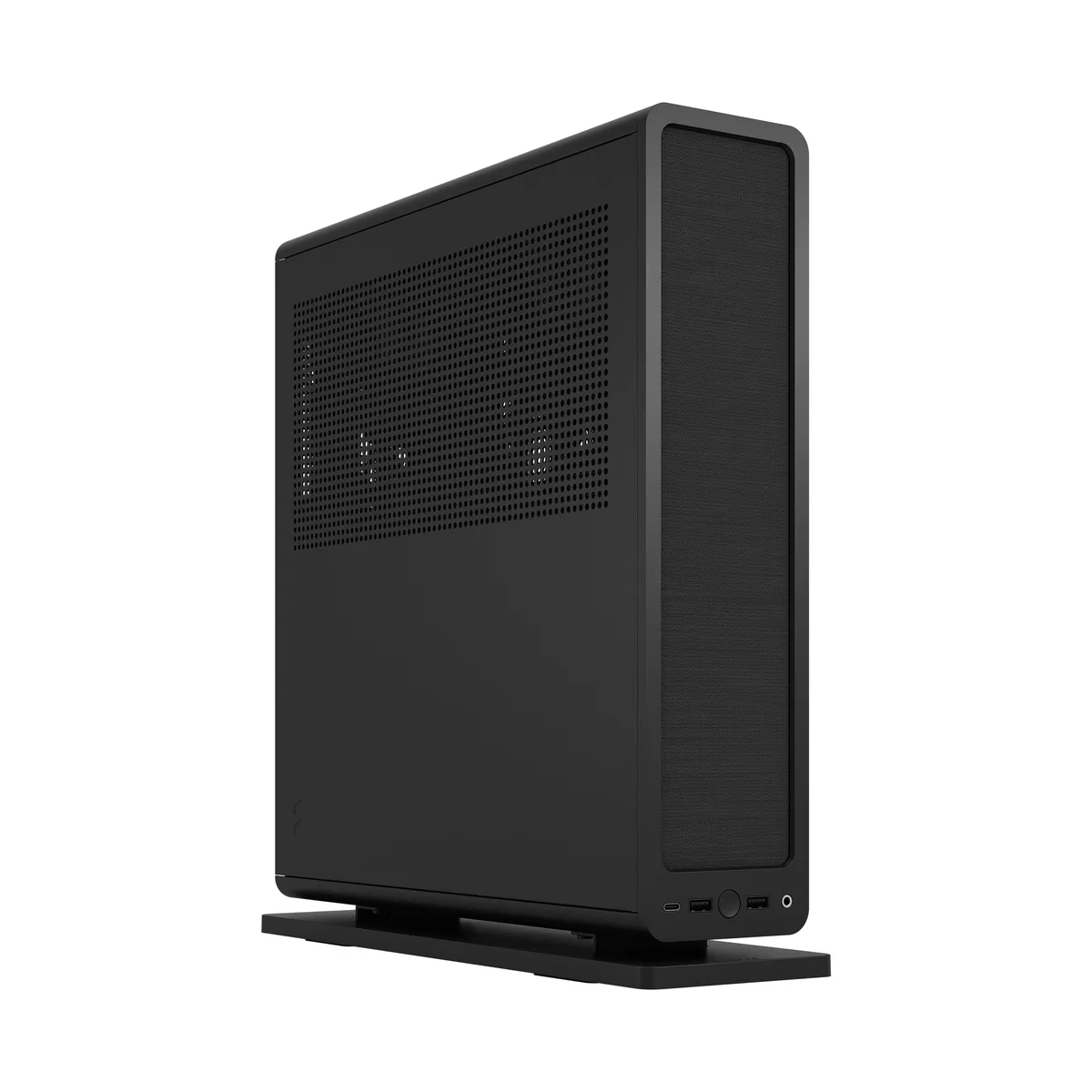

The Fractal Design Ridge FD-C-RID1N-11 is a Mini-ITX chassis built for small-form-factor builds that need full GPU length in a console footprint. Steel construction with a 6 mm anodized aluminium front panel houses SFX or SFX-L power supplies at the bottom. Two 140 mm Aspect PWM fans come pre-installed on the side bracket.
PCIe 4.0 riser and GPU clearance upgrade
A PCIe 4.0 riser card routes the graphics card horizontally, allowing up to 335 mm length when no 2.5 inch drive is fitted, or 325 mm with one installed. GPU height reaches 137 mm without top fans and 125 mm with them; thickness is 82 mm clear, dropping to 57 mm when side fans overlap the card. The 70 mm CPU cooler limit and three expansion slots complete the platform swap from larger tower cases.
Sustained thermal behaviour
Under continuous load the dual 140 mm side intake feeds the GPU directly while three 80 mm top mounts exhaust heat, and a side 240 or 280 mm radiator can replace the fans when no graphics card is present. With a GPU installed only a 120 mm side radiator fits up to 175 mm card length. The layout keeps component temperatures stable during extended sessions without relying on short burst performance.
Highlights
- Compact console form factor fits Mini-ITX and Mini-DTX builds
- PCIe 4.0 riser card included for flexible GPU placement
- Two 140 mm PWM Aspect fans pre-installed for strong side airflow
- Front I/O offers USB 3.2 Gen 2x2 Type-C plus two USB 3.0 ports
- Supports SFX or SFX-L power supplies mounted at the bottom
Specifications
| Brand | Fractal Design |
|---|---|
| Series | Ridge |
| Model | FD-C-RID1N-11 |
| Type | Small Form Factor |
| Color | Black |
| Case Material | Steel |
| With Power Supply | No |
| Power Supply | SFX/SFX-L |
| Power Supply Mounted | Bottom |
| Motherboard Compatibility | Mini-ITX / Mini-DTX (with one 140 mm case fan removed) |
| Side Panel | without Side Window |
| LED | Front power LED bar |
| Internal 2.5" Drive Bays | 4 (included) |
| Expansion Slots | 3 |
| Front Ports | 1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.0, 1 x Audio |
| Fan Options | Total fan mounts: 2x 120/140 mm and 3x 80 mm Side: 2x 120/140 mm (2x Aspect 140 mm PWM included) Top: 3x 80 mm |
| Pre-installed Fans | Side - 2 x 140mm |
| Radiator Options | Side: 120 mm with GPU up to 175mm in length, 240/280 mm without GPU |
| Max GPU Length | Max GPU Length: 335 mm total, 325 mm with SSD installed Max GPU Height: 137 mm total, 125 mm with top fan(s) installed Max GPU Thickness: 82 mm total, 57 mm with side fan(s) installed overlapping GPU |
| Max CPU Cooler Height | 70 mm |
| Max PSU Length | 130 mm |
| Dimensions | 14.72" x 4.33" x 15.57" |
| Weight | 9.48 lbs. |

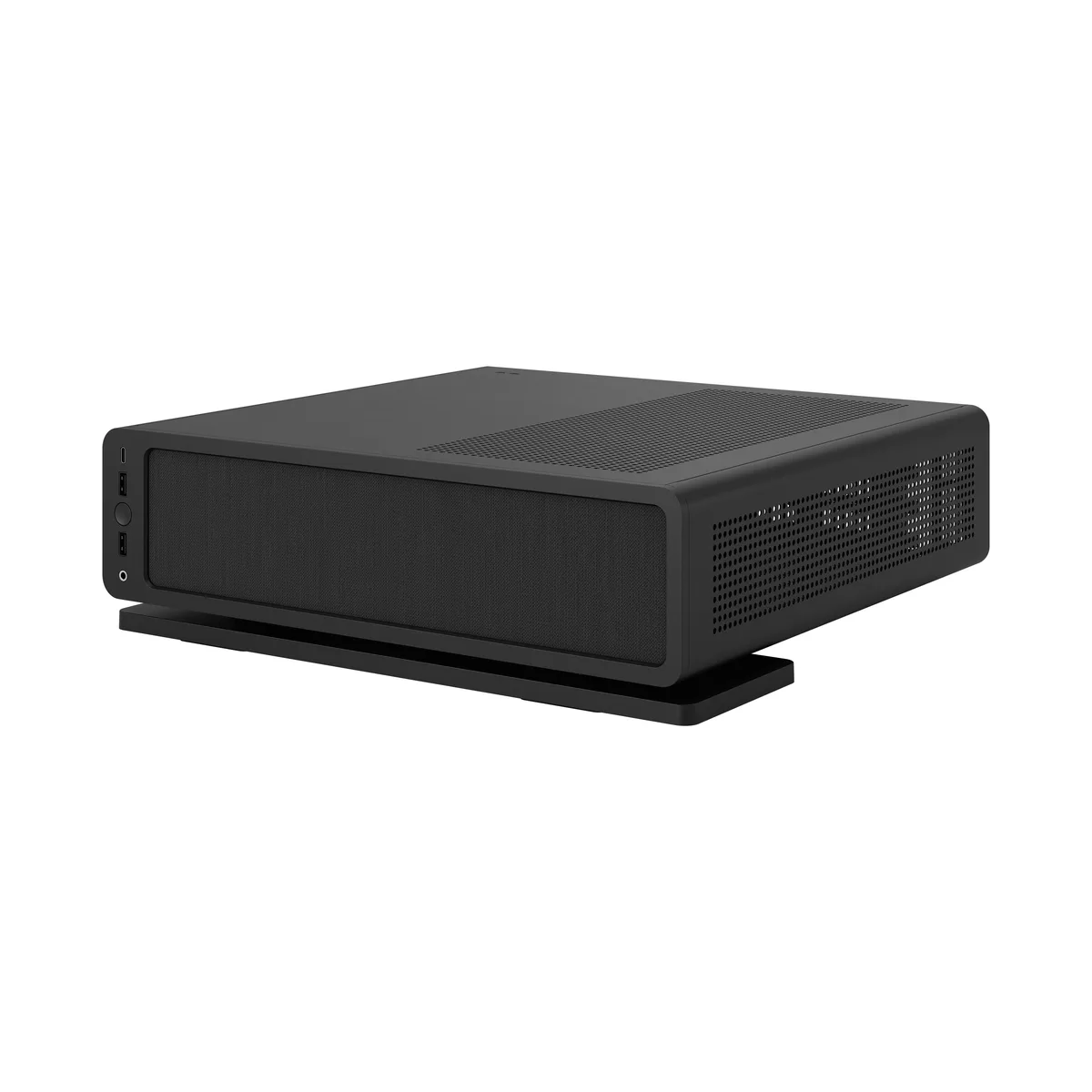

| Features | • Compact SFF console-type case • All panels come off for maximum accessibility • 6 mm anodized and CNCd aluminum front • PCIe 4.0 riser card included • Horizontal and vertical orientations with multiple foot configurations • Ventilated side, top and bottom panels • 2x 140 mm PWM Aspect fans included • 2x 140 mm side fan and 3x 80 mm top fan support • Front I/O comes with 2x USB 3.0, 1x USB type-C and a combined mic and headphone jack • 4x SSD support, 2x screw mount and 2x clip-in fast mounts • Excellent GPU Cooling • Supports GPUs up to a length of 335 mm • 57 mm thick GPU support |
| Package Content | Case Accessory box Manual |
| Shipping weight | 5.50 kg |
| Package size | 431 × 426 × 167 mm |
Other versions of this model
1 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
How much room does the 140 mm side fans leave for a CPU cooler?
The case allows a maximum CPU cooler height of 70 mm with the pre-installed 140 mm Aspect fans in place.
What is the correct order for fitting the PCIe 4.0 riser and the graphics card?
Mount the riser to the motherboard first, then insert the graphics card into the riser slot; installing the card before the riser blocks access to the motherboard screws.
Which dust filters need regular cleaning and how are they removed?
Magnetic filters on the side panels and the top panel lift off without tools for cleaning.
