Green 3.5-inch embedded motherboard with soldered processor, two SO-DIMM slots, dual HDMI and LAN ports, four USB 3.2 ports

GIGABYTE

GIGABYTE 9MEHLJASMR-SI-10B QBiP-6412A 3.5" server motherboard

SKU CH-Z8PG-XRXVM MPN 9MEHLJASMR-SI-10B

3.5" embedded board with Intel Celeron J6412, dual-channel DDR4 to 32 GB, dual 1 GbE LAN, one SATA 6 Gb/s, M.2 2280, four USB 3.2 Gen 1, four COM headers, 12–36 VDC input

  • CPU TypeIntel Celeron J6412
  • Number of DDR4 Slots2 x 260-pin
  • DDR4 StandardDDR4 3200
  • Maximum Memory Supported32GB
  • Other Slots1 x Full-size mini PCIe with SIM slot
  • SATA1 x SATA 6.0Gb/s
  • Intel Celeron J6412 drives compact embedded workloads
  • Dual-channel DDR4 3200 supports up to 32 GB memory
  • Two Intel I210AT Gigabit LAN ports for redundant networking
  • 2 HDMI plus LVDS enable multi-display configurations
  • Wide 12 V to 36 V DC input suits industrial power environments

Embedded 3.5" SBC with Celeron J6412

The GIGABYTE QBiP-6412A is a 3.5-inch single-board computer built around an on-board Intel Celeron J6412 processor. It provides dual-channel DDR4 3200 memory support across two 260-pin SO-DIMM slots with a maximum capacity of 32 GB. The board operates from a wide 12 V to 36 V DC input via a 4-pin box power connector.

Suited for space-constrained industrial deployments

This form factor fits tightly into fanless enclosures, DIN-rail mounts, and compact gateway appliances where a standard ATX or micro-ATX board cannot be accommodated. Builders who require multiple SATA ports, full-size PCIe expansion slots, or higher multi-core throughput should evaluate larger platforms.

Single specification: dual-channel DDR4 3200

The presence of two 260-pin slots running at 3200 MT/s determines whether the memory subsystem can meet the bandwidth and capacity needs of the target workload. Systems requiring ECC, higher memory ceilings, or different module form factors will need an alternative board.

Highlights

  • Intel Celeron J6412 drives compact embedded workloads
  • Dual-channel DDR4 3200 supports up to 32 GB memory
  • Two Intel I210AT Gigabit LAN ports for redundant networking
  • 2 HDMI plus LVDS enable multi-display configurations
  • Wide 12 V to 36 V DC input suits industrial power environments

Specifications

BrandGIGAIPC
ModelQBiP-6412A
CPU TypeIntel Celeron J6412
Number of DDR4 Slots2 x 260-pin
DDR4 StandardDDR4 3200
Maximum Memory Supported32GB
Other Slots1 x Full-size mini PCIe with SIM slot
SATA1 x SATA 6.0Gb/s
M.21 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
Audio ChipsetRealtek Audio Codec
LAN ChipsetIntel I210AT
LAN Speed10/100/1000Mbps
Max LAN Speed2 x 1Gbps

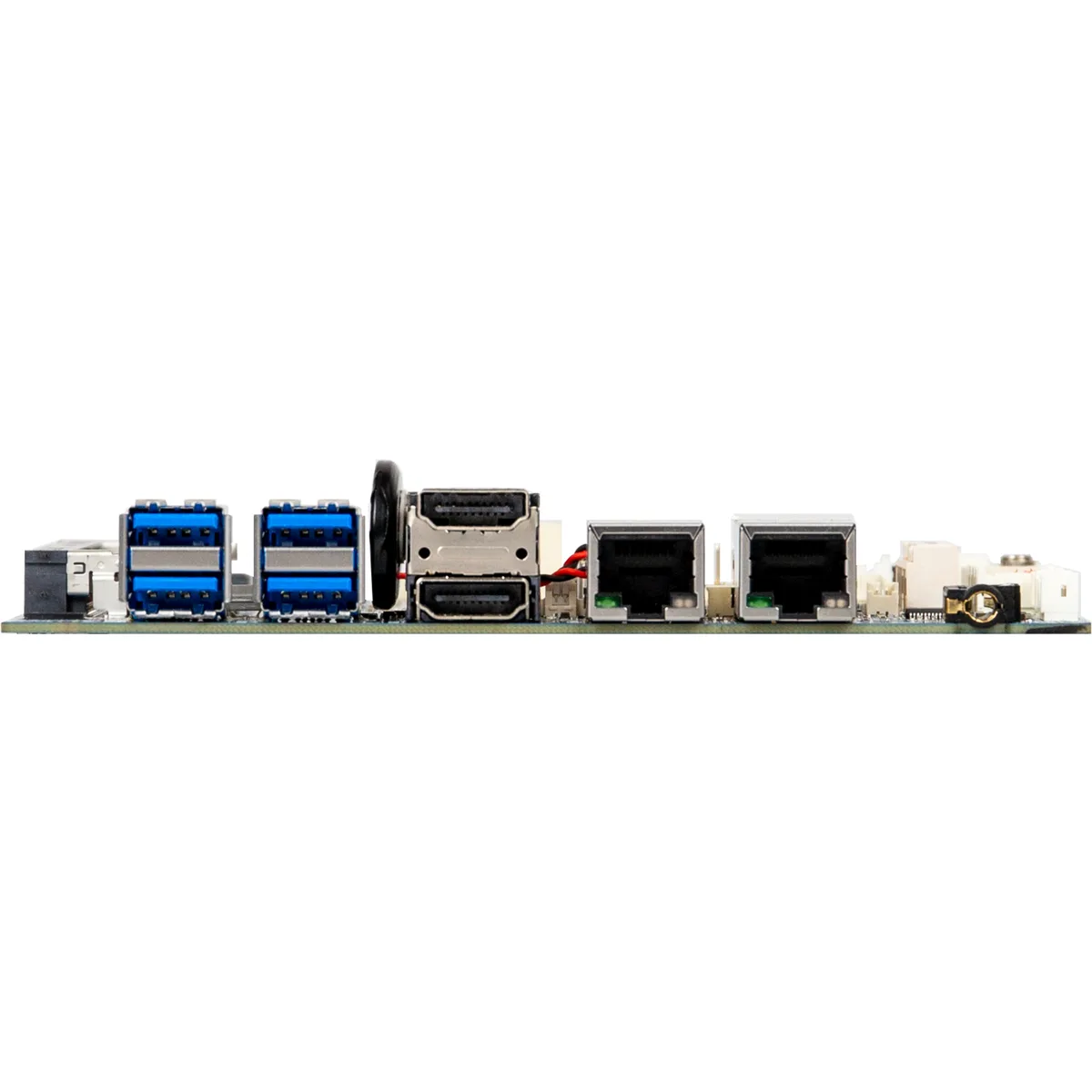

Back I/O PortsRear l/O
1 x Headphone Jack
2 x HDMI
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
Other Connectors1 x 4-pin box power connector (+12V~36VDC)
1 x SATA Power header
1 x CPU fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
2 x USB 2.0 headers
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x COM header (RS-232/422/485)
2 x COM headers (RS-232)
1 x Backlight Control header
1 x AT/ATX mode select jumper
1 x GPIO (8 bits) & SMBus header
1 x Buzzer header
Form Factor3.5" SBC
Dimensions (W x L)5.75" x 4"
Shipping weight0.34 kg
Package size222 × 180 × 64 mm

Questions about this item

How does the Intel Celeron J6412 processor perform in a real 3.5" SBC build?

The Intel Celeron J6412 is a quad-core 2.0 GHz processor built into the board, so it delivers consistent low-power performance for embedded tasks without a socket or cooler choice to manage.

What does the M.2 M-key slot with PCIe x2 actually limit for storage?

The M.2 2280 M-key slot runs at PCIe x2 and SATA 6.0 Gb/s, so the drive's maximum throughput is capped at two PCIe lanes rather than four.

What mounting holes and clearances does the 5.75" x 4" board need?

The 3.5" SBC measures 5.75 by 4 inches and uses standard 3.5" mounting points, so it fits enclosures and backplanes designed for that form factor.
