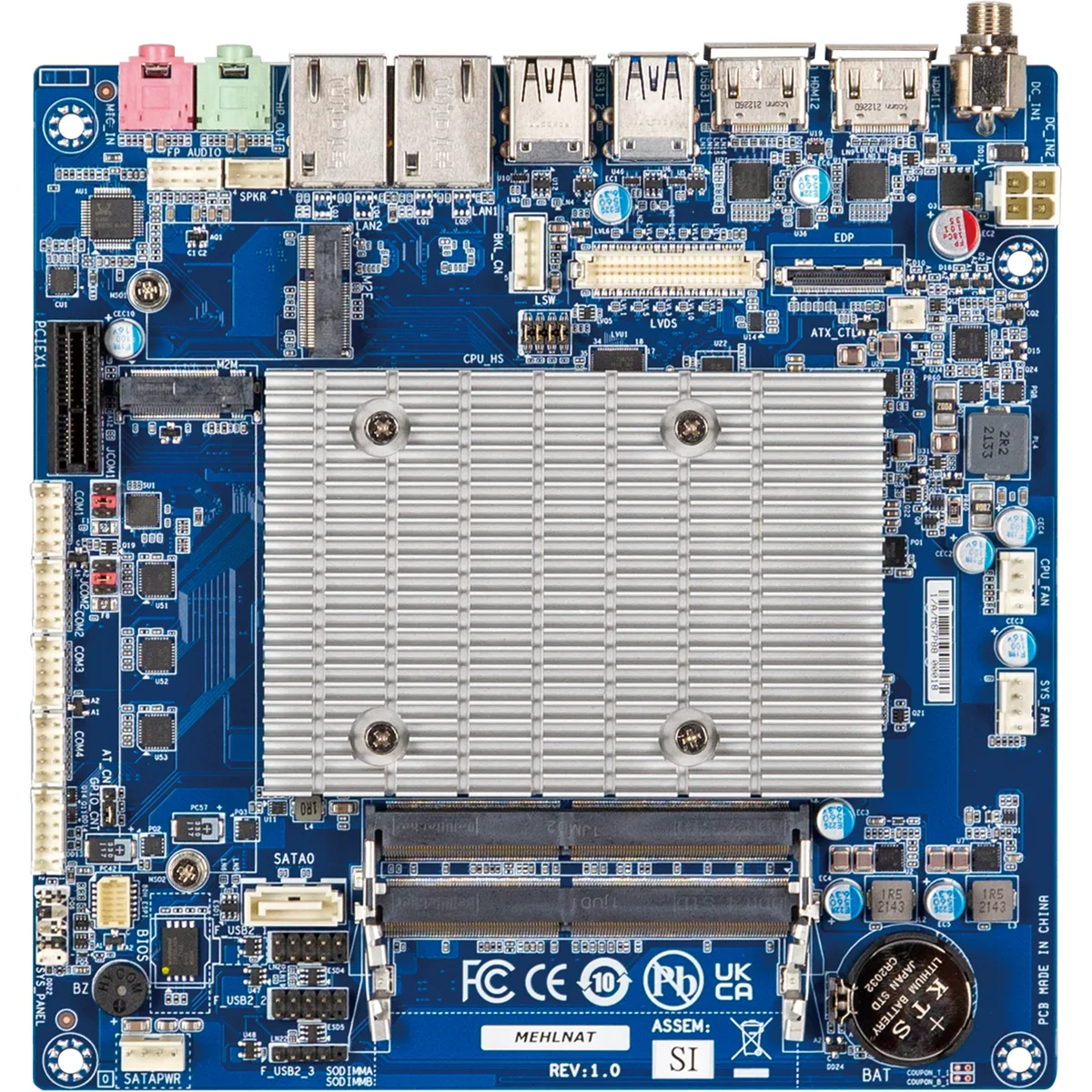

Thin Mini-ITX motherboard with silver heatsink and black PCB, dual SO-DIMM slots, two HDMI ports, two RJ45 LAN

GIGABYTE

GIGABYTE 9MEHLJATMR-SI-10D AI edge system

SKU CH-GDZQ-4SVKJ MPN 9MEHLJATMR-SI-10D

Thin Mini-ITX embedded board with Intel Celeron J6412, dual-channel DDR4, two GbE LAN ports, HDMI and eDP/LVDS for multi-display, four COM ports, one SATA 6Gb/s and nine USB connections

  • Back I/O Ports2 x Audio Jacks (Line out, Mic in) 2 x HDMI 2 x RJ45 LAN Por
  • Form FactorThin Mini-ITX
  • Compact Thin Mini-ITX design fits space-constrained edge deployments
  • Intel Celeron J6412 processor delivers efficient AI inference performance
  • Dual-channel DDR4 memory with two SO-DIMM slots boosts multitasking throughput
  • Two GbE LAN ports plus four COM ports enable reliable industrial connectivity
  • HDMI and eDP/LVDS outputs drive multiple displays for retail signage

Thin Mini-ITX AI edge system

The GIGABYTE 9MEHLJATMR-SI-10D is a thin Mini-ITX embedded motherboard built around an Intel Celeron J6412 processor. It targets developers deploying AI inference at the edge in space-constrained retail or medical devices. Dual-channel DDR4 SO-DIMM slots and multiple display outputs support compact, fanless designs. Buyers needing higher CPU core counts or discrete GPU expansion should look elsewhere.

Passive thermal design and wide DC input

The thin Mini-ITX form factor enables passively cooled chassis implementations, eliminating fan noise in clinical or customer-facing environments. A DC jack accepts 12 V or 19–24 V input, simplifying integration with industrial power supplies. Two Gigabit Ethernet ports provide redundant wired connectivity without adding active cooling requirements. Power draw scales with the Celeron J6412 workload profile.

I/O bundle simplifies peripheral integration

Nine USB ports, including three USB 3.2 Gen 1 and one USB 2.0, connect barcode scanners, cameras and touch panels directly. Four COM ports — two supporting RS-232/422/485 with selectable 5 V or 12 V power — cover legacy medical and retail serial devices. Dual HDMI and eDP/LVDS headers drive independent displays for kiosk or diagnostic use. A single SATA 6Gb/s port adds local storage for logging or caching.

Highlights

  • Compact Thin Mini-ITX design fits space-constrained edge deployments
  • Intel Celeron J6412 processor delivers efficient AI inference performance
  • Dual-channel DDR4 memory with two SO-DIMM slots boosts multitasking throughput
  • Two GbE LAN ports plus four COM ports enable reliable industrial connectivity
  • HDMI and eDP/LVDS outputs drive multiple displays for retail signage

Specifications

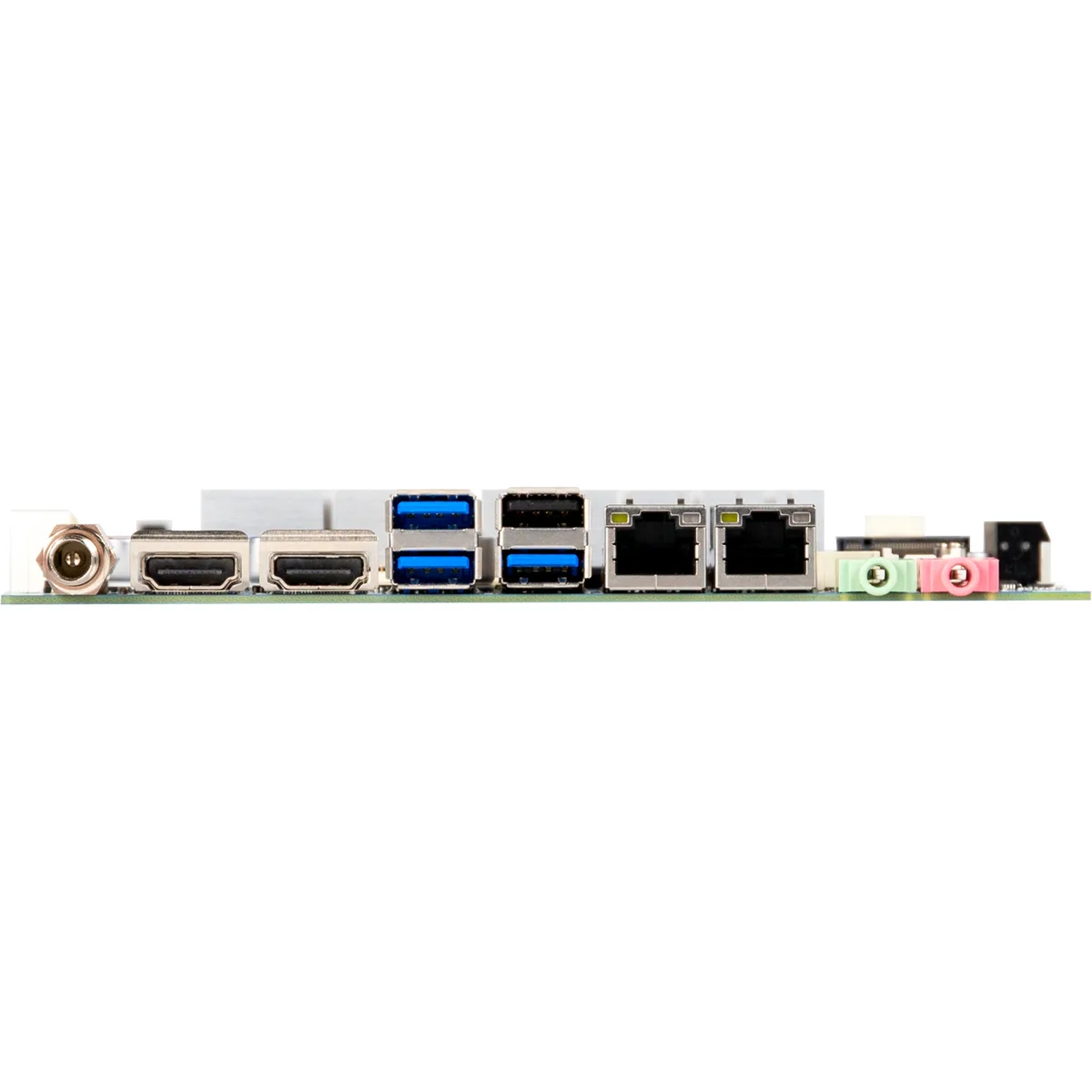

Back I/O Ports2 x Audio Jacks (Line out, Mic in)
2 x HDMI
2 x RJ45 LAN Ports
3 x USB 3.2 Gen 1
1 x USB 2.0
1 x DC Jack (+12V/19~24VDC)
Form FactorThin Mini-ITX
Shipping weight0.57 kg
Package size222 × 180 × 64 mm

Questions about this item

How do I install the Thin Mini-ITX board and what power-input mistake should I avoid?

Mount the board using the standard Thin Mini-ITX screw pattern, then connect a 12 V or 19–24 V DC supply to the DC jack; do not apply voltage outside that range.

Which components will need replacement first during long-term operation?

The two SO-DIMM DDR4 modules and the single SATA 6 Gb/s drive are the only field-replaceable parts; the Celeron J6412 processor is soldered and not user-serviceable.

What thermal or I/O limit appears first under continuous full load?

The passive-cooled Celeron J6412 will hit its thermal ceiling before the dual GbE LAN ports or the four COM ports (RS-232/422/485) saturate.
