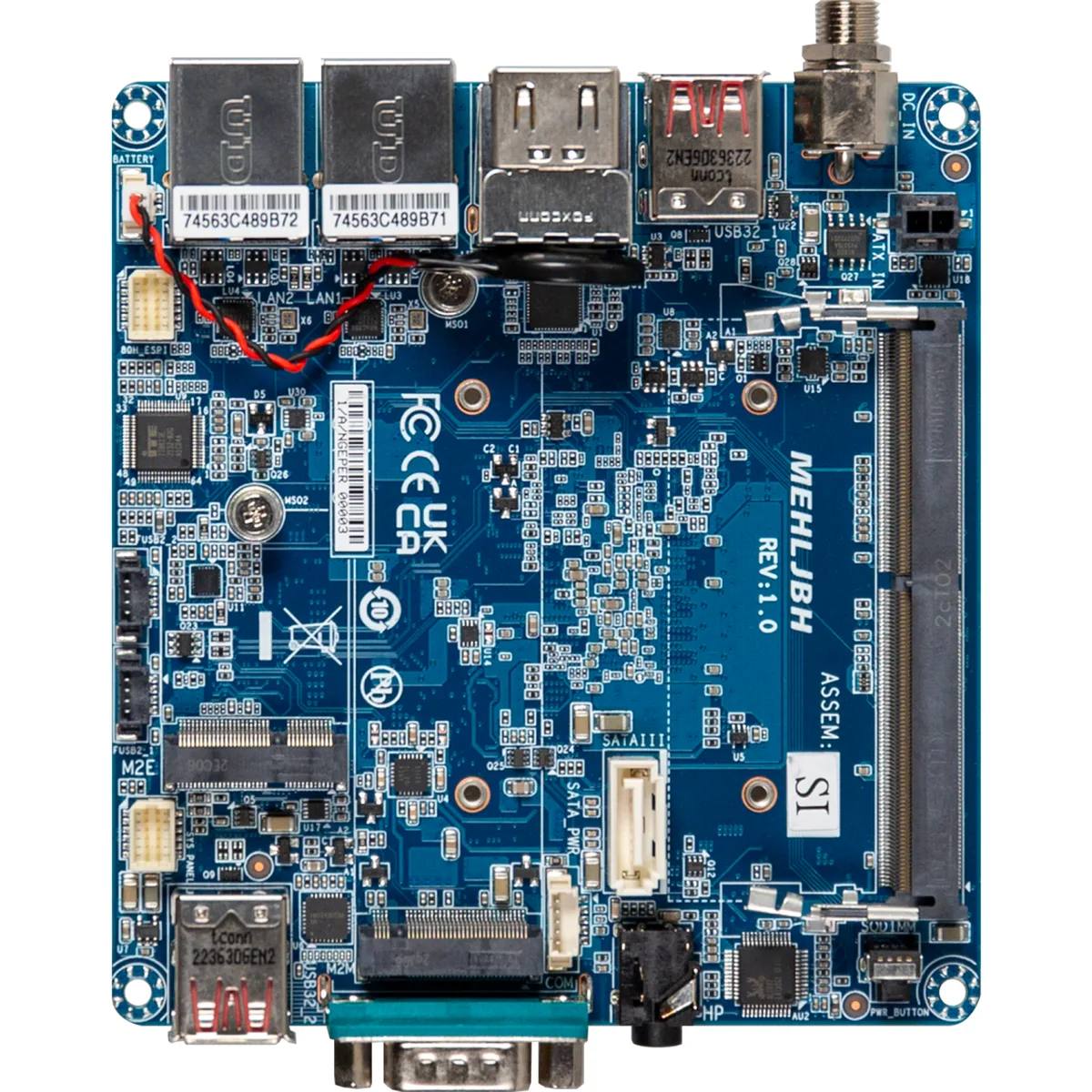

Compact green circuit board with silver ports and black chips

GIGABYTE

GIGABYTE 9MEHLJBHMR-SI AI edge system Intel Celeron J6412 DDR4 32GB

SKU CH-Q5AG-D3ZS6 MPN 9MEHLJBHMR-SI

Compact embedded motherboard with Intel Celeron J6412, 32GB DDR4 3200, dual GbE LAN, M.2 PCIe x2 storage, dual HDMI and six USB ports

  • CPU TypeIntel Celeron J6412
  • Number of DDR4 Slots1 x 260-pin
  • DDR4 StandardDDR4 3200
  • Maximum Memory Supported32GB
  • Other Slots1 x 2230 M.2 E-Key
  • SATA1 x SATA 6.0Gb/s
  • Compact embedded board fits space-limited deployments
  • Intel Celeron J6412 processor handles edge AI workloads
  • 32GB DDR4 3200 memory supports multitasking
  • Dual 1Gbps LAN ports enable reliable connectivity
  • M.2 2280 slot with PCIe Gen3 x2 adds fast storage

Compact IPC board for embedded AI

The GIGABYTE 9MEHLJBHMR-SI is an embedded industrial motherboard built around an Intel Celeron J6412 processor. It targets system integrators deploying smart retail or medical devices where long-term availability and a small footprint matter. A single SO-DIMM slot accepts up to 32GB of DDR4 3200 memory. The 10x10 form factor measures 4.13 by 4.33 inches.

Interface limits for storage and expansion

One SATA 6.0Gb/s port connects a single 2.5-inch drive or SSD. The M.2 2280 M-Key slot runs at PCIe Gen3 x2 or SATA 6Gb/s, limiting throughput to two lanes. A second M.2 2230 E-Key slot is reserved for wireless modules. Two RJ45 ports provide 10/100/1000Mbps Ethernet, capped at 1Gbps each. Six USB 3.2 Gen 2x1 ports handle peripheral connectivity.

Build details and daily mounting implications

The board uses a screw-type DC jack accepting 12V to 19VDC input alongside a 2-pin internal power header. Dual HDMI outputs drive two independent displays without adapters. A single COM port supports RS-232 for legacy equipment. Onboard headers include a CPU fan connector, SATA power, front panel, and two USB 2.0 headers. Realtek ALC897 audio feeds a combo jack on the front I/O.

Highlights

  • Compact embedded board fits space-limited deployments
  • Intel Celeron J6412 processor handles edge AI workloads
  • 32GB DDR4 3200 memory supports multitasking
  • Dual 1Gbps LAN ports enable reliable connectivity
  • M.2 2280 slot with PCIe Gen3 x2 adds fast storage

Specifications

BrandGIGAIPC
ModelQBi-6412B
CPU TypeIntel Celeron J6412
Number of DDR4 Slots1 x 260-pin
DDR4 StandardDDR4 3200
Maximum Memory Supported32GB
Other Slots1 x 2230 M.2 E-Key
SATA1 x SATA 6.0Gb/s
M.21 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
Audio ChipsetRealtek ALC897
LAN ChipsetRealtek RTL8111H
LAN Speed10/100/1000Mbps
Max LAN Speed2 x 1Gbps
Back I/O PortsFront I/O
2 x USB 3.2 Gen 2x1
1 x COM Port (RS-232)
1 x Combo Audio Jack (Headphone & Headset)
1 x Power button
Rear l/O
2 x RJ45 LAN Ports
2 x HDMI
2 x USB 3.2 Gen 2x1
1 x Screw type DC Jack (+12V~19VDC)
Other Connectors1 x 2-pin power connector
1 x SATA power header
1 x CPU fan header
1 x Front panel header
2 x USB 2.0 headers
Form Factor10x10 M/B
Dimensions (W x L)4.13" x 4.33"
Shipping weight0.34 kg
Package size222 × 184 × 66 mm

Questions about this item

What size M.2 storage drives can I install?

The M.2 M-Key slot accepts 2280 modules and supports both PCIe x2 and SATA 6.0Gb/s signalling.

How much DDR4 memory does the board support and what form factor is required?

A single 260-pin SO-DIMM slot supports up to 32GB of DDR4 3200 memory.

What external displays can I connect to the rear HDMI ports?

Two HDMI outputs are available on the rear I/O for multi-display configurations.
