Compact Mini-ITX industrial motherboard, dark PCB with silver heatsinks, rear I/O cluster visible

GIGABYTE

GIGABYTE 9MH610AIMR-SI-10A AI edge system

SKU CH-6HYB-Z3PMP MPN 9MH610AIMR-SI-10A

Mini-ITX AI edge system supports 12th, 13th and 14th Generation Intel Core processors with dual-channel DDR4, 2.5 GbE and GbE LAN, HDMI, DisplayPort, VGA, LVDS, two SATA 6Gb/s ports.

  • Back I/O Ports2 x Audio Jacks (Line out, Mic in) 1 x COM Port (RS-232/422/
  • Form FactorMini ITX
  • Compact Mini-ITX design fits space-constrained edge deployments
  • Supports 12th, 13th and 14th Gen Intel Core processors for scalable compute
  • Dual-channel DDR4 with two SO-DIMM slots enables flexible memory upgrades
  • Dual LAN with 1 GbE and 2.5 GbE ports provides versatile network connectivity
  • Four video outputs — HDMI, DisplayPort, VGA and LVDS — drive multiple displays

Industrial Mini-ITX Board for Edge AI

This Mini-ITX motherboard uses the Intel H610 chipset and accepts 12th, 13th and 14th Generation Intel Core processors. Dual-channel DDR4 SO-DIMM slots provide system memory for industrial automation, AI robotics and smart retail deployments. The compact form factor fits space-constrained enclosures while delivering the compute needed for real-time data collection and decision-making.

Build and Connectivity for Daily Operation

A 12 V to 24 V DC jack powers the board in industrial cabinets. Rear I/O supplies two RJ45 ports (one 2.5GbE, one GbE), four USB 3.2 Gen 1 ports, HDMI, DisplayPort, VGA and LVDS for multi-display setups. Two COM ports (one RS-232, one RS-232/422/485 with RI/5V/12V) plus two SATA 6Gb/s headers handle legacy and storage devices. A PCIe x16 slot allows graphics or accelerator cards for flexible expansion.

Thermals, Noise and Power Draw

Passive cooling suits the low-profile Mini-ITX design; the board draws power from the external DC jack without an onboard ATX supply. Fan headers are not detailed, so acoustic profile depends on the chosen chassis and processor TDP. Typical operation stays within the 12 V to 24 V input range, letting integrators match the power brick to the installed CPU and add-on cards.

Highlights

  • Compact Mini-ITX design fits space-constrained edge deployments
  • Supports 12th, 13th and 14th Gen Intel Core processors for scalable compute
  • Dual-channel DDR4 with two SO-DIMM slots enables flexible memory upgrades
  • Dual LAN with 1 GbE and 2.5 GbE ports provides versatile network connectivity
  • Four video outputs — HDMI, DisplayPort, VGA and LVDS — drive multiple displays

Specifications

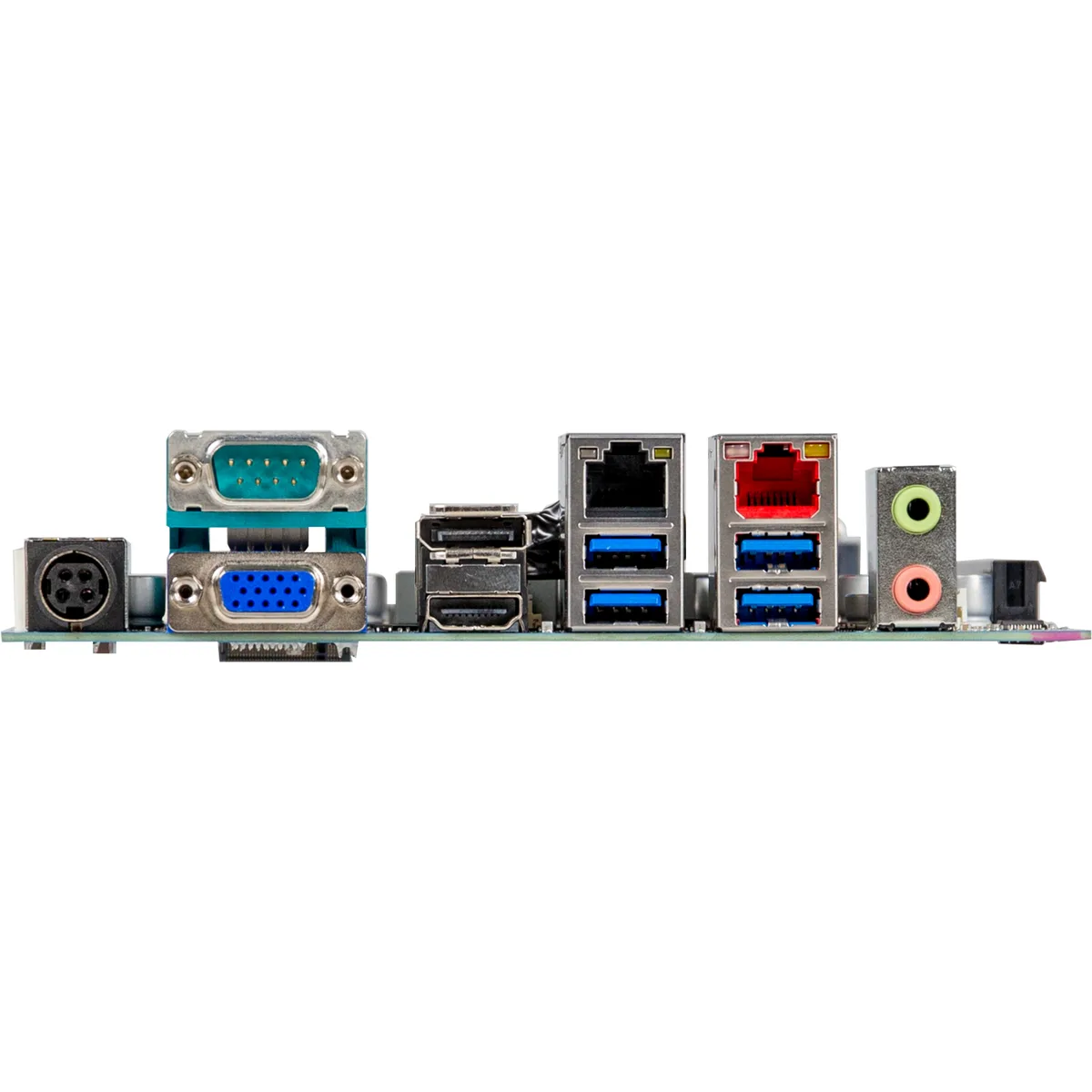

Back I/O Ports2 x Audio Jacks (Line out, Mic in)
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x HDMI
1 x Display Port
1 x VGA
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x DC Jack (+12V/+19V~+24VDC)
Form FactorMini ITX
Shipping weight0.61 kg
Package size226 × 184 × 66 mm

Questions about this item

What is the maximum practical speed of the 2.5GbE LAN port on this board?

The 2.5GbE LAN port caps at 2.5 Gbps in practice, limited by the controller and cabling.

What chassis clearance does the Mini-ITX form factor and DC jack voltage range require?

The board fits any Mini-ITX chassis; the DC jack accepts +12V or +19V to +24VDC, so the power supply must match that range.

How is the SO-DIMM memory installed on the dual-channel DDR4 slots, and what step is often missed?

Insert each SO-DIMM at an angle into the slot, then press down firmly until the side clips click; the missed step is not seating both modules for dual-channel operation.
