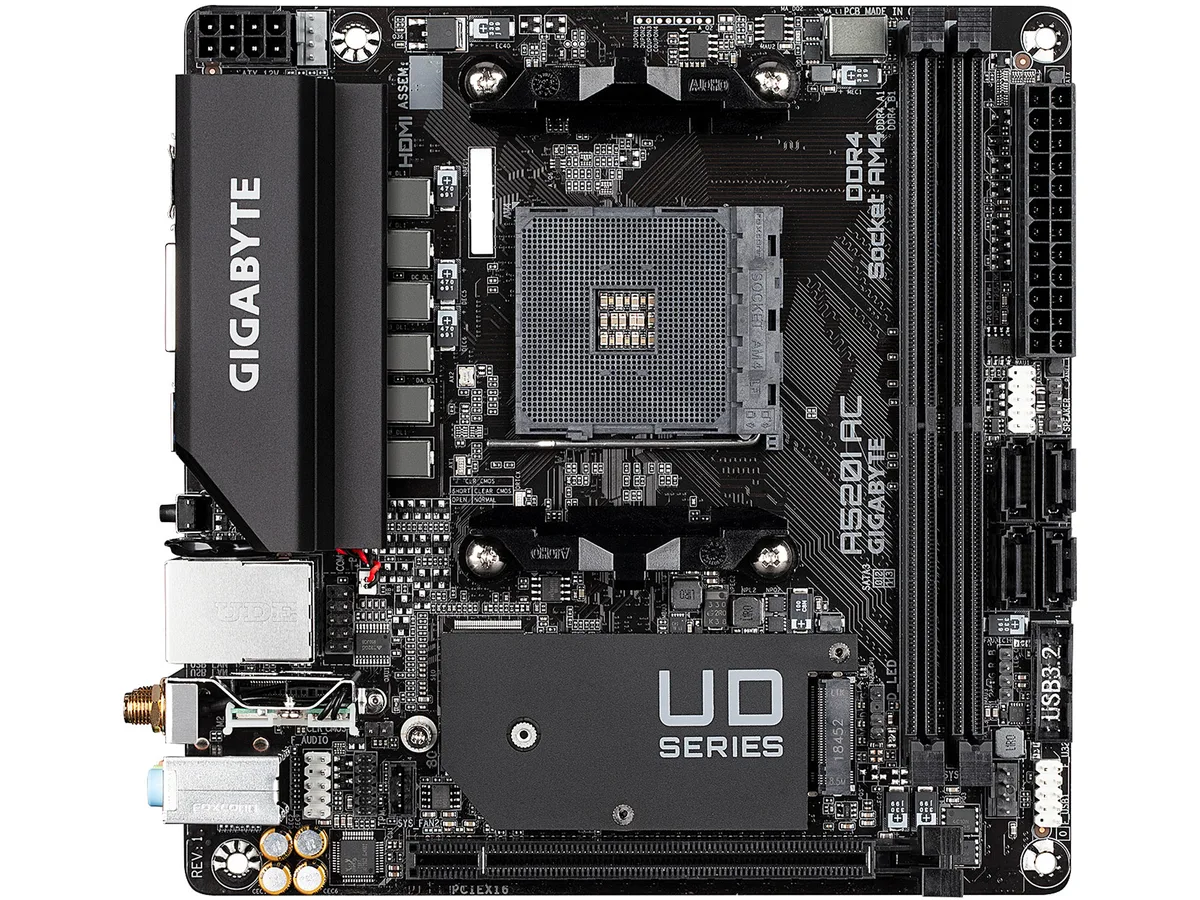

Small square motherboard with black PCB, silver heatsink, and rear I/O panel

GIGABYTE

GIGABYTE A520I AC AMD motherboard

SKU CH-VKAP-4AFE3 MPN A520I AC

Mini ITX AM4 board with dual-channel DDR4, PCIe 3.0 x16, NVMe M.2, 1 GbE LAN and dual-band 802.11ac Wi-Fi

  • CPU Socket TypeAM4
  • CPU TypeAMD Socket AM4, support for: AMD Ryzen 5000 Series / 3rd Gen
  • ChipsetAMD A520
  • Number of Memory Slots2x288pin (DDR4)
  • Memory Standard3rd Gen AMD Ryzen Processors: Support for DDR4 5100(O.C.)/ 4
  • Maximum Memory Supported64GB

Option A520I AC

  • A520I AC
  • A520M AORUS ELITE
  • A520M DS3H
  • A520M S2H

Struck-through versions exist but are not stocked here.

  • AM4 socket supports Ryzen 5000 and 3rd Gen processors with BIOS update
  • Dual-channel DDR4 up to 64GB with XMP 2.0 profiles
  • Direct 6-phase 55A DrMOS VRM with optimised heatsink for stable power
  • PCIe 3.0 x4 M.2 plus four SATA 6Gb/s ports for fast storage
  • Intel Wi-Fi AC 3168 dual-band and Realtek gigabit LAN for connectivity

Socket AM4 Mini ITX board

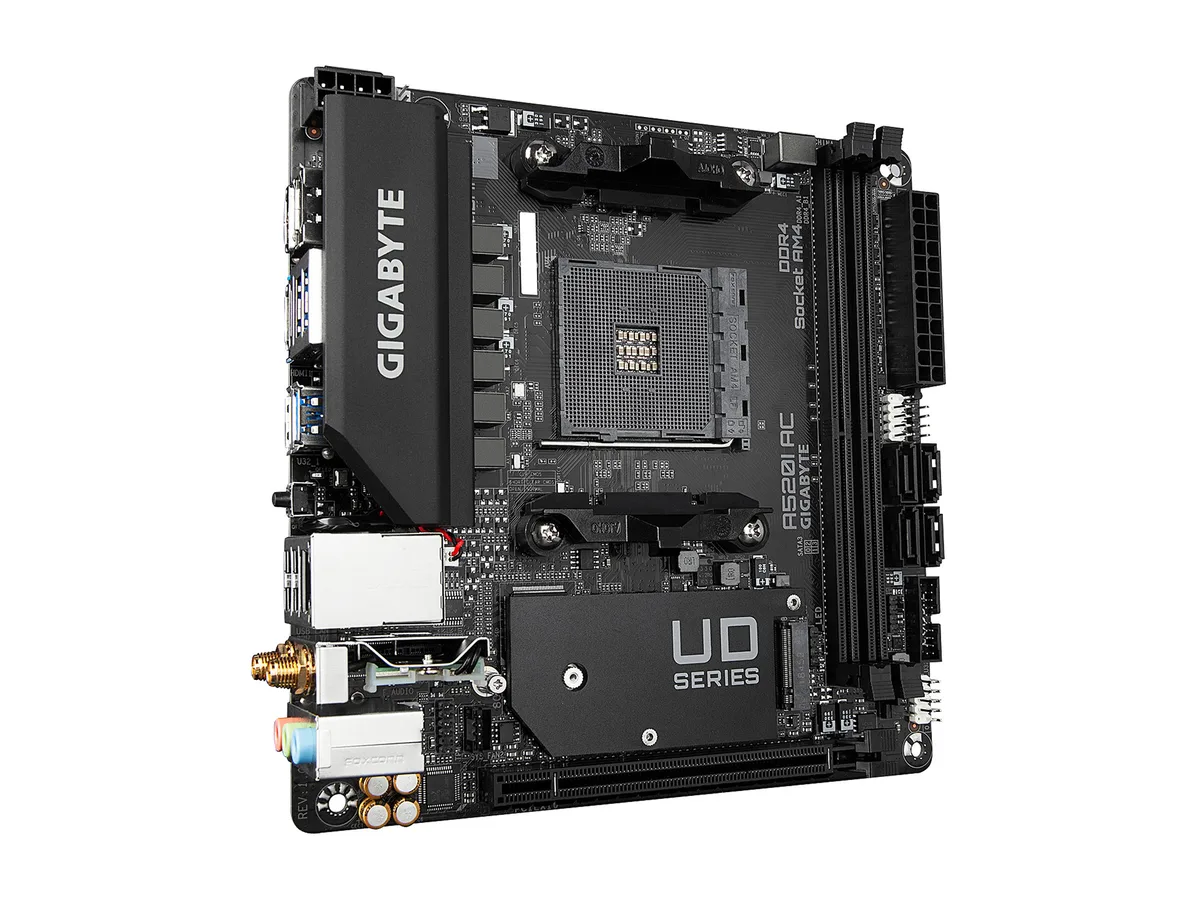

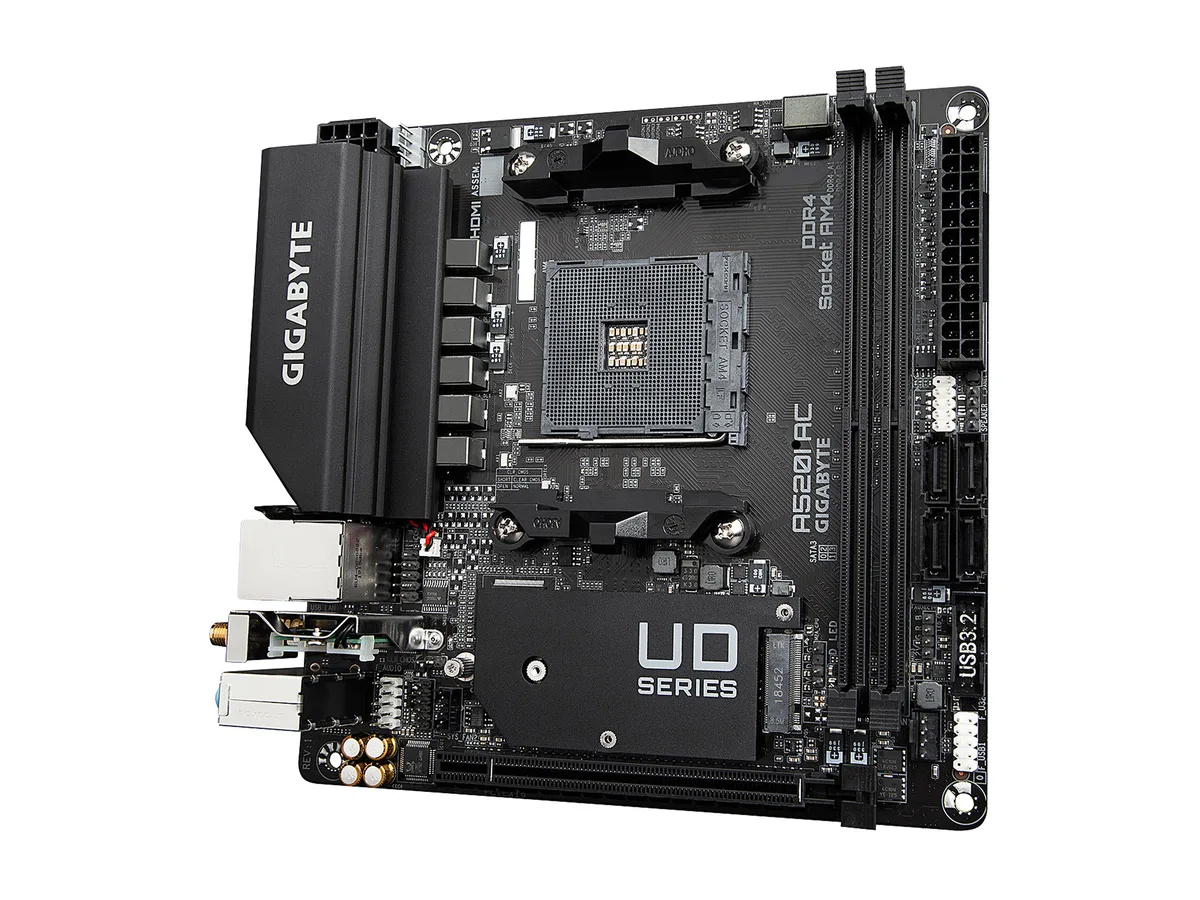

The GIGABYTE A520I AC is a Mini ITX motherboard built around the AMD A520 chipset and the AM4 socket. It supports 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics processors, plus Ryzen 5000 Series after a BIOS update. The board provides two DDR4 slots for up to 64 GB of dual-channel memory and a single PCIe 3.0 x16 slot for a graphics card.

Compact builds with integrated graphics

This board suits builders who want a small system using an AM4 CPU with integrated graphics and do not need overclocking headroom. It also fits users who prefer a single M.2 NVMe drive and up to four SATA devices. Anyone needing CPU overclocking, multiple M.2 slots, PCIe 4.0 or more than one expansion card should choose a different chipset.

Build integration

The board needs a Mini ITX case, an SFX or SFX-L power supply and low-profile CPU cooler. Two DDR4 DIMMs fill the memory limit. One M.2 2280 slot and four SATA 6 Gb/s ports handle storage. Realtek GbE LAN and Intel Wi-Fi AC 3168 provide wired and wireless networking. DisplayPort 1.4 and HDMI outputs use the APU graphics, freeing the PCIe slot for a discrete GPU.

Highlights

  • AM4 socket supports Ryzen 5000 and 3rd Gen processors with BIOS update
  • Dual-channel DDR4 up to 64GB with XMP 2.0 profiles
  • Direct 6-phase 55A DrMOS VRM with optimised heatsink for stable power
  • PCIe 3.0 x4 M.2 plus four SATA 6Gb/s ports for fast storage
  • Intel Wi-Fi AC 3168 dual-band and Realtek gigabit LAN for connectivity

Specifications

BrandGIGABYTE
ModelA520I AC
CPU Socket TypeAM4
CPU TypeAMD Socket AM4, support for: AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
* Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list.
ChipsetAMD A520
Number of Memory Slots2x288pin (DDR4)
Memory Standard3rd Gen AMD Ryzen Processors:
Support for DDR4 5100(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 5300(O.C.)/ 5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
Maximum Memory Supported64GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 2.0
PCI Express 3.0 x161 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
SATA RAID0/1/10
Onboard Video ChipsetIntegrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:
1 x DisplayPort port, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 16GB
Audio ChipsetRealtek ALC887
Audio Channels2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN ChipsetRealtek GbE LAN chip
Max LAN Speed1Gbps
Wireless LANIntel Wi-Fi AC 3168
WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Support for 11ac wireless standard and up to 433 Mbps data rate
* Actual data rate may vary depending on environment and equipment.
BluetoothBLUETOOTH 4.2

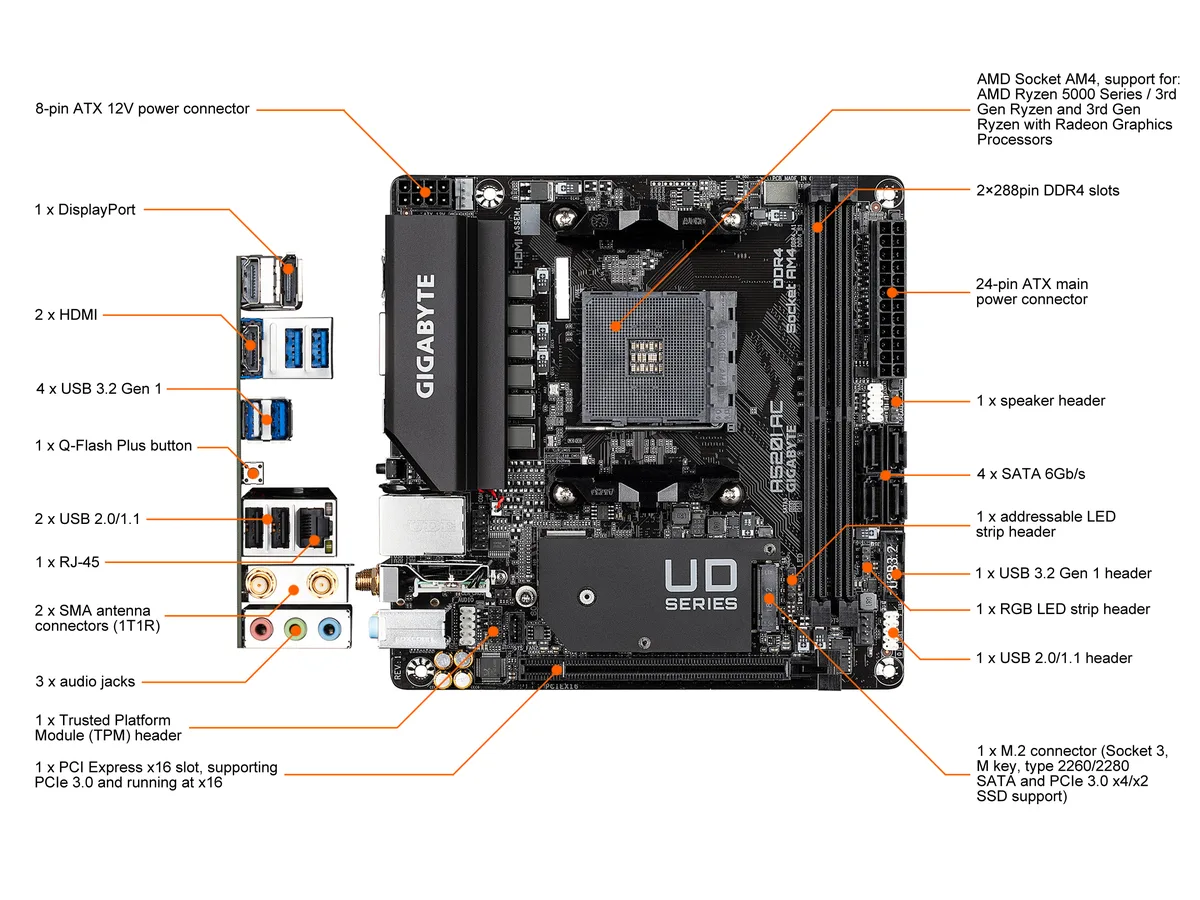

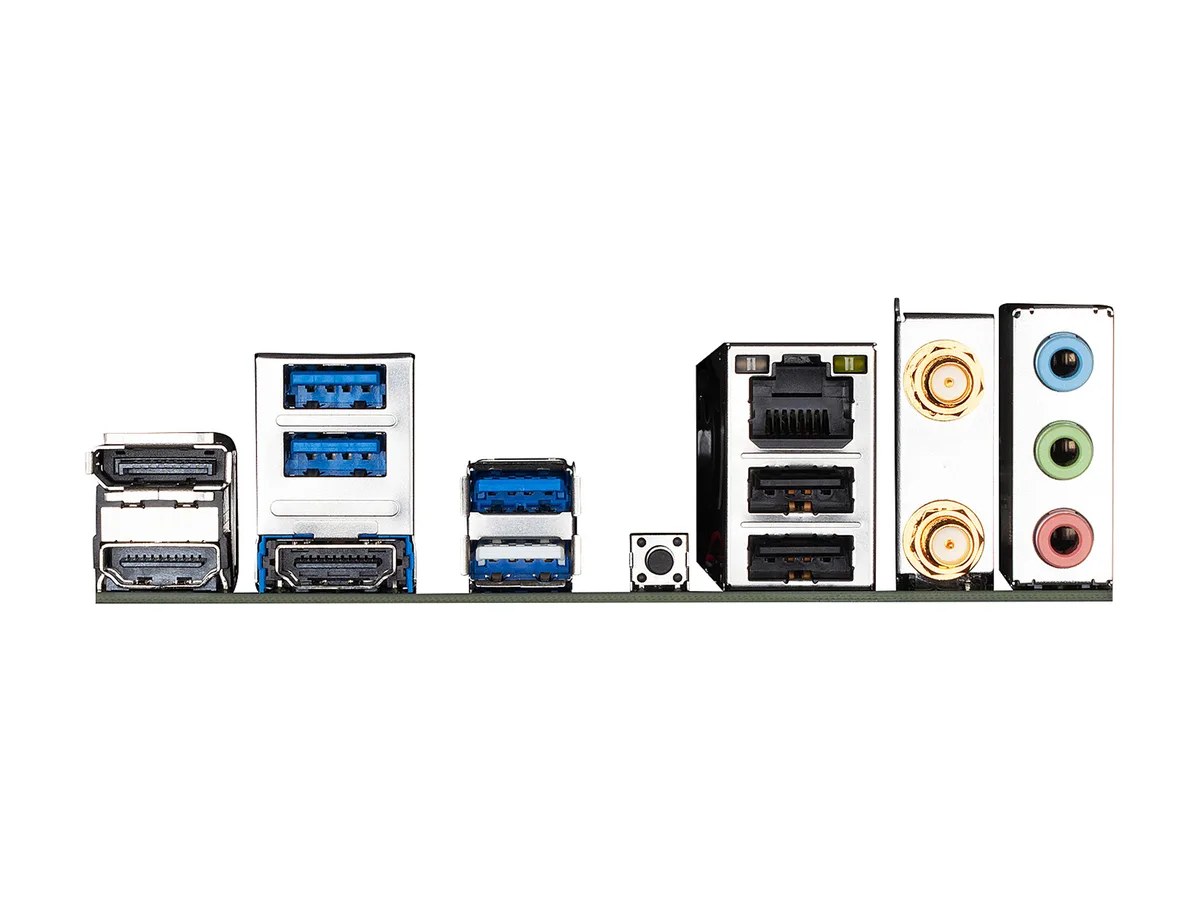

Back I/O Ports1 x DisplayPort
2 x HDMI ports
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 ports
2 x SMA antenna connectors (1T1R)
3 x audio jacks
Onboard USB1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
Form FactorMini ITX
LED LightingRGB
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Windows 11Supported
FeaturesI/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
F
Shipping weight0.77 kg
Package size222 × 189 × 78 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which AMD AM4 processor do I need already so the board can boot and let me update the BIOS for Ryzen 5000 support?

You need a 3rd Gen Ryzen or a 3rd Gen Ryzen with Radeon Graphics processor; the board only supports Ryzen 5000 Series after a BIOS update applied with one of those CPUs installed.

Will my existing DDR4-3200 memory run at its rated speed without manual tuning?

Yes — DDR4-3200 is a native JEDEC speed for both 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics, so the board will run it at 3200 MHz automatically.

How can I confirm the Intel Wi-Fi AC 3168 module is connected and running at up to 433 Mbps after I build the system?

Open Device Manager, verify the adapter appears without errors, then check the link speed in the Wi-Fi status window; it should report up to 433 Mbps on a 5 GHz 802.11ac connection.
