Green Micro ATX motherboard with silver heatsinks and ARGB header visible

GIGABYTE

GIGABYTE A520M H ARGB AMD motherboard

SKU CH-0753-BG9AP

Micro-ATX AM4 board with ARGB header, Q-Flash Plus, PCIe 3.0 x4 M.2, GbE LAN and DisplayPort for Ryzen 3000 to 5000 series CPUs

  • Supports Ryzen 5000, 4000 and 3000 series processors on AM4 socket
  • Dual-channel DDR4 up to 64 GB with XMP and ECC unbuffered support
  • PCIe 3.0 x4 M.2 slot accepts NVMe and SATA drives
  • Integrated ARGB header plus Q-Flash Plus button for easy BIOS updates
  • DisplayPort output drives 5120x2880@60 Hz multi-display graphics

Ready for Ryzen AM4 builds

This Micro ATX motherboard uses the AMD A520 chipset and Socket AM4 to support Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors. It targets budget-conscious builders who want integrated graphics output and addressable RGB lighting without a premium chipset.

Two DDR4 slots up to 64 GB

The board provides dual-channel memory across two DIMM sockets with a maximum capacity of 64 GB using 32 GB modules. Supported speeds range from 2133 MHz to 5100 MHz overclocked, and both ECC and non-ECC unbuffered DIMMs are accepted in non-ECC mode.

M.2 NVMe or SATA plus dual video outputs

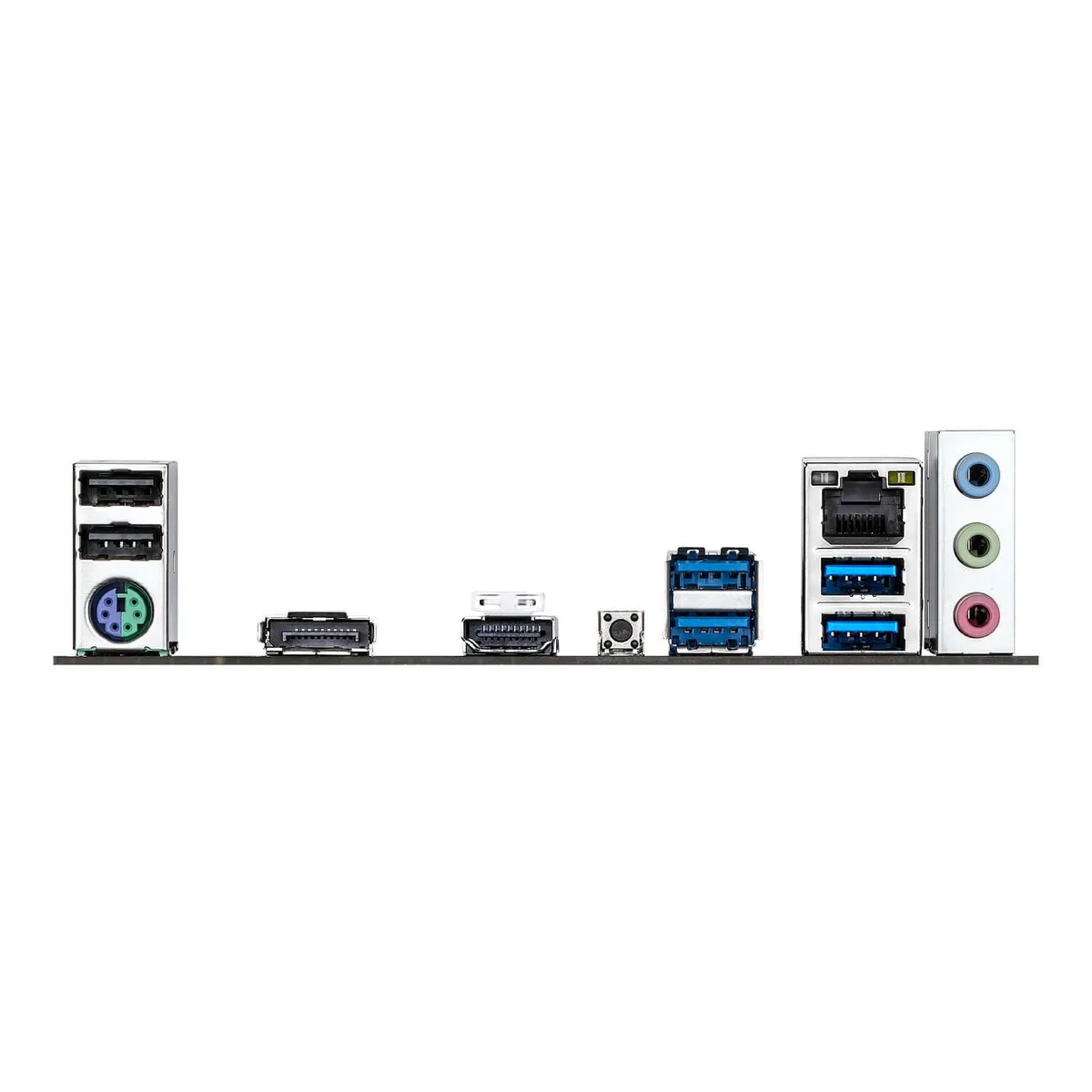

A single PCIe 3.0 x4 M.2 slot accommodates NVMe or SATA solid-state drives for fast storage. Rear-panel HDMI and DisplayPort connectors enable multi-display setups using the processor's integrated Radeon graphics, while GbE LAN and an ARGB header handle networking and lighting.

Highlights

  • Supports Ryzen 5000, 4000 and 3000 series processors on AM4 socket
  • Dual-channel DDR4 up to 64 GB with XMP and ECC unbuffered support
  • PCIe 3.0 x4 M.2 slot accepts NVMe and SATA drives
  • Integrated ARGB header plus Q-Flash Plus button for easy BIOS updates
  • DisplayPort output drives 5120x2880@60 Hz multi-display graphics

Specifications

No published specifications for this item yet.

Questions about this item

What does the 5100 MHz memory rating mean when the board is built into a working PC?

5100 MHz is an overclocked speed; the board runs DDR4 at 3200 MHz by default and reaches 5100 MHz only with XMP modules and a Ryzen CPU that can sustain the higher data rate.

How does the PCIe 3.0 x4 M.2 slot limit the drive I can install?

The slot accepts both NVMe and SATA M.2 drives but caps throughput at PCIe 3.0 x4, so a Gen 4 NVMe SSD will run at Gen 3 speeds.

What clearance do I need for the Micro-ATX board and its rear DisplayPort?

The board fits any Micro-ATX or larger case with standard standoffs; the rear I/O includes a DisplayPort connector that protrudes through the standard I/O shield cut-out.
