Green Mini-ITX motherboard with silver heatsinks and black I/O shield

GIGABYTE

GIGABYTE A620I AX AM5 AMD motherboard

SKU CH-GVG8-MWWVZ

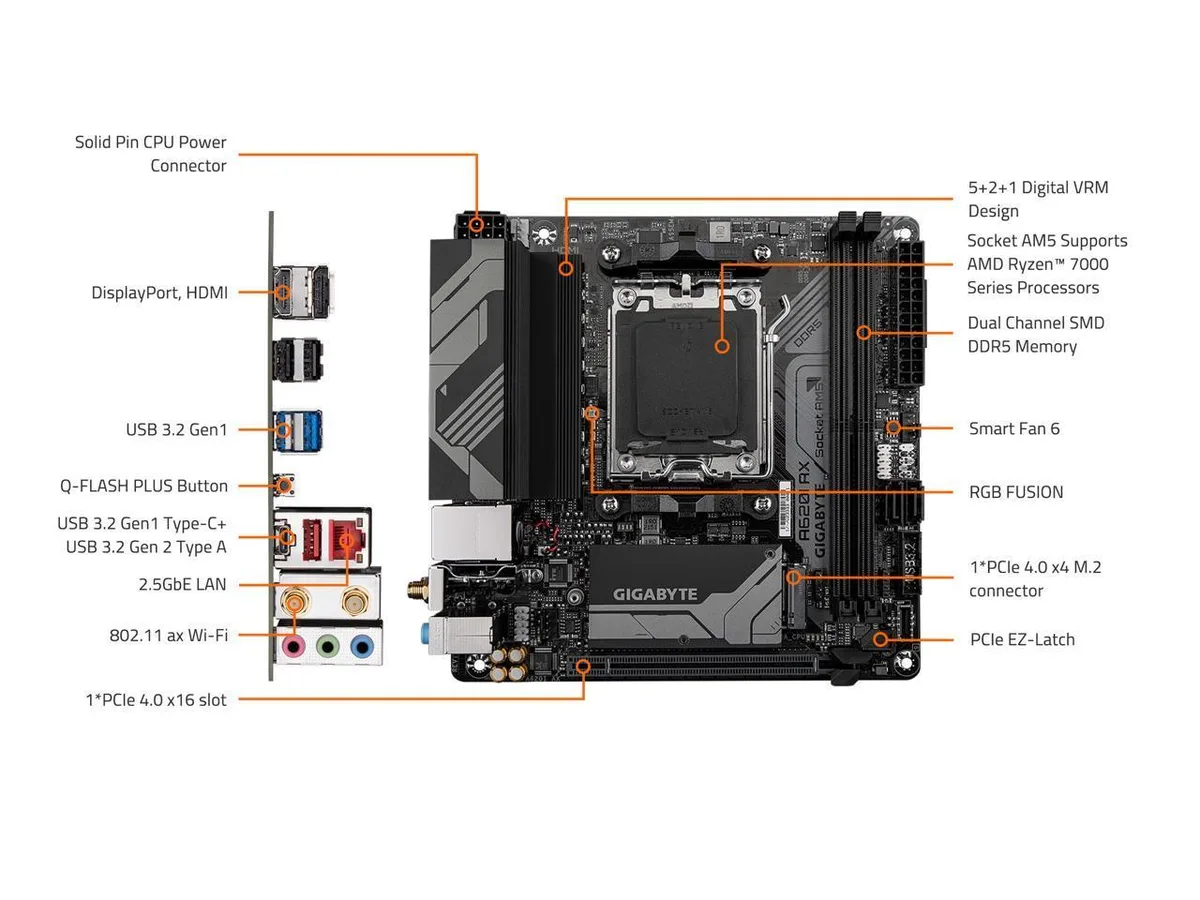

Mini-ITX AM5 board for Ryzen 7000 with DDR5 up to 96 GB, one PCIe 4.0 M.2 slot, Wi-Fi 6E and 2.5 GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series
  • ChipsetAMD A620
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardSupport for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/48
  • Maximum Memory Supported96GB
  • Supports AMD Ryzen 7000 Series processors on AM5 socket
  • 5+2+1 phase digital VRM delivers stable power for high loads
  • Dual-channel DDR5 up to 96 GB with AMD EXPO and Intel XMP support
  • PCIe 4.0 x4 M.2 slot enables fast NVMe storage
  • Wi-Fi 6E plus 2.5 GbE LAN for low-latency networking

AM5 Mini-ITX board for Ryzen 7000 builds

The GIGABYTE A620I AX fits AMD Ryzen 7000 Series processors into a Mini-ITX footprint. It provides two DDR5 DIMM slots with a maximum capacity of 96 GB and supports memory speeds up to 6400 MT/s via AMD EXPO profiles. A single PCIe 4.0 x16 slot and one M.2 2280 connector handle the GPU and primary storage. Wireless connectivity uses Realtek Wi-Fi 6E on 2.4, 5 and 6 GHz bands alongside a 2.5 GbE LAN port.

Suited to compact systems with one fast drive

This board suits builders who want a small-form-factor PC with a single high-speed M.2 SSD and integrated Wi-Fi 6E. The two SATA 6 Gb/s ports allow extra hard drives or SATA SSDs, but only one M.2 slot is available, so multi-NVMe arrays are not possible. Users needing more than two memory slots, additional M.2 connectors or a higher-end chipset feature set should consider a larger form factor or a different chipset.

VRM and fan control handle sustained loads

The 5+2+1 phase digital VRM delivers stable power to Ryzen 7000 CPUs during extended workloads. Smart Fan 6 uses multiple onboard temperature sensors and hybrid fan headers with a fan-stop function to keep thermals in check without constant noise. Q-Flash Plus allows BIOS updates without a CPU, memory or graphics card installed, simplifying maintenance when the system is already assembled in a tight chassis.

Highlights

  • Supports AMD Ryzen 7000 Series processors on AM5 socket
  • 5+2+1 phase digital VRM delivers stable power for high loads
  • Dual-channel DDR5 up to 96 GB with AMD EXPO and Intel XMP support
  • PCIe 4.0 x4 M.2 slot enables fast NVMe storage
  • Wi-Fi 6E plus 2.5 GbE LAN for low-latency networking

Specifications

BrandGIGABYTE
ModelA620I AX
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series
ChipsetAMD A620
Number of Memory Slots2x288pin (DDR5)
Memory StandardSupport for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
Maximum Memory Supported96GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Memory Feature2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme
Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
PCI Express 4.0 x16CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Serial ATA (SATA)2 x SATA 6Gb/s
M.2CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
SATA RAIDRAID 0 and RAID 1 support for NVMe SSD storage devices
RAID 0 and RAID 1 support for SATA storage devices
Audio ChipsetRealtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio Channels7.1 Channels
LAN ChipsetRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Max LAN Speed2.5Gbps
Wireless LANRealtek Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
BluetoothBLUETOOTH 5.3

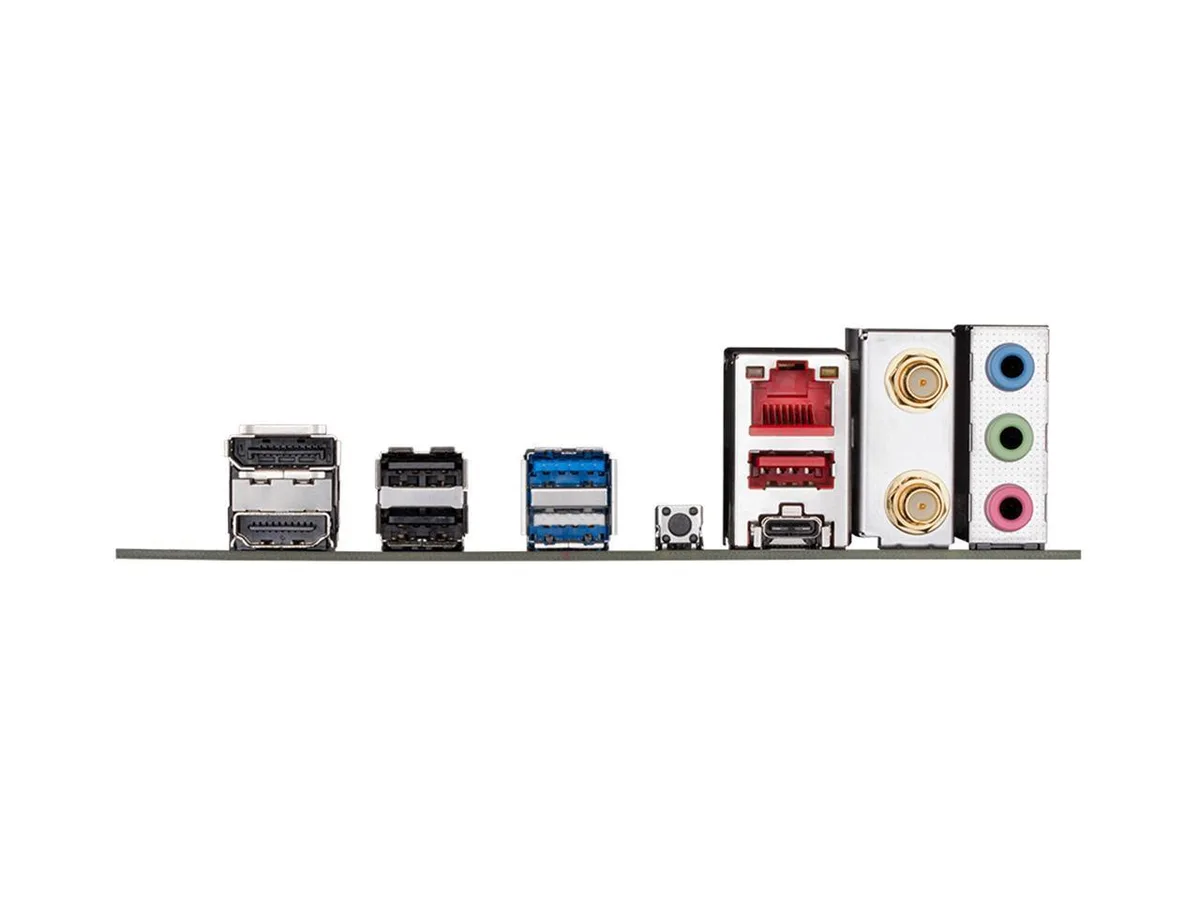

Back I/O Ports1 x DisplayPort
1 x HDMI port
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB 3.2 Gen 1 port
3 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Windows 11Supported

Questions about this item

What CPU and memory do I need to install on the AM5 socket and the two 288-pin DDR5 slots?

The board accepts AMD Ryzen 7000 series processors in the AM5 socket and takes two DDR5 DIMMs up to 96 GB total at speeds from 4800 to 6400 MT/s.

Can I keep my SATA SSDs and PCIe 3.0 graphics card when moving to this board?

Yes, two SATA 6 Gb/s ports support existing SATA drives and the PCIe 4.0 x16 slot runs older PCIe 3.0 graphics cards at their rated speed.

How do I confirm the Wi-Fi 6E RTL8852CE and 2.5 GbE LAN are active after building?

In Windows Device Manager the Realtek RTL8852CE adapter appears under Network adapters with 6 GHz capability, and the 2.5 GbE link shows 2.5 Gbps speed in the Ethernet status window.
