Green Mini-ITX board with silver I/O shield and two black DDR5 slots

GIGABYTE

GIGABYTE A620I AX AMD motherboard

SKU CH-N5MH-4E907 MPN A620I AX

Mini-ITX AM5 board for Ryzen 7000, 8000 and 9000 CPUs with two DDR5 slots up to 96 GB, one PCIe 4.0 x16 slot, a single M.2 2280, 2.5 GbE LAN and Wi-Fi 6E

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series
  • ChipsetAMD A620
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardSupport for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/48
  • Maximum Memory Supported96GB

Option A620I AX

  • A620I AX
  • A620M GAMING X

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 7000, 8000 and 9000 series processors via AM5 socket
  • Dual-channel DDR5 up to 96 GB with EXPO and XMP 3.0 profiles
  • PCIe 4.0 x16 slot with EZ-Latch quick-release for graphics cards
  • Wi-Fi 6E and 2.5 GbE LAN for fast wired and wireless networking
  • Single M.2 2280 slot plus two SATA 6 Gb/s ports for storage expansion

Socket AM5 Mini-ITX Platform

The GIGABYTE A620I AX is a Mini-ITX motherboard built on the AMD A620 chipset for Socket AM5 processors. It supports Ryzen 7000, 8000 and 9000 series CPUs in a compact layout suited to small-form-factor builds.

Memory And Expansion Checks

Verify that your DDR5 modules match the supported speeds from 4400 MT/s up to 6400 MT/s OC and that total capacity does not exceed 96 GB across the two 288-pin slots. Confirm the single M.2 2280 slot provides the PCIe 4.0 x4 link you need and that the sole PCIe 4.0 x16 slot fits your graphics card length.

Sustained Operation Behaviour

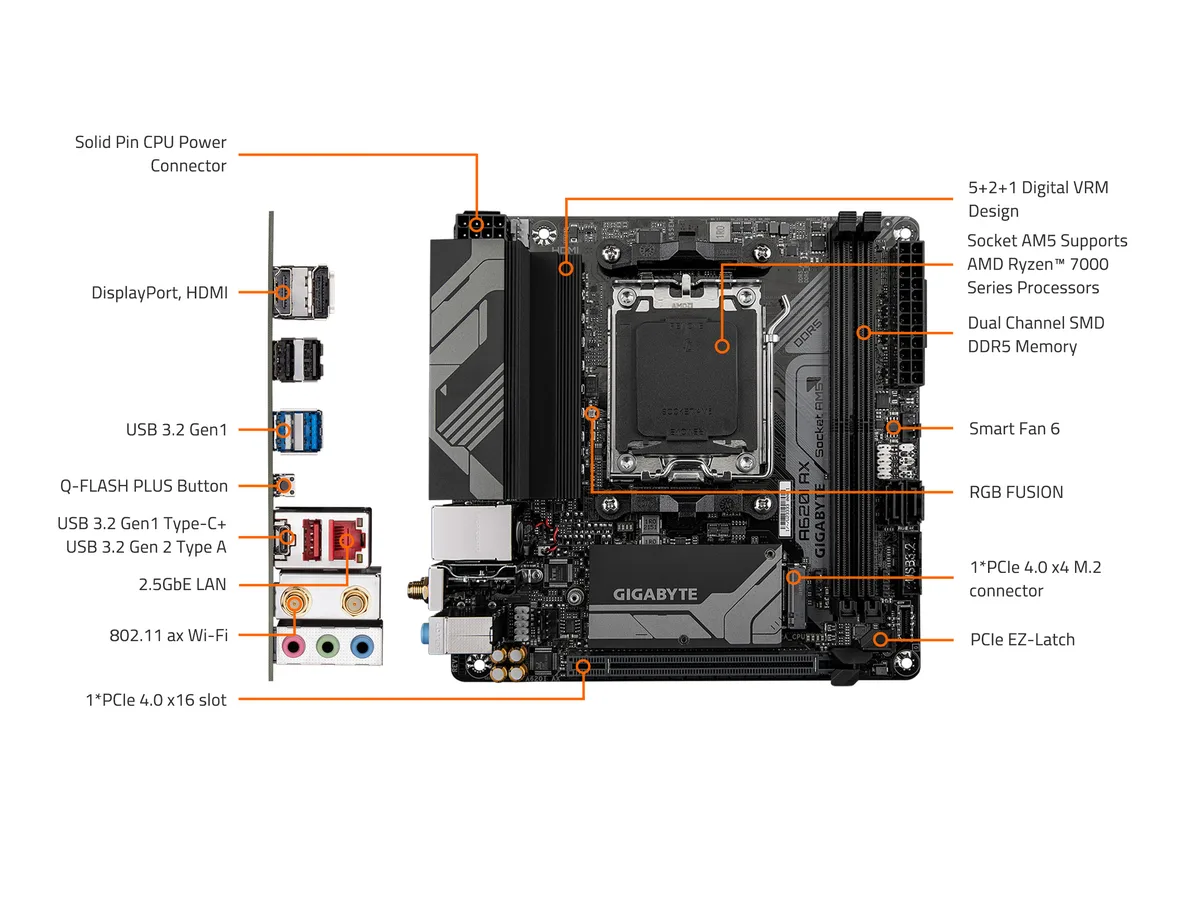

The 5+2+1 phase digital VRM and Smart Fan 6 headers are designed to maintain stable power delivery and thermal control during extended workloads. Realtek 2.5GbE LAN and Wi-Fi 6E 802.11ax keep network throughput consistent without the throttling seen in short burst tests.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series processors via AM5 socket
  • Dual-channel DDR5 up to 96 GB with EXPO and XMP 3.0 profiles
  • PCIe 4.0 x16 slot with EZ-Latch quick-release for graphics cards
  • Wi-Fi 6E and 2.5 GbE LAN for fast wired and wireless networking
  • Single M.2 2280 slot plus two SATA 6 Gb/s ports for storage expansion

Specifications

BrandGIGABYTE
ModelA620I AX
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series
ChipsetAMD A620
Number of Memory Slots2x288pin (DDR5)
Memory StandardSupport for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
Maximum Memory Supported96GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0 / AMD EXPO
ECC SupportedNon-ECC
Memory Feature2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme
Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
PCI Express 4.0 x16CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Serial ATA (SATA)2 x SATA 6Gb/s
M.2CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
SATA RAIDRAID 0 and RAID 1 support for NVMe SSD storage devices
RAID 0 and RAID 1 support for SATA storage devices
Audio ChipsetRealtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio Channels7.1 Channels
LAN ChipsetRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Max LAN Speed2.5Gbps
Wireless LANRealtek Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
BluetoothBLUETOOTH 5.3

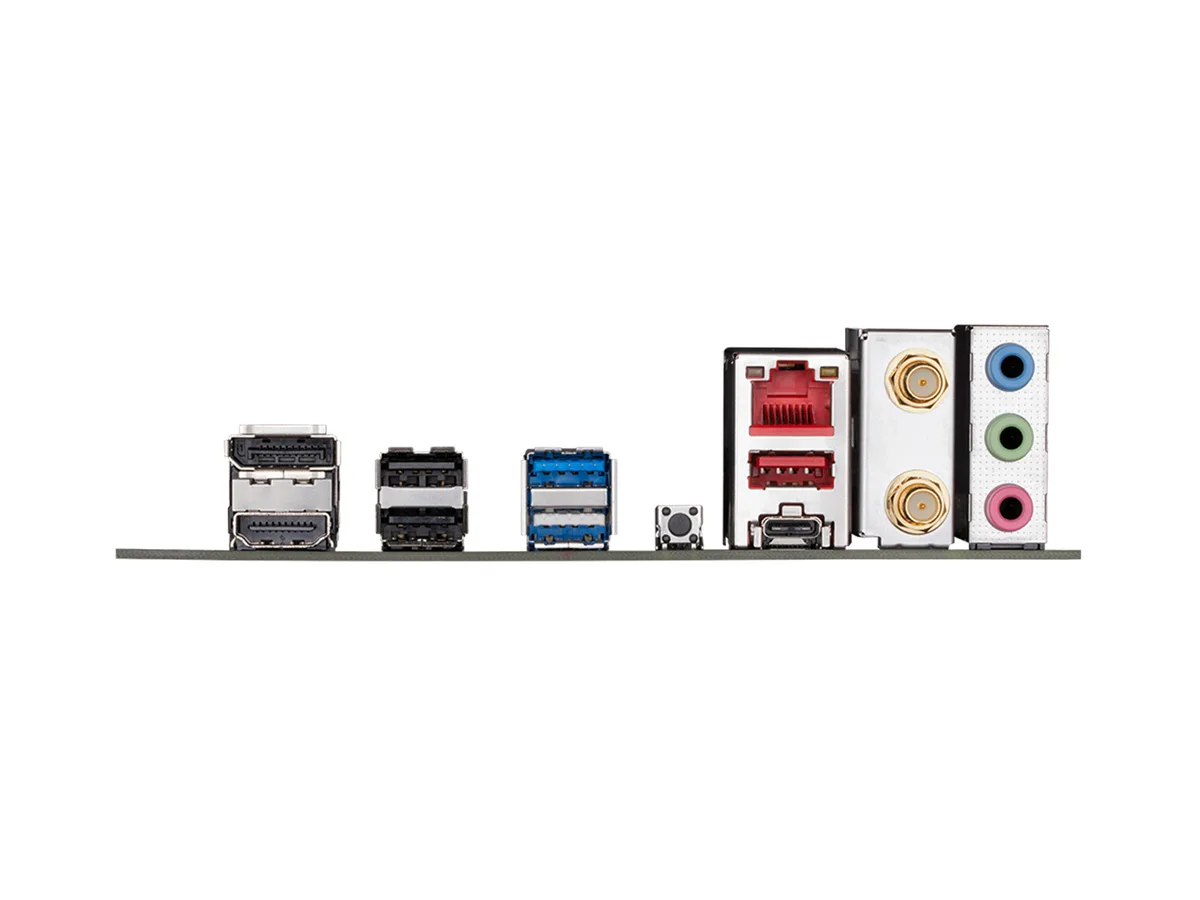

Back I/O Ports1 x DisplayPort
1 x HDMI port
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB 3.2 Gen 1 port
3 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Windows 11Supported
Shipping weight0.77 kg
Package size224 × 185 × 66 mm

Questions about this item

Does the GIGABYTE A620I AX include a CPU cooler or Wi-Fi 6E antennas, or must they be purchased separately?

The motherboard ships with the I/O shield, SATA cables and documentation; a compatible AM5 CPU cooler and the external Wi-Fi 6E antennas are not included and must be bought separately.

Which DDR5 speed should I choose for the A620I AX — 4800 MT/s or one of the higher overclocked ratings such as 6000 MT/s?

The board runs JEDEC DDR5 at 4800 MT/s automatically; speeds of 5200, 5600, 6000, 6200 or 6400 MT/s require memory modules with AMD EXPO or Intel XMP 3.0 profiles and a Ryzen 7000, 8000 or 9000 series CPU that supports the chosen data rate.

What does the single PCIe 4.0 x16 slot and one M.2 2280 connector mean for graphics and storage expansion on this Mini-ITX board?

You can install one full-size graphics card at PCIe 4.0 x16 and one PCIe 4.0 x4 NVMe SSD in the M.2 2280 slot; no additional PCIe or M.2 devices are supported on this platform.
