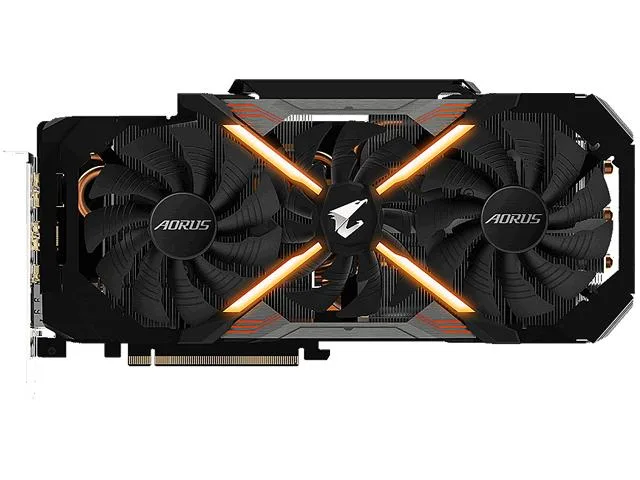

GIGABYTE AORUS RTX 2060 triple-slot graphics card with three fans and metal backplate

GIGABYTE

GIGABYTE AORUS GeForce RTX 2060 6GB graphics card

SKU CH-53TQ-326YT

GeForce RTX 2060 with 6 GB GDDR6, 1920 CUDA cores, 1845 MHz boost clock and triple-slot Windforce cooling for 4K 60 Hz gaming

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 20 Series
  • GPUGeForce RTX 2060
  • Core Clock1845 MHz
  • CUDA Cores1920
  • Real-time ray tracing powered by NVIDIA Turing architecture
  • Core clock reaches 1845 MHz for responsive 1440p gaming
  • WINDFORCE 3X stacked cooling keeps temperatures in check
  • Four simultaneous displays via three DisplayPort 1.4 and one HDMI 2.0b
  • 6 GB GDDR6 on a 192-bit bus delivers 14140 MHz effective memory speed

AORUS GeForce RTX 2060 for 1440p gaming

The GIGABYTE AORUS GeForce RTX 2060 is built for gamers targeting high-refresh 1440p performance. It uses the NVIDIA Turing architecture with 1920 CUDA cores and dedicated RT cores for real-time ray tracing. The 6 GB GDDR6 frame buffer connects across a 192-bit bus at 14140 MHz effective clock. This card fits enthusiast builds that need strong rasterisation and entry-level ray tracing.

6 GB GDDR6 on a 192-bit bus decides 1440p fit

The single spec that determines suitability is the 6 GB GDDR6 memory on a 192-bit interface. It provides enough bandwidth for 1440p textures but limits 4K gaming and heavy creative workloads. The core runs at 1845 MHz under boost. If your workload needs more VRAM for 4K or large datasets, this is not the right part.

WINDFORCE 3X cooler and AORUS Engine software

The WINDFORCE 3X stacked cooling system uses three fans and composite heat pipes to keep the triple-slot card stable at 1845 MHz. AORUS Engine software adds intuitive GPU clock, voltage and fan-curve control with RGB lighting sync. One USB Type-C port supports VirtualLink headsets. Outputs include three DisplayPort 1.4 and one HDMI 2.0b for 7680 x 4320 at 60 Hz across four monitors.

Highlights

  • Real-time ray tracing powered by NVIDIA Turing architecture
  • Core clock reaches 1845 MHz for responsive 1440p gaming
  • WINDFORCE 3X stacked cooling keeps temperatures in check
  • Four simultaneous displays via three DisplayPort 1.4 and one HDMI 2.0b
  • 6 GB GDDR6 on a 192-bit bus delivers 14140 MHz effective memory speed

Specifications

BrandGIGABYTE
SeriesAORUS
ModelGV-N2060AORUS X-6GC REV2.0
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 20 Series
GPUGeForce RTX 2060
Core Clock1845 MHz
CUDA Cores1920
Effective Memory Clock14140 MHz
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Other Ports1 x USB Type-C
Max Resolution7680 x 4320 @ 60 Hz
SLI SupportNo
Virtual Reality ReadyYes
Thermal Design Power160W
System RequirementsSystem PSU Limitation (W): 500
Power Connector1 x 6-Pin, 1 x 8-Pin
FeaturesPowered by GeForce RTX 2060//Integrated with 6GB GDDR6 192-bit memory interface//WINDFORCE Stack 3X 100mm Cooling System//Advanced Copper Back Plate Cooling//RGB Fusion 2.0 - synchronize with other AORUS devices//Metal Back Plate with RGB AORUS LOGO Illumination//Built for Extreme Overclocking 8+2 Power Phases
Form FactorATX
Max GPU Length290 mm
Card Dimensions (L x H)11.42" x 5.51"
Slot Width3 Slots
Package ContentsAccessories:/AORUS metal sticker/Quick guide/Driver CD

Questions about this item

How does the 1845 MHz core clock perform in a real system?

The 1845 MHz boost clock is the factory target under load; actual frequency will vary with temperature, power limit and the workload you run.

What does the PCI Express 3.0 x16 interface cap in practice?

The x16 link provides full bandwidth for the RTX 2060; it does not bottleneck the card at 1080p or 1440p gaming.

What clearance does the triple-slot 11.42" x 5.51" card need to fit?

You need a case that accepts triple-slot cards, at least 11.42 inches of length clearance and 5.51 inches of height clearance.
