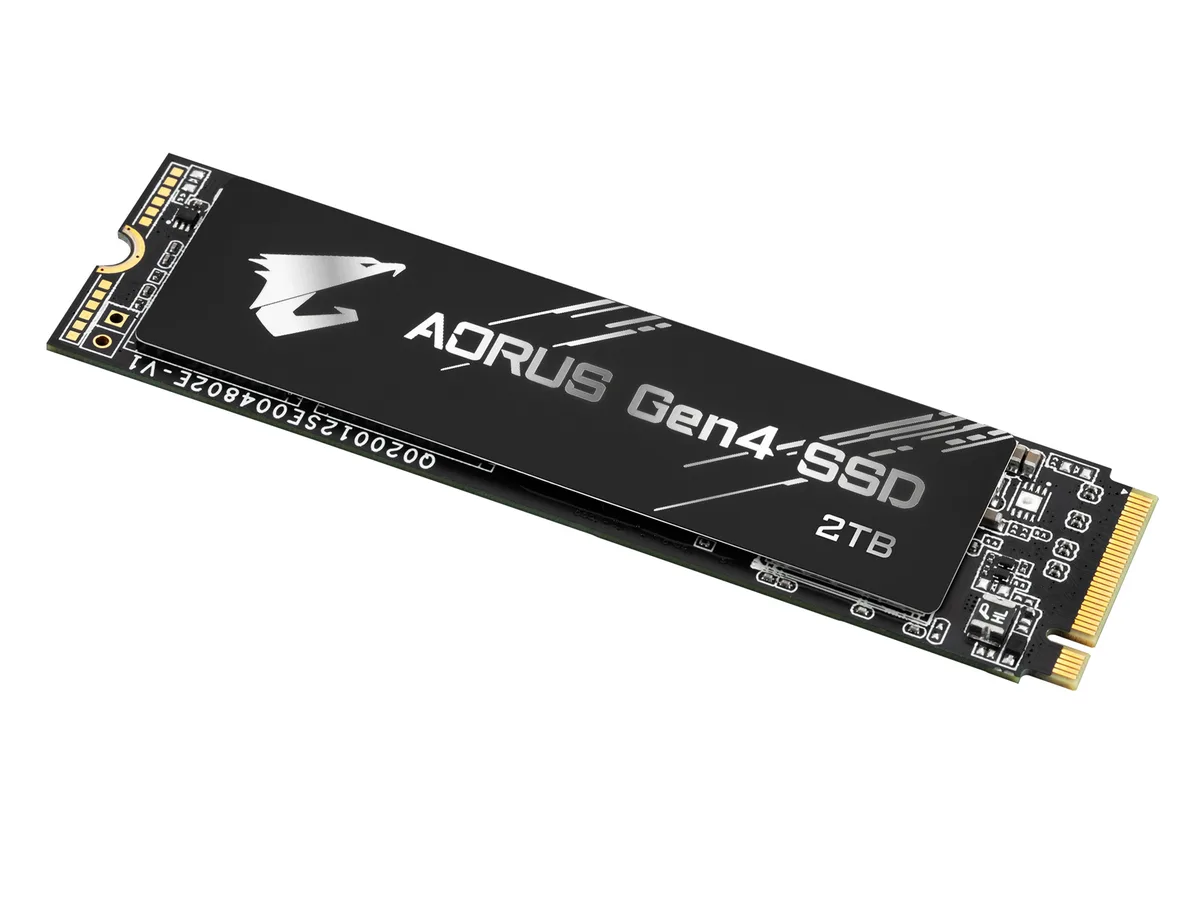

Green circuit board with black metal heatsink cover, M.2 2280 stick form factor

GIGABYTE

GIGABYTE AORUS Gen4 GP-AG42TB 2TB M.2 2280 PCIe 4.0 x4 NVMe internal SSD

SKU CH-23MB-W93H0 MPN GP-AG42TB

M.2 2280 NVMe drive with 2TB capacity, PCIe 4.0 x4 interface, Phison PS5016-E16 controller, DDR4 2GB cache, up to 5000 MBps read and 4400 MBps write, 750000 IOPS random read.

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory Components3D TLC
  • InterfacePCI-Express 4.0 x4, NVMe 1.3

Options 2TB

  • Fast boot and load times from up to 5000 MB/s sequential read
  • Large game installs finish quicker with up to 4400 MB/s sequential write
  • Snappy multitasking via 750000 IOPS random read and 700000 IOPS random write
  • Sustained speeds under load thanks to the included heatsink
  • Long-term data integrity backed by 1.77 million hours MTBF

AORUS Gen4 2TB NVMe SSD

The GIGYTE AORUS Gen4 GP-AG42TB is a 2TB M.2 2280 internal solid state drive built for consumer desktops and laptops that support PCIe 4.0 x4. It uses 3D TLC NAND flash with 96 layers and a Phison PS5016-E16 controller manufactured on a 28nm process. The drive includes a DDR4 2GB DRAM cache and an integrated heatsink for thermal management.

PCIe 4.0 x4 interface limits

This SSD connects through a PCI-Express 4.0 x4 link using the NVMe 1.3 protocol. Sequential throughput reaches up to 5000 MBps read and 4400 MBps write, while random performance hits 750000 IOPS read and 700000 IOPS write. These figures represent the practical ceiling of the PCIe 4.0 x4 interface; a PCIe 3.0 slot will restrict speeds to that older standard.

Phison PS5016-E16 controller

The Phison PS5016-E16 controller is the component that determines whether this drive matches your workload. It provides eight NAND channels with 32 CE targets, LDPC error correction, Wear Leveling and Over-Provision technologies. Its 28nm design and DDR4 caching enable the rated 800MT/s NAND throughput and the 1.77 million hour MTBF rating.

Highlights

  • Fast boot and load times from up to 5000 MB/s sequential read
  • Large game installs finish quicker with up to 4400 MB/s sequential write
  • Snappy multitasking via 750000 IOPS random read and 700000 IOPS random write
  • Sustained speeds under load thanks to the included heatsink
  • Long-term data integrity backed by 1.77 million hours MTBF

Specifications

BrandGIGABYTE
SeriesAORUS Gen4
ModelGP-AG42TB
Part NumberGP-AG42TB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory Components3D TLC
InterfacePCI-Express 4.0 x4, NVMe 1.3
ControllerPhison PS5016-E16
CacheDDR4 2GB
Max Sequential ReadUp to 5000 MBps
Max Sequential WriteUp to 4400 MBps
4KB Random ReadUp to 750,000 IOPS
4KB Random WriteUp to 700,000 IOPS
MTBF1.77 million hours
HeatSinkwith HeatSink
Power Consumption (Idle)21.1 mW
Power Consumption (Active)R: 6.5W; W: 6.6W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Height2.30mm
Width22.00mm
Depth80.00mm
Shipping weight0.11 kg
Package size137 × 76 × 30 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Is the 2TB capacity the right choice for a primary drive with room for large games and media libraries?

The 2TB capacity provides ample space for an operating system, frequently played titles and a sizable media collection while leaving headroom for future installs.

What do the 5000 MBps read and 4400 MBps write figures translate to in everyday use?

Those peak sequential speeds mean large game levels load in seconds, 4K video scrubs smoothly and file transfers between fast NVMe drives finish noticeably quicker than on PCIe 3.0 drives.

How does the PCIe 4.0 x4 NVMe 1.3 interface affect real-world throughput?

The PCIe 4.0 x4 link doubles the theoretical bandwidth of the previous generation, letting the Phison PS5016-E16 controller sustain the advertised 5000 MBps reads and 4400 MBps writes when the system and workload can feed it.
