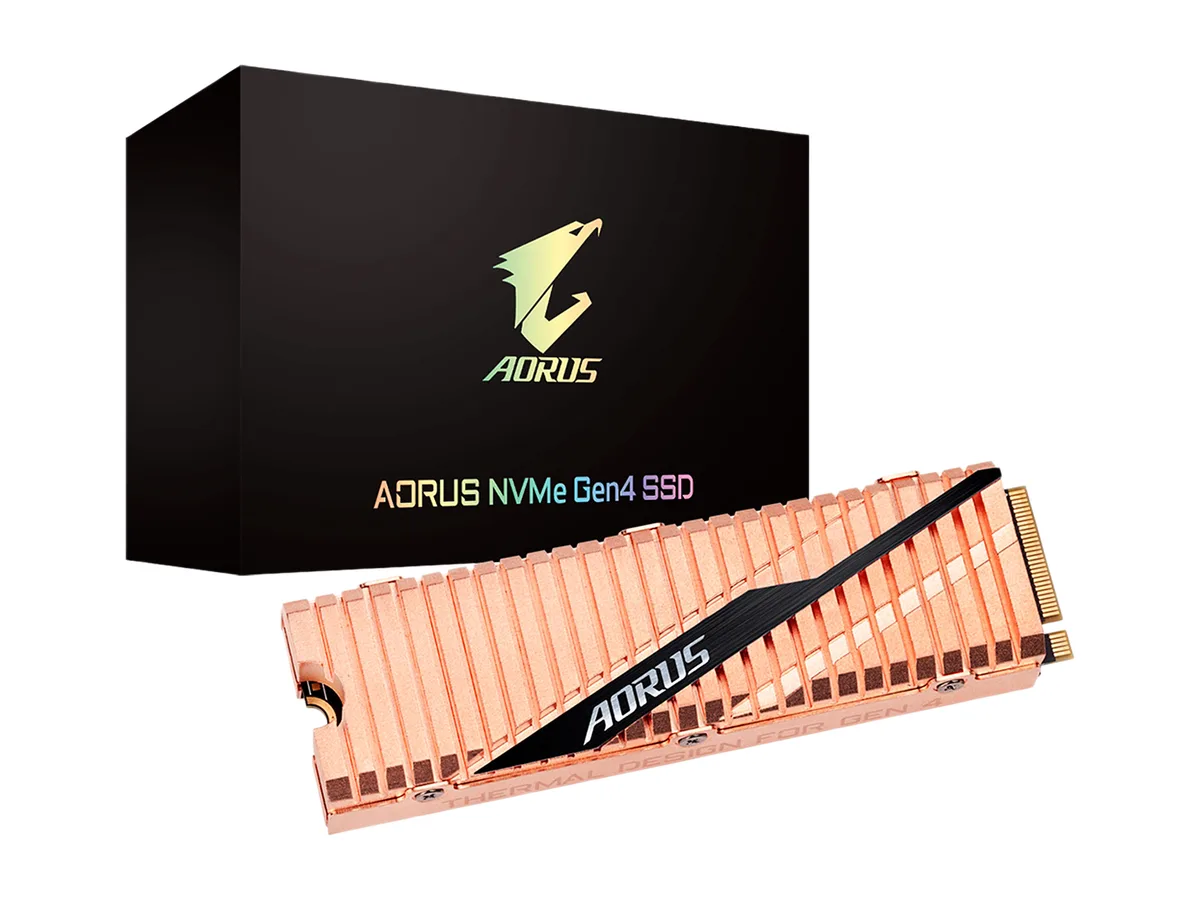

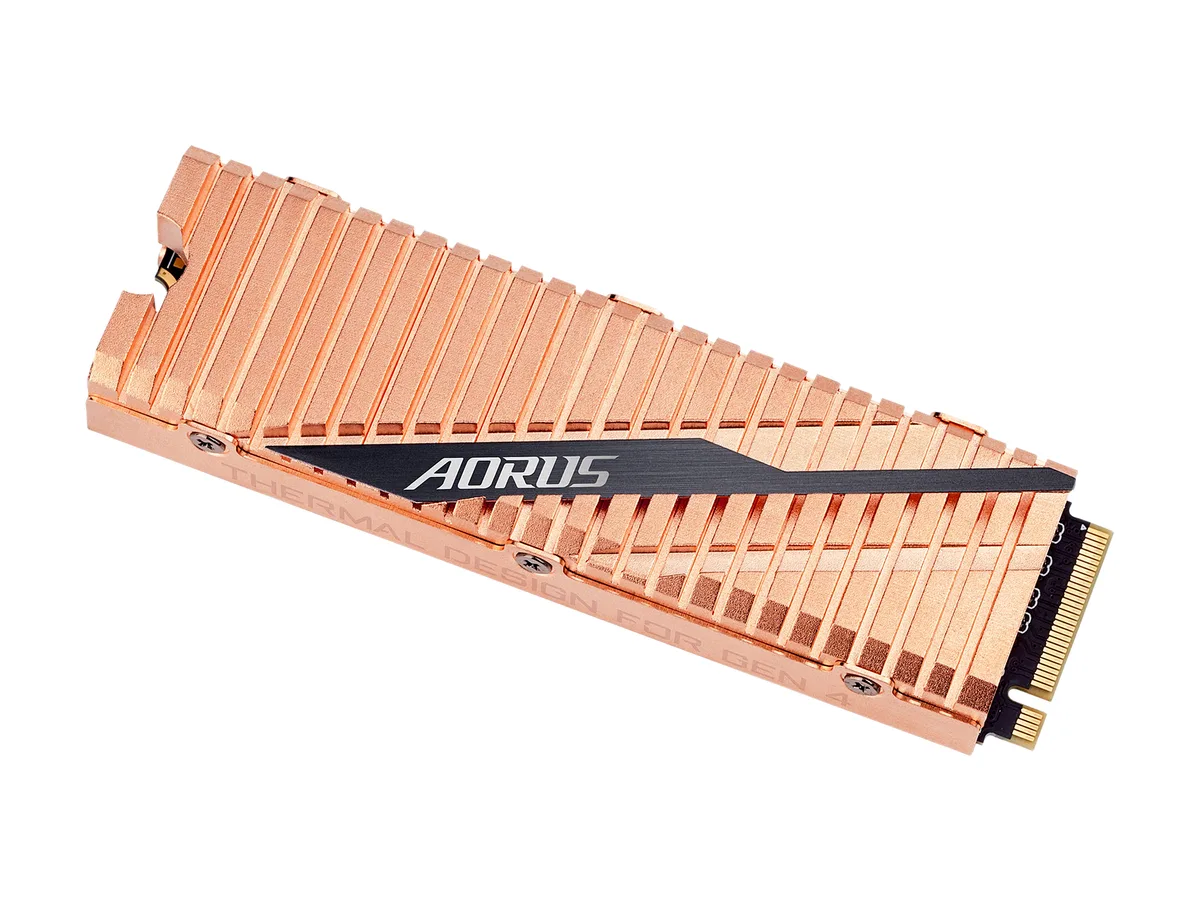

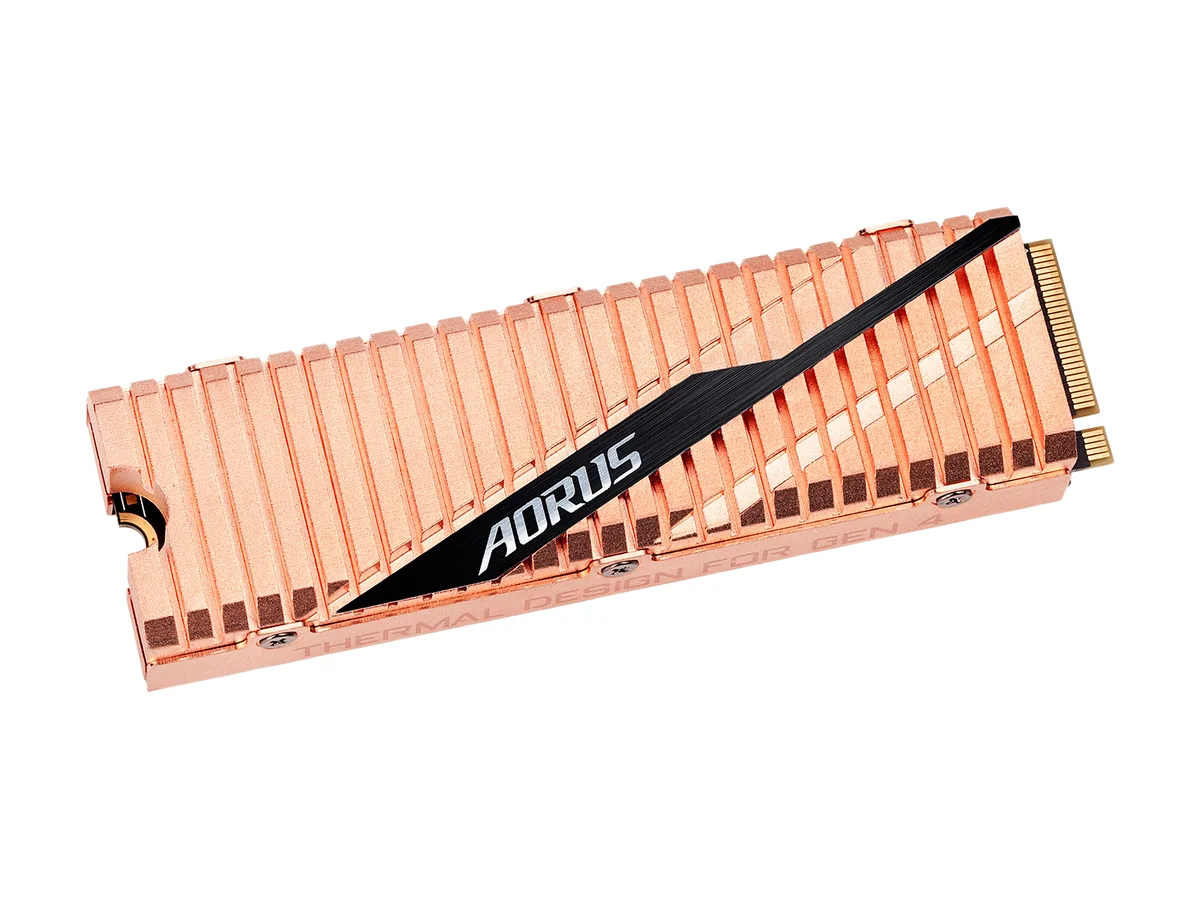

Rectangular M.2 2280 SSD with full-coverage copper heatsink

GIGABYTE

GIGABYTE AORUS GP-ASM2NE6200TTTD 2TB M.2 2280 internal SSD

SKU CH-DYKS-G87Q8 MPN GP-ASM2NE6200TTTD

PCIe 4.0 x4 NVMe drive with 2 TB of 3D TLC flash, 2 GB DDR4 cache and a full copper heatsink delivering up to 5000 MB/s read and 4400 MB/s write

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory Components3D TLC Toshiba BiCS4
  • InterfacePCI-Express 4.0 x4, NVMe 1.3

Options 2TB

  • Sequential reads up to 5000 MB/s for fast game loading
  • Sequential writes up to 4400 MB/s for quick file saves
  • 3600 TBW endurance rating for long-term reliability
  • 2 GB DDR4 cache accelerates sustained workloads
  • Full copper heatsink keeps controller cool under load

AORUS NVMe Gen4 2TB Gaming SSD

The GIGABYTE AORUS GP-ASM2NE6200TTTD is a 2TB M.2 2280 internal SSD built for consumers who want fast PCIe 4.0 x4 storage. It uses a Phison PS5016-E16 controller manufactured on a 28nm process with eight NAND channels and 32 CE targets. Toshiba BiCS4 96-layer 3D TLC flash and a 2GB DDR4 cache deliver sequential reads up to 5000 MBps and writes up to 4400 MBps.

Fits M.2 2280 slots with PCIe 4.0 x4 and NVMe 1.3

The drive requires an M.2 2280 slot wired for PCIe 4.0 x4 and NVMe 1.3. A full-coverage copper heat spreader covers both sides of the PCB to dissipate heat from the controller and NAND. This integrated cooling frees the builder from adding a separate heatsink or relying on motherboard shields that may not contact both sides.

Suits gaming rigs and workstations needing high

The 3600TB TBW rating and 1.77 million hour MTBF suit heavy write workloads such as game installs, content creation caches and large dataset handling. Wear Leveling, Over-Provision technologies and LDPC RAID ECC protect data integrity. Systems limited to PCIe 3.0 or lacking an M.2 2280 slot should consider a different interface or form factor.

Highlights

  • Sequential reads up to 5000 MB/s for fast game loading
  • Sequential writes up to 4400 MB/s for quick file saves
  • 3600 TBW endurance rating for long-term reliability
  • 2 GB DDR4 cache accelerates sustained workloads
  • Full copper heatsink keeps controller cool under load

Specifications

BrandGIGABYTE
SeriesAORUS
ModelGP-ASM2NE6200TTTD
Part NumberGP-ASM2NE6200TTTD
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory Components3D TLC Toshiba BiCS4
InterfacePCI-Express 4.0 x4, NVMe 1.3
ControllerPhison
Cache2GB DDR4
Max Sequential ReadUp to 5000 MBps
Max Sequential WriteUp to 4400 MBps
4KB Random ReadUp to 750,000 IOPS
4KB Random WriteUp to 700,000 IOPS
Terabytes Written (TBW)3600TB
MTBF1.77 million hours
HeatSinkwith HeatSink
FeaturesWear Leveling, Over-Provision technologies
TRIM & S.M.A.R.T supported
Fully Body Copper Heat Spreader
Power Consumption (Idle)21.1 mW
Power Consumption (Active)R: 6.5W; W: 6.6W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Height11.25mm
Width23.50mm
Depth80.50mm
Shipping weight0.19 kg
Package size130 × 79 × 30 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How does the 3600 TBW endurance rating hold up under sustained heavy writes?

The drive is rated for 3600 TBW, meaning it can accept 3.6 petabytes of host writes before the warranty limit; sustained workloads will consume that budget at the rate data is written.

Does the full-coverage copper heatsink keep the Phison PS5016-E16 controller and Toshiba BiCS4 NAND cool during all-day operation?

The fully-body copper heat spreader covers both controller and NAND, transferring heat into the motherboard M.2 slot area so temperatures stay within throttle limits during continuous use.

Does my motherboard need a PCIe 4.0 x4 M.2 2280 slot to run this SSD at its rated 5000 MBps read speed?

Yes, a PCIe 4.0 x4 M.2 2280 slot is required for the advertised 5000 MBps sequential read; the drive will negotiate a lower link speed if installed in a PCIe 3.0 slot.
