GIGABYTE

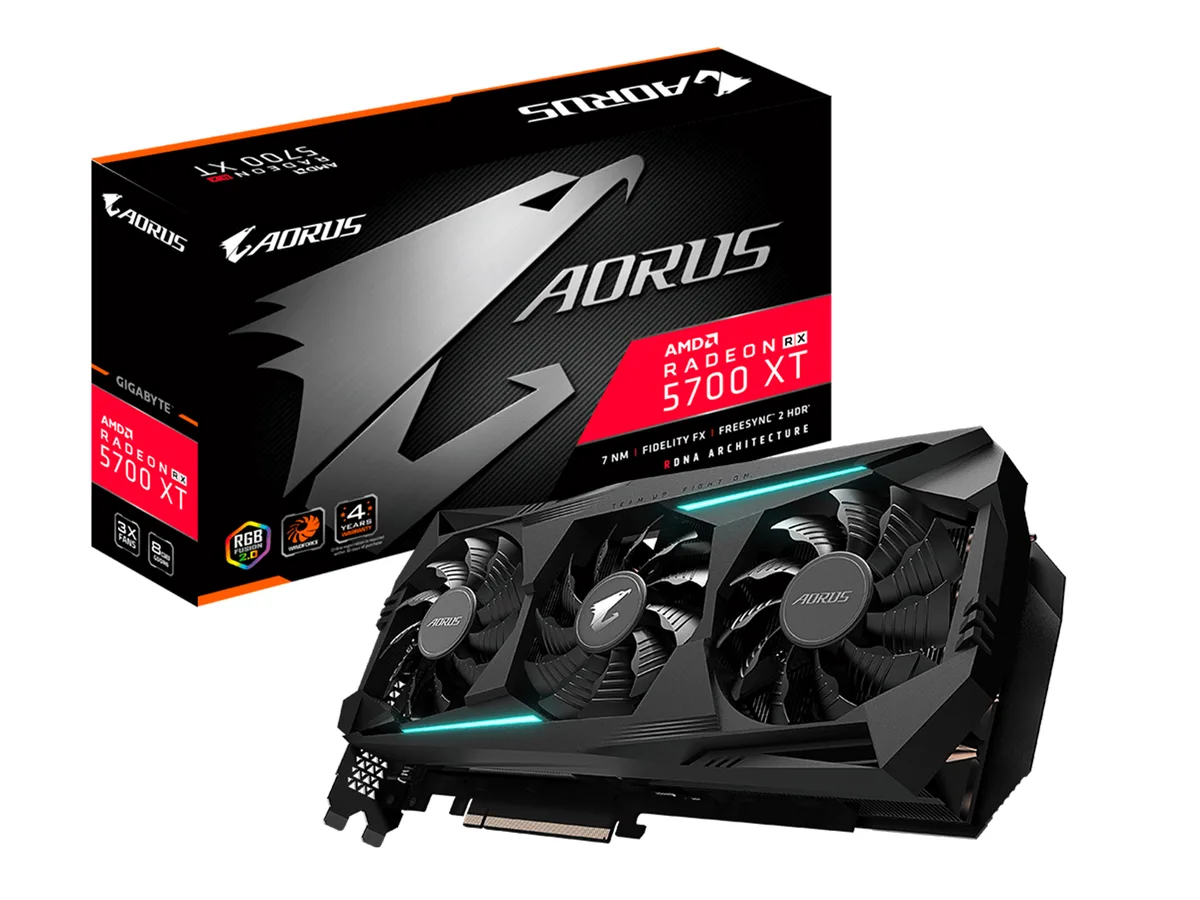

GIGABYTE AORUS Radeon RX 5700 XT 8GB graphics card GV-R57XTAORUS-8GD
Refurbished Radeon RX 5700 XT with 8GB GDDR6, 256-bit bus, WINDFORCE 3X cooling and dual BIOS modes
- InterfacePCI Express 4.0 x16
- Chipset ManufacturerAMD
- GPU SeriesAMD Radeon RX 5700 Series
- GPURadeon RX 5700 XT
- Core Clock1770 MHz
- Boost Clock2010 MHz
- Boost clock reaches 2010 MHz for high frame rates
- 8 GB GDDR6 on a 256-bit bus feeds the GPU at 14000 MHz
- WINDFORCE 3X cooler with alternate spinning fans and direct-touch heatpipes
- BIOS switch lets you choose OC mode or Silent mode

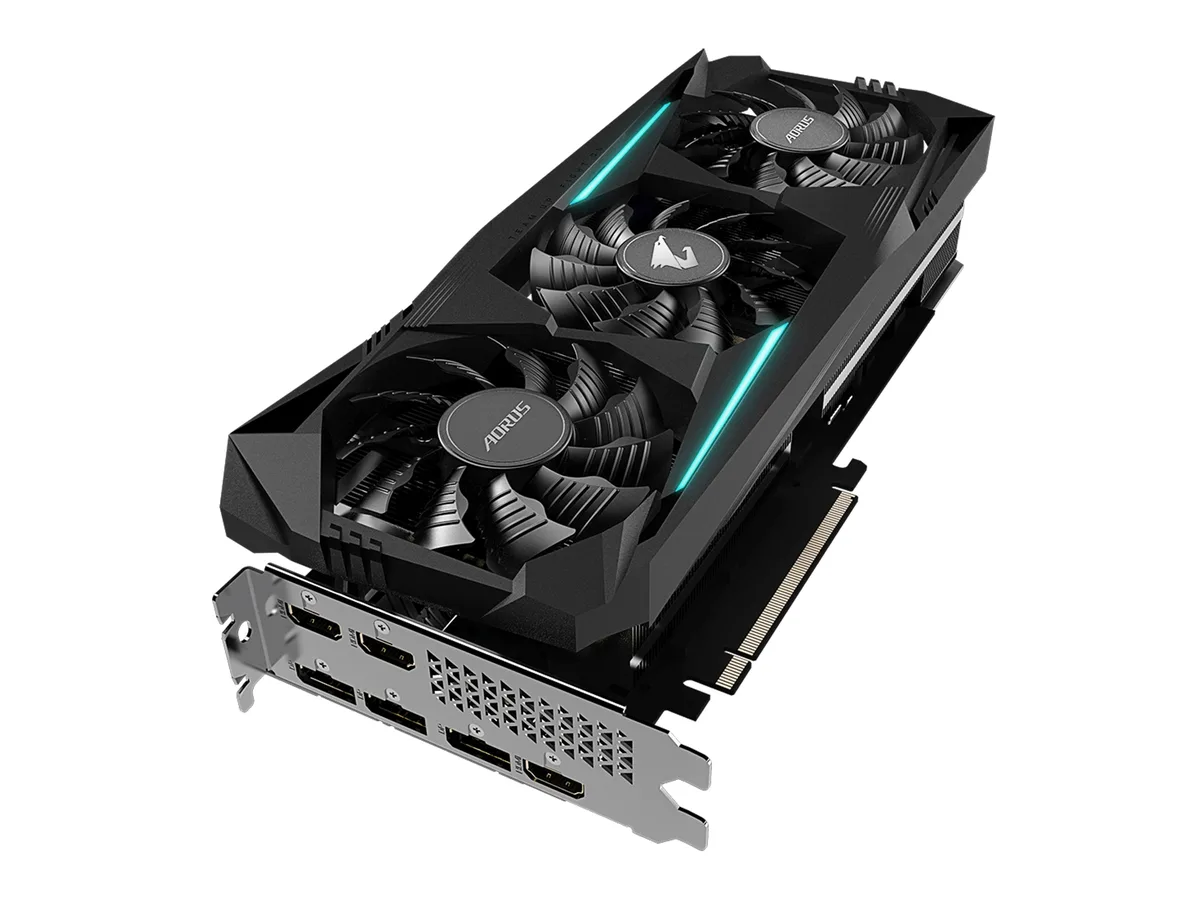

- Three DisplayPort 1.4 and three HDMI ports drive up to six displays
GPU identity and audience
This GIGABYTE AORUS Radeon RX 5700 XT 8GB graphics card targets gamers and creators who want high frame rates at 1440p. The RDNA architecture GPU delivers 2560 stream processors with a 1770 MHz core clock and 2010 MHz boost clock. Eight gigabytes of GDDR6 memory on a 256-bit bus provide 14000 MHz effective bandwidth for modern titles.
Compatibility checklist
Verify that your power supply meets the 600W recommendation and supplies two 8-pin PCIe connectors for the 225W board. The card uses a PCI Express 4.0 x16 slot and fits standard ATX cases. Ensure your monitor cables match the three DisplayPort 1.4 and three HDMI ports (one 2.0b, two 1.4b) for up to six displays.
Build quality and daily use
The WINDFORCE 3X cooler uses alternate spinning fans and direct touch copper heatpipes to move heat away from the die. A metal back plate stiffens the PCB and protects components during handling. A dual BIOS switch lets you choose between OC mode and Silent mode without software. RGB Fusion 2.0 lighting syncs with other AORUS gear for a coordinated look.
Highlights
- Boost clock reaches 2010 MHz for high frame rates
- 8 GB GDDR6 on a 256-bit bus feeds the GPU at 14000 MHz
- WINDFORCE 3X cooler with alternate spinning fans and direct-touch heatpipes
- BIOS switch lets you choose OC mode or Silent mode
- Three DisplayPort 1.4 and three HDMI ports drive up to six displays
Specifications
| Brand | GIGABYTE |
|---|---|
| Series | AORUS |
| Model | GV-R57XTAORUS-8GD |
| Interface | PCI Express 4.0 x16 |
| Chipset Manufacturer | AMD |
| GPU Series | AMD Radeon RX 5700 Series |
| GPU | Radeon RX 5700 XT |
| Core Clock | 1770 MHz |
| Boost Clock | 2010 MHz |
| Stream Processors | 2560 |
| Effective Memory Clock | 14000 MHz |
| Memory Size | 8GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 6 |
| HDMI | 1 x HDMI 2.0b 2 x HDMI 1.4b |
| DisplayPort | 3 x DisplayPort 1.4 |
| Color | Black |
| Max Resolution | 7680 x 4320 @ 60 Hz |
| CrossFireX Support | Yes |
| Virtual Reality Ready | Yes |
| Cooler | WINDFORCE 3X |
| Thermal Design Power | 225W |
| System Requirements | System PSU Limitation: 600W |
| Power Connector | 2 x 8-Pin |
| Features | Powered by AMD Radeon RX 5700 XT Integrated with 8GB GDDR6 256-bit memory interface WINDFORCE 3X Cooling System with alternate spinning fans BIOS Switch for OC mode and Silent mode Up to 6 Displays - 3 x DisplayPort and 3 x HDMI RGB Fusion 2.0 - 16.7M colors synchronize with other AORUS devices Metal Back Plate PCI-Express 4.0 Support |
| Form Factor | ATX |
| Max GPU Length | 290 mm |

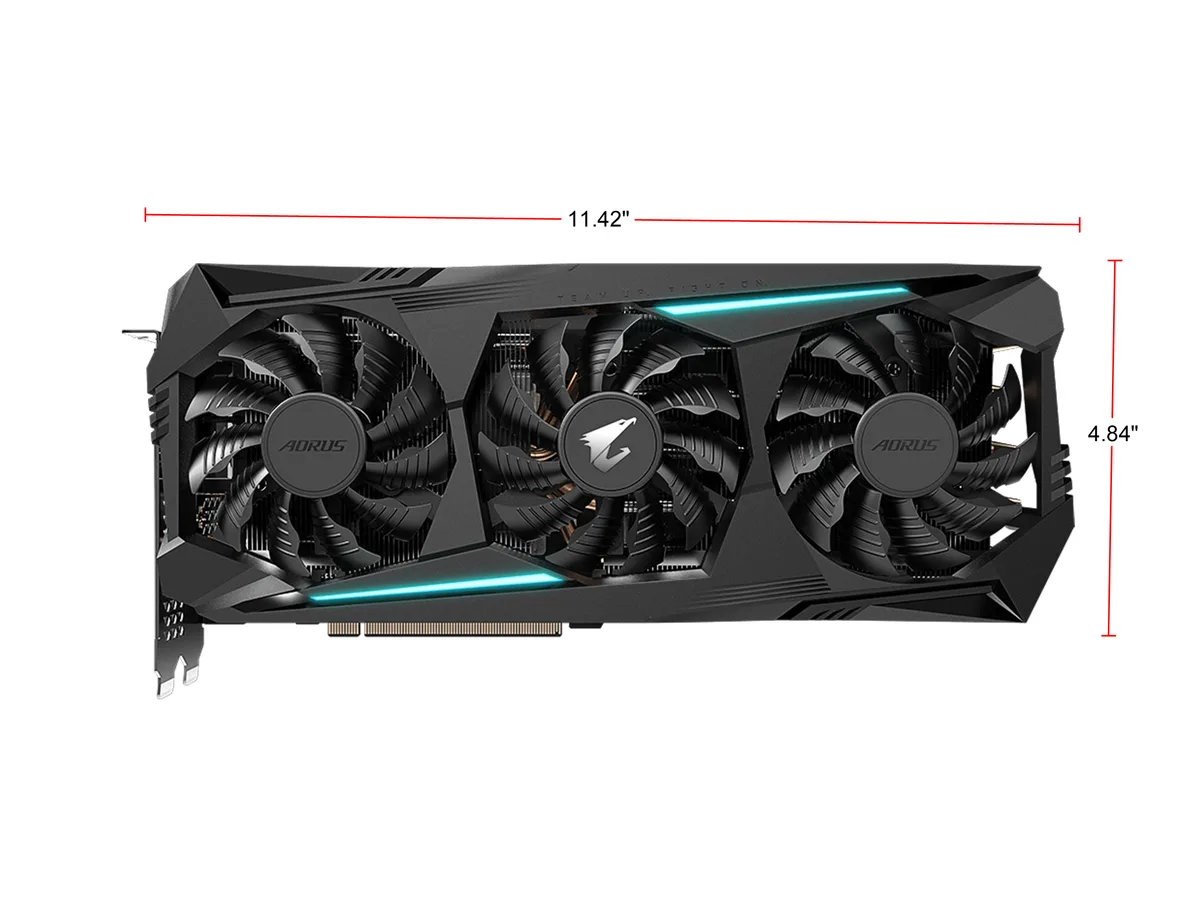

| Card Dimensions (L x H) | 11.42" x 4.84" |
| Slot Width | 2.5 slot |
| Shipping weight | 1.70 kg |
| Package size | 406 × 236 × 91 mm |
Questions about this item
What cables or adapters come in the box with the GV-R57XTAORUS-8GD, and what must I supply?
The card includes the graphics board itself; you must provide a 600W or larger PSU and two 8-pin power cables.
The listing shows OC and Silent BIOS modes — which should I select for my build?
Use the OC position for the 2010 MHz boost clock, or Silent for quieter operation at lower clocks.
Will the 2010 MHz boost clock hold steady in a case with a 600W PSU and two 8-pin connectors?
The 225W TDP and dual 8-pin design are rated for that PSU, so the boost clock is sustainable with adequate airflow.
