Green micro-ATX motherboard with silver heatsinks and black slots

GIGABYTE

GIGABYTE B150M-DS3P rev.1.0 Intel motherboard

SKU CH-76PX-R8XQN

A Micro-ATX board for LGA 1151 CPUs with Intel B150 chipset, four DDR4 slots up to 64 GB, one PCIe x16 and two PCIe x1 slots, six SATA III ports, one M.2 interface, Intel Gigabit LAN.

  • CPU Socket TypeLGA 1151
  • CPU TypeLGA1151 processor: Intel ® Core ™ i7 processor/Intel ® Core
  • ChipsetIntel B150
  • Maximum Memory Supported64GB
  • PCI Slots1 PCI-E x16 slot, supporting x16 operating specifications (P
  • SATA RAID1XM.2 interface, 6xSATA III interface
  • Supports 64GB DDR4 memory for demanding workloads
  • Intel B150 chipset with LGA 1151 socket for 6th/7th gen CPUs
  • Micro ATX 22.6x20.3cm fits compact builds
  • Realtek ALC887 7.1 channel audio for immersive sound
  • Intel Gigabit LAN plus USB 3.0 and SATA III connectivity

Micro-ATX board for LGA 1151 builds

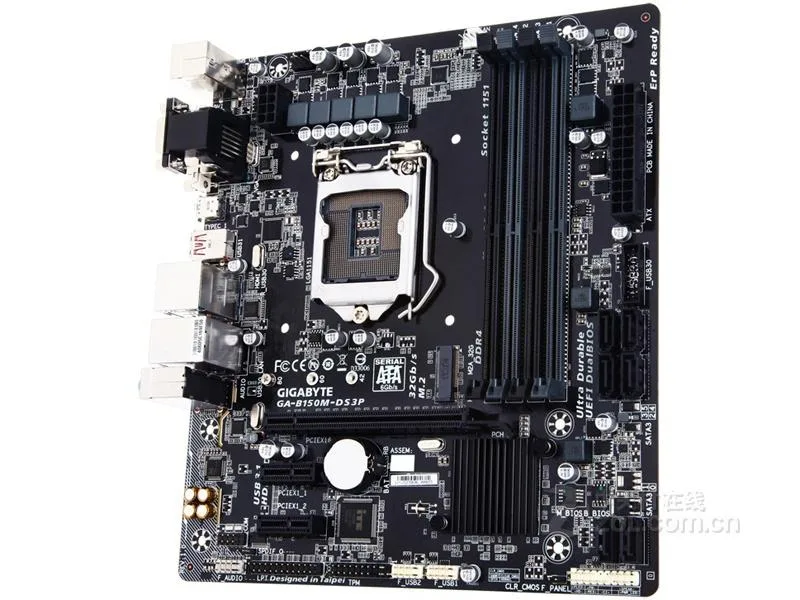

The GIGABYTE B150M-DS3P rev.1.0 is a Micro-ATX motherboard that accepts Intel LGA 1151 processors including Core i7, i5, i3, Pentium and Celeron models. It uses the Intel B150 chipset and provides four DDR4 DIMM slots for system memory. The board measures 22.6 by 20.3 centimetres and fits standard Micro-ATX chassis.

64 GB DDR4 ceiling

Maximum supported memory is 64 GB across the four DDR4 slots, which is the single figure that determines whether this board meets a build's capacity target. The chipset runs memory at standard DDR4 speeds without overclocking profiles. Populating all four slots reaches the 64 GB limit for workloads that need larger datasets in RAM.

Steady throughput on B150

Under sustained load the Intel B150 chipset maintains consistent PCI-E 3.0 and SATA III bandwidth for the single x16 slot, two x1 slots, one M.2 interface and six SATA III ports. The onboard Intel GbE controller delivers stable 10/100/1000 Mbit network throughput while the Realtek ALC887 codec handles multichannel audio without throttling.

Highlights

  • Supports 64GB DDR4 memory for demanding workloads
  • Intel B150 chipset with LGA 1151 socket for 6th/7th gen CPUs
  • Micro ATX 22.6x20.3cm fits compact builds
  • Realtek ALC887 7.1 channel audio for immersive sound
  • Intel Gigabit LAN plus USB 3.0 and SATA III connectivity

Specifications

BrandGIGABYTE
SeriesGIGABYTE B150M-DS3P(rev.1.0)
ModelGIGABYTE B150M-DS3P(rev.1.0)
CPU Socket TypeLGA 1151
CPU TypeLGA1151 processor: Intel ® Core ™ i7 processor/Intel ® Core ™ i5 processor/Intel ® Core ™ i3 processor/Intel ® Pentium ® processor/Intel ® Celeron ® processor
2. L3 cache depends on CPU
ChipsetIntel B150
Maximum Memory Supported64GB
PCI Slots1 PCI-E x16 slot, supporting x16 operating specifications (PCI-E x16)
2 PCI-E x1 slots
(* All PCI-E slots support PCI-E 3.0)
SATA RAID1XM.2 interface, 6xSATA III interface
Audio Chipset1. Built-in Realtek ® ALC887 chip
2. Support High Definition Audio
3. Support 2/4/5 1/7.1 channels
To start the 7.1 channel audio output, you must use the front panel audio output hole of the HD (High Definition, high fidelity) audio module to connect and select the multi-channel audio function through audio software.
4. Support S/PDIF output
LAN ChipsetBuilt-in Intel ® GbE network chip (10/100/1000 Mbit)
Onboard USBBuilt-in chipset:

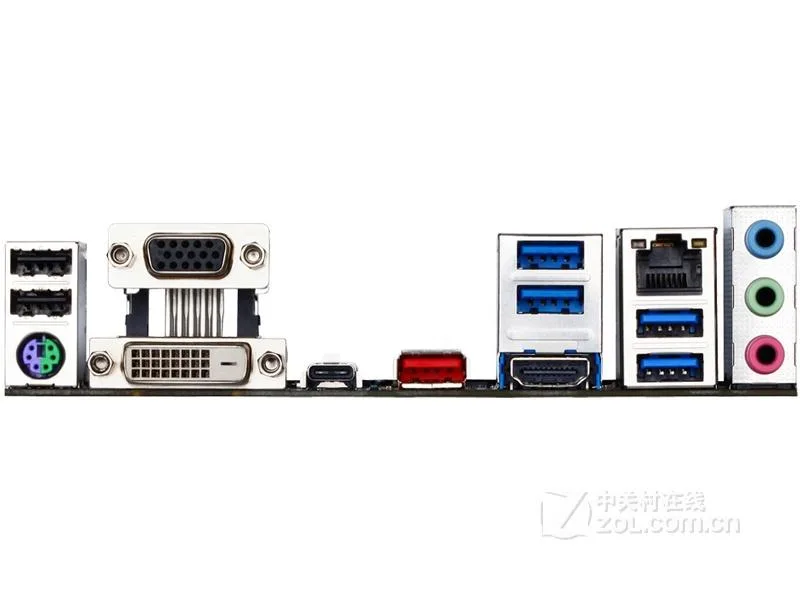

1.6 USB 3.0 ports (4 in the main board rear window, 2 need to be connected from the main board USB socket via a flat cable)
2.6 USB 2.0 ports (2 in the main board rear window, 4 need to be connected from the main board USB socket via a flat cable)
Built-in chipset + ASMedia ® USB3.1 controller:
3.1 USB Type-C ™ interface on the rear panel, supporting USB 3.1
4.1 USB 3.1 Type-A interface (red) on the rear panel

Questions about this item

What does the 64 GB maximum memory mean for a build using this board?

The board has four DDR4 DIMM slots and supports up to 64 GB total, so you can install four 16 GB modules for the full capacity.

How does the M.2 interface connect and what speed does it provide?

The single M.2 interface is wired through the chipset SATA III controller, so any drive installed there runs at SATA III speeds.

What are the physical dimensions and mounting holes for this Micro ATX board?

The board measures 22.6 cm by 20.3 cm and uses the standard Micro ATX mounting pattern.
