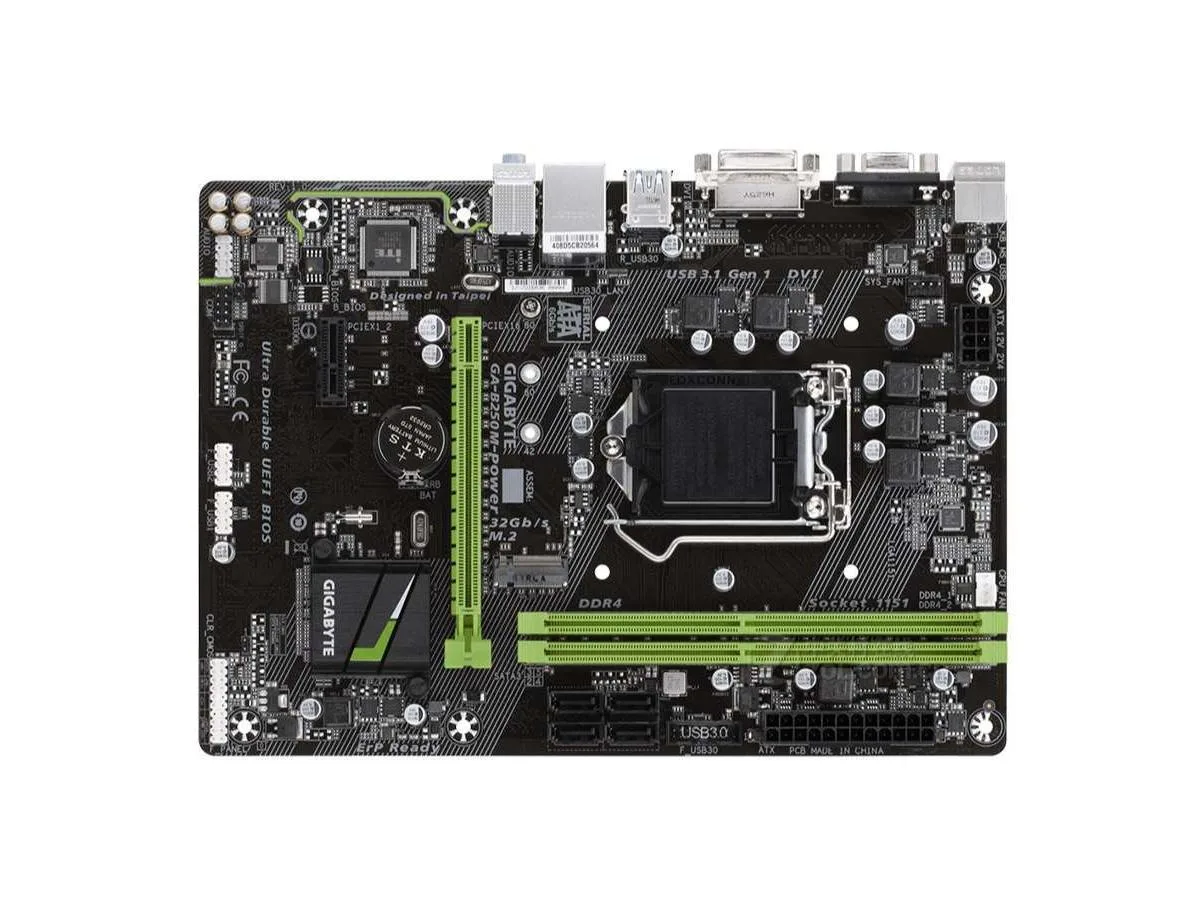

Green micro-ATX board with LGA 1151 socket and two DDR4 slots

GIGABYTE

GIGABYTE B250M-Power LGA 1151 Intel B250 DDR4 Micro ATX Motherboard

SKU CH-PK28-3WJN6

Micro ATX board with LGA 1151 socket, Intel B250 chipset, two DDR4 slots for up to 32 GB, one PCIe x16 and one PCIe x1 slot, four SATA III ports, one M.2 interface.

  • CPU Socket TypeLGA 1151
  • CPU TypeSupport LGA1151 slot 7th/6th generation processors: Intel ®
  • ChipsetIntel B250
  • Maximum Memory Supported32GB
  • PCI Slots1 PCI Express x16 slot, supporting x16 operating specificati
  • SATA RAID1XM.2 interface, 4xSATA III interface
  • Supports 7th and 6th generation Intel Core processors via LGA 1151 socket
  • Up to 32GB DDR4 memory across two DIMM slots
  • Realtek ALC887 audio with 7.1 channel output
  • Realtek Gigabit LAN for 10/100/1000 Mbit networking
  • Six USB 3.1 Gen 1 and six USB 2.0 ports available

B250 Micro ATX board for LGA 1151 CPUs

This GIGABYTE B250M-Power motherboard fits the Micro ATX form factor and uses the Intel B250 chipset. It accepts 6th and 7th generation Intel Core i7, i5, i3, Pentium and Celeron processors in the LGA 1151 socket. Two DDR4 DIMM slots provide the memory connection for mainstream desktop builds.

32 GB DDR4 ceiling with dual-channel layout

Maximum memory supported is 32 GB across the two DDR4 slots, giving 16 GB per slot in a dual-channel configuration. Four SATA III ports and one M.2 interface handle storage, while a single PCI Express x16 slot running at 3.0 x16 and one PCI Express x1 slot at 3.0 provide expansion room for a graphics card and one extra add-in card.

Realtek audio and gigabit LAN on USB 3.1 Gen 1

Onboard audio uses the Realtek ALC887 codec with 7.1 channel support, and networking is handled by a Realtek GbE controller at 10/100/1000 Mbit. The chipset delivers six USB 3.1 Gen 1 ports, four on the rear panel and two via internal header, plus six USB 2.0 ports split between rear panel and internal headers.

Highlights

  • Supports 7th and 6th generation Intel Core processors via LGA 1151 socket
  • Up to 32GB DDR4 memory across two DIMM slots
  • Realtek ALC887 audio with 7.1 channel output
  • Realtek Gigabit LAN for 10/100/1000 Mbit networking
  • Six USB 3.1 Gen 1 and six USB 2.0 ports available

Specifications

BrandGIGABYTE
SeriesGIGABYTE B250M-Power
ModelGIGABYTE B250M-Power
CPU Socket TypeLGA 1151
CPU TypeSupport LGA1151 slot 7th/6th generation processors: Intel ® Core ™ i7 processor/Intel ® Core ™ i5 processor/Intel ® Core ™ i3 processor/Intel ® Pentium ® processor/Intel ® Celeron ® processor
2. L3 cache depends on CPU
ChipsetIntel B250
Maximum Memory Supported32GB
PCI Slots1 PCI Express x16 slot, supporting x16 operating specifications
2. 1 PCI Express x1 slot
(* All PCI Express slots support PCI Express 3.0)
SATA RAID1XM.2 interface, 4xSATA III interface
Audio Chipset1. Built-in Realtek ® ALC887 chip
2. Support High Definition Audio
3. Support 2/4/5 1/7.1 channels
To start the 7.1 channel audio output, you must use the front panel audio output hole of the HD (High Definition, high fidelity) audio module to connect and select the multi-channel audio function through audio software.
4. Support S/PDIF output
LAN ChipsetBuilt-in Realtek ® GbE network chips (10/100/1000 Mbit)
Onboard USBBuilt-in chipset:
1.6 USB 3.1 Gen 1 ports (4 on the rear panel, 2 need to be connected from the USB socket in the main board via cable)
2.6 USB 2.0 ports (2 on the rear panel, 4 need to be connected from the USB socket in the main board via the cable)

Questions about this item

Will my existing LGA 1151 6th or 7th generation Intel Core i5 processor work with the B250M-Power motherboard?

Yes, the board supports LGA 1151 socket 6th and 7th generation Intel Core i7, i5, i3, Pentium and Celeron processors.

How can I verify the Realtek ALC887 audio is delivering 7.1 channel output after assembly?

Connect speakers to the front panel audio header and confirm 7.1 channel selection in the operating system sound control panel.

Does the box include the I/O shield and a SATA cable, or must I buy them separately?

The package contains the motherboard, one SATA cable and the chassis I/O back panel; no other accessories are included.
