Green Micro ATX motherboard with silver CPU socket and black expansion slots

GIGABYTE

GIGABYTE B250M-Wind Intel motherboard

SKU CH-N4EV-2DW2H

Micro-ATX Intel B250 board with LGA 1151 socket, dual DDR4 slots for 32 GB, one PCIe 3.0 x16 and one x1 slot, four SATA III plus one M.2, six USB 3.1 Gen 1 and six USB 2.0 ports.

  • CPU Socket TypeLGA 1151
  • CPU TypeSupport LGA1151 slot 7th/6th generation processors: Intel ®
  • ChipsetIntel B250
  • Maximum Memory Supported32GB
  • PCI Slots1 PCI Express x16 slot, supporting x16 operating specificati
  • SATA RAID1XM.2 interface, 4xSATA III interface
  • Supports 7th and 6th Gen Intel Core processors via LGA 1151 socket
  • Up to 32GB DDR4 memory across two DIMM slots
  • PCI Express 3.0 x16 and x1 slots for graphics and add-in cards
  • Realtek ALC887 audio with 7.1 channel support and Realtek Gigabit LAN
  • Six USB 3.1 Gen 1 ports and six USB 2.0 ports for peripherals

B250 Micro-ATX for LGA 1151 builds

This GIGABYTE board fits Micro-ATX cases and accepts 6th and 7th generation Intel Core i7, i5, i3, Pentium and Celeron processors in the LGA 1151 socket. The Intel B250 chipset provides a stable platform for everyday computing and office workloads. Two DDR4 DIMM slots give a straightforward upgrade path.

32 GB DDR4 ceiling and PCIe 3.0 lanes

Maximum memory supported is 32 GB across the two slots, enough for multitasking and mainstream applications; beyond that the board cannot go. A single PCI Express x16 slot and one x1 slot both run at PCIe 3.0 speeds, handling a discrete graphics card and one add-in card. Storage connects through four SATA III ports and one M.2 interface for SATA drives.

Realtek audio and gigabit LAN on a compact PCB

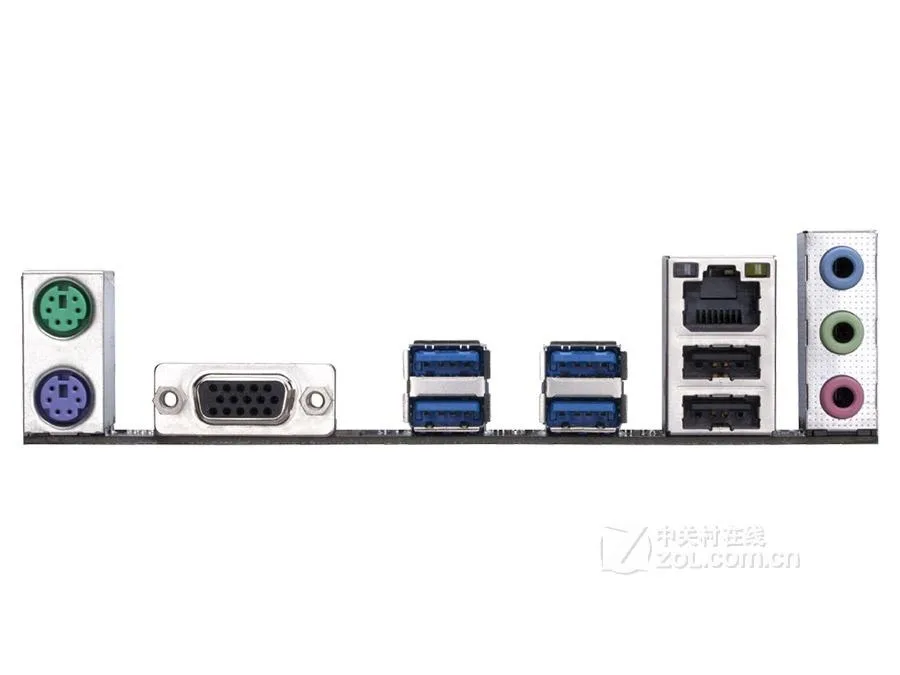

The 22.6 cm by 17.4 cm board carries a Realtek ALC887 codec supporting up to 7.1 channel high-definition audio through front and rear jacks. A Realtek gigabit controller delivers 10, 100 and 1000 Mbit wired networking. Rear I/O includes four USB 3.1 Gen 1 ports and two USB 2.0 ports, with two more USB 3.1 Gen 1 and four USB 2.0 headers available internally.

Highlights

  • Supports 7th and 6th Gen Intel Core processors via LGA 1151 socket
  • Up to 32GB DDR4 memory across two DIMM slots
  • PCI Express 3.0 x16 and x1 slots for graphics and add-in cards
  • Realtek ALC887 audio with 7.1 channel support and Realtek Gigabit LAN
  • Six USB 3.1 Gen 1 ports and six USB 2.0 ports for peripherals

Specifications

BrandGIGABYTE
SeriesGIGABYTE B250M-Wind
ModelGIGABYTE B250M-Wind
CPU Socket TypeLGA 1151
CPU TypeSupport LGA1151 slot 7th/6th generation processors: Intel ® Core ™ i7 processor/Intel ® Core ™ i5 processor/Intel ® Core ™ i3 processor/Intel ® Pentium ® processor/Intel ® Celeron ® processor
2. L3 cache depends on CPU
ChipsetIntel B250
Maximum Memory Supported32GB
PCI Slots1 PCI Express x16 slot, supporting x16 operating specifications
2. 1 PCI Express x1 slot
(* All PCI Express slots support PCI Express 3.0)
SATA RAID1XM.2 interface, 4xSATA III interface
Audio Chipset1. Built-in Realtek ® ALC887 chip
2. Support High Definition Audio
3. Support 2/4/5 1/7.1 channels * To start the 7.1 channel audio output, you must use the front panel audio output hole of the HD (High Definition, high fidelity) audio module to connect and select the multi-channel audio function through the audio software.
4. Support S/PDIF output
LAN ChipsetBuilt-in Realtek ® GbE network chips (10/100/1000 Mbit)
Onboard USBBuilt-in chipset:
1.6 USB 3.1 Gen 1 ports (4 on the rear panel, 2 need to be connected from the USB socket in the main board via cable)
2.6 USB 2.0 ports (2 on the rear panel, 4 need to be connected from the USB socket in the main board via the cable)

Questions about this item

Will this LGA 1151 board run with a 6th-generation Core i5 I already own?

Yes, the socket supports 6th- and 7th-generation Core i7, i5, i3, Pentium and Celeron processors.

How can I confirm the Realtek ALC887 audio is active after I build the system?

Open Device Manager, expand Sound, video and game controllers and verify Realtek High Definition Audio appears without error icons.

The listing mentions one SATA cable and an I/O shield — are DDR4 modules included?

No, memory is not included; the board has two DDR4 DIMM slots supporting up to 32 GB total.
