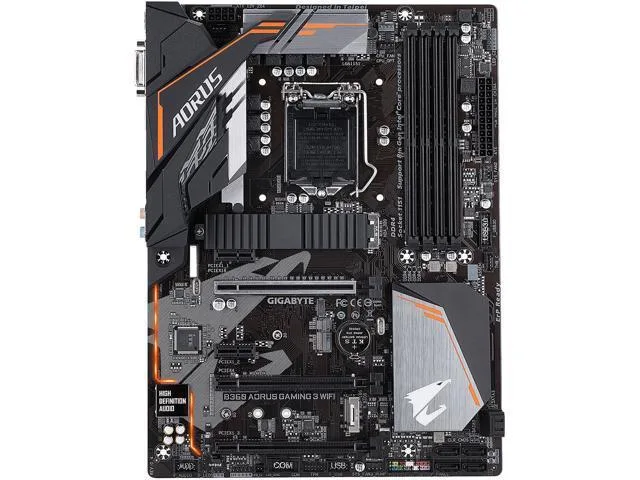

ATX motherboard with black PCB and silver heatsinks

GIGABYTE

GIGABYTE B360 AORUS Gaming 3 WIFI Intel motherboard

SKU CH-1849-GTZC8

ATX Intel B360 motherboard for 8th and 9th Gen Core CPUs with four DDR4 slots up to 64 GB, dual M.2 sockets, six SATA ports, integrated Intel CNVi Wi-Fi, Intel GbE LAN.

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeCore i7 / i5 / i3 (8th Gen, LGA1151)
  • ChipsetIntel B360
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 2666
  • Supports 8th Gen Intel Core processors on LGA 1151 socket
  • Dual-channel DDR4 2666 memory up to 64 GB capacity
  • Integrated Intel 802.11ac Wave2 CNVi WIFI module included
  • Dual M.2 slots with PCIe Gen3 X4/X2 and SATA interfaces
  • Intel GbE LAN with cFosSpeed accelerator software

Socket and chipset

This is a GIGABYTE B360 AORUS Gaming 3 WIFI motherboard built on the Intel B360 chipset for LGA 1151 (300 Series) processors. It accepts 8th and 9th Generation Core i9, i7, i5, i3, Pentium and Celeron CPUs in the LGA1151 package. The board follows the standard ATX form factor for typical desktop chassis.

Memory and expansion

Four 288-pin DDR4 slots support dual-channel memory up to 64 GB at 2666, 2400 and 2133 MT/s. Expansion includes three PCI Express 3.0 x16 slots and two PCI Express x1 slots. Storage connectivity provides six SATA 6Gb/s ports and two M.2 sockets, one of which includes a thermal guard. Intel Optane memory is supported.

Wireless networking

An Intel CNVi wireless module (GC-CI22M_A) is included, delivering 802.11ac Wave2 2T2R Wi-Fi. The CNVi connector shares bandwidth with a rear USB 2.0/1.1 port. Wired networking uses an Intel GbE LAN controller rated at 1 Gbps with cFosSpeed software. Audio is handled by a Realtek ALC892 codec with 7.1-channel output.

Highlights

  • Supports 8th Gen Intel Core processors on LGA 1151 socket
  • Dual-channel DDR4 2666 memory up to 64 GB capacity
  • Integrated Intel 802.11ac Wave2 CNVi WIFI module included
  • Dual M.2 slots with PCIe Gen3 X4/X2 and SATA interfaces
  • Intel GbE LAN with cFosSpeed accelerator software

Specifications

BrandGIGABYTE
ModelB360 AORUS Gaming 3 WIFI
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeCore i7 / i5 / i3 (8th Gen, LGA1151)
ChipsetIntel B360
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 2666
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x163 x PCI Express 3.0 x16
PCI Express x12 x PCI Express x1
Other Slots1 x M.2 Socket 1 connector for an Intel CNVi wireless module only (CNVI)* B360 AORUS GAMING 3 WIFI includes the GC-CI22M_A CNVi wireless module.* The CNVi connector shares bandwidth with the USB 2.0/1.1 port on the back panel (the one below the LAN port). When a Wi-Fi module is populated in the CNVi connector, the USB 2.0/1.1 port becomes unavailable.
Serial ATA (SATA)6 x SATA 6Gb/s
M.22 x M.2
Intel Optane ReadyYes
Audio ChipsetRealtek ALC892
Audio Channels7.1 Channels
LAN ChipsetIntel GbE LAN
Max LAN Speed1Gbps
Wireless LANWi-Fi 802.11 ac
Onboard USB2 x USB 3.1 + 2 x USB 2.0
Other Connectors1 x CPU fan header1 x water cooling CPU fan header2 x system fan headers1 x system fan/water cooling pump header2 x digital LED strip headers2 x digital LED strip power select jumpers2 x RGB (RGBW) LED strip headers1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x Thunderbolt add-in card connector1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)1 x serial port header1 x Clear CMOS jumper
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 8.9"
Power Pin24 Pin
FeaturesMulti-Graphics Technology:Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologiesI/O Controller:iTE I/O Controller ChipH/W Monitoring:Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.BIOS:2 x 128 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:Support for APP Center* Available applications in APP Cent

Questions about this item

Will an 8th or 9th Generation Intel Core i7, i5, i3, Pentium or Celeron processor fit the LGA 1151 socket?

Yes, the board accepts all 8th and 9th Generation Intel Core i9, i7, i5, i3, Pentium and Celeron CPUs in the LGA 1151 package.

How many DDR4 memory modules can I install and what is the maximum total capacity?

Four 288-pin DDR4 slots support up to 64 GB total in dual-channel mode at 2666, 2400 or 2133 MT/s.

Does the board include a Wi-Fi module or do I need to buy one separately?

The GC-CI22M_A CNVi wireless module is included, providing integrated 802.11ac Wave 2 Wi-Fi without a separate purchase.
