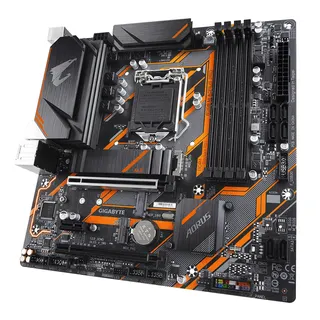

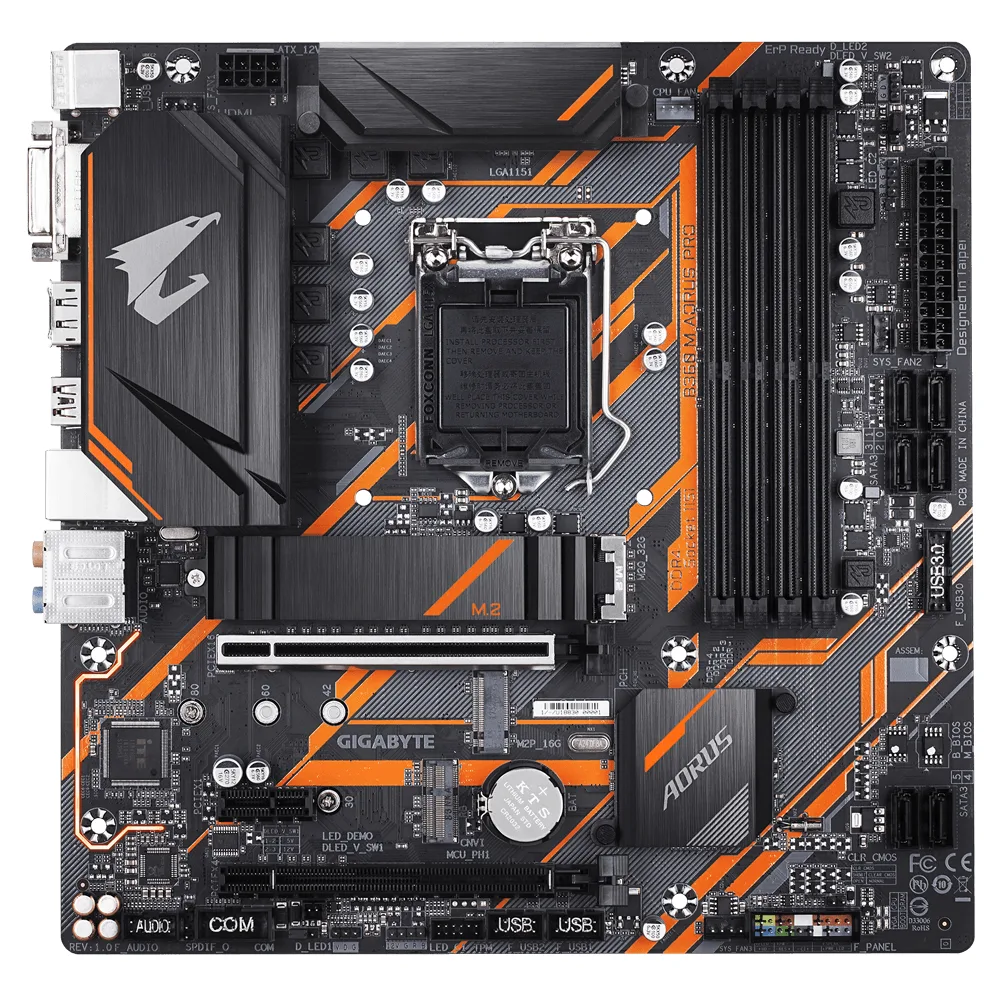

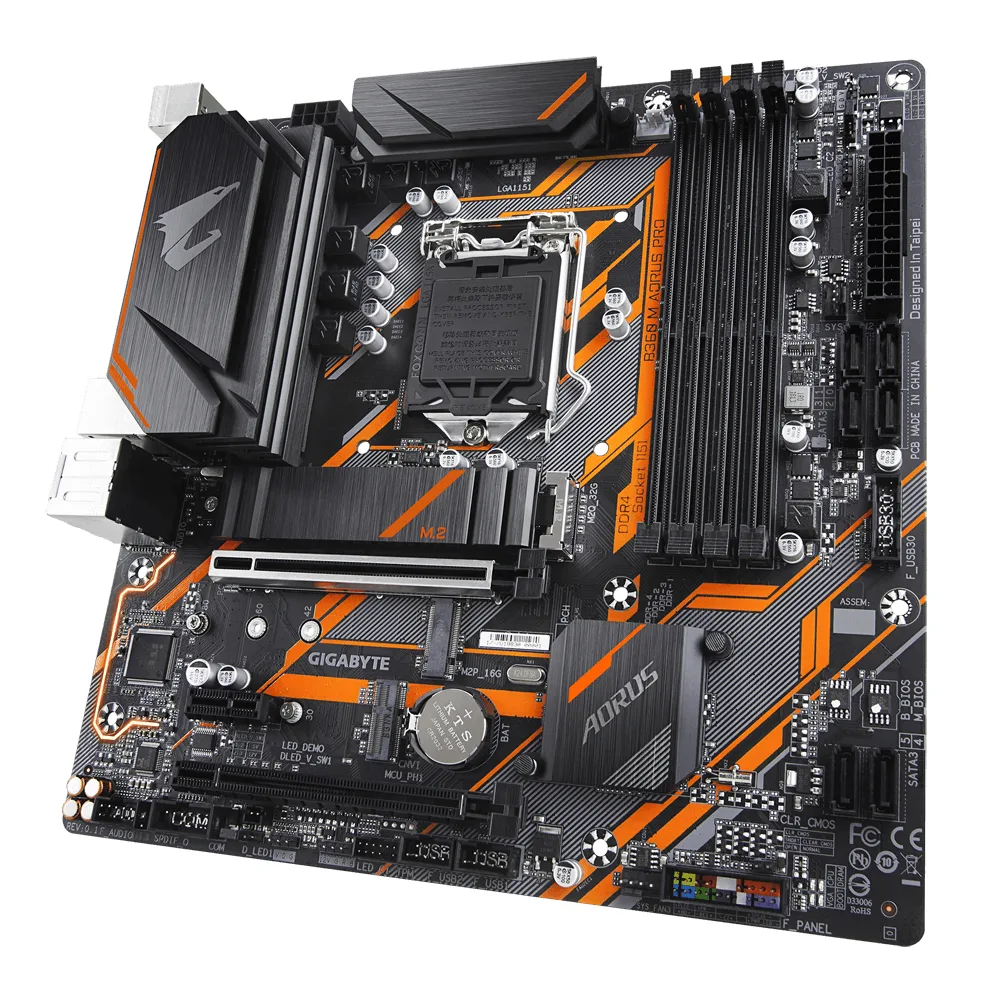

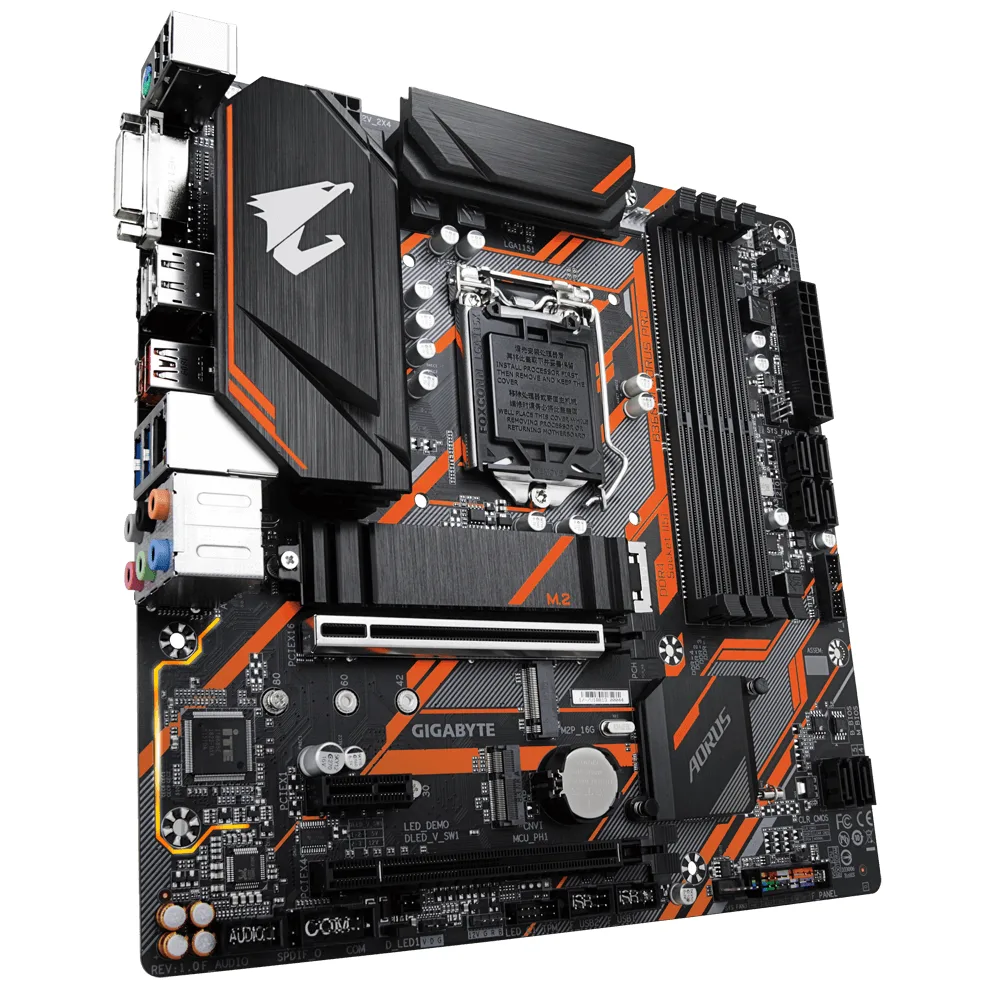

Black ATX motherboard with silver heatsinks and RGB lighting accents

GIGABYTE

GIGABYTE B360 M AORUS PRO Intel motherboard

SKU CH-3F34-ZF3P6

Micro-ATX Intel B360 board supporting 8th and 9th Gen Core CPUs with dual M.2 slots, RGB Fusion 2.0 and native USB 3.1 Gen2 Type-A

  • CPU Type4th-generation Core i5, i7 (LGA1150)
  • Supports 9th and 8th Gen Intel Core processors in LGA1151 package
  • Dual-channel DDR4 architecture up to 64 GB with XMP memory support
  • Dual M.2 slots PCIe Gen3 X4 and X2 with one Thermal Guard
  • Intel native USB 3.1 Gen2 Type-A and Intel GbE LAN with cFosSpeed
  • RGB Fusion 2.0 digital LEDs plus audio noise guard with LED trace path lighting

Chipset and CPU support

The GIGABYTE B360 M AORUS PRO uses the Intel B360 Express chipset for LGA1151 processors. It supports 8th and 9th Generation Intel Core i9, i7, i5, i3, Pentium and Celeron CPUs.

Memory and expansion

Four DDR4 DIMM slots provide dual-channel architecture with support for up to 64 GB of system memory. Speeds of 2133, 2400 and 2666 MHz are supported, with 2666 MHz and XMP requiring a 9th or 8th Generation Core i9, i7 or i5 processor. Two M.2 slots accept PCIe Gen3 x4, x2 and SATA devices, one slot includes a Thermal Guard.

Video output limits

Integrated graphics are driven by the installed processor through one DVI-D port limited to 1920x1200 at 60 Hz and one DisplayPort 1.2 port limited to 4096x2304 at 60 Hz with HDCP 2.2 and HDR. The DVI-D port does not support D-Sub adapters. Buyers needing more than two display outputs or higher DVI resolutions must choose a board with additional video ports.

Highlights

  • Supports 9th and 8th Gen Intel Core processors in LGA1151 package
  • Dual-channel DDR4 architecture up to 64 GB with XMP memory support
  • Dual M.2 slots PCIe Gen3 X4 and X2 with one Thermal Guard
  • Intel native USB 3.1 Gen2 Type-A and Intel GbE LAN with cFosSpeed
  • RGB Fusion 2.0 digital LEDs plus audio noise guard with LED trace path lighting

Specifications

CPU Type4th-generation Core i5, i7 (LGA1150)

Questions about this item

What case and cooler clearances does the micro-ATX B360 board need?

The board uses the micro-ATX form factor and the LGA1151 socket, so any case and CPU cooler rated for micro-ATX and LGA1151 will fit.

Which step is often missed when installing the M.2 drive under the Thermal Guard?

Remove the protective film from the Thermal Guard's thermal pad before securing the M.2 screw, otherwise heat transfer is blocked.

Which component on this board will need replacement over time?

The audio capacitors are rated for long life, but like all electrolytic caps they will eventually degrade and may need board-level replacement.
