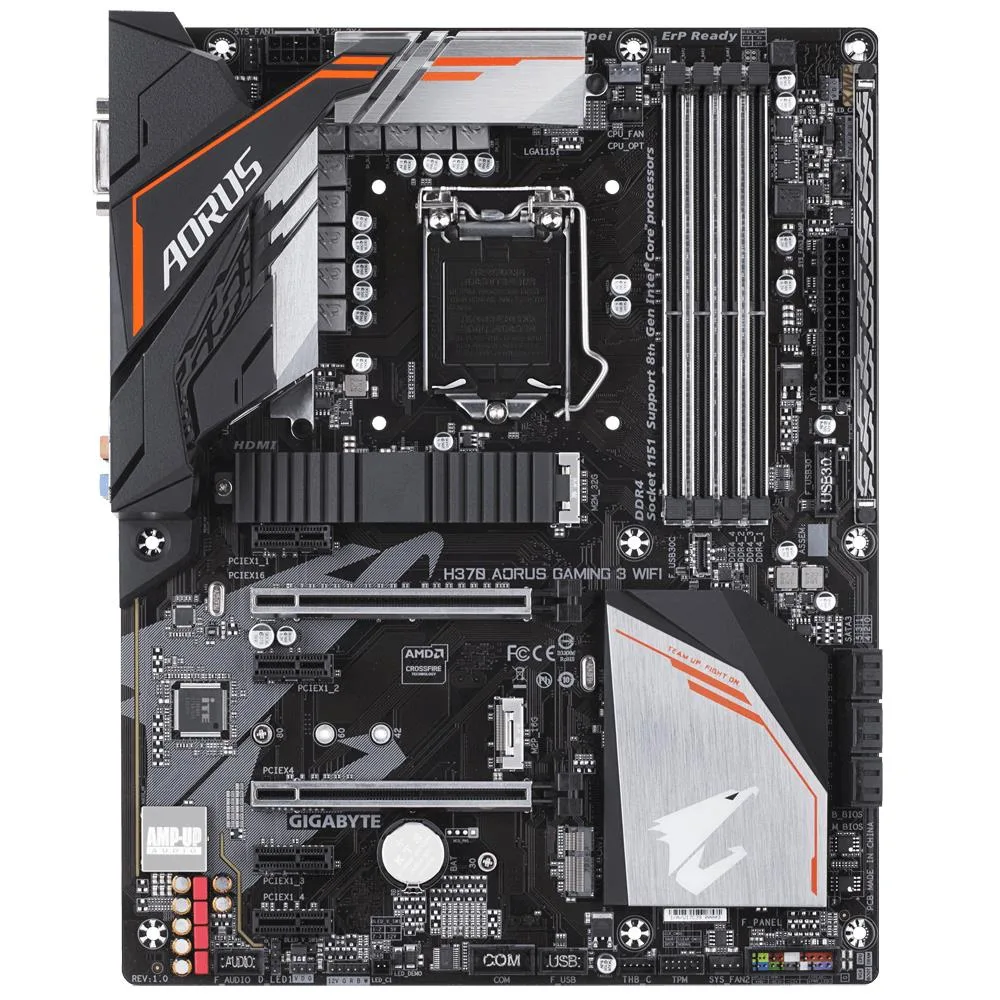

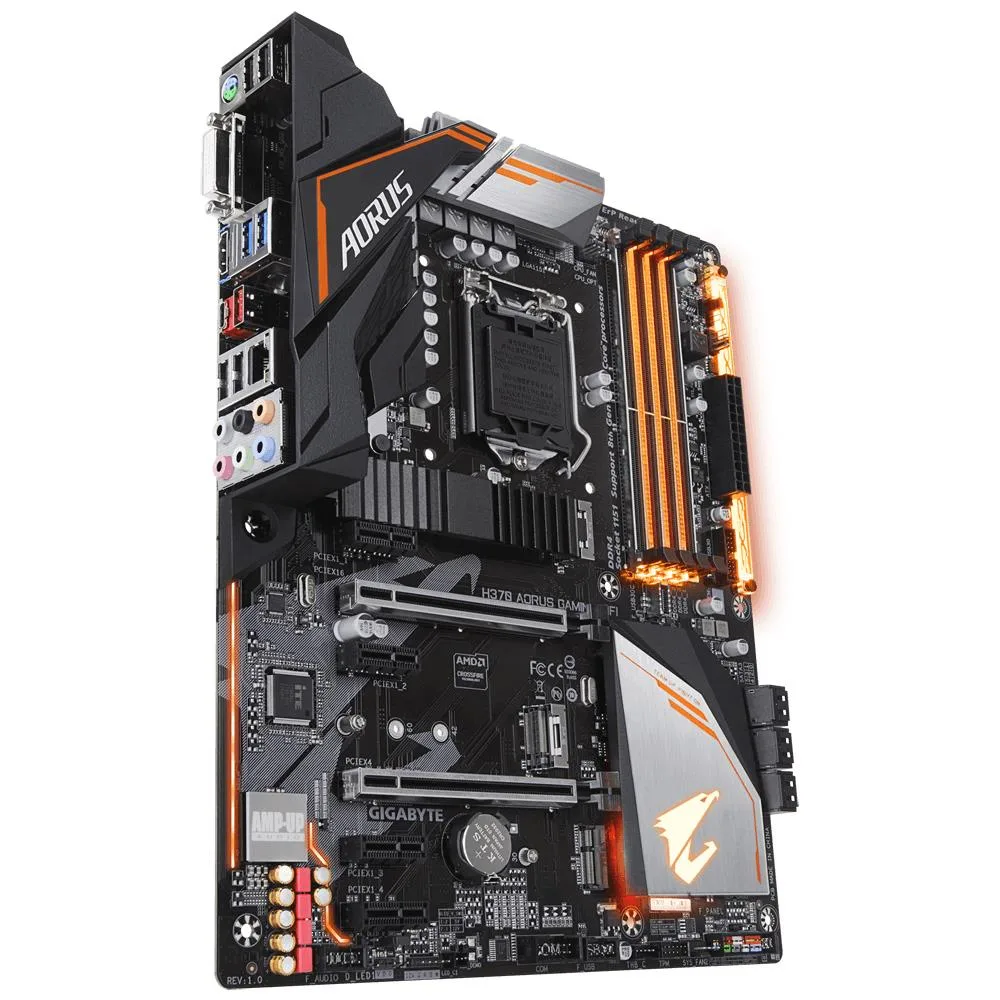

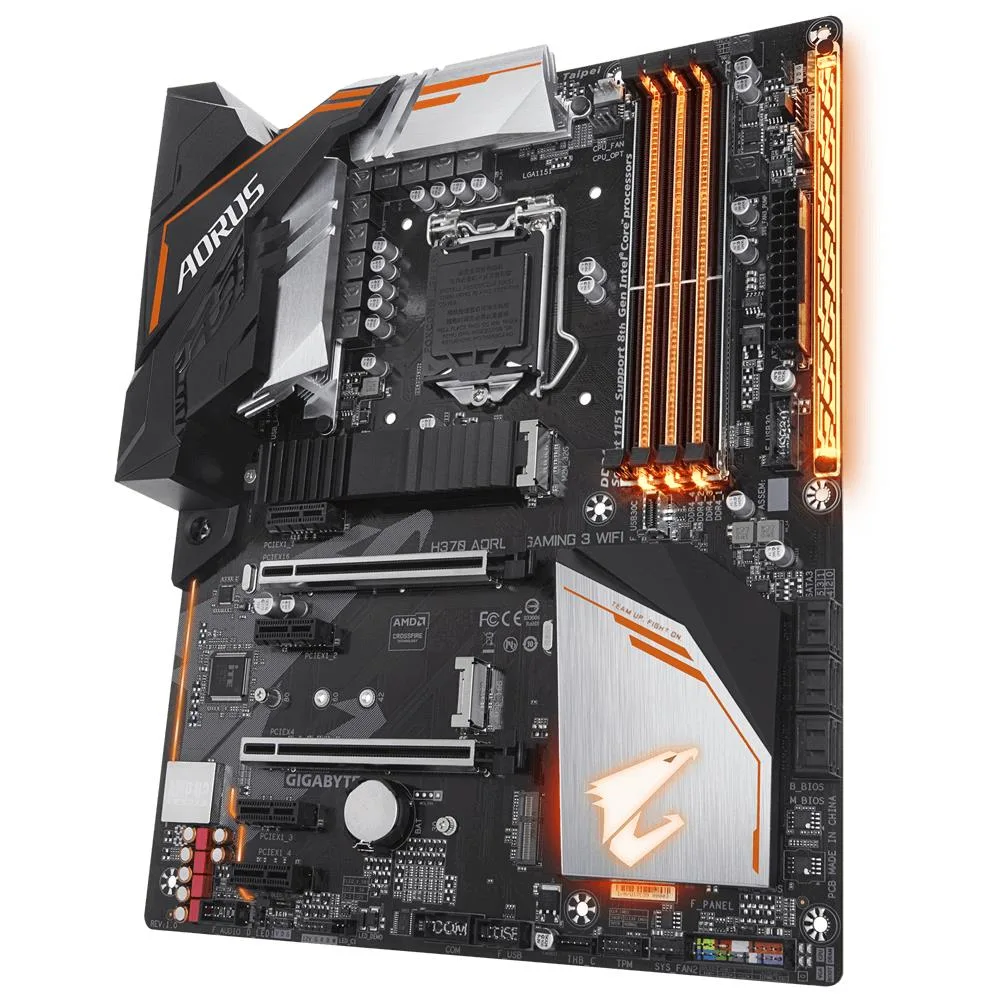

ATX motherboard with black PCB and silver heatsinks

GIGABYTE

GIGABYTE B360M AORUS GAMING 3 Intel Motherboard

SKU CH-ZWTY-9NN81

ATX Intel H370 board with LGA 1151 socket supports 64GB DDR4, dual NVMe M.2 with thermal guard, 802.11ac Wi-Fi, 4 USB 2.0, 2 USB 3.2 Gen 1, 1 USB 3.2 Gen 2, 1 USB-C, HDMI, DVI-D and gigabit LAN

  • CPU Socket TypeLGA 1151
  • ChipsetIntel H370
  • Maximum Memory Supported64GB
  • Form FactorATX
  • Supports up to 64GB DDR4 memory for heavy multitasking
  • Intel H370 chipset on ATX form factor fits full-size builds
  • 8+2 hybrid digital power phases deliver stable voltage to 6-core CPUs
  • Integrated Intel 802.11ac Wave2 CNVi Wi-Fi reaches 1.73Gbps wireless speed
  • Dual M.2 slots accept NVMe and SATA SSDs with thermal guard

Power Design for Six-Core CPUs

The board uses an 8+2 phase hybrid digital PWM with low RDS(on) MOSFETs to deliver clean power to six-core LGA 1151 processors. This layout targets stable voltage under load without extra configuration.

Standard ATX Installation

Mounting follows the normal ATX pattern with nine screw holes and a rear I/O shield. The main clearance risk is the M.2 thermal guard, which can touch tall CPU coolers or long graphics cards if the case is tight.

Dual M.2 With One Thermal Guard

Two M.2 slots accept both NVMe and SATA drives, but only the primary slot includes a heatsink to prevent throttling during sustained writes. The second slot runs without active cooling.

Highlights

  • Supports up to 64GB DDR4 memory for heavy multitasking
  • Intel H370 chipset on ATX form factor fits full-size builds
  • 8+2 hybrid digital power phases deliver stable voltage to 6-core CPUs
  • Integrated Intel 802.11ac Wave2 CNVi Wi-Fi reaches 1.73Gbps wireless speed
  • Dual M.2 slots accept NVMe and SATA SSDs with thermal guard

Specifications

BrandGIGABYTE
ModelB360M AORUS GAMING 3
CPU Socket TypeLGA 1151
ChipsetIntel H370
Maximum Memory Supported64GB
Form FactorATX

Questions about this item

How do I confirm the 8+2 phase PWM is delivering stable power to my 6-core CPU after assembly?

The board uses an Intersil digital PWM with lower RDS(on) MOSFETs; once the system posts and runs a sustained load without throttling or shutdown, the power delivery is functioning as designed.

What comes in the box and which cables or modules must I source separately for the dual M.2 slots and Wi-Fi?

The motherboard includes the ATX board, I/O shield, SATA cables and driver media; M.2 mounting screws, NVMe or SATA SSDs, and the CNVi Wi-Fi module are not bundled and must be purchased separately.

Should I choose the B360M or H370 chipset variant when both support 64 GB DDR4 and the same LGA 1151 socket?

The product carries the H370 chipset, which enables more HSIO lanes and native USB 3.2 Gen 2 support; select this version if you need the extra connectivity over the B360M alternative.
