Green rectangular Micro ATX circuit board with silver and black components and metal I/O shield

GIGABYTE

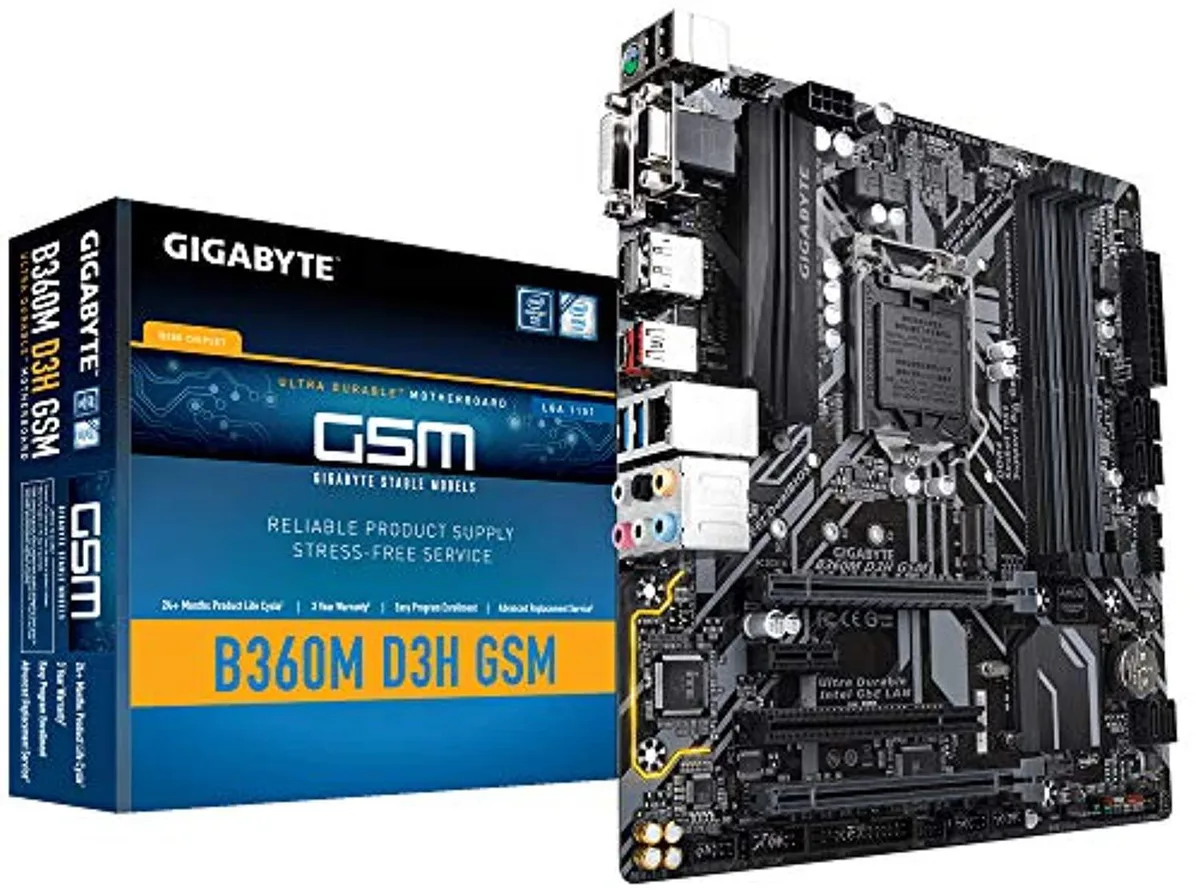

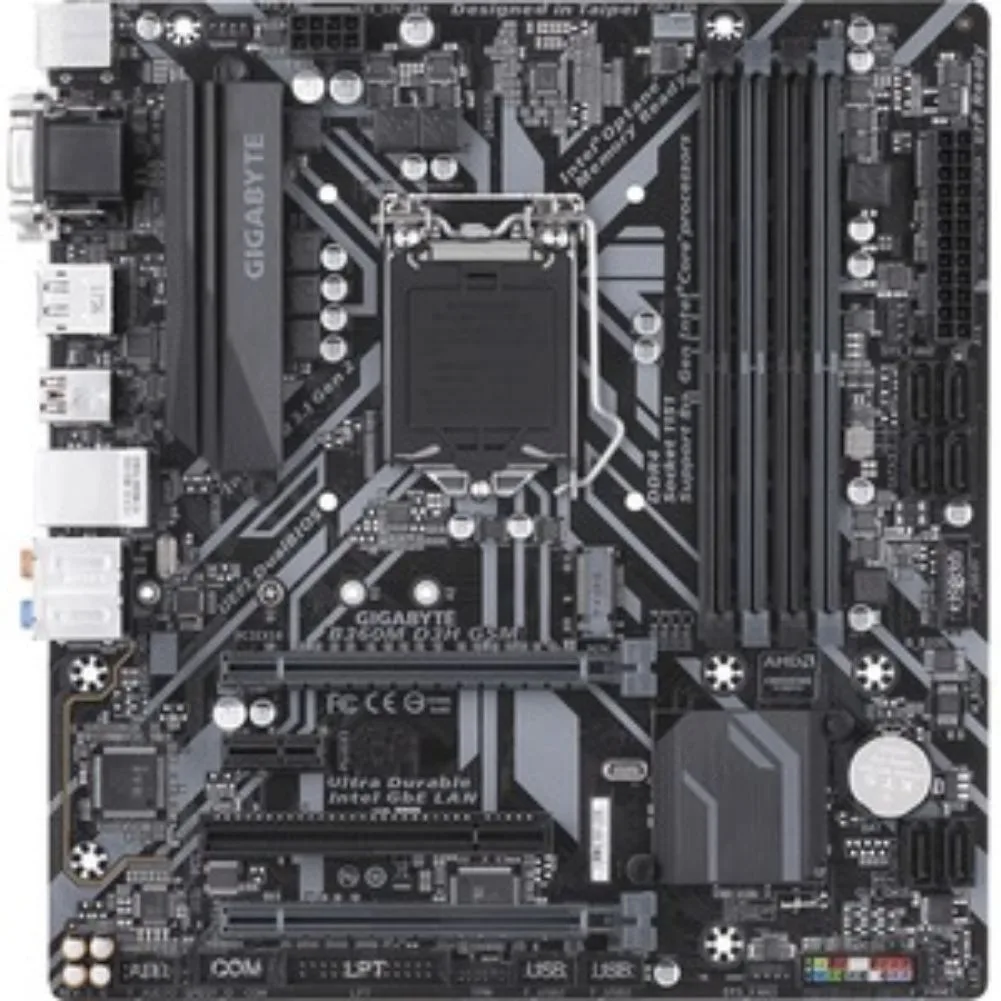

GIGABYTE B360M D3H GSM Intel motherboard

SKU CH-TV3Z-3ADA4 MPN B360M D3H GSM

Micro ATX Intel board with LGA 1151 socket, four DDR4 slots up to 64 GB, two PCIe 3.0 x16 slots, one M.2 socket, six SATA 6Gb/s ports, and integrated Intel HD graphics via D-Sub and DVI-D

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeSupport for 9th and 8th Generation Intel Core i7/i5/i3 / Int
  • ChipsetIntel B360
  • Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support: 1
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 2666/ 2400/ 2133 * To support 2666 MHz or XMP memory, y
  • Supports 8th and 9th Gen Intel Core i7, i5, i3, Pentium and Celeron CPUs via LGA 1151 socket
  • Four DDR4 slots accept up to 64 GB at 2666 MHz for responsive multitasking
  • M.2 Socket 3 M-key fits 2242, 2260, 2280 and 22110 SATA or PCIe SSDs
  • Intel GbE LAN delivers 1 Gbps wired networking for stable online work
  • Realtek ALC892 audio provides 7.1-channel output with S/PDIF for immersive sound

Processor & Platform Support

This GIGABYTE B360M D3H GSM motherboard uses the Intel B360 chipset and an LGA 1151 socket for 300-series processors. It accepts 8th and 9th generation Intel Core i7, i5 and i3 CPUs plus Pentium and Celeron parts in the same package. The board is not backward compatible with earlier LGA 1151 chips. A Micro ATX form factor fits a wide range of chassis.

Memory & Expansion Checks

Four 288-pin DDR4 slots support up to 64 GB in dual-channel mode at 2133, 2400 or 2666 MHz. Reaching 2666 MHz or using XMP profiles requires an 8th generation Core i7 or i5 processor. Expansion includes one PCI Express 3.0 x16 slot running at x16, a second x16 slot wired at x4, one x1 slot and one legacy PCI slot. Storage provides six SATA 6Gb/s ports and one M.2 socket 3 M-key connector for 2242, 2260, 2280 or 22110 drives with SATA or PCIe x4/x2 signalling. Intel Optane memory is supported.

Sustained Operation Behaviour

The Realtek ALC892 codec delivers 7.1-channel audio with S/PDIF output for extended listening sessions. Networking is handled by an Intel Gigabit Ethernet controller capped at 1 Gbps, maintaining steady throughput during long file transfers. Onboard video outputs consist of a D-Sub port and a DVI-D port, each limited to 1920x1200 at 60 Hz and dependent on the installed processor graphics. The DVI-D connector does not carry an analog signal.

Highlights

  • Supports 8th and 9th Gen Intel Core i7, i5, i3, Pentium and Celeron CPUs via LGA 1151 socket
  • Four DDR4 slots accept up to 64 GB at 2666 MHz for responsive multitasking
  • M.2 Socket 3 M-key fits 2242, 2260, 2280 and 22110 SATA or PCIe SSDs
  • Intel GbE LAN delivers 1 Gbps wired networking for stable online work
  • Realtek ALC892 audio provides 7.1-channel output with S/PDIF for immersive sound

Specifications

BrandGIGABYTE
ModelB360M D3H GSM
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeSupport for 9th and 8th Generation Intel Core i7/i5/i3 / Intel Pentium processors / Intel Celeron processors in the LGA1151 package
* Not backward compatible with older generation of LGA 1151 CPUs
ChipsetIntel B360
Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60Hz
* Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Support for up to 3 displays at the same time
Maximum shared memory of 1GB
Actual support may vary by
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 2666/ 2400/ 2133
* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core i7/i5 processor.
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Express x11 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
PCI Slots1 x PCI Slot
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
Intel Optane ReadyYes
Audio ChipsetRealtek ALC892
Audio Channels2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN ChipsetIntel GbE LAN chip
Max LAN Speed1Gbps
Back I/O Ports1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
1 x USB Type-C port, with USB 3.1 Gen 1 support
1 x USB 3.1 Gen 2 Type-A port (red)
2 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
Onboard USB1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
3 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 9.1"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesMulti-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboar
Shipping weight0.32 kg
Package size269 × 264 × 58 mm

Questions about this item

What comes in the box with the B360M D3H GSM and what must I buy separately?

The motherboard ships with the board itself, I/O shield, cables and driver media. You must purchase a compatible LGA 1151 300-series processor, DDR4 memory modules, storage drives and a power supply separately.

Which DDR4 speed should I choose for the four 288-pin slots?

Install DDR4 2666 MHz modules only when using an 8th-generation Core i7 or i5; otherwise the board runs at 2400 MHz or 2133 MHz. Maximum capacity is 64 GB in dual-channel mode.

What does the single M.2 2280 connector actually deliver for a boot drive?

The M.2 socket 3 M-key slot accepts 2242, 2260, 2280 or 22110 drives and supports both SATA and PCIe x4 or x2 signalling, so a PCIe 3.0 x4 SSD will run at full bandwidth.
