Green Micro ATX motherboard with silver PCIe slots, black memory sockets, blue SATA ports and a grey rear I/O shield

GIGABYTE

GIGABYTE B360M D3H Intel motherboard

SKU CH-AVCA-VY4TW

Micro-ATX LGA 1151 board with Intel B360 chipset, four DDR4 slots for 64 GB, one PCIe 3.0 x16 slot, six SATA ports, an M.2 socket and Intel gigabit LAN

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
  • ChipsetIntel B360
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 2666/ 2400/ 2133/* To support 2666 MHz or XMP memory, y
  • Maximum Memory Supported64GB
  • Supports 8th Gen Intel Core CPUs on LGA 1151 socket
  • Dual-channel DDR4 memory up to 64 GB across four slots
  • PCIe 3.0 x16 slot for full-speed graphics cards
  • M.2 socket 3 accepts SATA and PCIe SSDs up to 22110
  • Realtek ALC892 codec delivers 7.1-channel audio with S/PDIF out

Intel LGA 1151 micro-ATX board

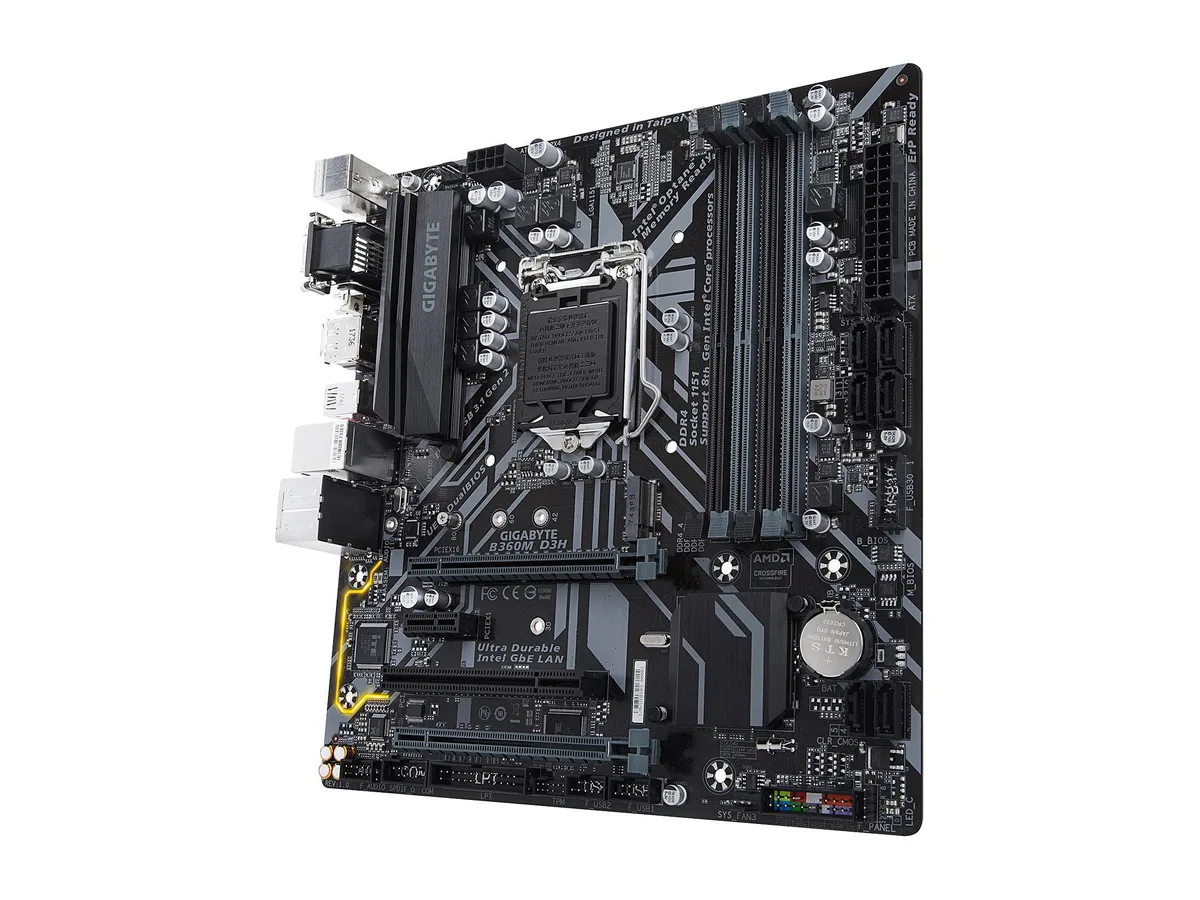

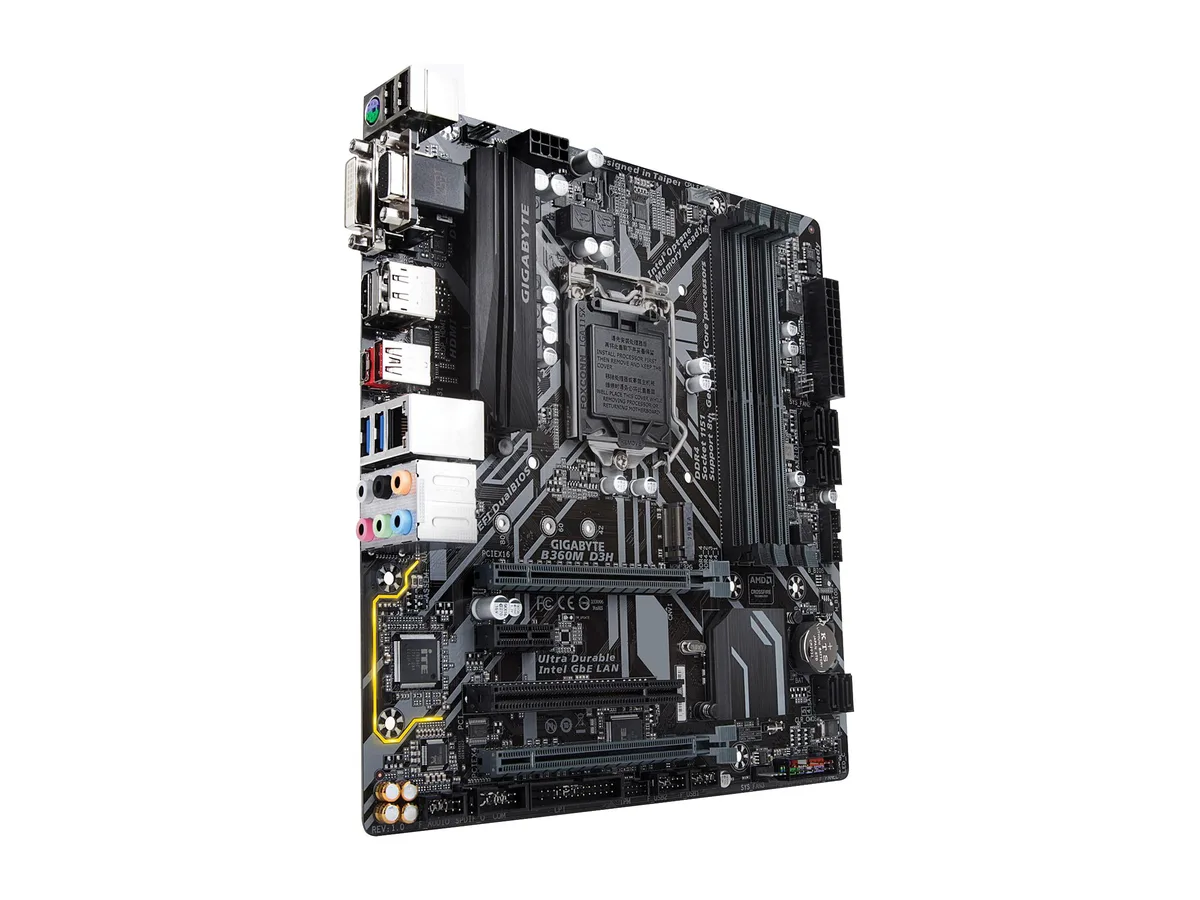

The GIGABYTE B360M D3H is a micro-ATX motherboard for Intel Core i7, i5, i3, Pentium and Celeron processors that use the LGA 1151 socket on the 300-series chipset. It provides four DDR4 memory slots, a single full-length PCI Express 3.0 x16 slot and six SATA 6Gb/s ports for storage expansion.

DDR4 2666 needs 8th-gen Core i7 or i5

Memory runs at 2666, 2400 or 2133 MHz, but 2666 MHz and XMP profiles only activate when an 8th-generation Core i7 or i5 CPU is installed. With other supported processors the maximum memory speed drops to 2400 MHz, and the board caps total capacity at 64 GB across four 288-pin slots in dual-channel mode.

Straightforward install, check CPU generation first

The board fits standard micro-ATX cases and uses common 24-pin and 8-pin power connectors. The main pitfall is pairing a non-8th-generation processor with 2666 MHz RAM, which forces the memory to run slower. Integrated graphics need a D-Sub, DVI-D or DisplayPort 1.2 cable; the DVI-D port does not accept a D-Sub adapter.

Highlights

  • Supports 8th Gen Intel Core CPUs on LGA 1151 socket
  • Dual-channel DDR4 memory up to 64 GB across four slots
  • PCIe 3.0 x16 slot for full-speed graphics cards
  • M.2 socket 3 accepts SATA and PCIe SSDs up to 22110
  • Realtek ALC892 codec delivers 7.1-channel audio with S/PDIF out

Specifications

BrandGIGABYTE
ModelB360M D3H
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
ChipsetIntel B360
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 2666/ 2400/ 2133/* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core i7/i5 processor.
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)/* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot./1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Express x11 x PCI Express x1 slot/(All of the PCI Express slots conform to PCI Express 3.0 standard.)
PCI Slots1 x PCI Slot
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
Audio ChipsetRealtek ALC892
Audio Channels2/4/5.1/7.1-channel/Support for S/PDIF Out
LAN ChipsetIntel GbE LAN
Max LAN Speed1Gbps
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x D-Sub port/1 x DVI-D port
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.11 x USB 3.1 Gen 2 Type-A port (red)/2 x USB 3.1 Gen 1 ports
USB 1.1/2.02 x USB 2.0
USB Type-C1 x USB Type-C port, with USB 3.1 Gen 1 support
Audio Ports6 Ports
Onboard USB1 x USB 3.1 Gen 1 header/2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header/3 x system fan headers/1 x RGB LED strip header/1 x front panel header/1 x front panel audio header/1 x S/PDIF Out header/1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)/1 x serial port header/1 x parallel port header/1 x Clear CMOS jumper
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 9.1"
Power Pin1 x 24-pin ATX main power connector/1 x 8-pin ATX 12V power connector
FeaturesMulti-Graphics Technology:/Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies//I/O Controller:/iTE I/O Controller Chip//H/W Monitoring:/Voltage detection/Temperature detection/Fan speed detection/Overheating warning/Fan fail warning/Fan speed control/* Whether the fan speed control function is supported will depend on the cooler you install.//BIOS:/2 x 128 Mbit flash/Use of licensed AMI UEFI BIOS/Support for DualBIOS/PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0//Unique Features:/Support for APP Center/* Available applications in APP Center may vary by mother

Questions about this item

Will this board run DDR4-2666 memory at full speed with a Core i3 or Pentium processor?

No. The 2666 MHz and XMP profiles require an 8th Generation Core i7 or i5 CPU; with a Core i3, Pentium or Celeron the memory will operate at 2400 MHz or 2133 MHz.

Can I use the M.2 slot for a SATA SSD as well as a PCIe drive?

Yes. The M key socket accepts 2242, 2260, 2280 and 22110 modules and supports both SATA and PCIe x4 or x2 signalling.

What display outputs are available if I rely on integrated graphics?

The board provides one D-Sub, one DVI-D and one DisplayPort 1.2 connector; D-Sub and DVI-D each support up to 1920x1200 at 60 Hz while DisplayPort reaches 4096x2304 at 60 Hz.
