Green rectangular micro-ATX motherboard with black slots and silver heatsinks

GIGABYTE

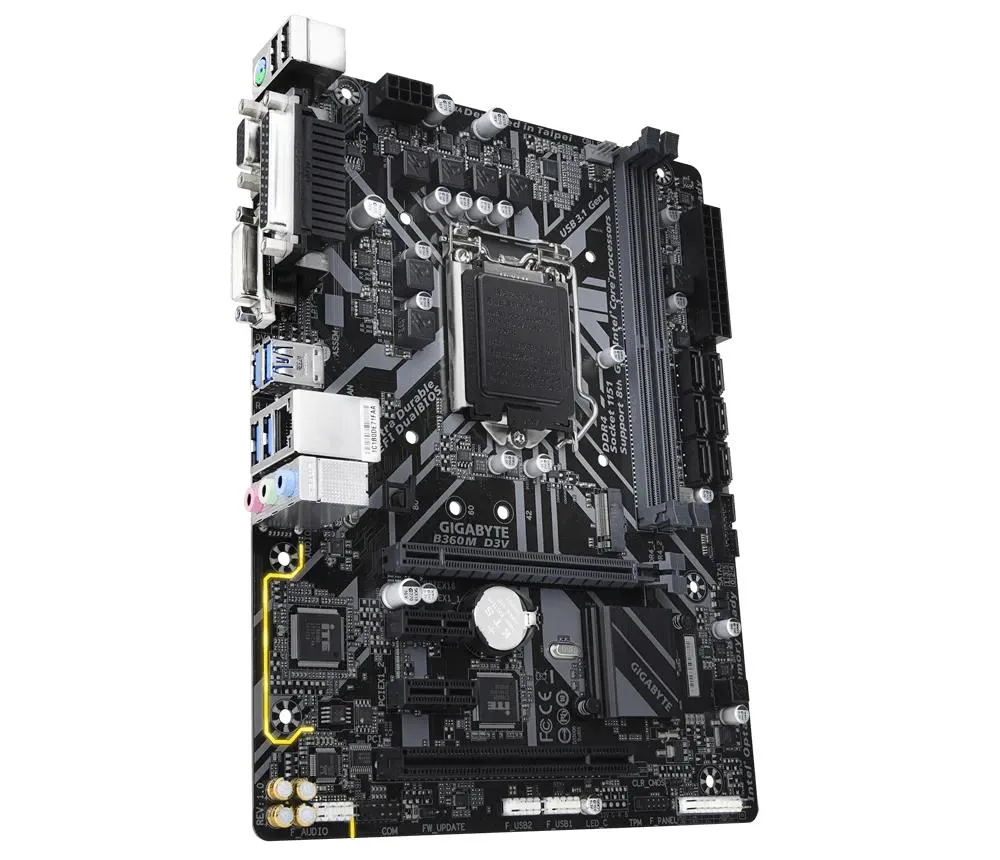

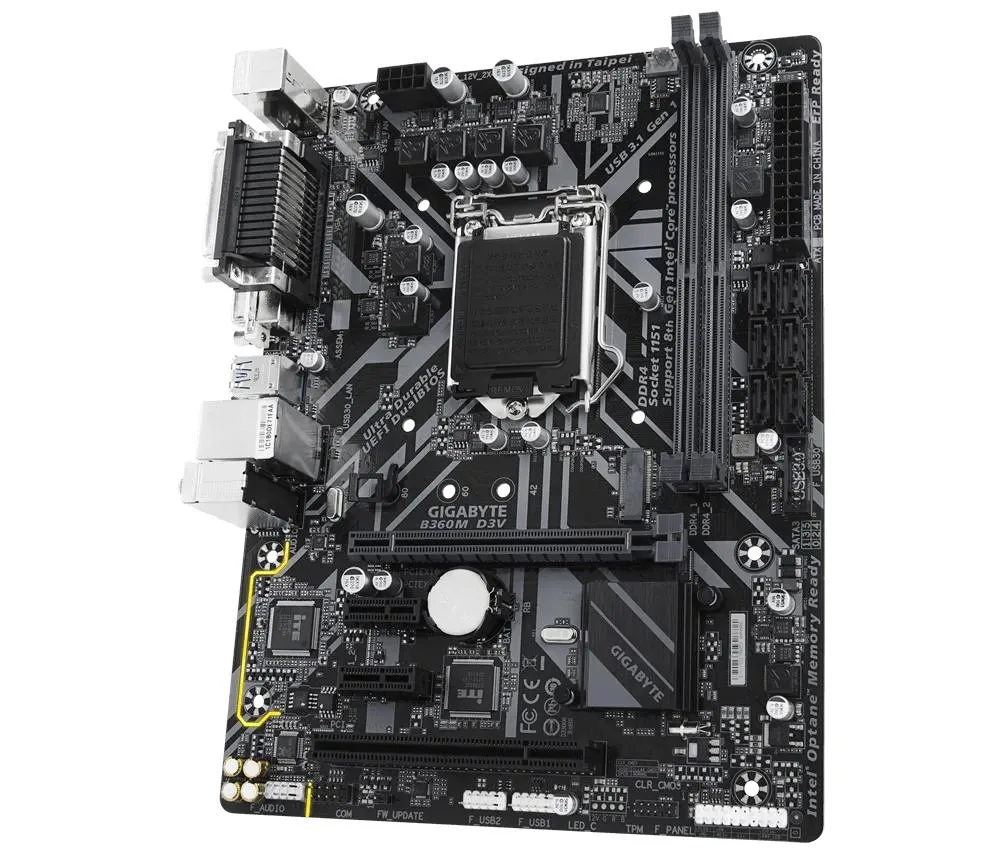

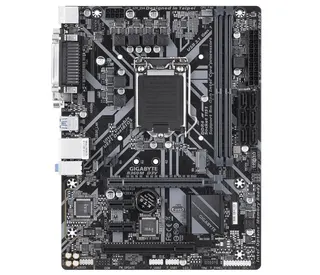

GIGABYTE B360M D3V Intel motherboard

SKU CH-10YV-J30RN

A micro-ATX board with an Intel B360 chipset, LGA 1151 socket for 8th and 9th Gen Core CPUs, dual-channel DDR4 up to 32 GB, PCIe Gen3 x4 M.2, 8118 Gaming LAN, Smart Fan 5, DualBIOS and CEC 2019 ready

  • CPU TypeIntel Core 8th Gen (LGA 1151)
  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • Dual-channel DDR4 memory up to 32 GB with XMP support
  • PCIe Gen3 x4 M.2 slot plus SATA interface for ultra-fast storage
  • GIGABYTE 8118 Gaming LAN with bandwidth management for low-latency networking
  • Smart Fan 5 with multiple temperature sensors and hybrid headers featuring FAN STOP

Target system

This GIGABYTE B360M D3V motherboard accepts 8th and 9th Generation Intel Core i7, i5, i3, Pentium and Celeron processors in the LGA 1151 package. It provides two DDR4 DIMM slots for up to 32 GB of dual channel memory at 2666, 2400 or 2133 MHz. The board suits office PCs and entry gaming builds that need integrated graphics output.

Interface limits

The single M.2 slot runs at PCIe Gen3 x4 and also supports SATA protocol drives. Onboard video offers one D-Sub and one DVI-D port, each limited to 1920x1200 at 60 Hz, with a maximum shared memory allocation of 1 GB. Networking is handled by the 8118 Gaming LAN controller with bandwidth management features.

Deciding specification

Memory speed above 2400 MHz requires an 8th Generation Core i7 or i5 processor; other supported CPUs restrict DDR4 to lower frequencies. Builders who need more than two memory slots or higher native memory speeds should consider a different platform.

Highlights

  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • Dual-channel DDR4 memory up to 32 GB with XMP support
  • PCIe Gen3 x4 M.2 slot plus SATA interface for ultra-fast storage
  • GIGABYTE 8118 Gaming LAN with bandwidth management for low-latency networking
  • Smart Fan 5 with multiple temperature sensors and hybrid headers featuring FAN STOP

Specifications

CPU TypeIntel Core 8th Gen (LGA 1151)

Questions about this item

Should I pick the 32 GB DDR4 option or a smaller kit for this board?

The board has two DDR4 DIMM sockets and supports up to 32 GB total, so a 2 x 16 GB kit fills both slots and reaches the maximum capacity.

What does the PCIe Gen3 x4 M.2 slot deliver in a working PC?

It provides an ultra-fast M.2 interface that runs at PCIe Gen3 x4 speeds and also accepts SATA M.2 drives.

How fast is the 8118 Gaming LAN in practice?

The onboard 8118 Gaming LAN is a Gigabit Ethernet controller with bandwidth management, so real-world throughput caps at 1 Gbps.
