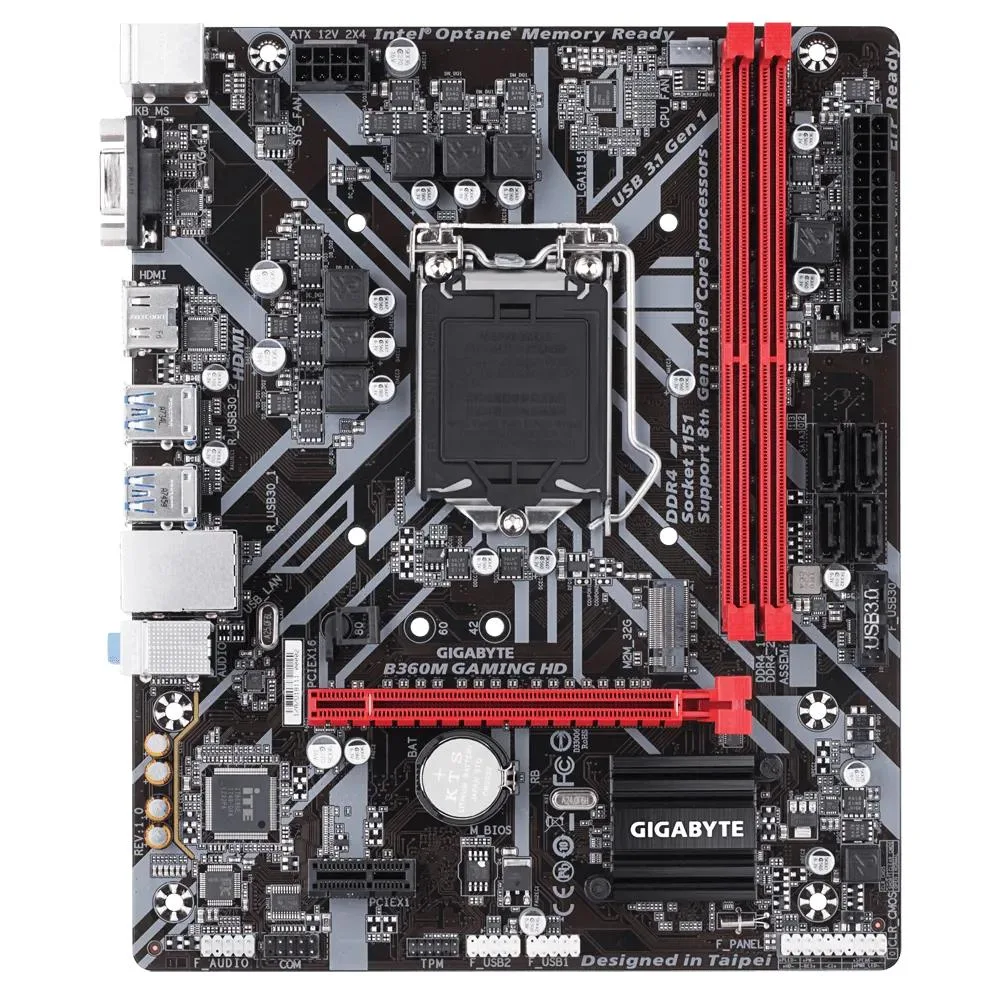

GIGABYTE B360M GAMING HD micro-ATX motherboard with black PCB and silver heatsinks

GIGABYTE

GIGABYTE B360M GAMING HD Intel motherboard

SKU CH-XTWY-VKMSR

Micro-ATX Intel B360 board for 8th and 9th Gen Core CPUs with dual-channel DDR4 to 32 GB, PCIe Gen3 x4 M.2, 8118 Gaming LAN and Smart Fan 5 cooling

  • CPU TypeIntel Core 8th Gen (LGA 1151)
  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • Dual-channel DDR4 memory up to 32 GB at 2666 MHz
  • Ultra-fast M.2 slot with PCIe Gen3 x4 and SATA interface
  • GIGABYTE 8118 Gaming LAN with bandwidth management
  • Smart Fan 5 with multiple temperature sensors and hybrid fan headers

Intel B360 micro-ATX motherboard for 8th

This LGA 1151 board uses the Intel B360 Express chipset and accepts 8th and 9th Generation Intel Core i7, i5, i3, Pentium and Celeron processors. It provides two DDR4 DIMM slots with dual-channel architecture and a maximum capacity of 32 GB. Integrated graphics output includes a D-Sub port at 1920x1200@60 Hz and an HDMI 1.4 port with HDCP 2.2 at 4096x2160@30 Hz.

Home builds needing two memory slots

The board suits builders who want a compact Intel platform with a single PCIe Gen3 x4 M.2 slot that also supports SATA drives, plus GIGABYTE 8118 Gaming LAN for bandwidth management. It is not for buyers who need four DDR4 slots, multiple M.2 sockets, or onboard Wi-Fi and Bluetooth.

32 GB DDR4 memory ceiling

The two DIMM sockets top out at 32 GB of system memory with support for DDR4 2666, 2400 and 2133 MHz modules; XMP profiles require an 8th Generation Core i7 or i5 processor. This limit decides whether the board fits a planned workload.

Highlights

  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • Dual-channel DDR4 memory up to 32 GB at 2666 MHz
  • Ultra-fast M.2 slot with PCIe Gen3 x4 and SATA interface
  • GIGABYTE 8118 Gaming LAN with bandwidth management
  • Smart Fan 5 with multiple temperature sensors and hybrid fan headers

Specifications

CPU TypeIntel Core 8th Gen (LGA 1151)

Questions about this item

How loud or hot does the Smart Fan 5 system run when the board powers an 8th Gen Intel Core i7 all day?

Smart Fan 5 uses multiple temperature sensors and hybrid fan headers with a FAN STOP function to keep noise and heat low during continuous operation.

Which memory kit must I already own to reach DDR4 2666 MHz on this board?

You need DDR4 2666 or XMP modules plus an 8th Gen Intel Core i7 or i5 processor; the board has two DIMM slots supporting up to 32 GB in dual channel.

Will my older SATA SSD work in the M.2 slot alongside a new PCIe Gen3 x4 drive?

The Ultra-Fast M.2 slot accepts both PCIe Gen3 x4 and SATA interface drives, so a legacy SATA M.2 SSD will function alongside a newer PCIe model.
