Green Micro ATX board with black slots and silver heatsinks

GIGABYTE

GIGABYTE B360M HD3 Intel LGA 1151 Micro ATX motherboard

SKU CH-JSPA-AWX22

Micro ATX board with Intel B360 chipset, LGA 1151 socket, two DDR4 slots, six SATA ports, one M.2 slot and 7.1-channel audio

  • CPU Socket TypeLGA 1151
  • CPU TypeIntel Core 9th Gen (LGA 1151)
  • ChipsetIntel B360
  • Form FactorMicro ATX
  • Supports Intel Core 9th Gen processors with LGA 1151 socket
  • Micro ATX form factor fits compact PC builds
  • Four DDR4 memory slots enable up to 64 GB capacity
  • Six SATA connectors provide ample storage expansion
  • 1 channel audio delivers immersive sound output

Micro ATX foundation for 9th Gen Intel

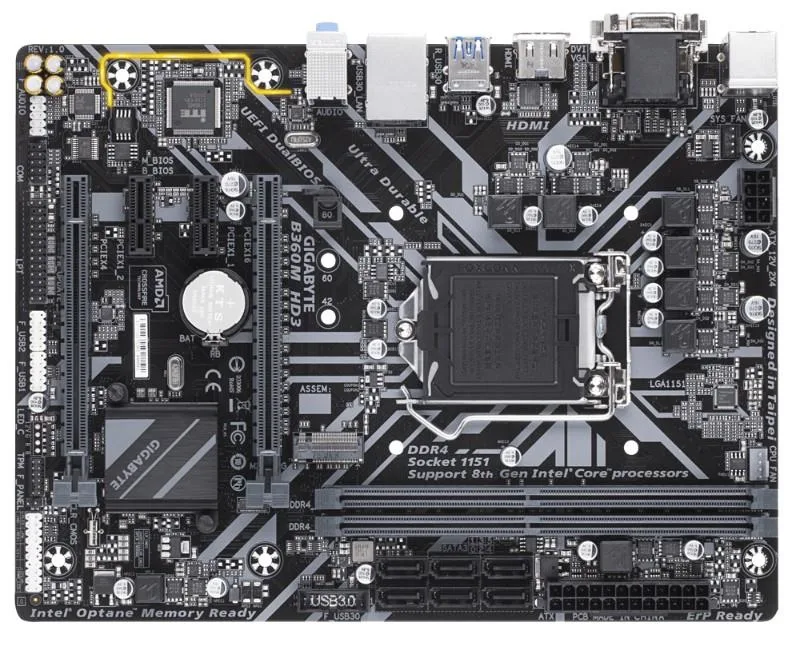

The GIGABYTE B360M HD3 uses the Intel B360 chipset and an LGA 1151 socket to support 9th Generation Core processors. Its Micro ATX form factor fits compact cases while keeping essential expansion room. Two DDR4 DIMM slots handle system memory. Onboard 7.1 channel audio and three-display capability cover everyday multimedia needs without extra cards.

Build essentials and expansion room

A single M.2 slot and six SATA III connectors give storage flexibility for SSDs and hard drives. One USB 3.0 header and two USB 2.0 headers serve front-panel ports. One chassis fan header plus CPU fan and 24-pin ATX power keep cooling and power simple. A TPM header and serial header add security and legacy options. CrossFire support allows dual-GPU configurations when the case and power supply allow.

Included software utilities

Windows 10 64-bit drivers across Home, Pro, Education and Enterprise editions ensure OS compatibility. Intel XMP support lets compatible DDR4 modules run at rated speeds through BIOS. PC health monitoring tracks fan speed, temperature and voltage readings. HDMI 1.4 output drives one of the three supported displays directly from the rear I/O.

Highlights

  • Supports Intel Core 9th Gen processors with LGA 1151 socket
  • Micro ATX form factor fits compact PC builds
  • Four DDR4 memory slots enable up to 64 GB capacity
  • Six SATA connectors provide ample storage expansion
  • 1 channel audio delivers immersive sound output

Specifications

BrandGIGABYTE
ModelB360M HD3
CPU Socket TypeLGA 1151
CPU TypeIntel Core 9th Gen (LGA 1151)
ChipsetIntel B360
Form FactorMicro ATX

Questions about this item

How many memory slots does the B360M HD3 provide for DDR4?

The board has two DDR4 DIMM slots, so the memory limit you hit first is the two-slot maximum.

What fan headers are available for all-day cooling?

One CPU fan header and one chassis fan header are provided for active cooling.

Which display outputs are built in for the integrated graphics?

The rear panel includes HDMI 1.4 plus additional video ports to drive up to three displays.
