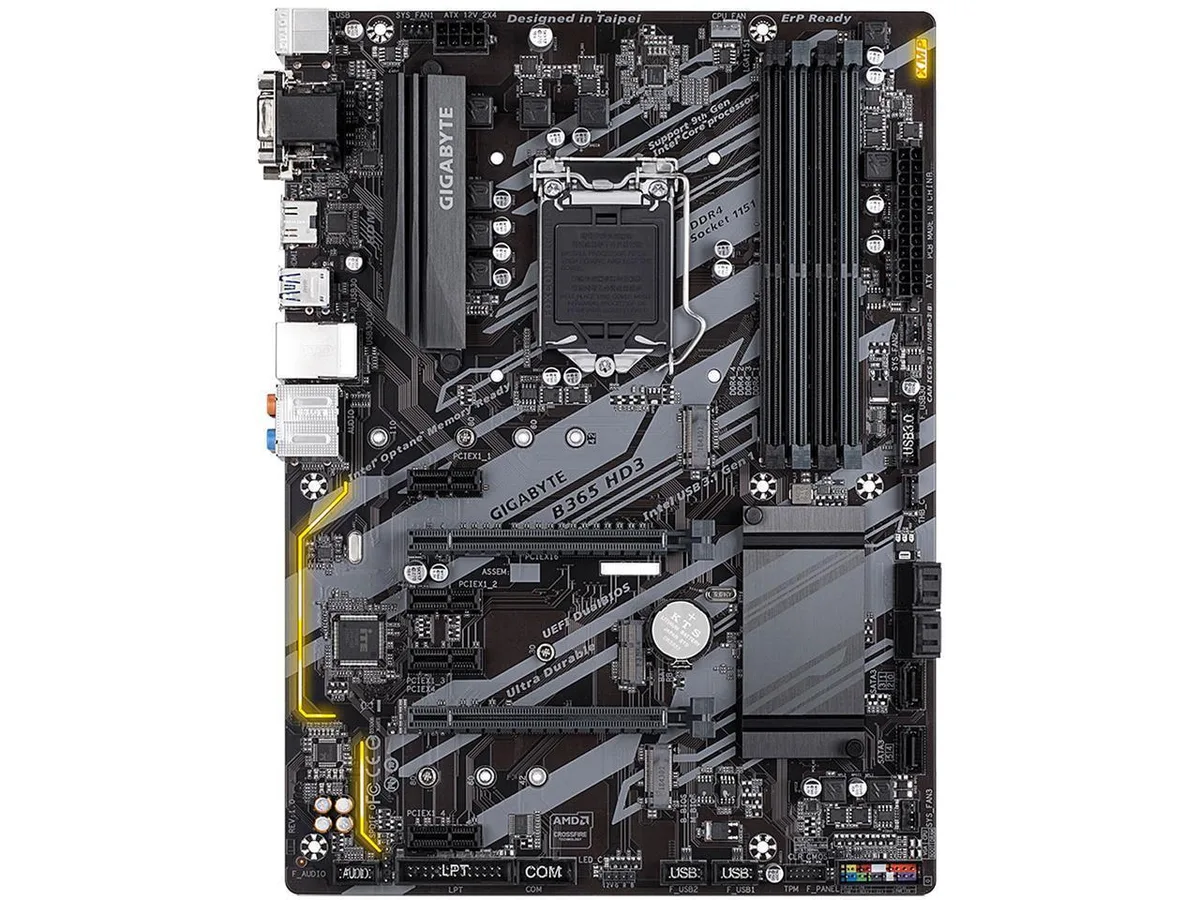

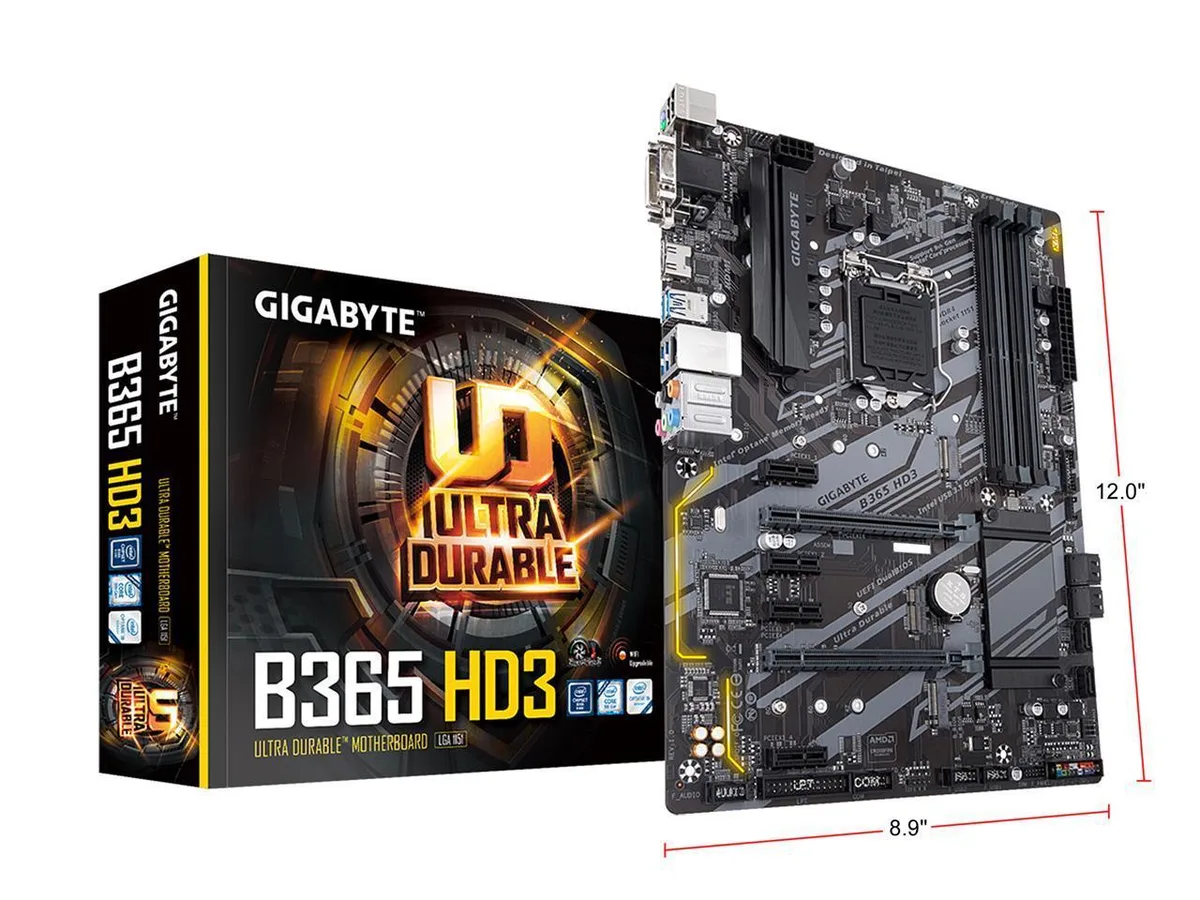

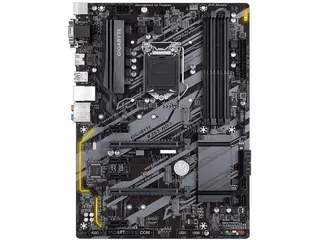

Rectangular ATX motherboard with dark PCB, silver heatsinks, four DDR4 slots, and rear I/O panel

GIGABYTE

GIGABYTE B365 HD3 Intel Motherboard LGA 1151

SKU CH-33PG-FX1PJ

ATX board with Intel B365 chipset, LGA 1151 socket for 8th and 9th Gen Core CPUs, four DDR4 slots up to 64 GB, dual M.2 and six SATA 6Gb/s ports, Realtek GbE LAN and ALC892 audio

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeSupport for 9th and 8th Generation Intel Core i9/i7/i5/i3 pr
  • ChipsetIntel B365
  • Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support: 1 x
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardSupport for DDR4 2666/ 2400/ 2133 MHz memory modules Support
  • Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 up to 64 GB at 2666 MHz for responsive multitasking
  • Two M.2 slots with PCIe 3.0 x4 and SATA for fast storage expansion
  • Realtek ALC892 audio with 7.1-channel support and noise guard for clear sound
  • Intel GbE LAN with bandwidth management for stable wired connectivity

Socket Compatibility

The board uses the LGA 1151 socket for Intel 300 series chipsets and accepts 8th and 9th generation Core i9, i7, i5, i3, Pentium and Celeron processors. It is not compatible with older LGA 1151 CPUs so the processor choice decides whether the motherboard works at all.

Memory Configuration

Four 288 pin DDR4 slots support dual channel operation up to 64 GB total capacity with native speeds of 2666, 2400 and 2133 MHz. XMP profiles are supported when paired with a 9th or 8th generation Core i9, i7 or i5 CPU so memory performance scales with the processor installed.

Expansion and Storage Layout

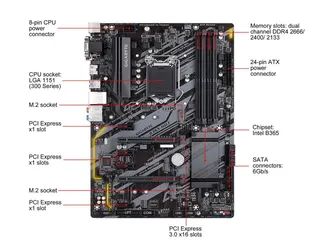

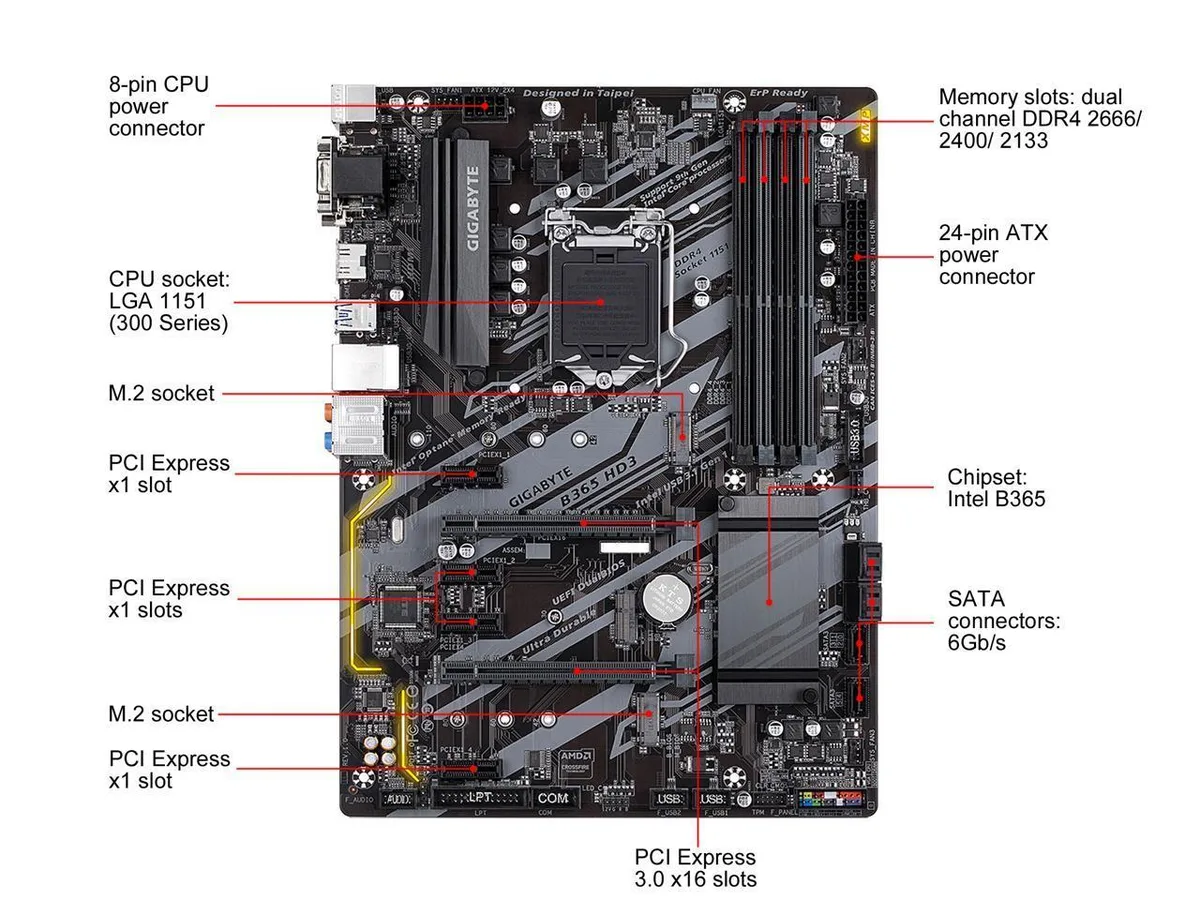

One PCIe 3.0 x16 slot runs at full x16 speed for a graphics card while four x1 slots and two M.2 sockets add further expansion. Six SATA 6Gb/s ports provide traditional drive connections and both M.2 slots accept 2242, 2260 and 2280 form factors with one also supporting 22110 length drives.

Highlights

  • Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 up to 64 GB at 2666 MHz for responsive multitasking
  • Two M.2 slots with PCIe 3.0 x4 and SATA for fast storage expansion
  • Realtek ALC892 audio with 7.1-channel support and noise guard for clear sound
  • Intel GbE LAN with bandwidth management for stable wired connectivity

Specifications

BrandGIGABYTE
ModelB365 HD3
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeSupport for 9th and 8th Generation Intel Core i9/i7/i5/i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1151 package
* Not backward compatible with older generation of LGA 1151 CPUs
ChipsetIntel B365
Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Support for up to 3 displays at the same time
Maximum shared memory of 1GB
Actual support may vary by CPU
Number of Memory Slots4x288pin (DDR4)
Memory StandardSupport for DDR4 2666/ 2400/ 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel Core i9/i7/i5 processor.
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Express x14 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Other Slots1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P)
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC892
Audio Channels2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN ChipsetRealtek GbE LAN chip
Max LAN Speed1Gbps
Back I/O Ports1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
Onboard USB1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
3 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Thunderbolt add-in card connector
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x parallel port header
1 x serial port header
1 x Clear CMOS jumper
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 8.9"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesMulti-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboar

Questions about this item

What does the 64 GB maximum memory mean for my build?

You can populate all four DDR4 slots with up to 64 GB total, running in dual-channel mode at 2666, 2400 or 2133 MHz depending on the modules and CPU installed.

How fast is the M.2 Socket 3 M key slot in practice?

The primary M.2 connector supports PCIe 3.0 x4 and SATA SSDs up to 22110 length, so a PCIe 3.0 drive will run at its rated Gen3 speeds.

What case and power clearances does this ATX board need?

The board follows standard ATX dimensions, requires a 24-pin ATX power connector plus an 8-pin CPU power connector, and fits any ATX-compatible chassis with the usual I/O shield cutout.
